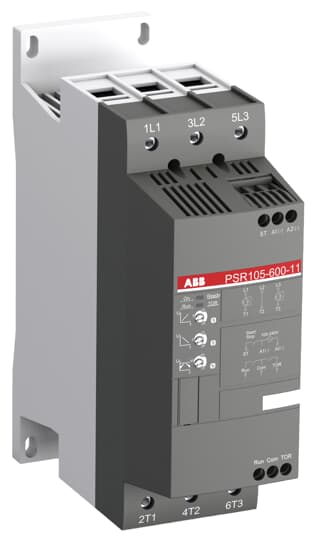

1SFA896115R1100 ABB
ABB

1SFA896115R1100 ABB

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85371091

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:
Instructions and Manuals (Part 3):
EPLAN Data:
Wiring Diagram:

Dimensions

Product Net Width:
180 mm
Product Net Height:
220 mm
Product Net Depth / Length:
70 mm
Product Net Weight:
2.1 kg

Technical

Rated Operational Voltage:
208 ... 600 V AC
Rated Control Supply Voltage (Us):
24 V AC/DC
Rated Control Circuit Voltage (Uc):
24 V DC
Rated Frequency (f):
50/60 Hz
Main Circuit 50 / 60 Hz
50/60 Hz
Main Circuit 50 / 60 Hz
Rated Operational Power - In-Line Connection (Pe):
(230 V) 30 kW
(400 V) 55 kW
(500 V) 55 kW
(230 V) 30 kW
(400 V) 55 kW
(500 V) 55 kW
Rated Operational Current - In-Line Connection (Ie):
105 A
Service Factor Percentage:
100 %
Overload Protection:
Recommended MS495 80 ... 100
Integrated Electronic Overload:
No
Starting Capacity at Maximum Rated Current Ie:
4xIe for 6s
Ramp Time:
0 ... 20 second [unit of time]
1 ... 10 second [unit of time]
0 ... 20 second [unit of time]
1 ... 10 second [unit of time]
Initial Voltage During Start:
40 ... 70 %
Step Down Voltage Special Ramp:
100 ... 60 %
Current Limit Function:
No
Switch for Inside Delta Connection:
No
Run Signal Relay:
Yes
By-pass Signal Relay:
Yes
Fault Signal Relay:
No
Overload Signal Relay:
No
Signal Indication Completed Start Ramp (LED):
Green
Signal Indication Ready to Start/Standby ON (LED):
Green
Signal Indication Running R (LED):
Green
Signal Indication Ramping Up/Down (LED):
Green
Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:
10
Communication:
FiledBusPlug(Optional)
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
Terminal Type:
Main Circuit: Bars
Connecting Capacity Main Circuit:
Rigid 1x 6 ... 95 mm²
Rigid 2 x 6 ... 35 mm²
Rigid 1x 6 ... 95 mm²
Rigid 2 x 6 ... 35 mm²
Connecting Capacity Control Circuit:
1 x 0.75 ... 2.5 mm²
2 x 0.75 ... 2.5 mm²
Rigid 1/2 x 0.75 ... 2.5 mm²
1 x 0.75 ... 2.5 mm²
2 x 0.75 ... 2.5 mm²
Rigid 1/2 x 0.75 ... 2.5 mm²
Connecting Capacity Supply Circuit:
Rigid 1 x 0.75 ... 2.5
Tightening Torque:
Control Circuit 0.6 N·m
Main Circuit 8 N·m
Supply Circuit 0.6 N·m
Control Circuit 0.6 N·m
Main Circuit 8 N·m
Supply Circuit 0.6 N·m
Product Main Type:
PSR105
Function:
Soft start with voltage ramp
Soft stop with voltage ramp
Soft start with voltage ramp
Soft stop with voltage ramp

Technical UL/CSA

Horsepower Rating UL/CSA:
(200 ... 208 V AC) Three Phase 30 Hp
(220 ... 240 V AC) Three Phase 40 Hp
(440 ... 480 V AC) Three Phase 75 Hp
(550 ... 600 V AC) Three Phase 100 Hp
(200 ... 208 V AC) Three Phase 30 Hp
(220 ... 240 V AC) Three Phase 40 Hp
(440 ... 480 V AC) Three Phase 75 Hp
(550 ... 600 V AC) Three Phase 100 Hp
Maximum Operating Voltage UL/CSA:
Main Circuit 600 V
Tightening Torque UL/CSA:
Control Circuit 5.3 in·lb
Main Circuit 70.8
Supply Circuit 5.3 in·lb
Control Circuit 5.3 in·lb
Main Circuit 70.8
Supply Circuit 5.3 in·lb

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Operation -25 ... +60 °C
Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
1caf577d-084a-43ed-a6ea-ef420754c09b China
Simplified SCIP:
d2b5998d-e346-4f05-964d-2780655f6d37 Hungary
8b445308-2648-47f1-a41a-593564e786e9 Greece
b83b72bd-46a5-4e43-8e78-42c2b9189b4e Germany
dfda15a8-dd91-4e50-8aee-30b6c83359b9 Germany
cca2898a-4dfd-4f15-90bd-95270e095388 Estonia
e627d7d7-bf25-4182-9fc1-a233432ce1c3 Germany
ca1bf596-def7-485d-93aa-5ce14161d5d6 Bulgaria
17e973dc-7870-46c5-a7e7-ef5f34730393 Poland
d2ee20e3-d9a1-49d4-b50c-ab270b4633c0 Netherlands
a170a5a3-12cc-4b95-90b3-8039640d81b9 Germany
276c5ed1-b47c-4b11-a7de-758b126406ce Germany
6316367b-0e87-4022-97c0-bb1b38236b6e Denmark
cc881b33-6bef-4421-b675-346654246e4e Poland
86228e4d-5940-4439-a735-a2af311ecd58 Portugal
f0d51129-e59b-4974-a411-7d241913fc46 France
bb8d235c-9e5b-4861-b31e-f60b685801dc Belgium
c758432a-acda-443f-bf65-b09c1ddd57f5 Norway
9efdb42b-c1fe-4671-af53-15557daeb42b Finland
e5f18c1f-acfd-4148-888a-6b068706089f Sweden
9682c877-ec29-4bdf-8354-056792b9c9c8 Poland
0584f014-7b5d-4d83-af8c-47f39eac3390 France
54faef34-4bb9-42c2-b843-1d3ba1df2c31 Sweden
a5ccf6bc-f1a2-417e-a9f7-4e523b20f42b Hungary
501c1aa6-d749-4002-9e54-1ebf614fa8f9 Spain
79470bfd-aa43-45f3-a204-fd05858a3cd0 Belgium
76f5a438-4408-4c0d-b2a0-76fa6190c7df Croatia
701e91fa-0ee5-4117-aa1f-62872988c231 Czech Republic
d2b5998d-e346-4f05-964d-2780655f6d37 Hungary
8b445308-2648-47f1-a41a-593564e786e9 Greece
b83b72bd-46a5-4e43-8e78-42c2b9189b4e Germany
dfda15a8-dd91-4e50-8aee-30b6c83359b9 Germany
cca2898a-4dfd-4f15-90bd-95270e095388 Estonia
e627d7d7-bf25-4182-9fc1-a233432ce1c3 Germany
ca1bf596-def7-485d-93aa-5ce14161d5d6 Bulgaria
17e973dc-7870-46c5-a7e7-ef5f34730393 Poland
d2ee20e3-d9a1-49d4-b50c-ab270b4633c0 Netherlands
a170a5a3-12cc-4b95-90b3-8039640d81b9 Germany
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Container Information

Package Level 1 Width:
195 mm
Package Level 1 Depth / Length:
86 mm
Package Level 1 Height:
230 mm
Package Level 1 Gross Weight:
2.3 kg
Package Level 1 EAN:
7320500477267
Package Level 1 Units:
box 1 piece

External Classifications and Standards

Object Classification Code:
Q
ETIM 7:
EC000640 - Soft starter
ETIM 8:
EC000640 - Soft starter
ETIM 9:
EC000640 - Soft starter
eClass:
V11.0 : 27370907
UNSPSC:
39121521
IDEA Granular Category Code (IGCC):
4740 >> Soft starter
