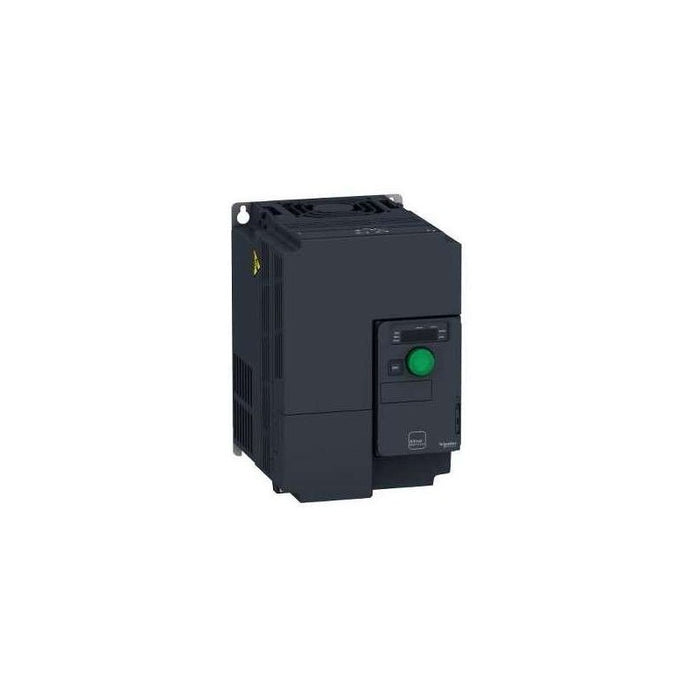

The ATV320U75M3C is a compact three-phase variable speed drive from Schneider Electric's Altivar Machine ATV320 series, designed specifically for original equipment manufacturers. This drive controls both synchronous and asynchronous motors with a rated power of 7.5 kW and operates on 200-240V AC three-phase supply. It features sensorless flux vector control, advanced motor control algorithms for precise speed and torque regulation, and integrated safety functions including Safe Torque Off up to SIL3/PLe. The drive incorporates IEC 60721-3-3 class 3C3 coated circuit boards for harsh environments, supporting operation at ambient temperatures up to 60°C without derating. It includes embedded communication protocols such as Modbus and CANopen, multiple digital and analog I/O options, and an LED display for configuration. Applications include material handling, packaging equipment, textiles, hoisting systems, mechanical actuators, and material working machines.
Item Details
- Brand Name: Schneider Electric
- Manufacturer: Schneider Electric
- Item Type Name: Variable Speed Drive
- Product Family / Series: Altivar Machine ATV320
Product Specifications
- rated_power: 7.5 kW
- rated_power_hp: 10 HP
- supply_voltage: 200-240V AC
- supply_voltage_range: 170-264V AC (-15%/+10% tolerance)
- number_of_phases: 3-phase
- rated_output_current: 33 A
- maximum_transient_current: 49.5 A (60s)
- supply_frequency: 50/60 Hz
- output_frequency_range: 0.1-599 Hz
- switching_frequency: 4 kHz nominal (2-16 kHz range)
- control_type: Variable speed drive with sensorless flux vector control
- enclosure_rating: IP20
- digital_inputs: 7 (4x standard 24V DC sink/source, 1x programmable pulse input, 1x discrete/PTC input, 1x STO Safe Torque Off)
- digital_outputs: 3 (1x 24V DC sink/source, 2x relay outputs)
- analog_inputs: 3
- analog_outputs: 1 (0-10V DC or 0-20mA configurable)
- communication_protocols: Modbus, CANopen
- connector_type: RJ45 for Modbus/CANopen
- display_type: LED
- mounting_type: Panel mounting, vertical position (+/- 10°)
- operating_temperature: -10°C to 50°C (without derating), 50°C to 60°C (with derating)
- overtorque_capability: 200% in open loop
Additional Details
- Country of Origin*: United States
- Certifications / Approvals: CE, UL 508, CSA C22.2, ATEX, EAC, KC, NOM, RCM, REACH Compliant, IEC 61800-3/61800-5-1/61000-3-12/60721-3/61508, IEC 13849-1, EN 61800-3/61800-5-1
- Safety Functions: STO (Safe Torque Off up to SIL3/PLe), SS1 (Safe Stop 1), SLS (Safely Limited Speed), SMS (Safe Maximum Speed), GDL (Guard Door Locking)
- Pcb Coating: IEC 60721-3-3 class 3C3 coated printed circuit boards
- Configuration Software: SoMove software, MachineStruxure integration via DTM
- Ean: 3606480966682
- Upc: 785901668527
*Country of origin may vary.
Measurements
- Weight: 3.6 kg
- Dimensions: 150 mm (W) x 232 mm (H) x 178 mm (D)
