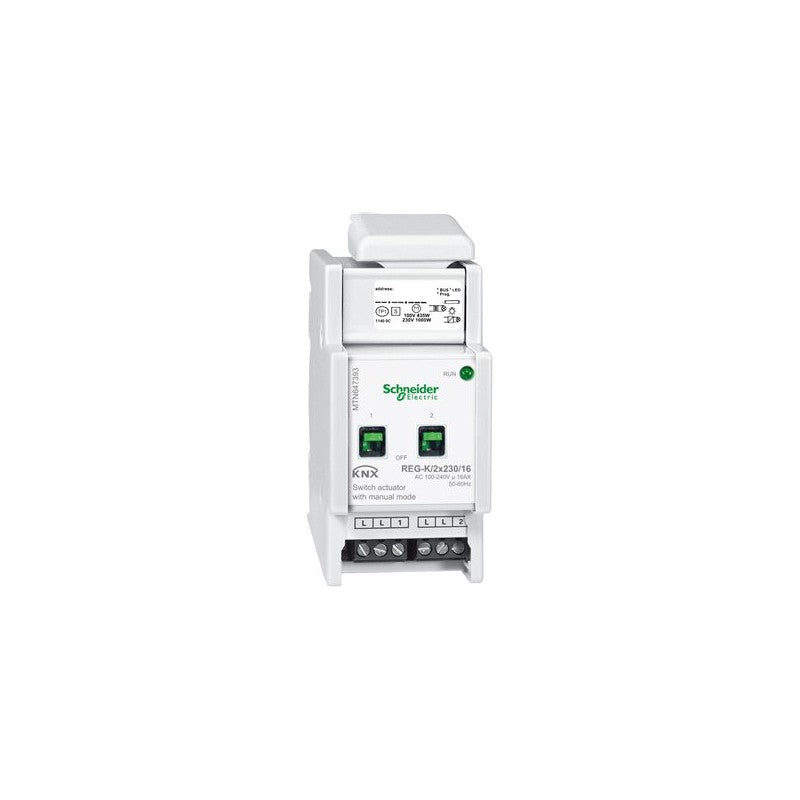

For independent switching of loads via make contacts. All 230 V switch outputs can be operated with manual switches. With integrated bus coupler. The device is connected to the mains via screw terminals. every second L connection is bridged internally. A green LED indicates readiness for operation after the application has been loaded. For installation on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal. a data rail is not necessary. KNX software functions:. Operation as break or make contact, delay functions for each channel, staircase lighting function with/without manual OFF function. Cut-out warning for staircase lighting function, blocking and additional logic operation or priority control, scenes, status feedback function per channel, central function. Comprehensive parameterisation for bus voltage failure and recovery, parameterisable download behaviour. Nominal voltage: AC 100-240 V ±10%. Operating voltage: min. AC 90 V - max. AC 265 V. Mains frequency: 50-60 Hz ±10%. For each switching contact: Switching current: 16 A, cos Phi 0.6. AC1 operation: max. 16 A. AC3 operation: max. 10 A. AC5 operation: max. 16 A. DC current switching capacity: max. 16 A/ 24 V DC. Output life endurance: Mechanical: >1000000. AC1/AC3/AC5 operation: >3x10000. 230V, 1A resistive: >8x100000. Nominal load. Incandescent lamps: AC 100 V, max. 1600 W. AC 230 V, max. 3600 W. AC 240 V, max. 3840 W. Halogen lamps: AC 100 V, max. 1086 W. AC 230 V, max. 2500 W. AC 240 V, max. 2608 W. Fluorescent lamps: AC 100 V, max. 1086 VA. AC 230 V, max. 2500 VA. AC 240 V, max. 2608 VA. parallel-compensated. Capacitive load: AC 230 V, 16 A, max. 200 µF. Minimum switching performance: 100 mA/12 V AC/DC. Maximum peak inrush-current: 150µs: 600 A. 250µs: 480 A. 600µs: 300 A. Device width: 4 modules, approx. 72 mm. Contents: With bus connecting terminal and cable cover. Colour: light grey. 4 channel device

Main

Complementary

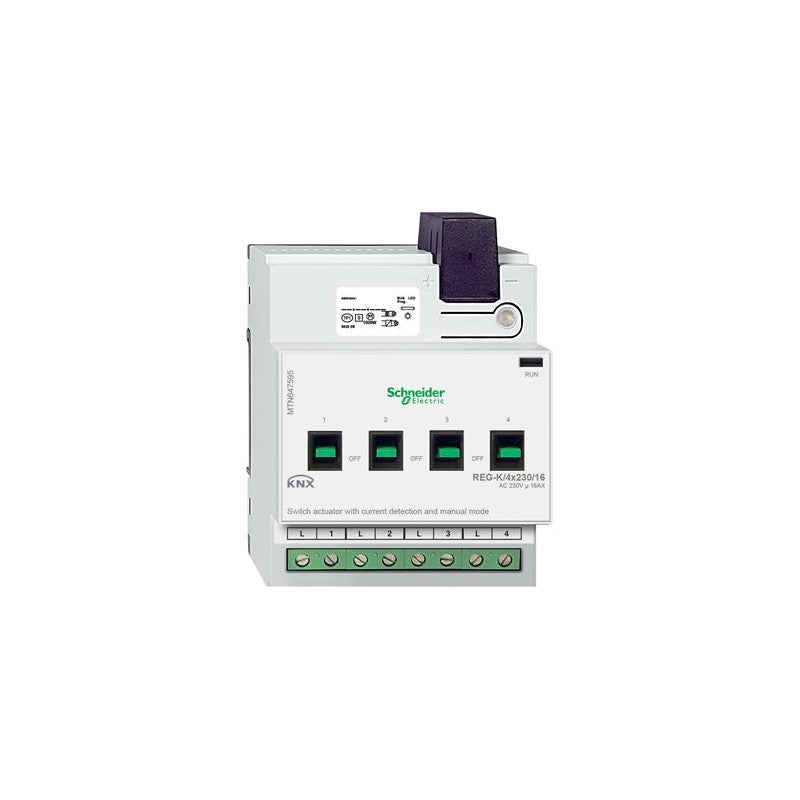

Switch actuator REG-K/4x230/16 w. manual mode and current detection, light grey

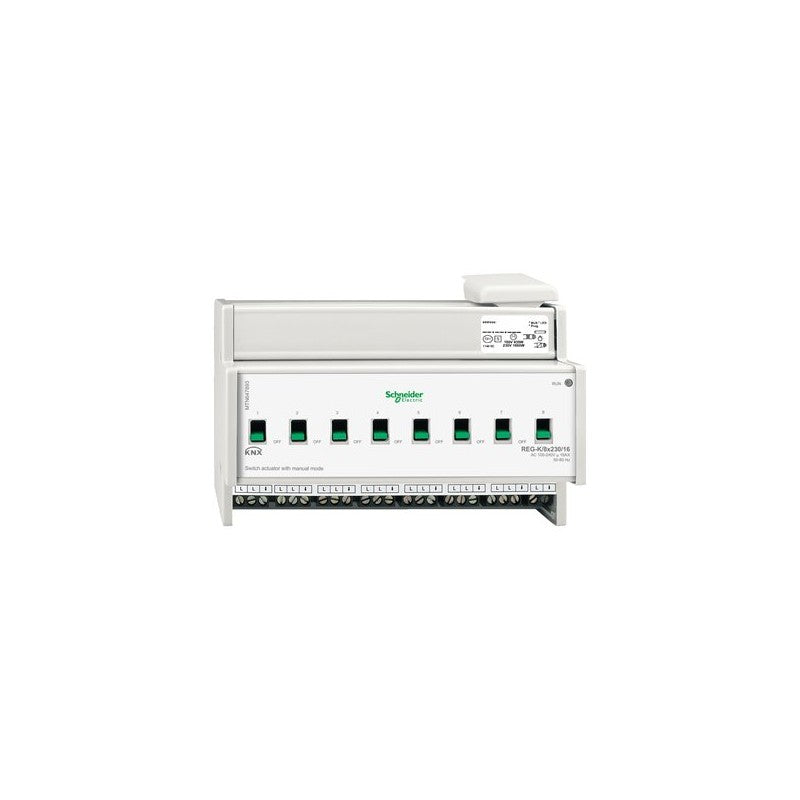

Switch actuator REG-K/8x230/16 with manual mode, light grey

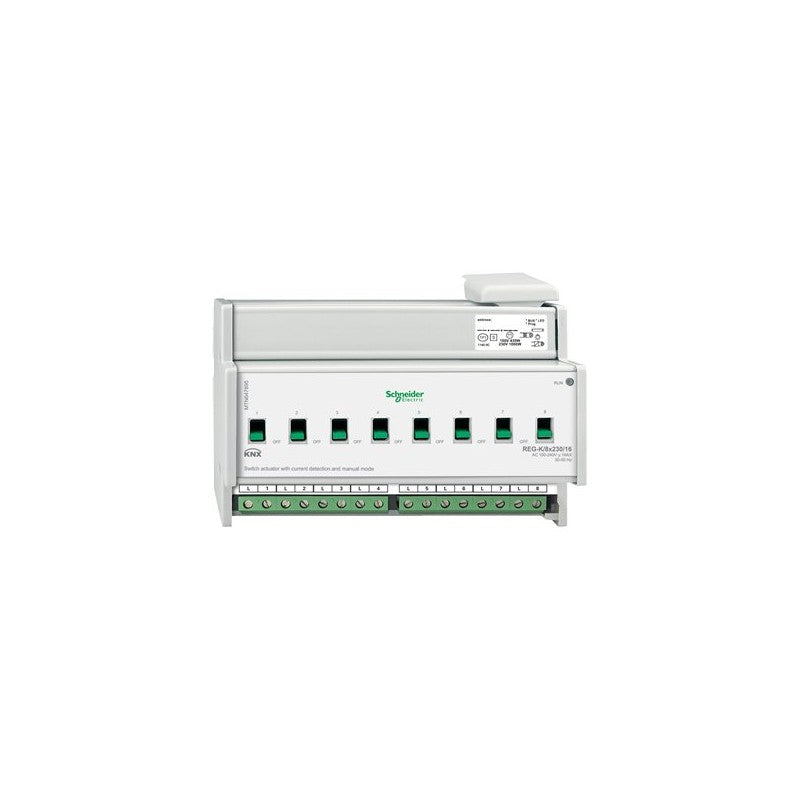

Switch actuator REG-K/8x230/16 w. manual mode and current detection, light grey

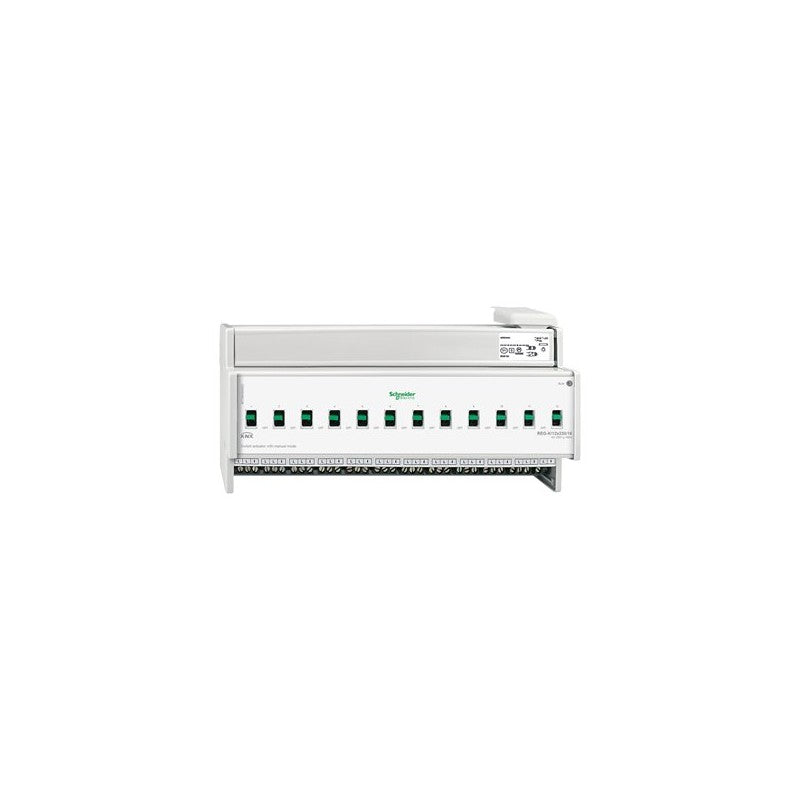

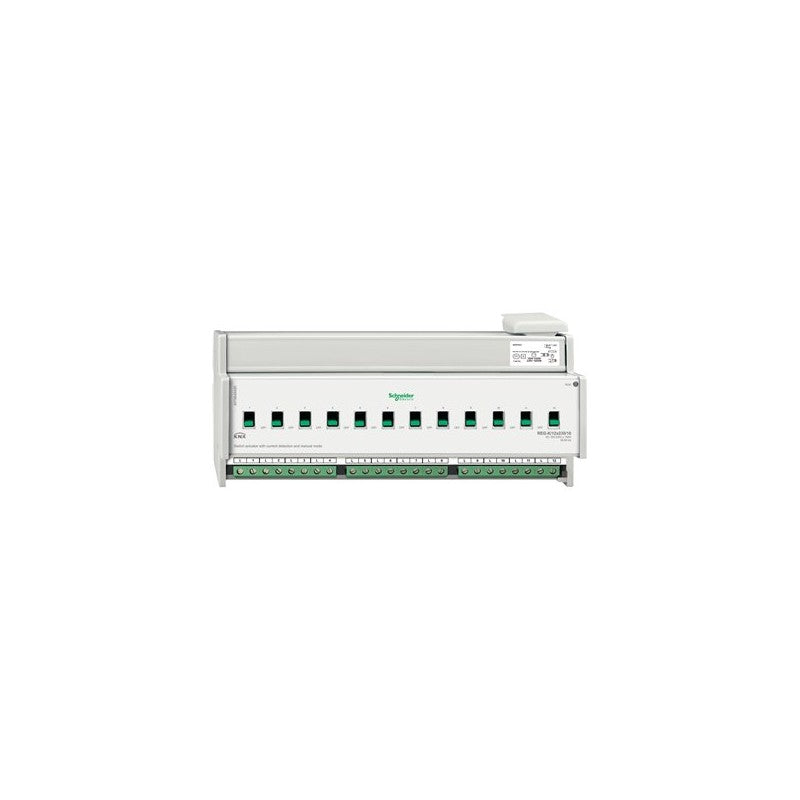

Switch actuator REG-K/12x230/16 with manual mode, light grey

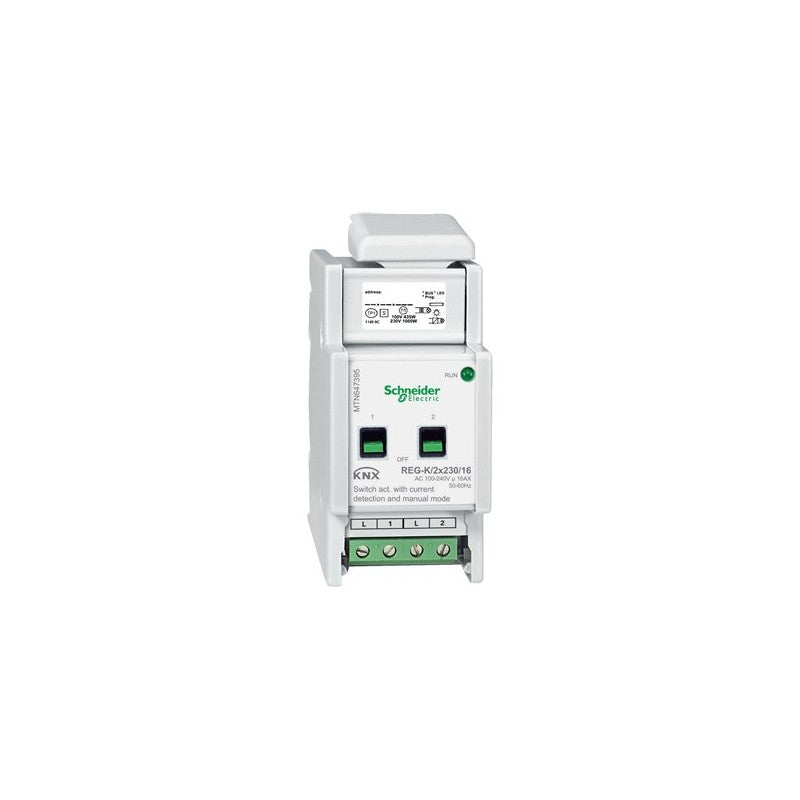

For independent switching of loads via make contacts. The actuator has integrated current detection that measures the load current on each channel. All 230 V switch outputs can be operated with manual switches. With integrated bus coupling unit. A green LED indicates that the device is ready for operation once the application has been loaded. The load is connected with screw terminals. For installation on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal. a data rail is not necessary. Operation as break contact or make contact. Staircase lighting function with/without manual OFF function and switch-off warning. Delay functions. Scenes. Logic function. Blocking or priority control. Feedback function. Status. Central function with delay. Parameterisation for bus voltage failure and recovery. Behaviour for download. Current detection function: Behaviour when value exceeds/falls short of the threshold value. Energy, operating and switch on counter with limit value monitoring. Flash function. Nominal voltage: 230 V AC, 50-60 Hz. DC 12-24 V ±10%, 0.1-16 A. For each switching contact: Switching current: 16 A, cos Phi 0.6. AC1 operation: max. 16 A. AC3 operation: max. 10 A. AC5 operation: max. 16 A. DC current switching capacity: max. 16 A/ 24 V DC. Output life endurance: Mechanical: >1000000. AC1/AC3/AC5 operation: >3x10000. 230V, 1A resistive: >8x100000. Incandescent lamps: 230 V AC, max. 3600 W. Halogen lamps: 230 V AC, max. 2500 W. Fluorescent lamps: 230 V AC, max. 2500 VA, with parallel compensation. Capacitive load: 230 V AC, 16 A, max. 200 µF. Minimum switching performance: 100 mA/12 V AC/DC. Maximum peak inrush-current: 150µs: 600 A. 250µs: 480 A. 600µs: 300 A. Current detection load current: Detection range: 0.1 A to 16 A (sine effective value or direct current). Detection accuracy: +/- 8% of the present current value (sine) and +/- 100 mA. Frequency: 50/60 Hz with alternating voltage. Display: 100 mA. Device width: 12 modules, approx. 216 mm. Contents: With bus connecting terminal and cable cover. Colour: light grey. 12 channel device

Main

Complementary

Blind actuator REG-K/4x24/6 with manual mode, light grey

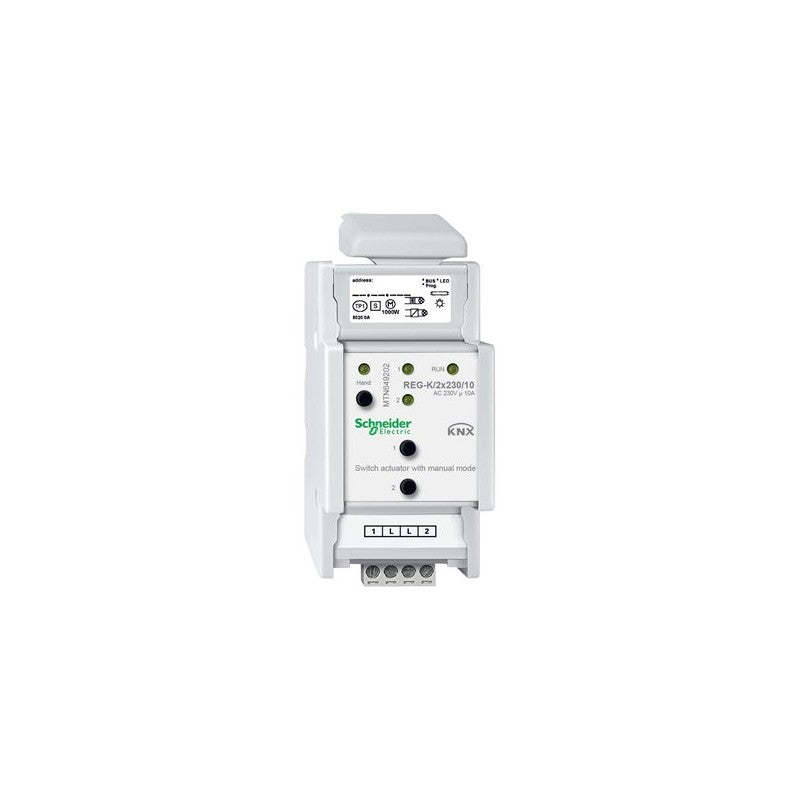

Switch actuator REG-K/2x230/10 with manual mode, light grey

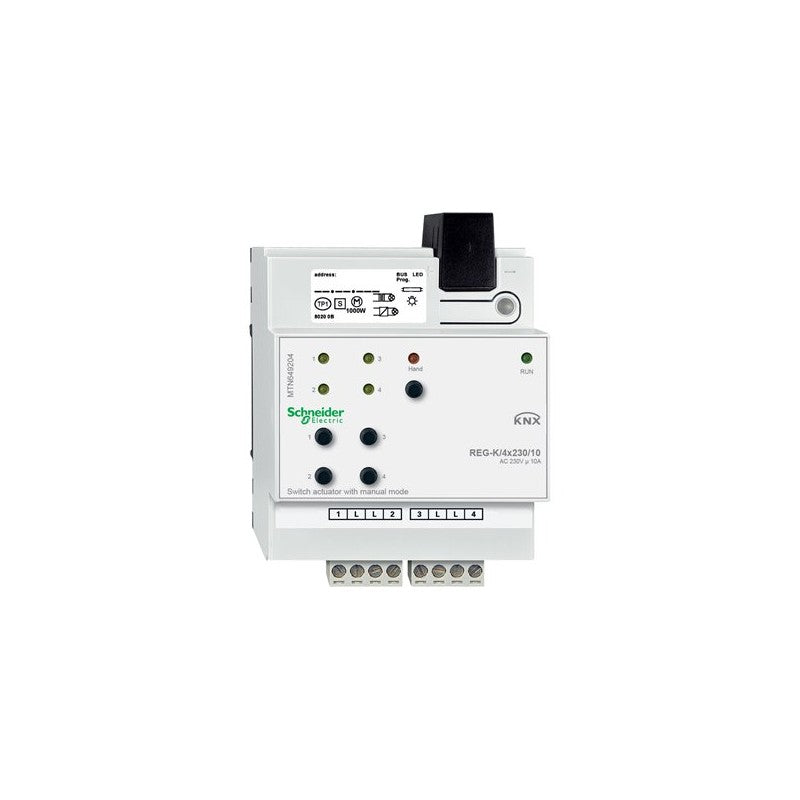

Switch actuator REG-K/4x230/10 with manual mode. For independent switching of up to 4 loads via make contacts. The function of the switching channels is freely configurable. All switching outlets can be operated manually using push-button operation. Channel status display via LEDs. A green LED indicates readiness for operation. With integrated bus coupler. For installation on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal. a data rail is not necessary. KNX software functions: Operation as break contact/make contact. Programmable behaviour for download. Delay functions for each channel. Staircase lighting function with/without manual OFF function. Cut-out warning for staircase lighting function. Scenes. Central function. Disable function. Logic operation or priority control. Status feedback function for each channel. Power supply: Nominal voltage: AC 230 V, 50 - 60 Hz. External auxiliary voltage (optional): AC 110 - 240 V, 50 - 60 Hz, max. 2 VA. For each switch output: Nominal current: 10 A, cos Phi 1. 10 A, cos Phi 0.6. Incandescent lamps: AC 230 V, max. 2000 W. Halogen lamps: AC 230 V, max. 1700 W. Fluorescent lamps: AC 230 V, max. 1800 W, uncompensated. AC 230 V, max. 1000 W parallel-compensated. Capacitive load: AC 230 V, max. 105 µF. Device width: 4 modules, approx. 72 mm. Contents: With bus connecting terminal and cable cover. Colour: light grey.

Main

Complementary

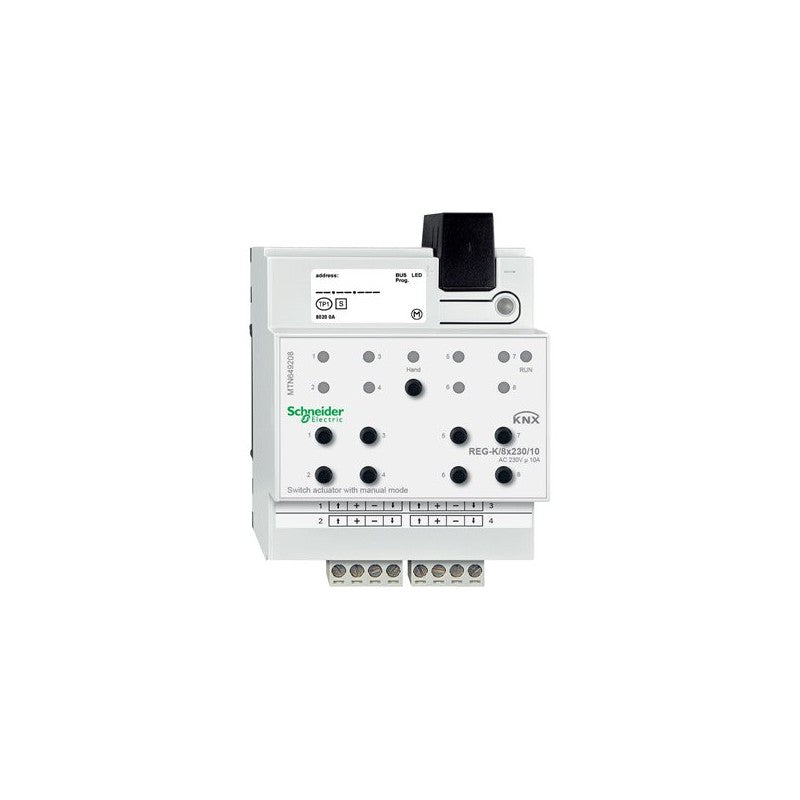

Switch actuator REG-K/8x230/10 with manual mode. For independent switching of up to 8 loads via make contacts. The function of the switching channels is freely configurable. All switching outlets can be operated manually using push-button operation. Channel status display via LEDs. A green LED indicates readiness for operation. With integrated bus coupler. For installation on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal. a data rail is not necessary. KNX software functions: Operation as break contact/make contact. Programmable behaviour for download. Delay functions for each channel. Staircase lighting function with/without manual OFF function. Cut-out warning for staircase lighting function. Scenes. Central function. Disable function. Logic operation or priority control. Status feedback function for each channel. Power supply: Nominal voltage: AC 230 V, 50 - 60 Hz. External auxiliary voltage (optional): AC 110 - 240 V, 50 - 60 Hz, max. 2 VA. For each switch output: Nominal current: 10 A, cos Phi 1. 10 A, cos Phi 0.6. Incandescent lamps: AC 230 V, max. 2000 W. Halogen lamps: AC 230 V, max. 1700 W. Fluorescent lamps: AC 230 V, max. 1800 W, uncompensated. AC 230 V, max. 1000 W parallel-compensated. Capacitive load: AC 230 V, max. 105 µF. Device width: 4 modules, approx. 72 mm. Contents: With bus connecting terminal and cable cover. Colour: light grey.

Main

Complementary

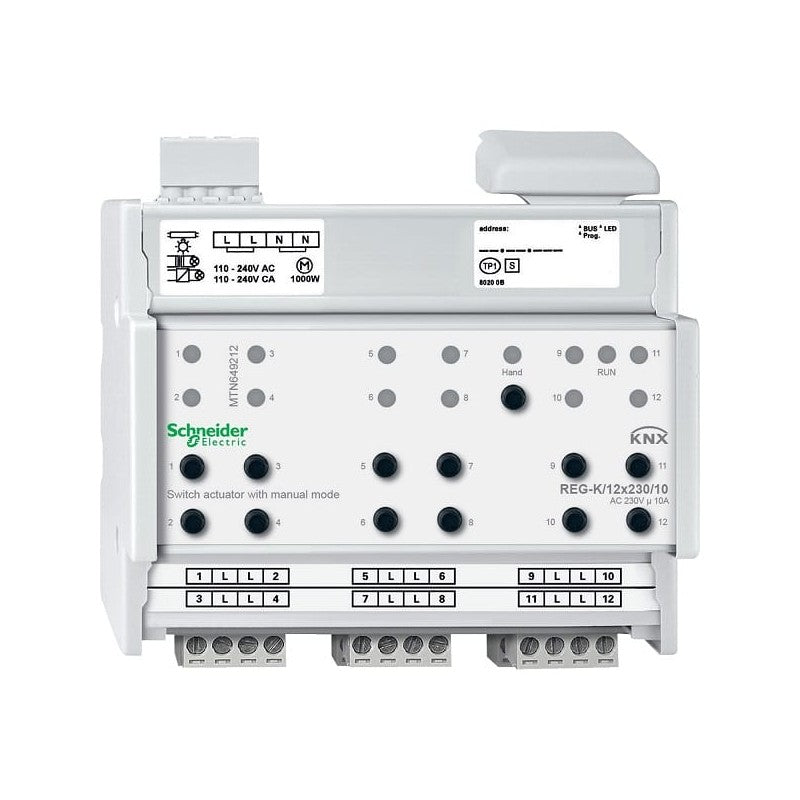

Switch actuator REG-K/12x230/10 with manual mode. For independent switching of up to 12 loads via make contacts. The function of the switching channels is freely configurable. All switching outlets can be operated manually using push-button operation. Channel status display via LEDs. A green LED indicates readiness for operation. With integrated bus coupler. For installation on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal. a data rail is not necessary. KNX software functions: Operation as break contact/make contact. Programmable behaviour for download. Delay functions for each channel. Staircase lighting function with/without manual OFF function. Cut-out warning for staircase lighting function. Scenes. Central function. Disable function. Logic operation or priority control. Status feedback function for each channel. Power supply: Nominal voltage: AC 230 V, 50 - 60 Hz. External auxiliary voltage (optional): AC 110 - 240 V, 50 - 60 Hz, max. 2 VA. For each switch output: Nominal current: 10 A, cos Phi 1. 10 A, cos Phi 0.6. Incandescent lamps: AC 230 V, max. 2000 W. Halogen lamps: AC 230 V, max. 1700 W. Fluorescent lamps: AC 230 V, max. 1800 W, uncompensated. AC 230 V, max. 1000 W parallel-compensated. Capacitive load: AC 230 V, max. 105 µF. Device width: 6 modules, approx. 108 mm. Contents: With bus connecting terminal and cable cover. Colour: light grey.

Main

Complementary

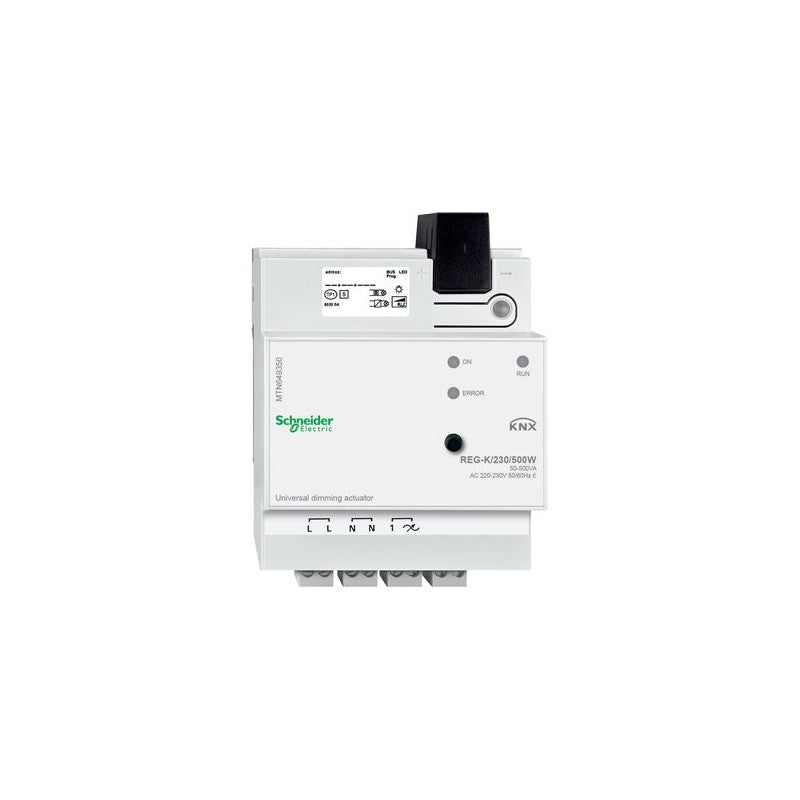

Universal dimming actuator REG-K/230/1000 W, light grey

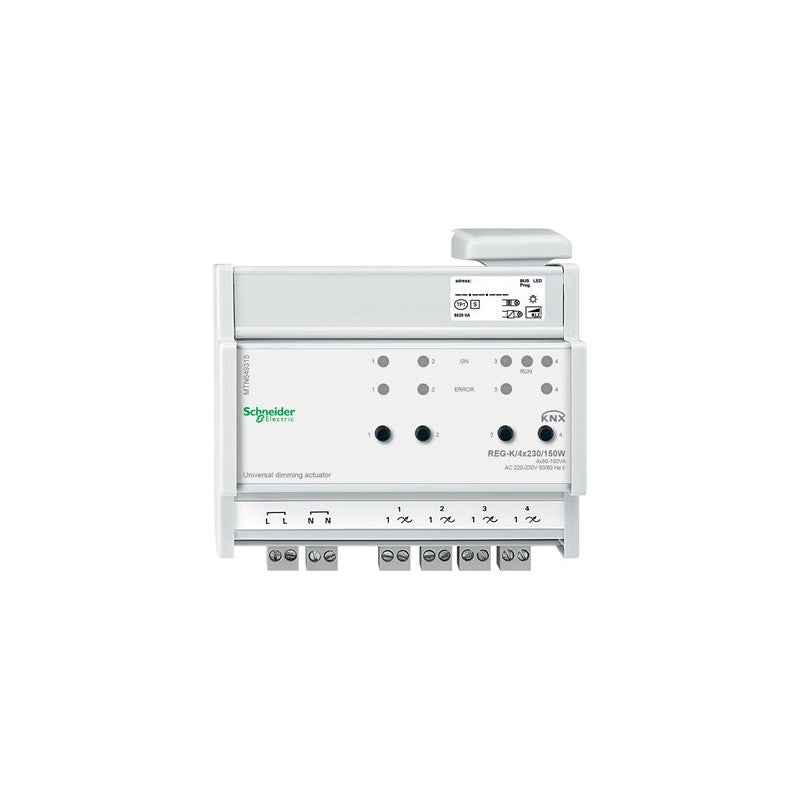

Universal dimming actuator REG-K/4x230/150 W, light grey

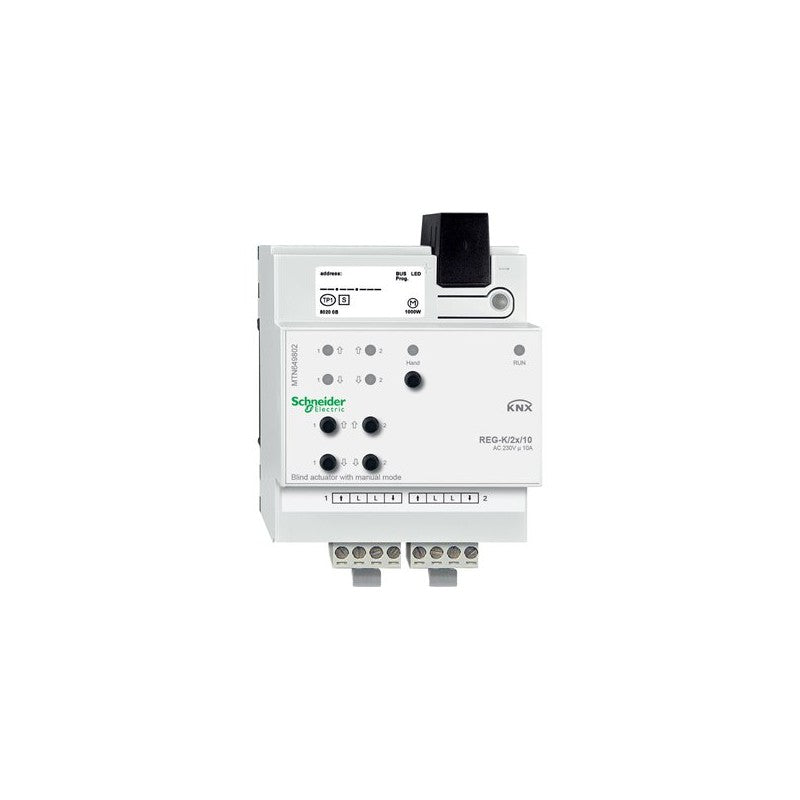

Roller shutter actuator REG-K/4x/10 with manual mode, light grey

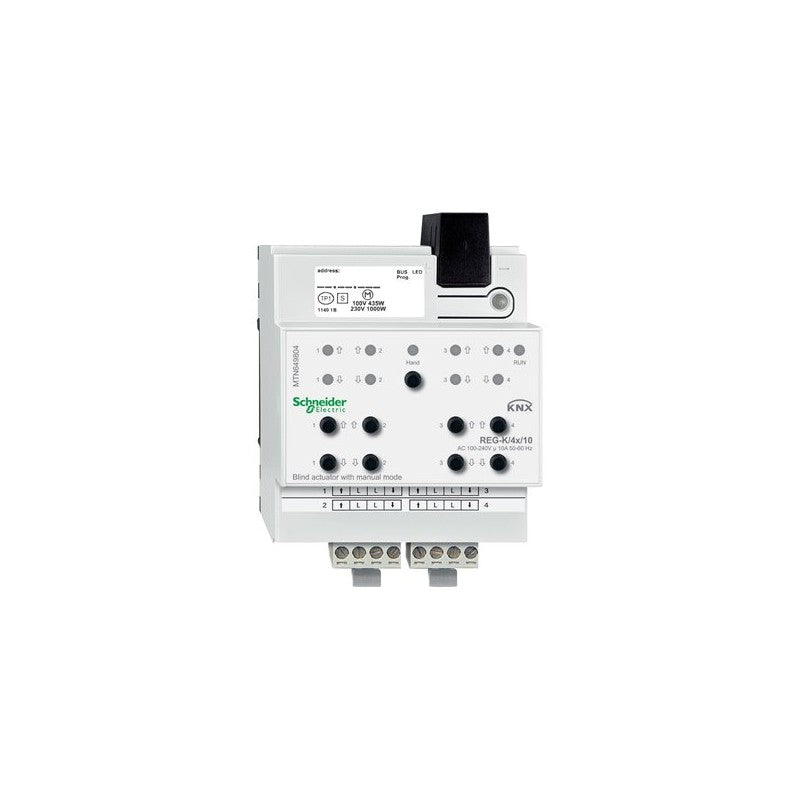

KNX blind actuator REG-K/4x/10 with manual mode. For independent control of 4 blind/roller shutter drives. The function of the blind channels is freely configurable. All blind outputs can be operated manually using push-button operation. Channel status display via LEDs. A green LED indicates readiness for operation. With integrated bus coupler. For installation on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal. A data rail is not necessary. KNX software functions: Blind functions: Blind type. Running time. Idle time. Step interval. Differentiated disable functions and weather alarms. 8-bit positioning for height and slat. Scenes. Manual/automatic mode. Differentiated status and status feedback functions. For each blind output: Nominal voltage: AC 100-240 V ±10%. Operating voltage: min. AC 90 V - max. AC 265 V. Mains frequency: 50-60 Hz ±10%. Nominal current: 10 A, inductive load cos Phi 0.6. Motor load: AC 100 V, max. 434 W. AC 230 V, max. 1000 W. AC 240 V, max. 1043 W. Device width: 4 modules, approx. 72 mm. Contents: With bus connecting terminal and cable cover. Colour: light grey.

Main

Complementary

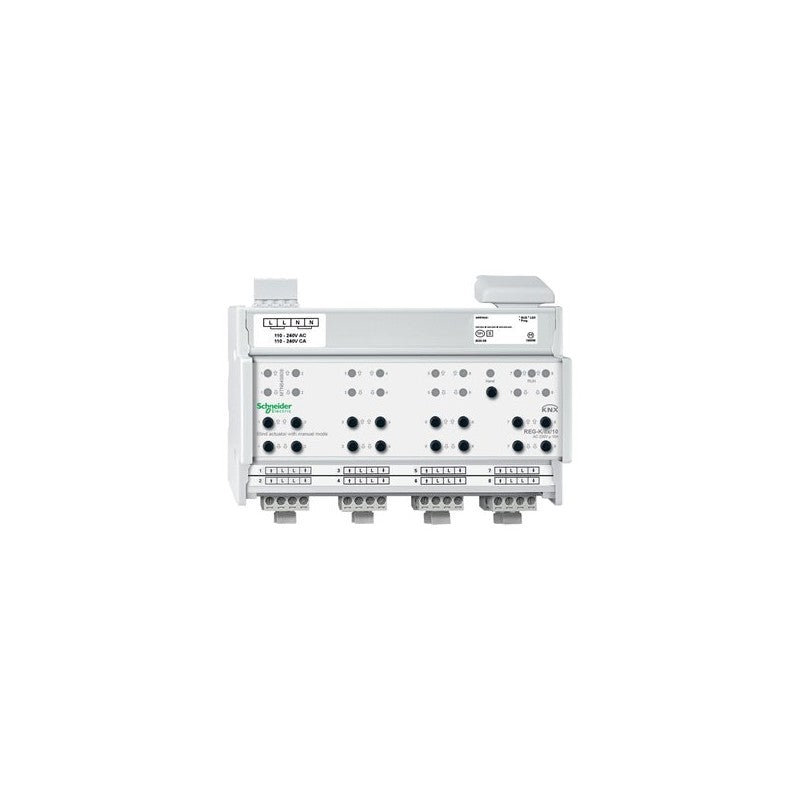

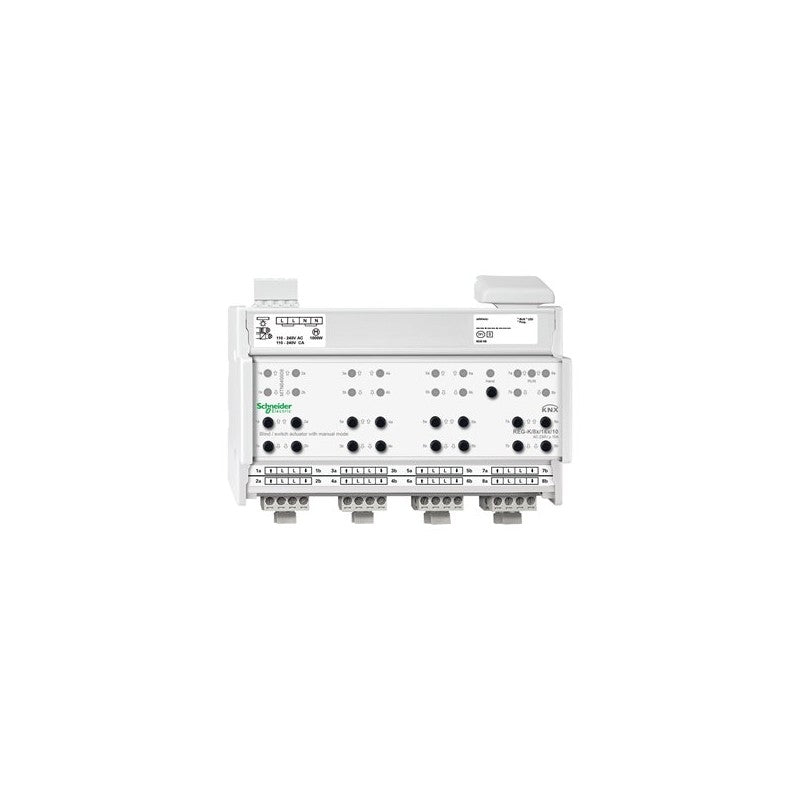

Blind actuator REG-K/8x/10 with manual mode, light grey

For independent control of up to 8 blind/roller shutter drives or for switching up to 16 loads via make contacts. The function of the blind or switching channels is freely configurable. All blind/switch outputs can be operated manually using push-buttons. The bus is connected using a bus connecting terminal. A data rail is not necessary. Channel status display via LEDs. A green LED indicates readiness for operation. With integrated bus coupler. For installation on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal. a data rail is not necessary. Blind functions: Blind type. Running time. Idle time. Step interval. Weather alarm. 8-bit positioning for height and slats. Scenes. Status and feedback function. Switch actuator functions: Operation as break contact/make contact. Programmable behaviour for download. Delay functions for each channel. Staircase lighting function with/without manual OFF function. Cut-out warning for staircase lighting function. Scenes. Central function. Disable function. Logic operation or priority control. Status feedback function for each channel. Nominal voltage: AC 100-240 V ±10%. Operating voltage: min. AC 90 V - max. AC 265 V. Mains frequency: 50-60 Hz ±10%. For each blind output: Nominal current: 10 A, inductive load cos Phi 0.6. Motor load: AC 100 V, max. 434 W. AC 230 V, max. 1000 W. AC 240 V, max. 1043 W. For each switch output: Nominal current: 10 A, ohmic load cos Phi 1. 10 A, inductive load cos Phi 0.6. Nominal load. Incandescent lamps: AC 100 V, max. 869 W. AC 230 V, max. 2000 W. AC 240 V, max. 2086 W. Halogen lamps: AC 100 V, max. 739 W. AC 230 V, max. 1700 W. AC 240 V, max. 1773 W. Fluorescent lamps: AC 100 V, max. 434 VA.AC 230 V, max. 1000 VA. AC 240 V, max. 1043 VA. parallel-compensated. Capacitive load: AC 230 V, 10 A, max. 105 µF. External auxiliary voltage: Nominal voltage: AC 110-240 V ±10%. Device width: 8 modules, approx. 144 mm. Contents: With bus connecting terminal and cable cover. Colour: light grey.

Main

Complementary

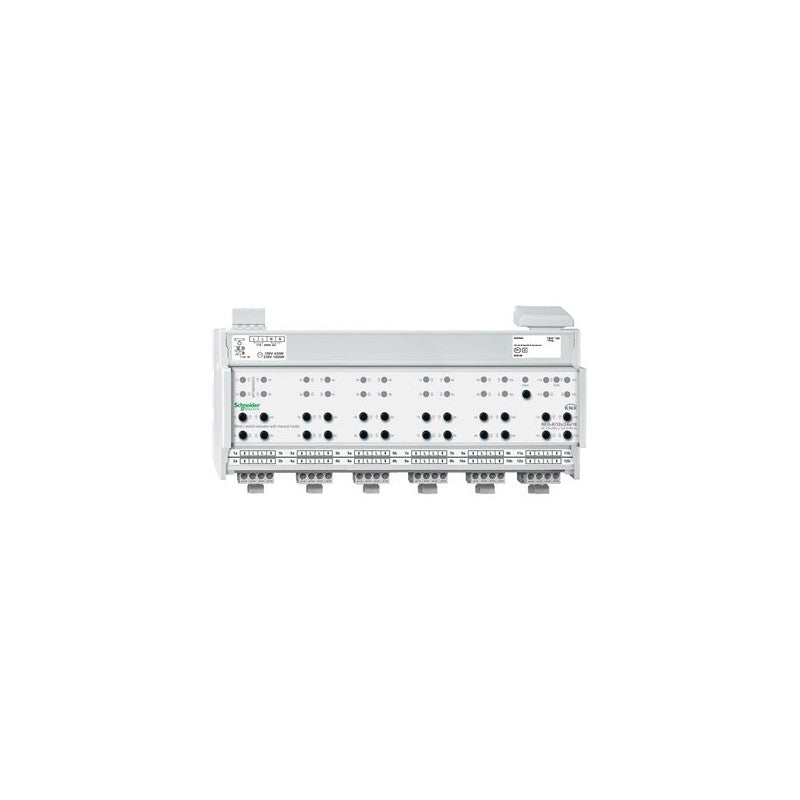

Blind / switch actuator REG-K/12x/24x/10 with manual mode, light grey

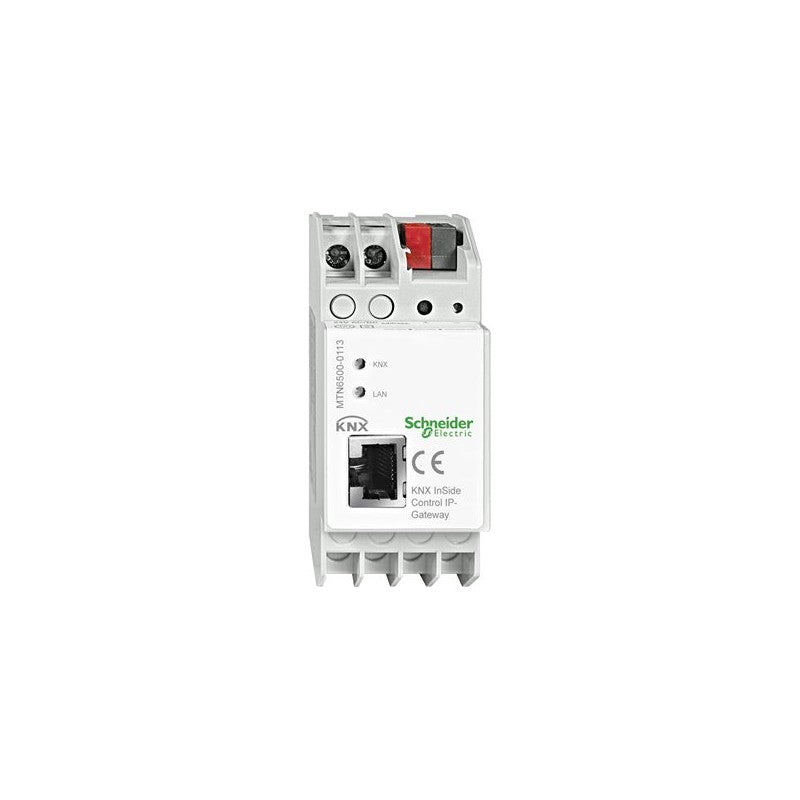

KNX InSideControl IP-Gateway
