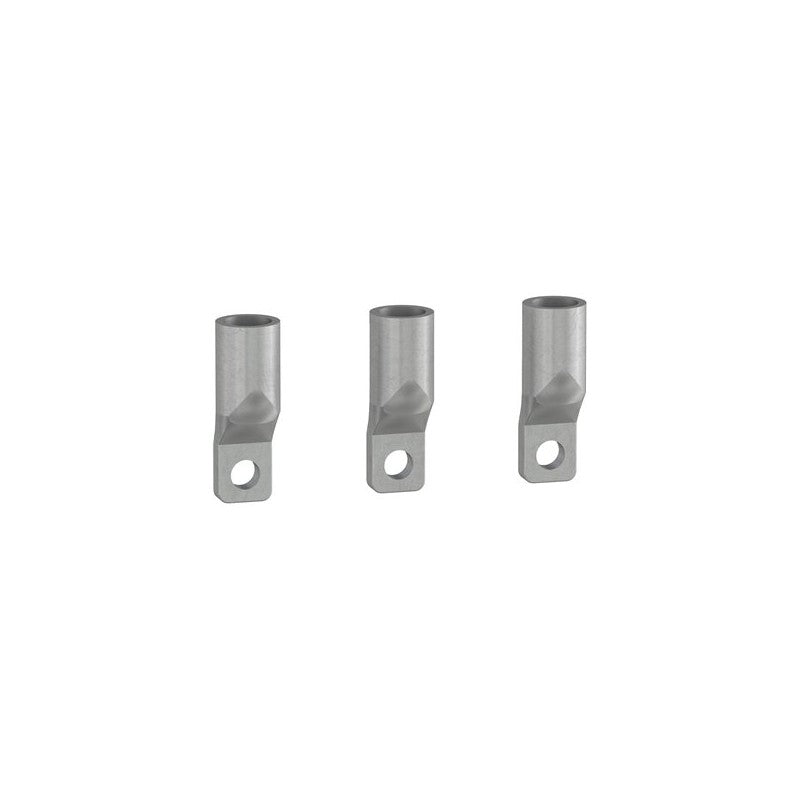

Compression lug - aluminium cable 95 mm - set of 3

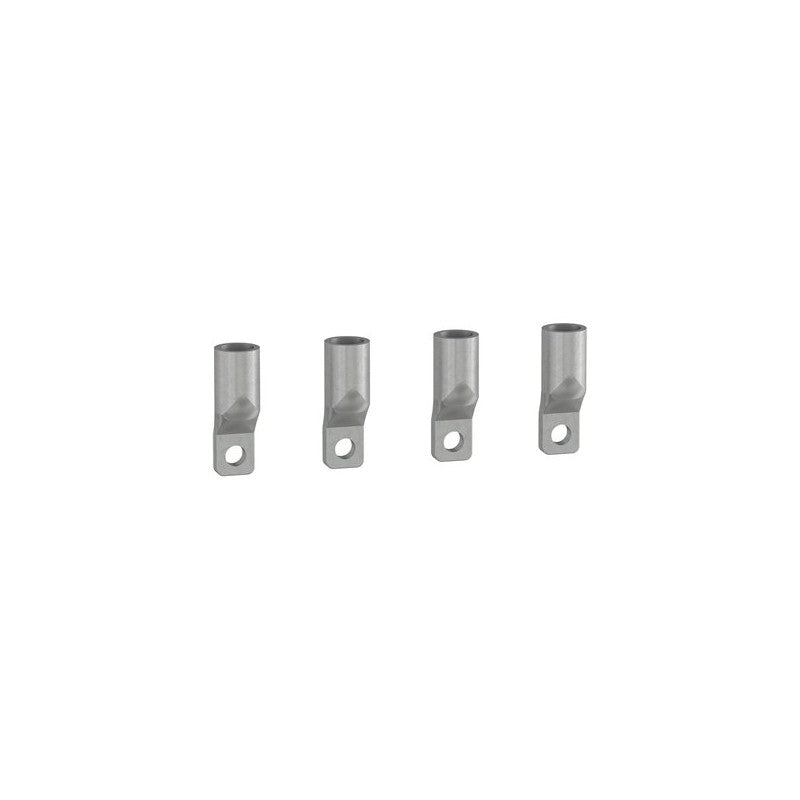

Compression lug - aluminium cable 95 mm - set of 4

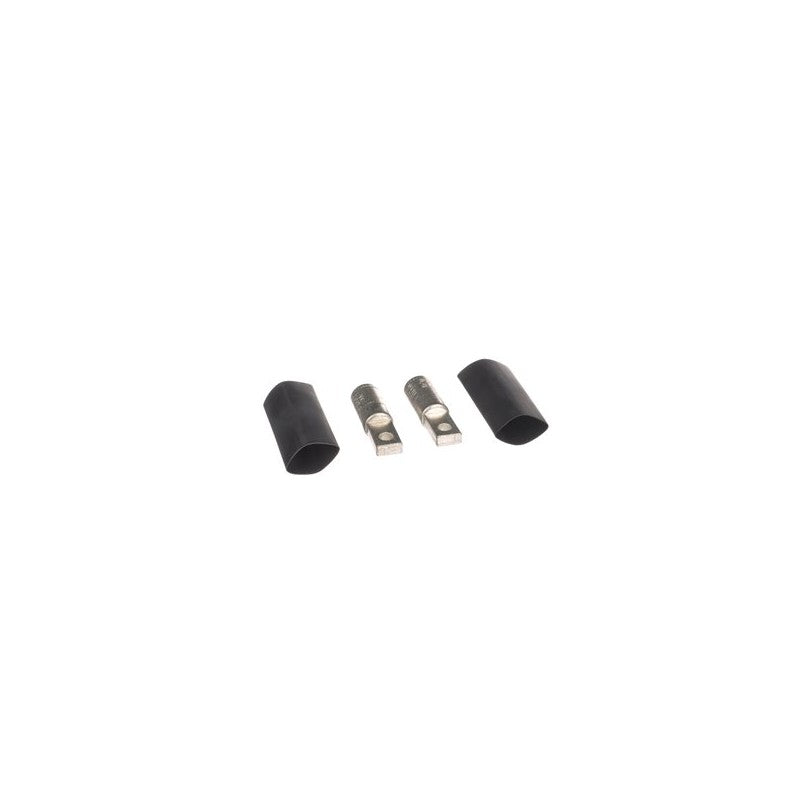

PowerPacT B-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. The B-Frame compression lug kits are copper and are for 8 AWG to 1/0 AWG cable. The kit comes with two compression lugs.
Main
| Characteristic | Value(s) |
|---|---|
| Product or Component Type | Compression lug |
| Accessory / separate part category | Connection accessory |
| Quantity per Set | Set of 2 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Conductor material | Copper |
| Connections - terminals | Cable connector1 AWG 6...AWG 1/0) |

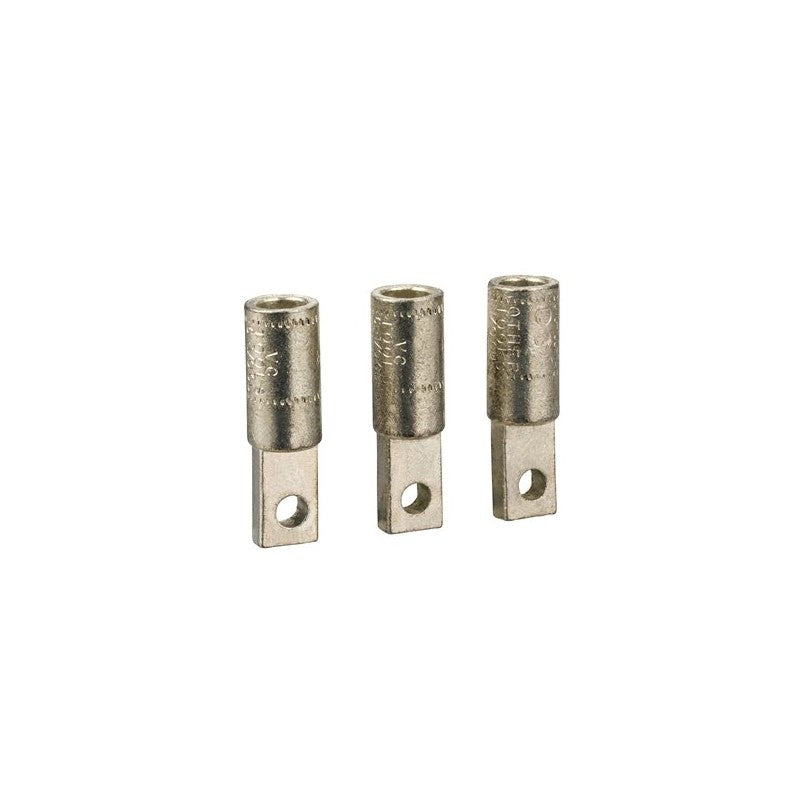

Compression lug - copper cable AWG 61/0 - set of 3

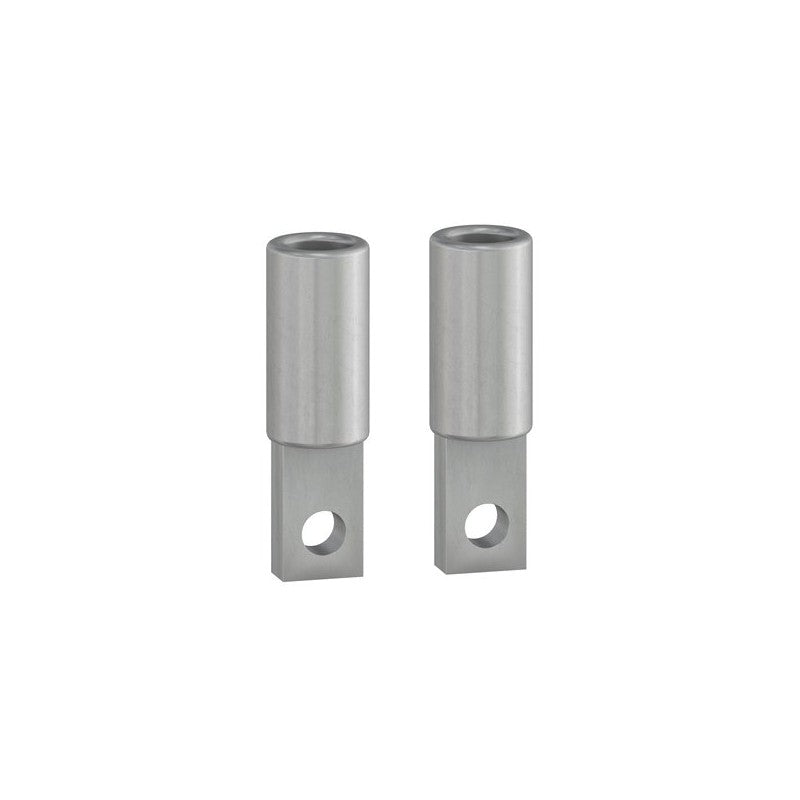

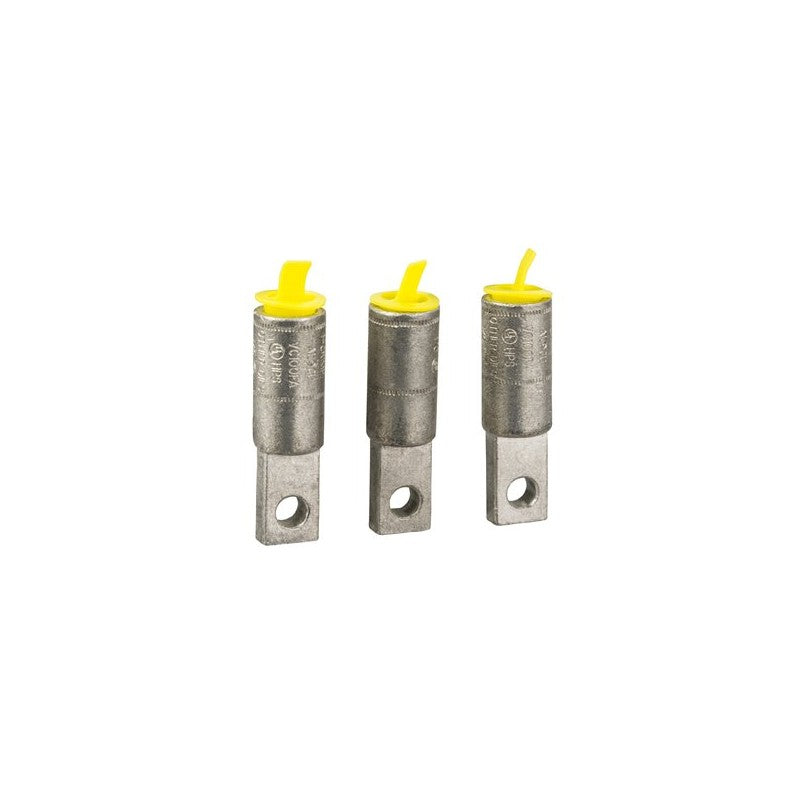

Compression lug - aluminium and copper cable AWG 81/0 - set of 2
PowerPacT B-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. The B-Frame compression lug kits are aluminum and are for 8 AWG to 1/0 AWG cable. The kit comes with three compression lugs.
Main
| Characteristic | Value(s) |
|---|---|
| Product or Component Type | Compression lug |
| Accessory / separate part category | Connection accessory |
| Quantity per Set | Set of 3 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Conductor material | Aluminium Copper |
| Connections - terminals | Cable connector1 AWG 8...AWG 1/0) |

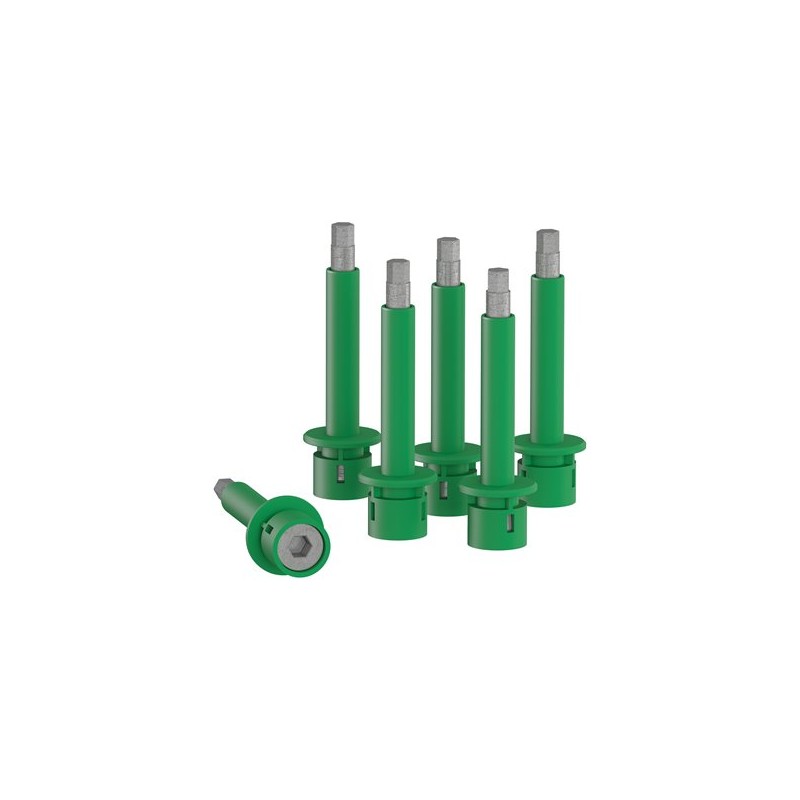

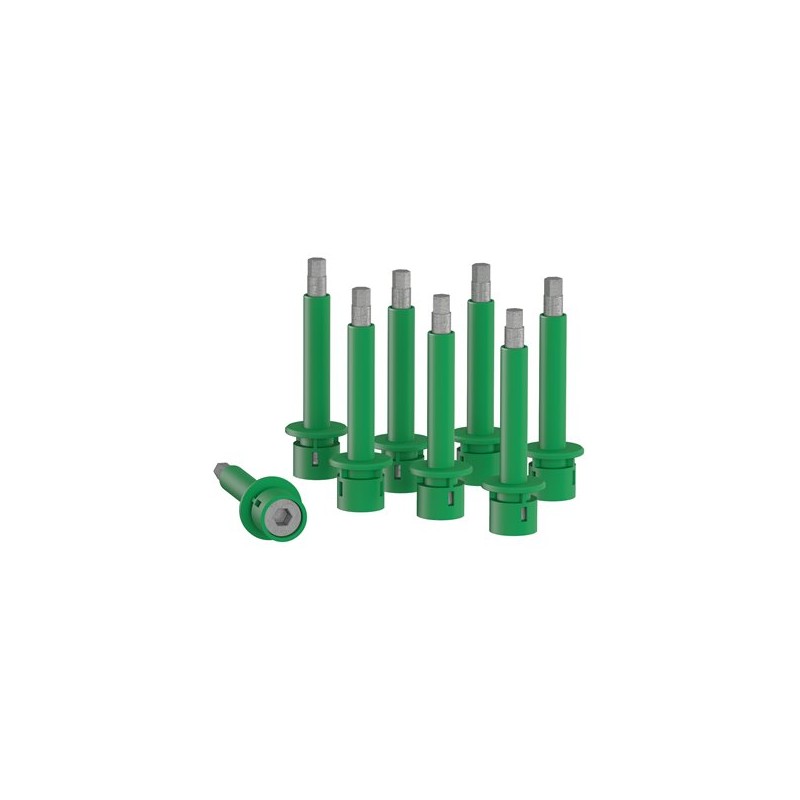

torque limiting breakaway bit - installation accessories - 9 N.m - set of 6

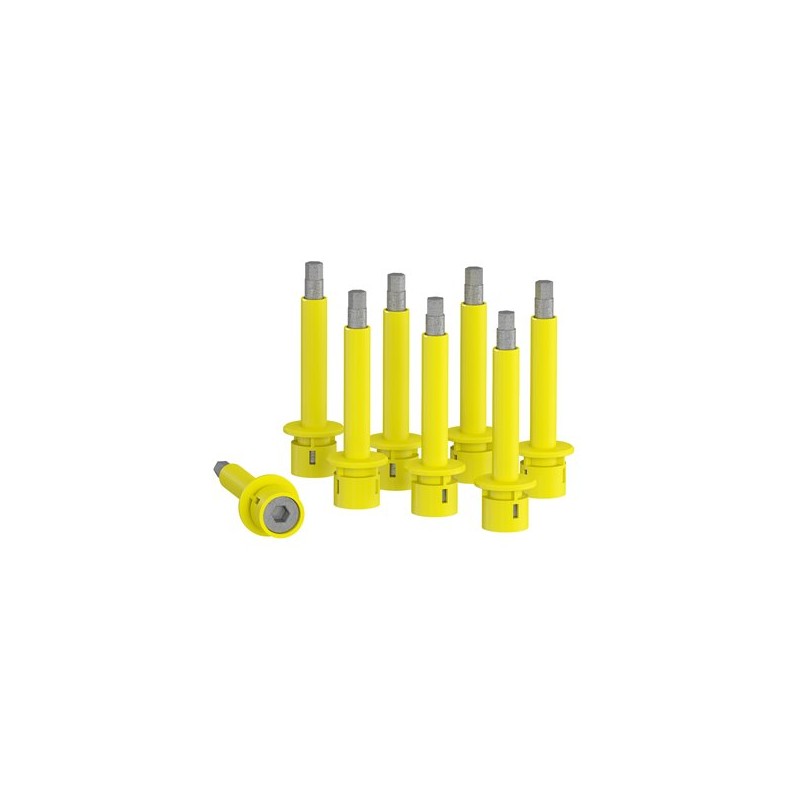

torque limiting breakaway bit - installation accessories - 9 N.m - set of 8

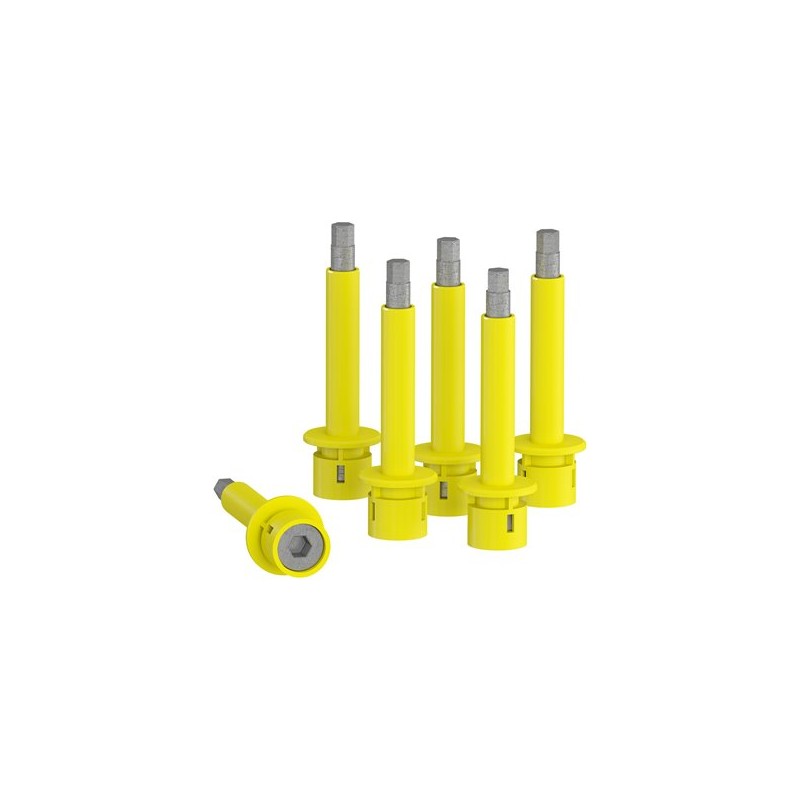

torque limiting breakaway bit - installation accessories - 5 N.m - set of 6
torque limiting breakaway bit - installation accessories - 5 N.m - set of 8

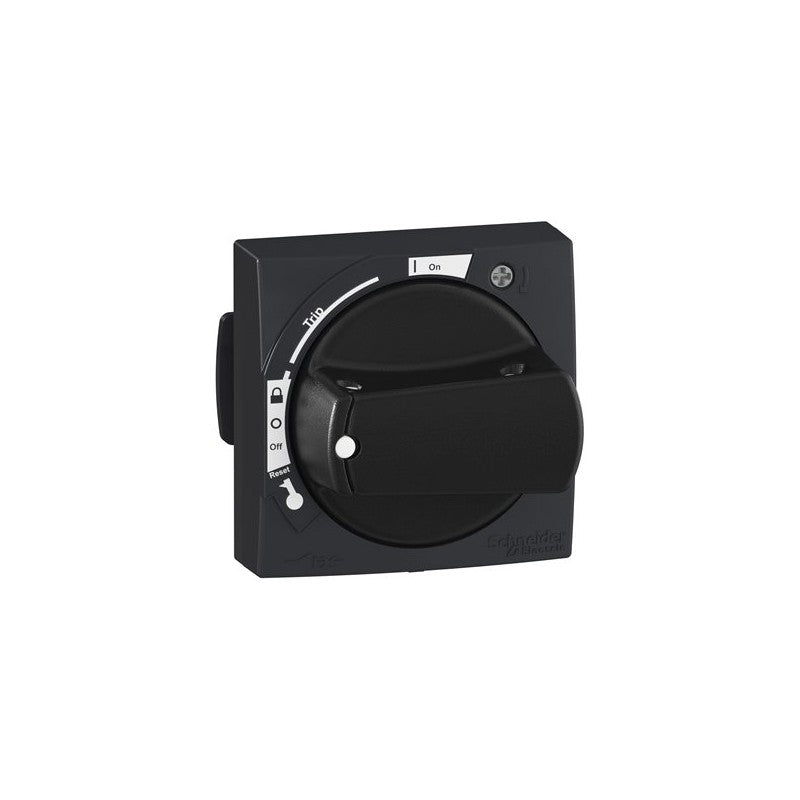

This universal handle is used on Compact NSXm, Compact NSX and PowerPact B devices. This handle is a replacement part for front extended or side rotary handle. The circuit breaker installed in a switchboard with this universal handle is IP54 according to IEC 60529 standard. This is a black handle on a black front.
Main
| Characteristic | Value(s) |
|---|---|
| Range compatibility | PowerPact PowerPact B ComPact ComPact NSXm TeSys TeSys GV4 TeSys TeSys BV4 |
| Product or Component Type | Handle |
| Accessory / Separate Part Type | Control accessories |
| Handle colour | Black |
| Handle front plate colour | Black |
Complementary
| Characteristic | Value(s) |
|---|---|
| Locking options description | 1 to 3 padlocks à 4 to à 8 |

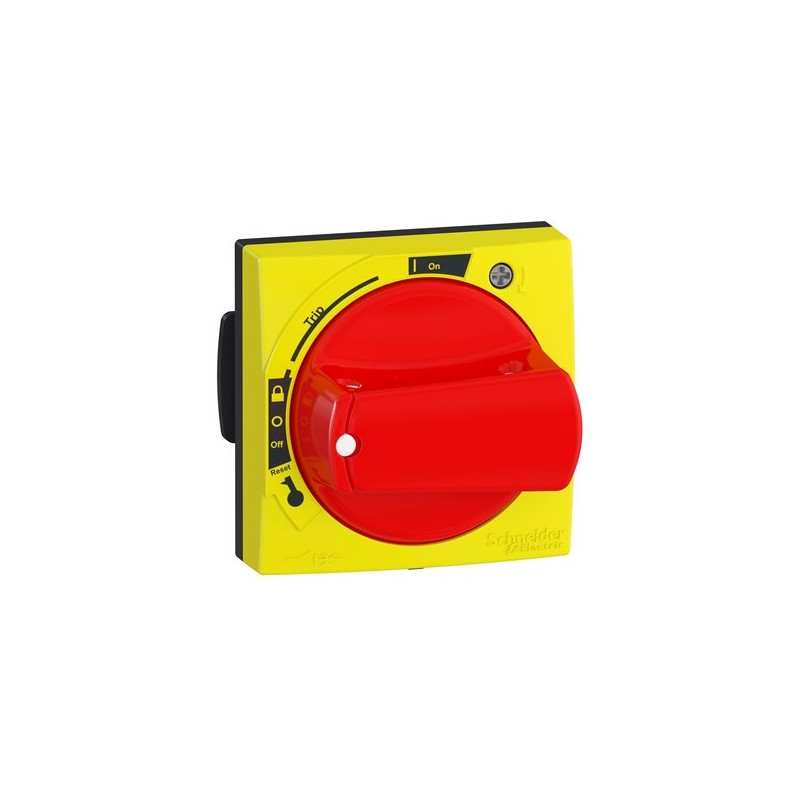

Rotary handle red/yellow IP54 - for circuit breaker and switch
This universal handle is used on Compact NSXm, Compact NSX and PowerPact B devices. This handle is a replacement part for front extended or side rotary handle. The circuit breaker installed in a switchboard with this universal handle is IP65 according to IEC 60529 standard. This is a red handle on a yellow front.
Main
| Characteristic | Value(s) |
|---|---|
| Range compatibility | PowerPact PowerPact B ComPact ComPact NSXm TeSys TeSys GV4 TeSys TeSys BV4 |
| Product or Component Type | Handle |
| Accessory / Separate Part Type | Control accessories |
| Handle colour | Red |
| Handle front plate colour | Yellow |
Complementary
| Characteristic | Value(s) |
|---|---|
| Locking options description | 1 to 3 padlocks à 4 to à 8 |

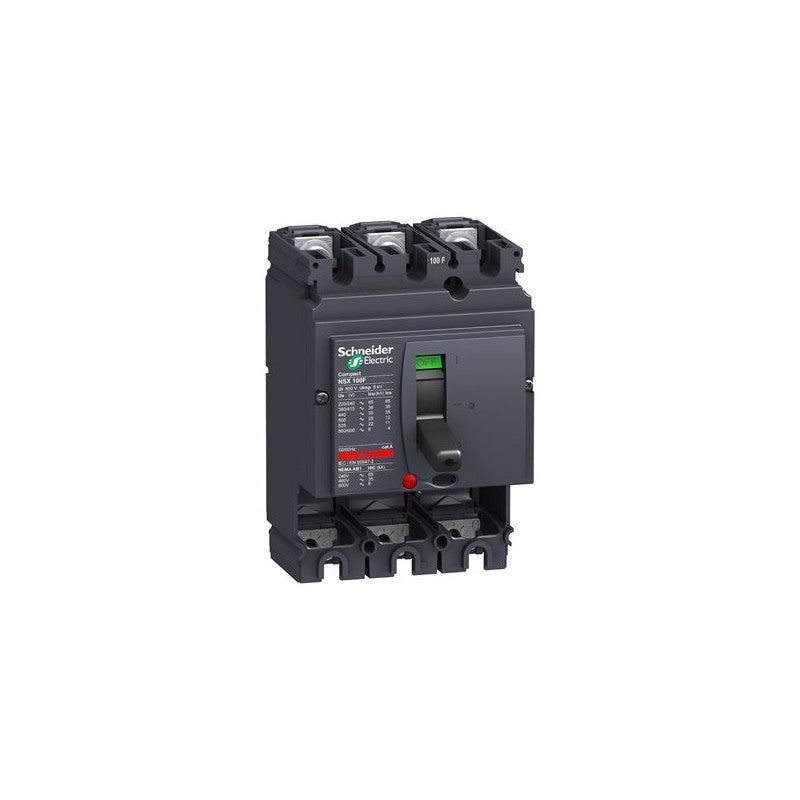

circuit breaker basic frame, Compact NSX100F, 36 kA at 415 VAC 50/60 Hz, 100 A, without trip unit, 3 poles

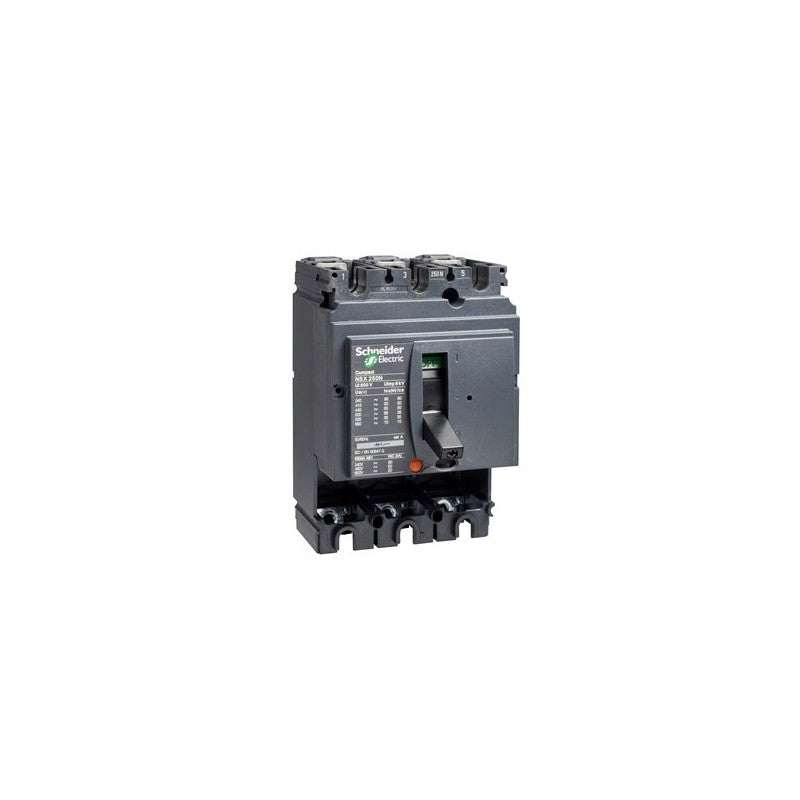

circuit breaker basic frame, Compact NSX100H, 70 kA at 415 VAC 50/60 Hz, 100 A, without trip unit, 3 poles

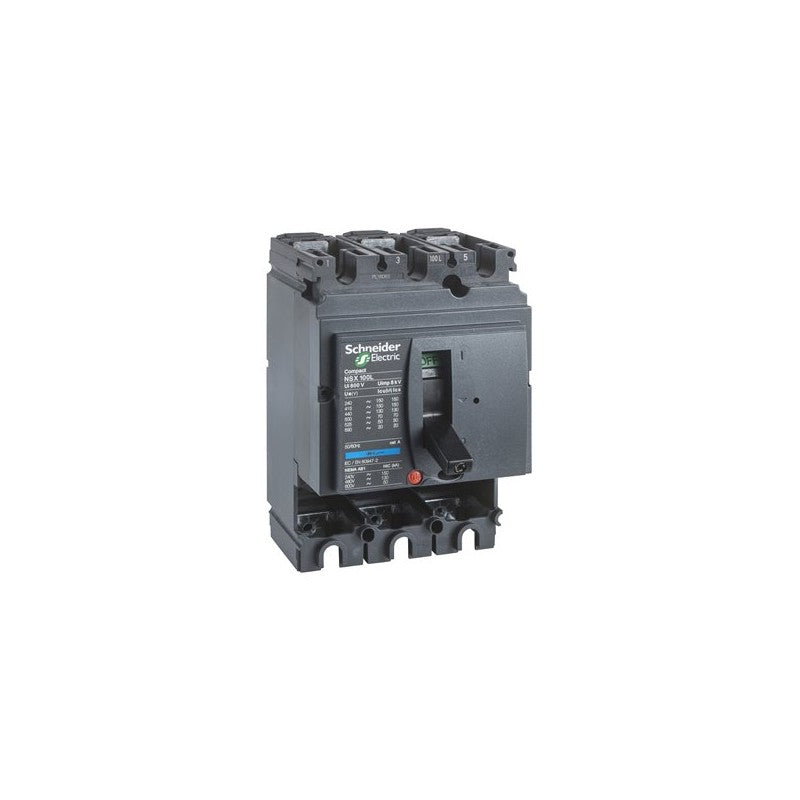

circuit breaker basic frame, Compact NSX100L, 150 kA at 415 VAC 50/60 Hz, 100 A, without trip unit, 3 poles
circuit breaker basic frame, Compact NSX100N, 50 kA at 415 VAC 50/60 Hz, 100 A, without trip unit, 3 poles

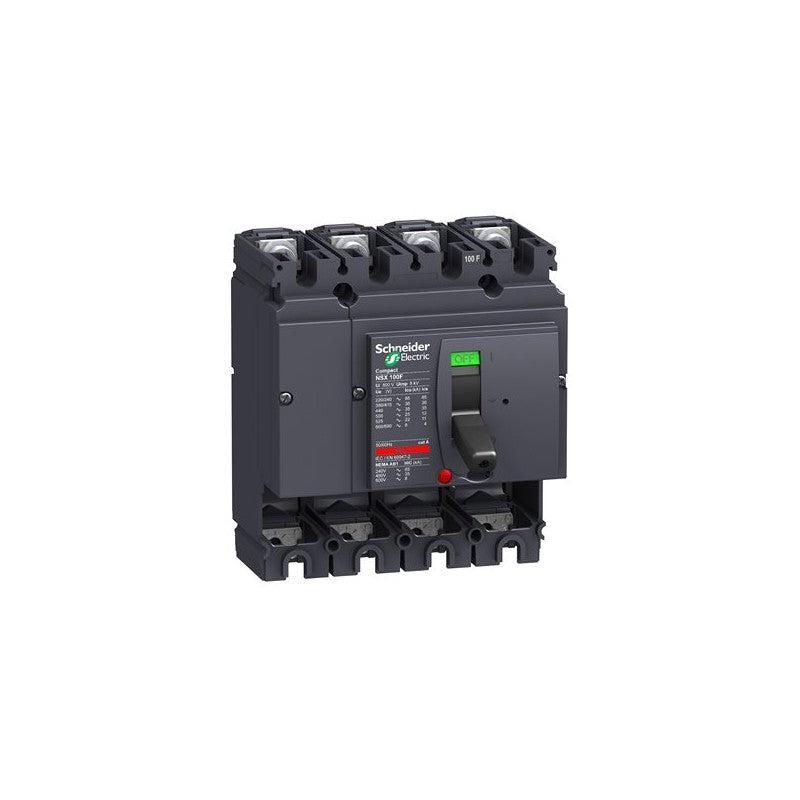

This is a 4 poles basic frame for Compact NSX100F. Compact NSX is designed to optimize space and breaking capacity for all standard and specific applications. This basic frame comes without trip unit, and is compatible with any type of trip unit which ordered separately. The breaking capacity Icu is 36kA at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz (limited to 440VAC 50/60Hz if there is an earth-leakage protection). It can be equipped with a variety of optional functions and accessories. The dimensions are 140mm x 161mm x 86mm. It ensures compliance with international standards (IEC 60947), CCC, EAC and marine specifications. Compact NSX100F is part of Schneider Electric EcoStruxure Power architecture.
Main
| Characteristic | Value(s) |
|---|---|
| Range | ComPact |
| Range of Product | ComPact NSX100...250 |
| Device short name | NSX100F |
| Product or Component Type | Basic frame |
| Device Application | Distribution |
| Circuit breaker name | Compact NSX100F |
| Number of poles | 4P |
| Neutral position | Left |
| Line Rated Current | 100 A 104 °F (40 °C) |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Network type | AC |
| Network Frequency | 50/60 Hz |
| Suitability for isolation | Yes EN/IEC 60947-2 |
| Utilisation category | Category A |
| [Icu] rated ultimate short-circuit breaking capacity | 10 kA 600 V AC 50/60 Hz UL 508 25 kA 480 V AC 50/60 Hz UL 508 85 kA 240 V AC 50/60 Hz UL 508 22 kA Icu 525 V AC 50/60 Hz IEC 60947-2 25 kA Icu 500 V AC 50/60 Hz IEC 60947-2 35 kA Icu 440 V AC 50/60 Hz IEC 60947-2 36 kA Icu 380/415 V AC 50/60 Hz IEC 60947-2 8 kA Icu 660/690 V AC 50/60 Hz IEC 60947-2 85 kA Icu 220/240 V AC 50/60 Hz IEC 60947-2 |
| Performance level | F 36 kA 415 V AC |
| Control Type | Toggle |
| Mounting Mode | Fixed |
Complementary
| Characteristic | Value(s) |
|---|---|
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 8 kVIEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 11 kA 525 V AC 50/60 Hz IEC 60947-2 35 kA 440 V AC 50/60 Hz IEC 60947-2 36 kA 380/415 V AC 50/60 Hz IEC 60947-2 4 kA 660/690 V AC 50/60 Hz IEC 60947-2 85 kA 220/240 V AC 50/60 Hz IEC 60947-2 12.5 kA 500 V AC 50/60 Hz IEC 60947-2 |
| Mechanical durability | 50000 cycles IEC 60947-2 |
| Electrical durability | 10000 cycles 690 V AC 50/60 Hz In IEC 60947-2 20000 cycles 690 V AC 50/60 Hz In/2 IEC 60947-2 30000 cycles 440 V AC 50/60 Hz In IEC 60947-2 50000 cycles 440 V AC 50/60 Hz In/2 IEC 60947-2 |
| Mounting Support | Backplate |
| Upside connection | Front |
| Downside connection | Front |
| Connection pitch | 1.4 in (35 mm) |
| Protection Type | Without protection |
| Width (W) | 5.5 in (140 mm) |
| Height (H) | 6.3 in (161 mm) |
| Depth (D) | 3.4 in (86 mm) |
