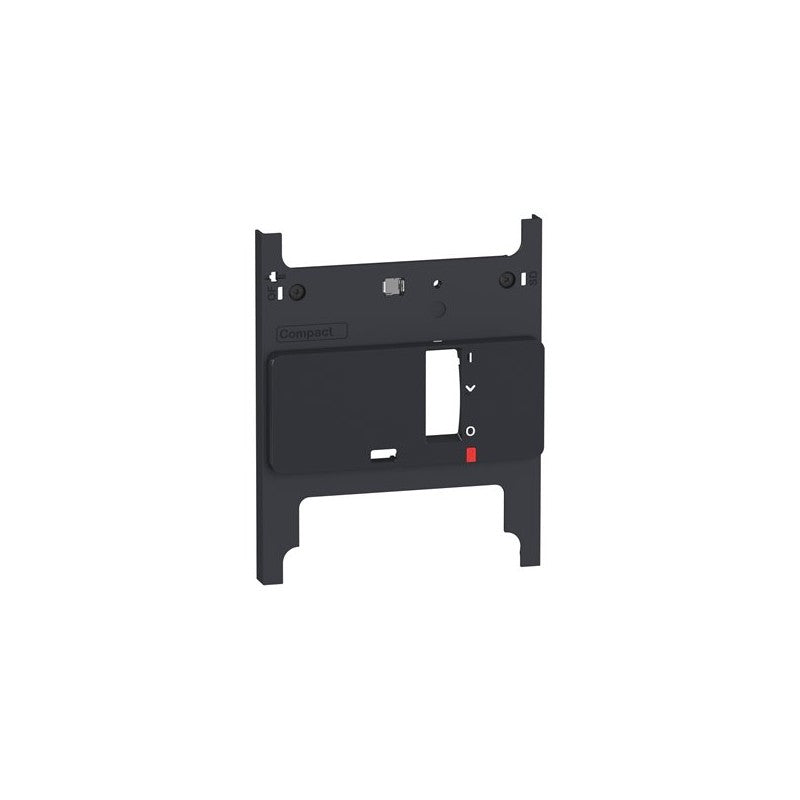

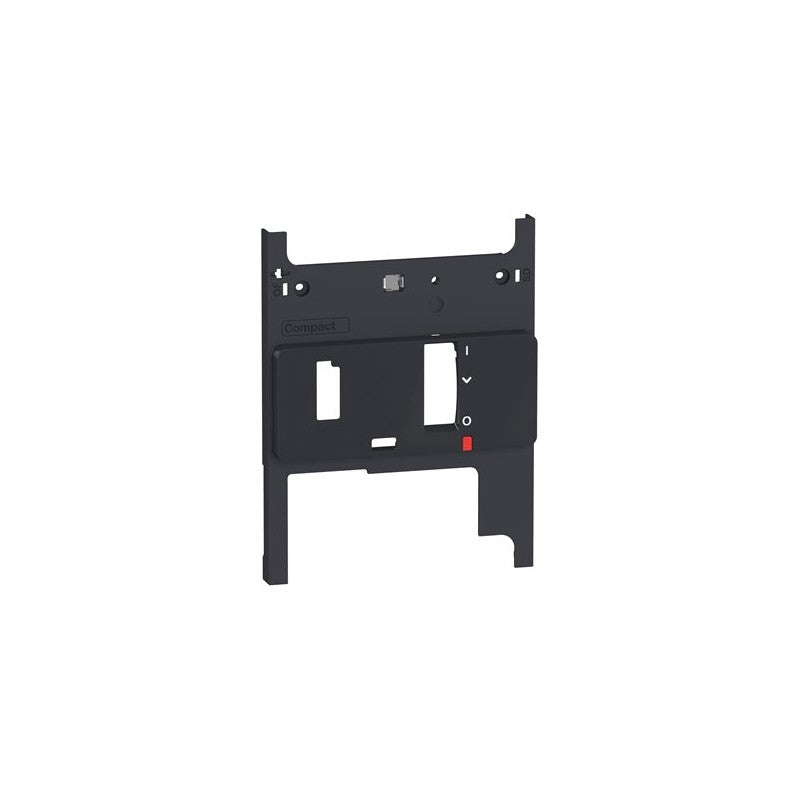

It is a front cover spare part for four poles Compact NSXm. The protection degree of the product is IP 40 according to IEC 60529 standard.
Main
| Characteristic | Value(s) |
|---|---|
| Product or component type | Front cover |
| Accessory / separate part category | Insulation accessory |
| Range compatibility | ComPact ComPact NSXm |
| Poles description | 4P |
Complementary
| Characteristic | Value(s) |
|---|---|
| Cut-out dimensions | 45 X 108 mm |
| Accessory / separate part category | Spare parts for ComPact NSXm |
Front cover for earth-leakage circuit breaker ELCB

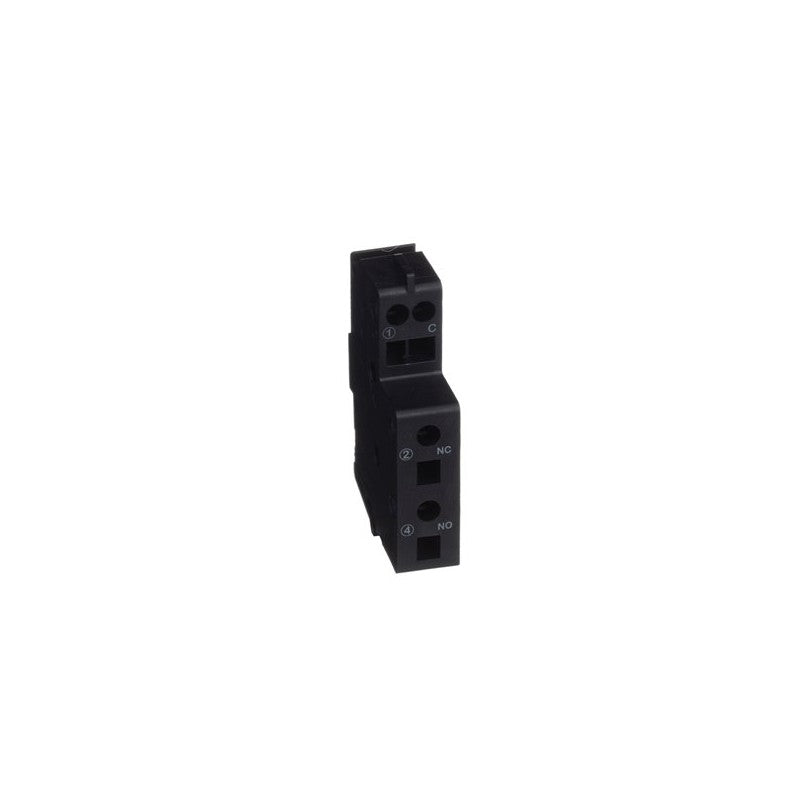

It is a single standard auxiliary contact that provides two remote information of the circuit breaker status. It is used on Compact NSXm and PowerPact B devices. The OF contact (open/closed) indicates the position of the circuit breaker main contacts. The SD contact (trip indication) indicates if the circuit breaker has tripped. There is one auxiliary contact model for OF and SD information, depending on where it is fitted in the device. This auxiliary is a common point changeover type contact with 1 normally open contact and 1 normally closed contact. The rated current is 5A and the minimum load is 2mA at 17 VDC. Utilization categories are AC12/AC13/DC12/DC13/DC14. Compact NSXm embeds 2 auxiliary contacts and their presence is visible on the front face through green flags. It complies with IEC 60947-5-1 standard.
Main
| Characteristic | Value(s) |
|---|---|
| Product or Component Type | Auxiliary contact |
| Device short name | SD OF |
| Device Application | Breaker status monitoring |
| Range compatibility | PowerPact PowerPact B ComPact ComPact NSXm |
| Signal contacts composition | 1 NO/NC |
Complementary
| Characteristic | Value(s) |
|---|---|
| Fault type | Overload Short-circuit |
| Local signalling | ON/OFF indication for open/close Trip indicator for relay trip indicator |
| Auxiliary contacts type | Standard |
| Mounting Mode | Clip-on |
| [Ith] conventional free air thermal current | 5 A |
| Breaking capacity (A) | AC-12: 5 A at 24 V AC 50/60 Hz AC-12: 5 A at 48 V AC 50/60 Hz AC-12: 5 A at 110...127 V AC 50/60 Hz AC-12: 5 A at 220/240 V AC 50/60 Hz AC-12: 5 A at 380/440 V AC 50/60 Hz AC-12: 5 A at 660/690 V AC 50/60 Hz AC-15: 5 A at 24 V AC 50/60 Hz AC-15: 5 A at 48 V AC 50/60 Hz AC-15: 4 A at 110...127 V AC 50/60 Hz AC-15: 3 A at 220/240 V AC 50/60 Hz AC-15: 2.5 A at 380/440 V AC 50/60 Hz AC-15: 0.1 A at 660/690 V AC 50/60 Hz DC-12: 5 A at 24 V DC 50/60 Hz DC-12: 2.5 A at 48 V DC 50/60 Hz DC-12: 0.6 A at 110 V DC 50/60 Hz DC-12: 0.3 A at 250 V DC DC-13: 2.5 A at 24 V DC DC-13: 1.2 A at 48 V DC DC-13: 0.35 A at 110 V DC DC-13: 0.05 A at 250 V DC DC-14: 1 A at 24 V DC DC-14: 0.2 A at 48 V DC DC-14: 0.05 A at 110 V DC DC-14: 0.03 A at 250 V DC |
| Minimum load | 2 mA 17 V DC |
| Auxiliary connection terminal | spring |
| Wire stripping length | 0.3 in (8 mm) for front connection |

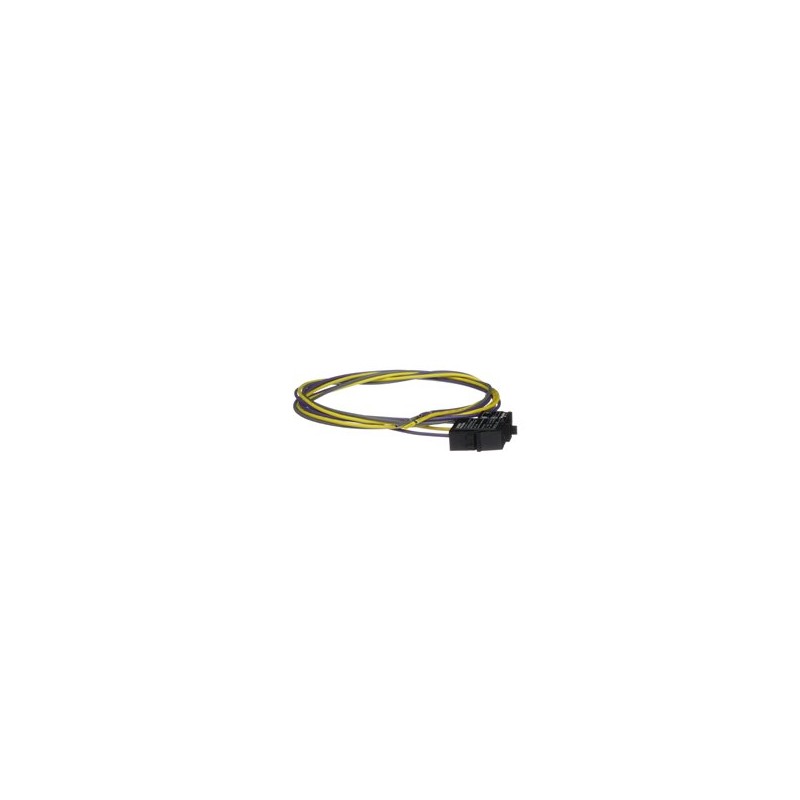

auxiliary contact (pre-wired) OF - 1 NO/NC

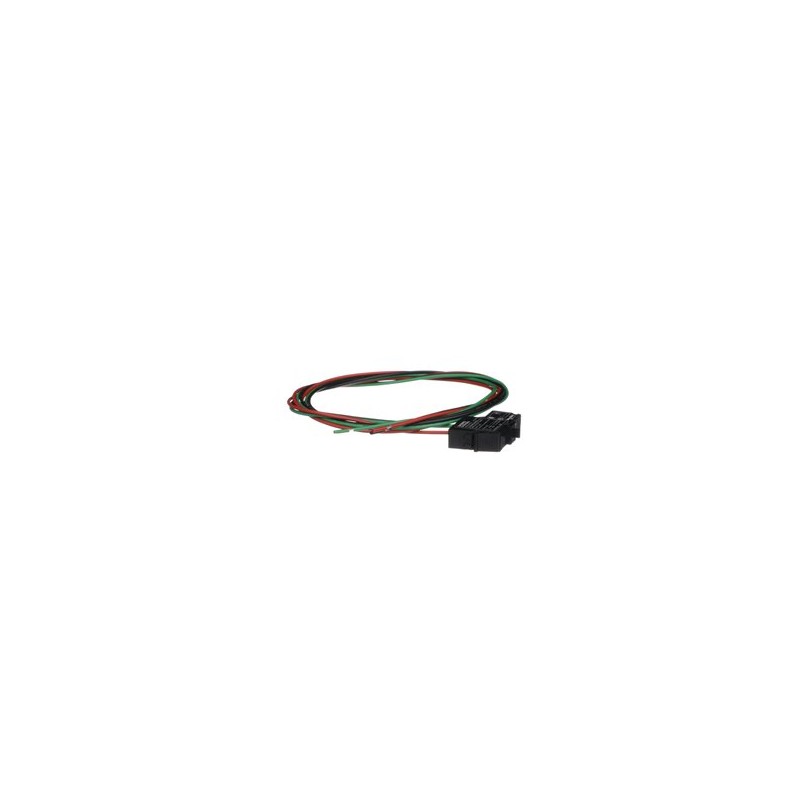

auxiliary contact (pre-wired) SD - 1 NO/NC
Compression lug/busbar connector for 3P
Compression lug/busbar connector for 4P
Compression lug/busbar connector for 3P

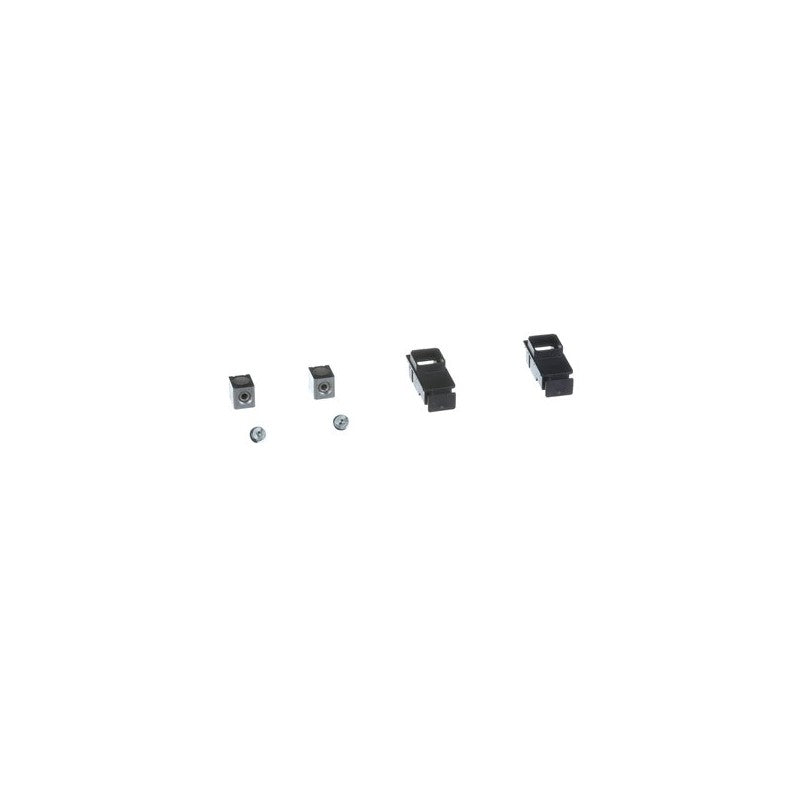

Aluminium/Copper mechanical lug connector for 2P
Aluminium/Copper mechanical lug connector for 3P

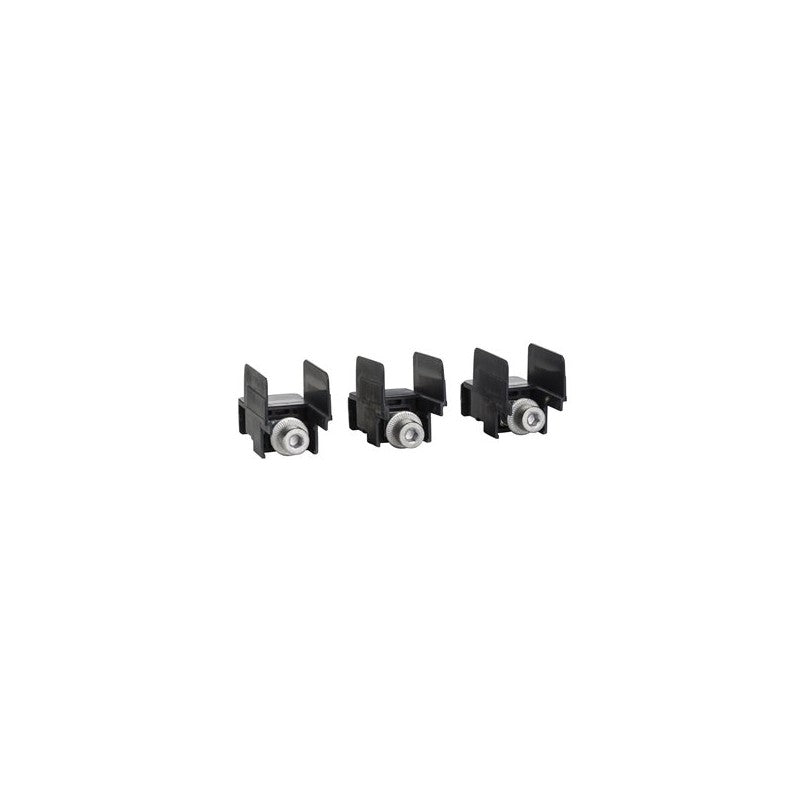

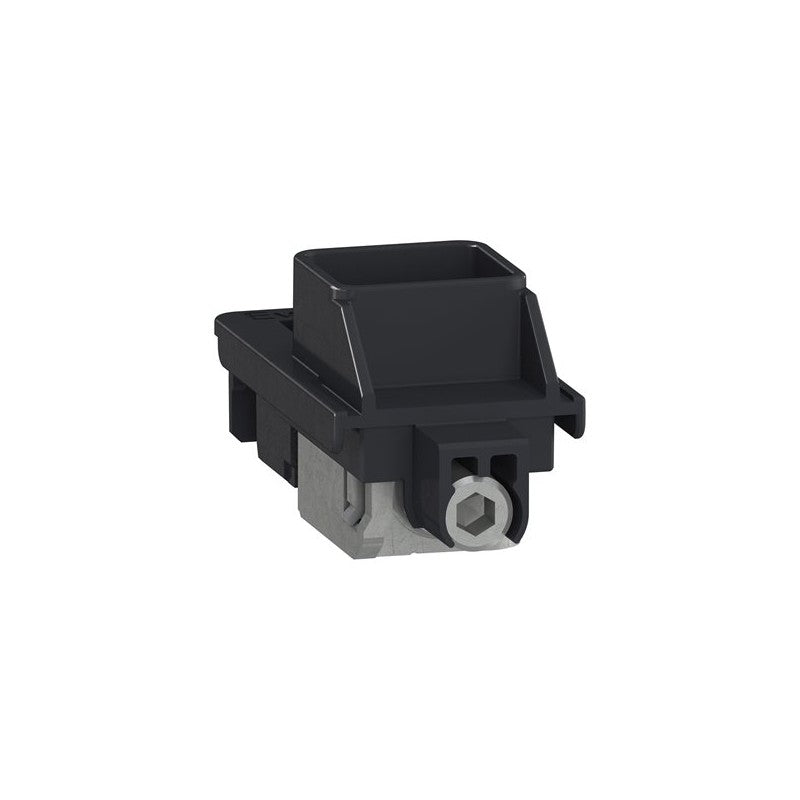

It is a set of 3 Everlink connectors with control wire for Compact NSXm and PowerPact B devices. They use the Everlink system with creep compensation (Schneider Electric patent). Everlink system makes possible to achieve accurate and durable tightening torque. For copper power connections, the current range is from 15A to 160 A and the torque is 5 N.m +/- 0.5 (2.5 to 10 mm²). For aluminium power connections, the current range is from 15A to 100 A and the torque is 9 N.m +/- 0.5 (16 to 95 mm²).
Main
| Characteristic | Value(s) |
|---|---|
| Range compatibility | ComPact ComPact NSXm |
| Product or component type | Cable connector |
| Accessory / separate part type | Connection accessories |
| Poles description | 3P |
Complementary
| Characteristic | Value(s) |
|---|---|
| Quantity per set | Set of 3 |
| Location of connection | Upstream Downstream |
| [In] rated current | 16â¦160 A for copper 16â¦100 A for aluminium |
| Conductor material | Steel |
| Connections - terminals | Screw terminal - 1 cable(s) 2.5â¦95 mm² - solid Screw terminal2.5â¦95 mm² - stranded Screw terminal2.5â¦70 mm² - fine stranded |
| Control wire terminal | 10 A for 0.5â¦6 mm² (AWG 20...AWG 10), stranded or fine stranded 10 A for 1.5â¦6 mm² (AWG 20...AWG 10), rigid |

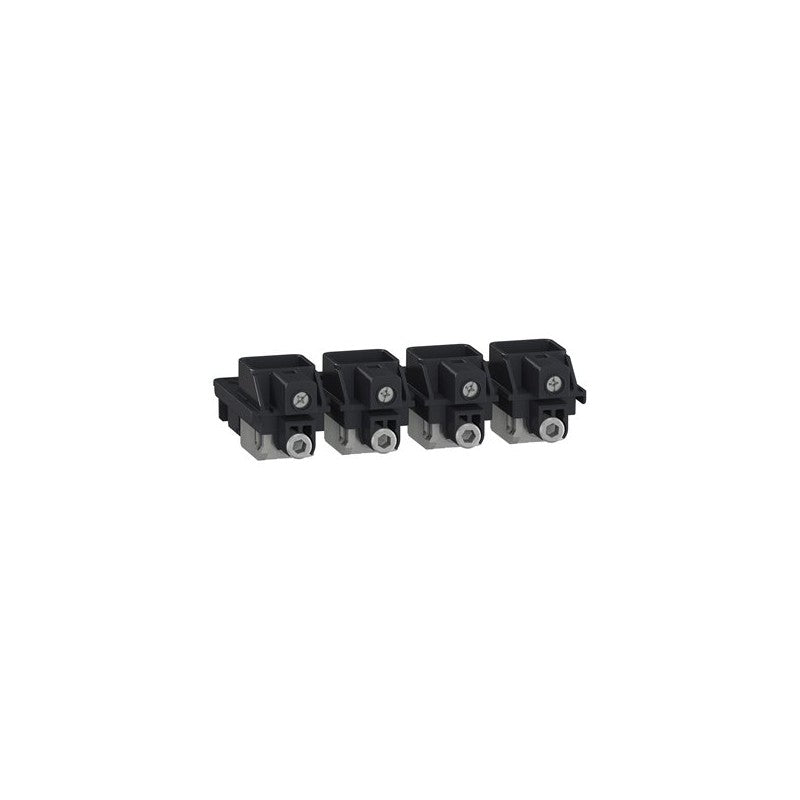

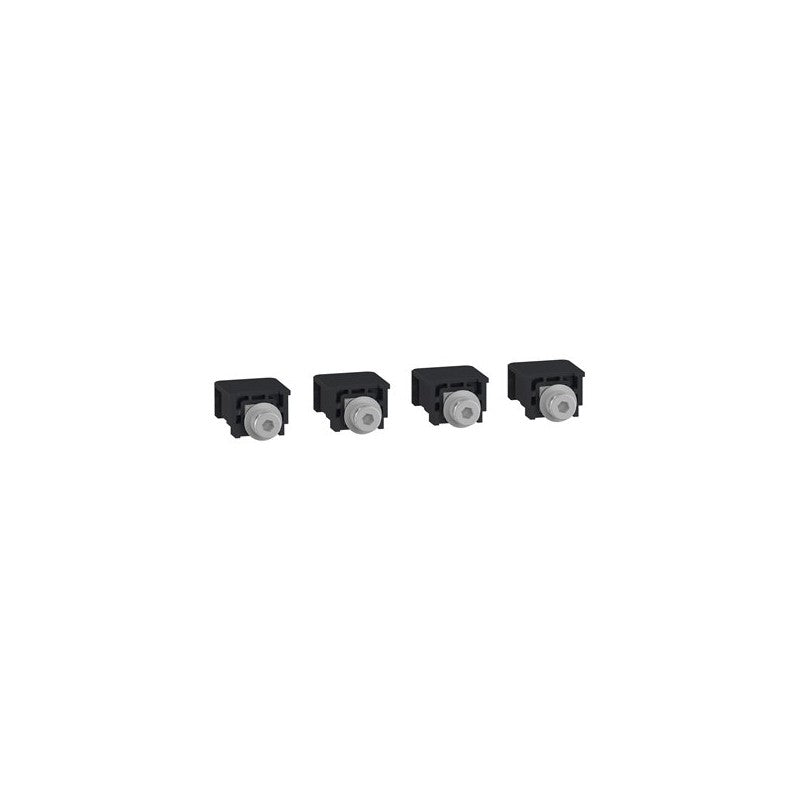

EverLink connector with control wire terminal for 4P

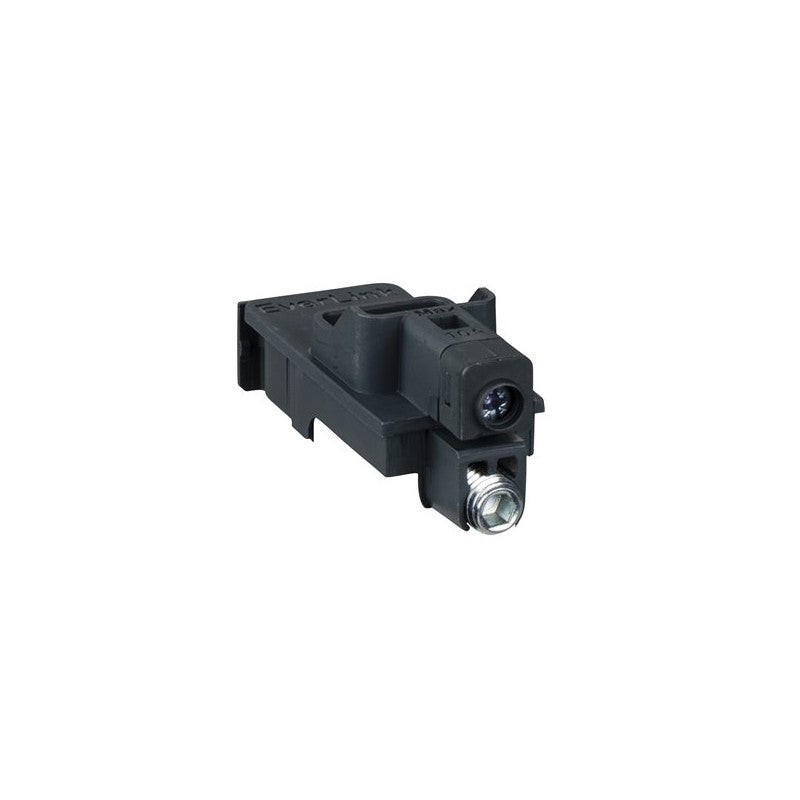

EverLink connector for 1P

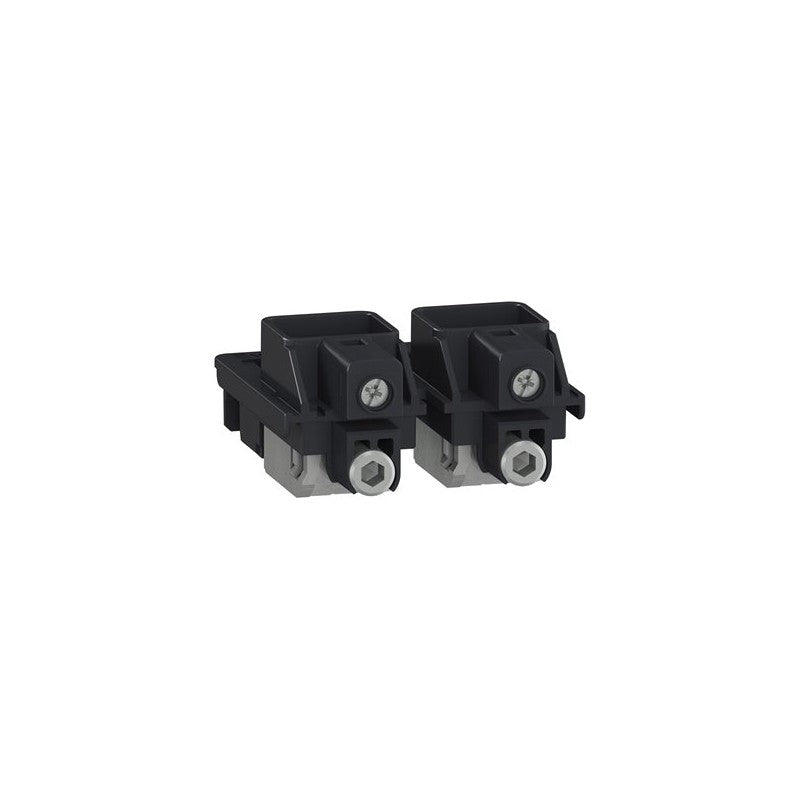

EverLink connector with control wire terminal for 2P

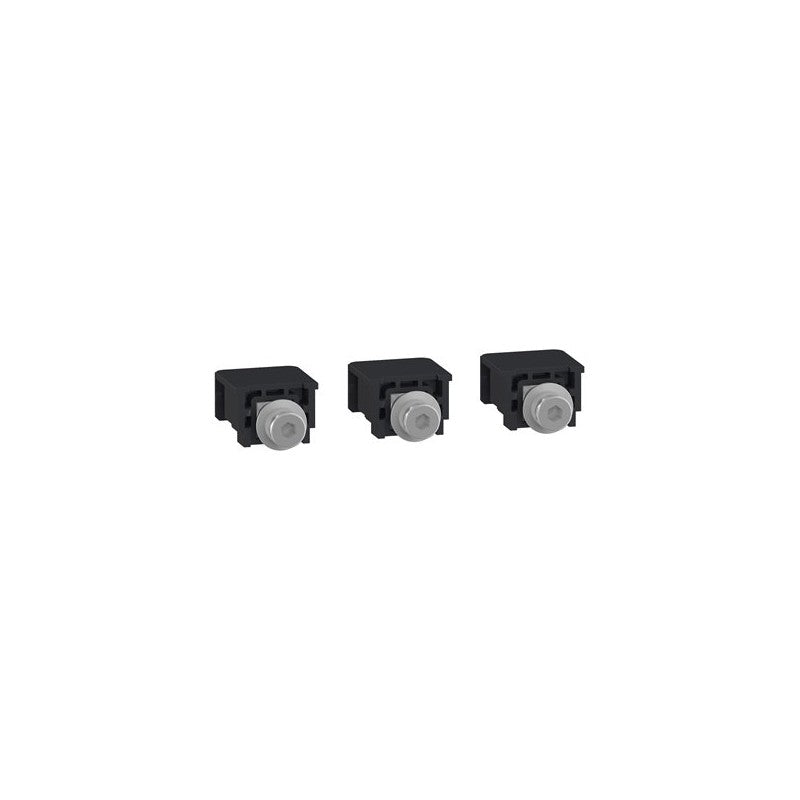

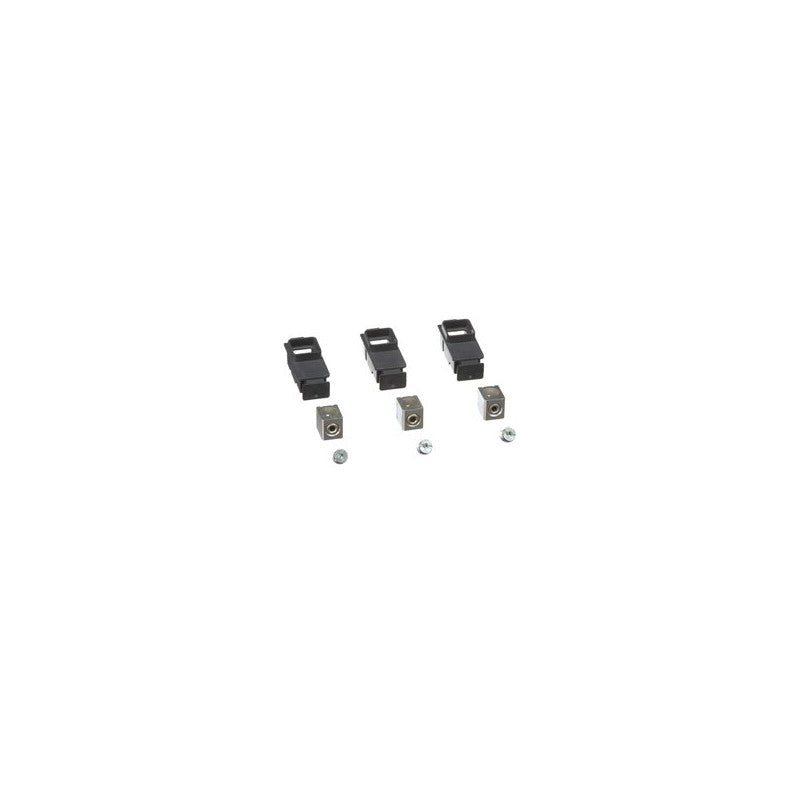

PowerPacT B-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This accessory is an EverLink connector kit for three pole devices. EverLink lugs minimize loose wiring at installation sites caused by wire strand deformation, terminal temperature changes, and vibration or shocks. This field installable kit can be applied upstream or downstream. It includes control wire terminals which provide an auxiliary power supply to a control power transformer, convenience receptacle, or metering.
Main
| Characteristic | Value(s) |
|---|---|
| Product or Component Type | Mechanical lug |
| Accessory / Separate Part Type | Connection kit |
| Poles description | 3P |
Complementary
| Characteristic | Value(s) |
|---|---|
| Quantity per Set | Set of 1 |
| Location of connection | Downstream Upstream |
| Line Rated Current | 15â¦125 A copper 15â¦100 A aluminium |
| Conductor material | Steel |
| Connections - terminals | Screw terminal - 1 0.004â¦0.1 in² (2.5â¦95 mm²) AWG 14...AWG 3/0) - solid Screw terminal 0.004â¦0.1 in² (2.5â¦95 mm²) AWG 14...AWG 3/0) - stranded Screw terminal 0.004â¦0.1 in² (2.5â¦70 mm²) AWG 6...AWG 2/0) - fine stranded |
| Control wire terminal | 10 A 0.0008â¦0.009 in² (0.5â¦6 mm²) AWG 20...AWG 10), stranded or fine stranded 10 A 0.002â¦0.009 in² (1.5â¦6 mm²) AWG 20...AWG 10), rigid |
EverLink connector with control wire terminal for 4P

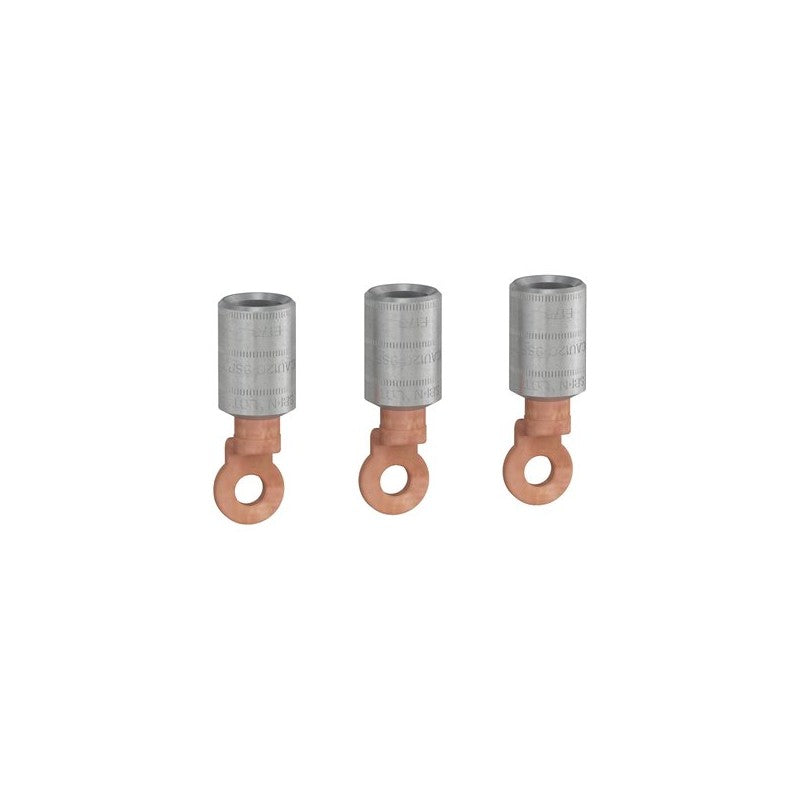

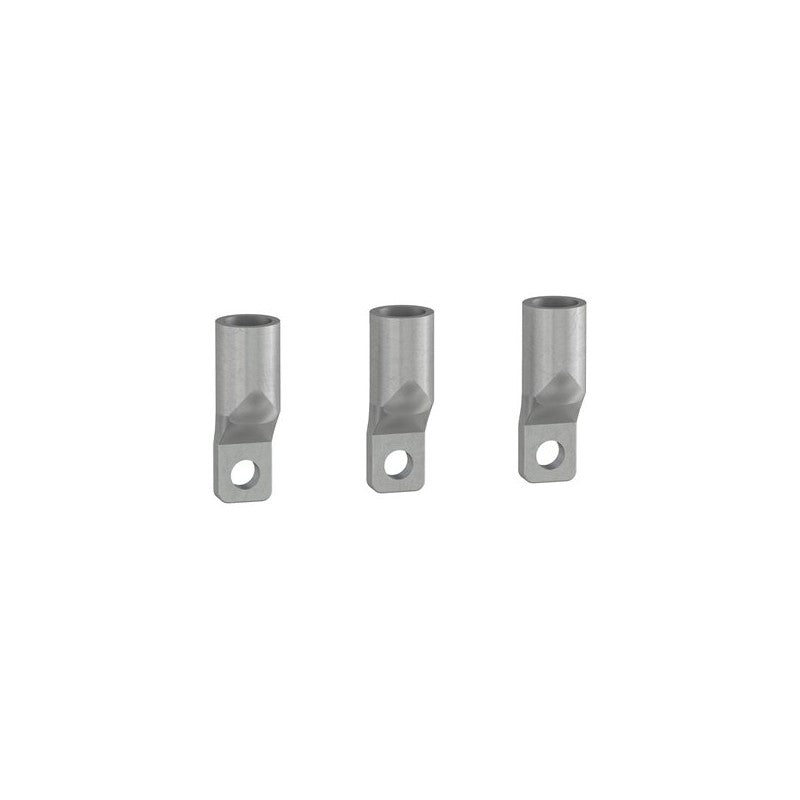

Compression lug - aluminium cable 120 mm - set of 3

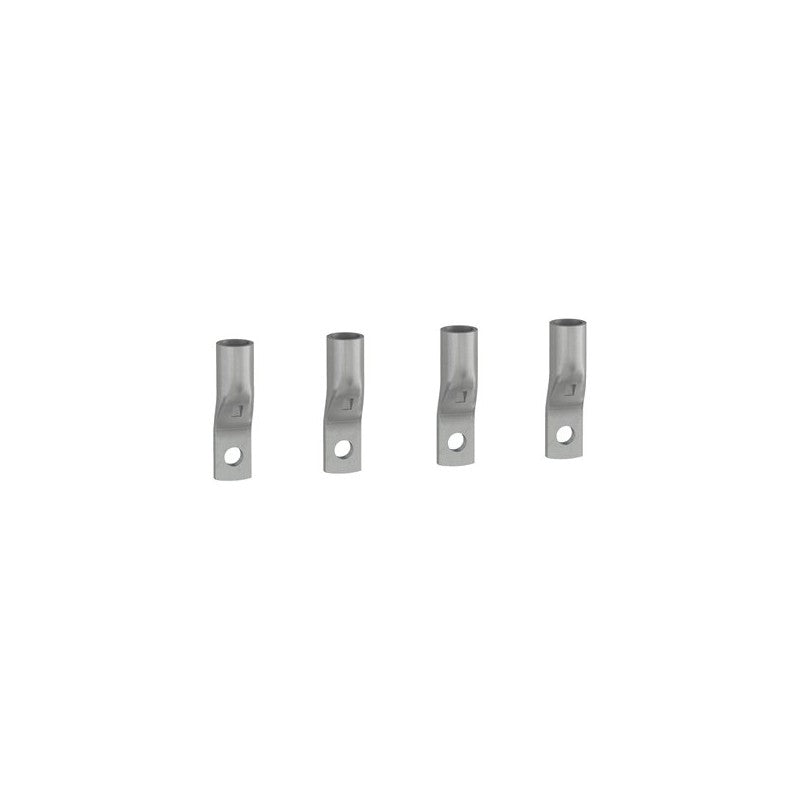

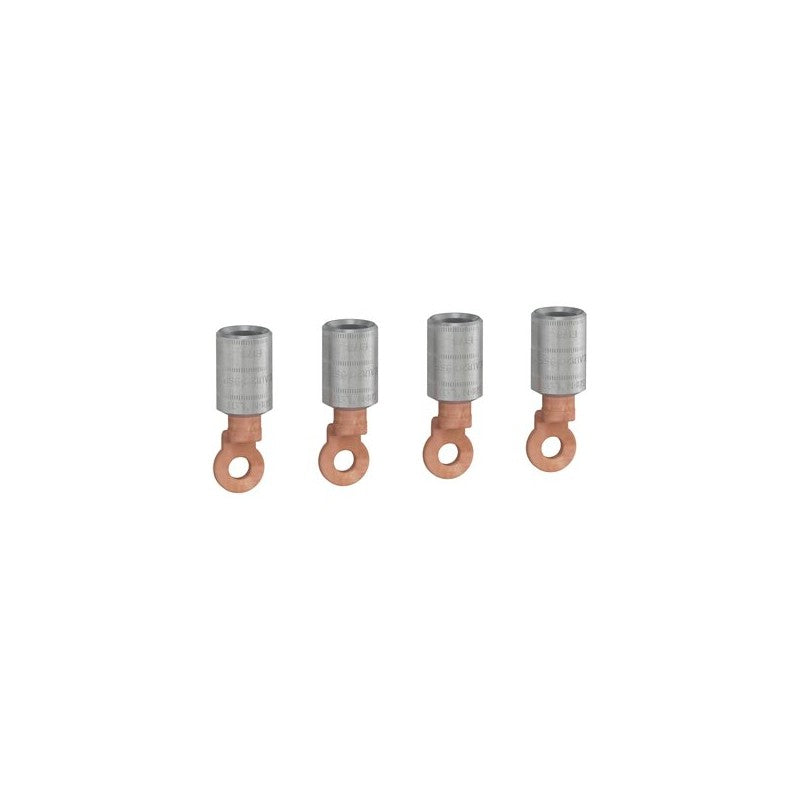

It is a set of 4 crimp lugs for 120 mm² rigid aluminium cable for Compact NSXm. The lugs are supplied with interphase barriers.
Main
| Characteristic | Value(s) |
|---|---|
| Product or component type | Crimp lug |
| Accessory / separate part category | Connection accessory |
| Range compatibility | ComPacT NSXm |
| Poles description | 4P |
| Quantity per set | Set of 4 |
| [In] rated current | 160 A |
Complementary
| Characteristic | Value(s) |
|---|---|
| Provided equipment | Interphase barriers |
| Conductor material | Aluminium |
| Connections - terminals | Crimp lug1 cable(s) 120 mm² - rigid |

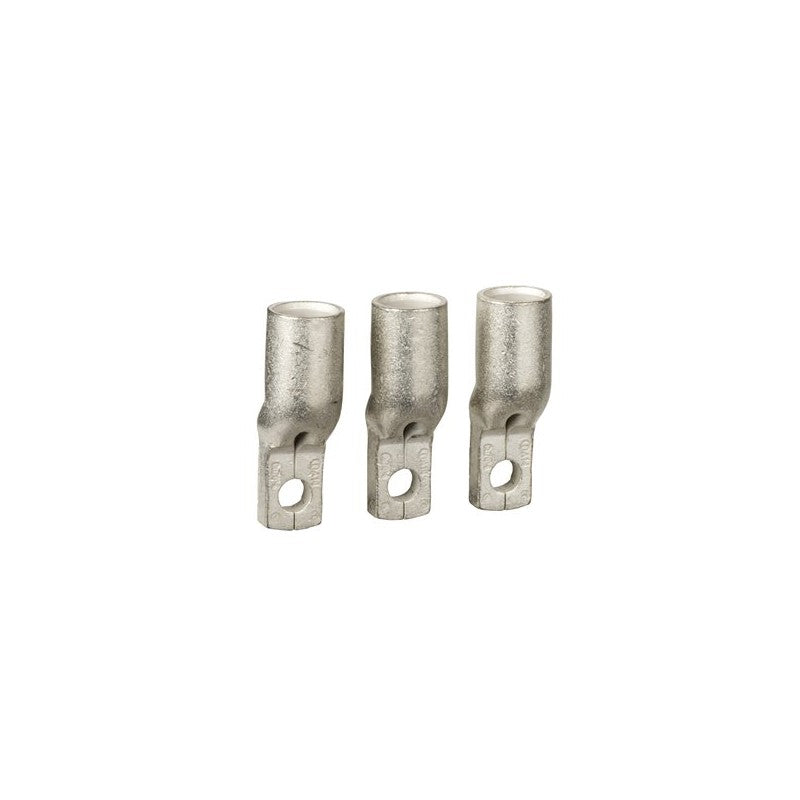

Compression lug - copper cable 70 mm - set of 3

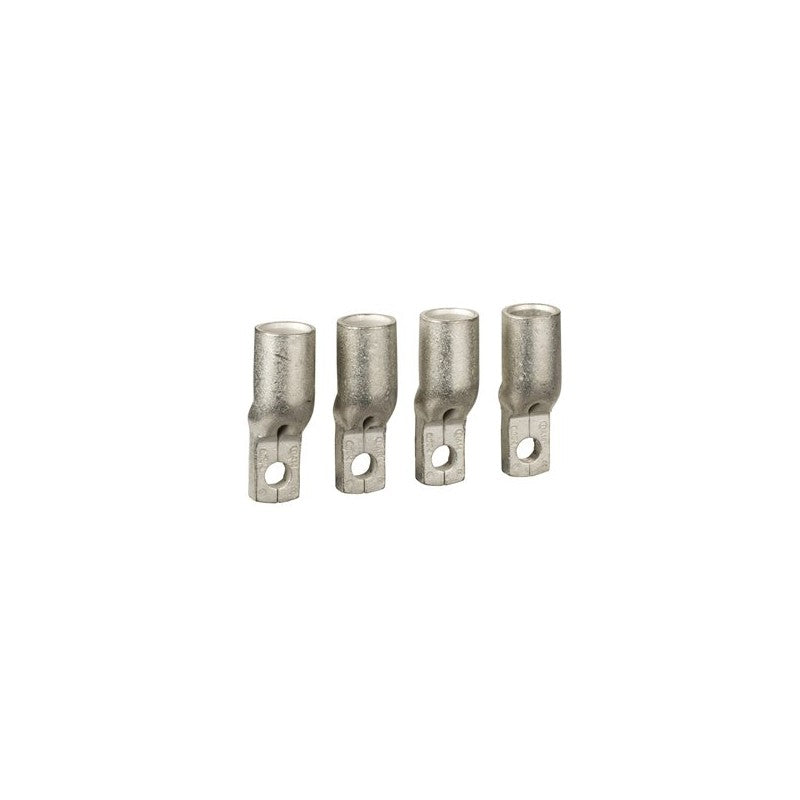

Compression lug - copper cable 70 mm - set of 4
Compression lug - copper cable 95 mm - set of 3
Compression lug - copper cable 95 mm - set of 4
Compression lug - copper cable 120 mm - set of 3
Compression lug - copper cable 120 mm - set of 4
