ACS580-01-09A4-4 ABB - 3AUA0000080491
ABB ACS580-01-09A4-4 ABB - 3AUA0000080491
$531.00
Only 7 units left

AC Drive, 3HP 460V
ACS550-U1-072A-4 ABB
ABB ACS550-U1-072A-4 ABB
$2,394.93
Only 4 units left

ACS550, 50HP, 3-Phase, 380-480V (Input), Nema 1 Enclosure, Variable Frequency Drives

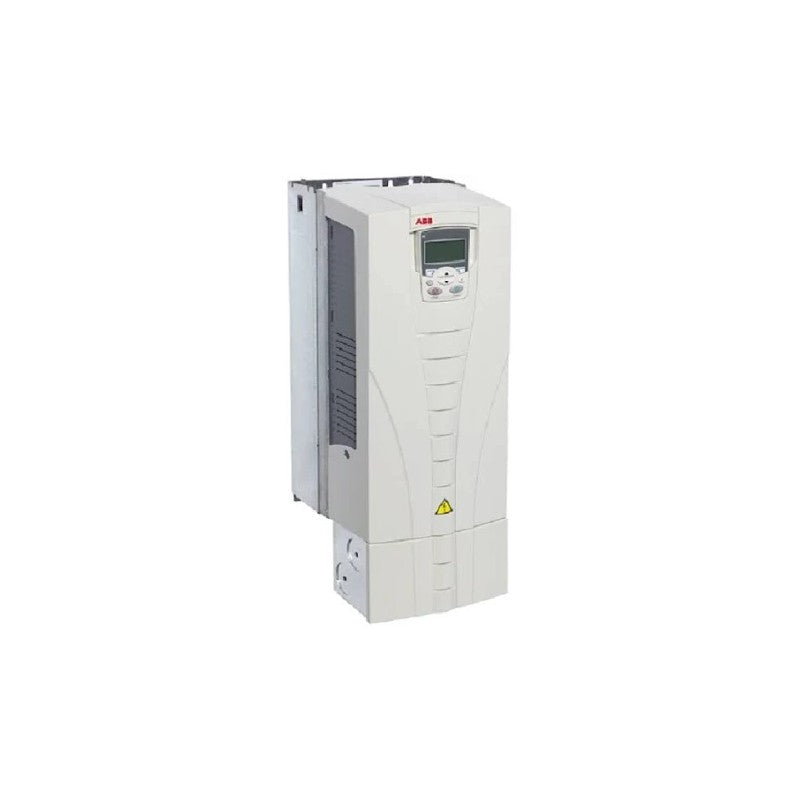

ACS550-U1-04A1-4 ABB
ABB ACS550-U1-04A1-4 ABB
$3,732.19
Only 6 units left

ACS550, 2HP, 3-Phase, 380-480V (Input), Nema 1 Enclosure, Variable Frequency Drives

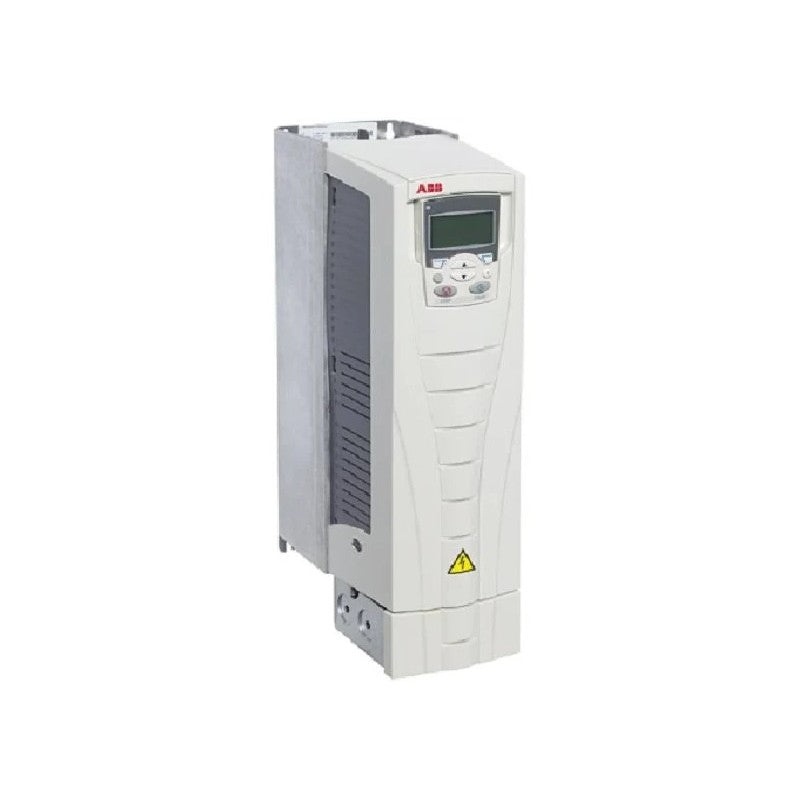

ACS550-U1-045A-4 ABB
ABB ACS550-U1-045A-4 ABB
$10,158.73
Only 4 units left

ACS550, 30HP, 3-Phase, 380-480V (Input), Nema 1 Enclosure, Variable Frequency Drives
ACS550-U1-015A-4 ABB
ABB ACS550-U1-015A-4 ABB
$4,583.69
Only 3 units left

AC Drive 7.5 Hp, 10 Hp, ACS550, VFD, N1 · Manufacturer Inventory · 3-Phase Supply Voltage, 380 - 480V AC, NEMA 1, Wall Mount Drive. 3-Phase Output
ACS355-03U-23A1-4 - ABB
ABB ACS355-03U-23A1-4 - ABB
$1,537.07
Only 5 units left

ACS355, 15HP, 3-Phase, 380-480V (Input), IP20 Enclosure, Variable Frequency Drives

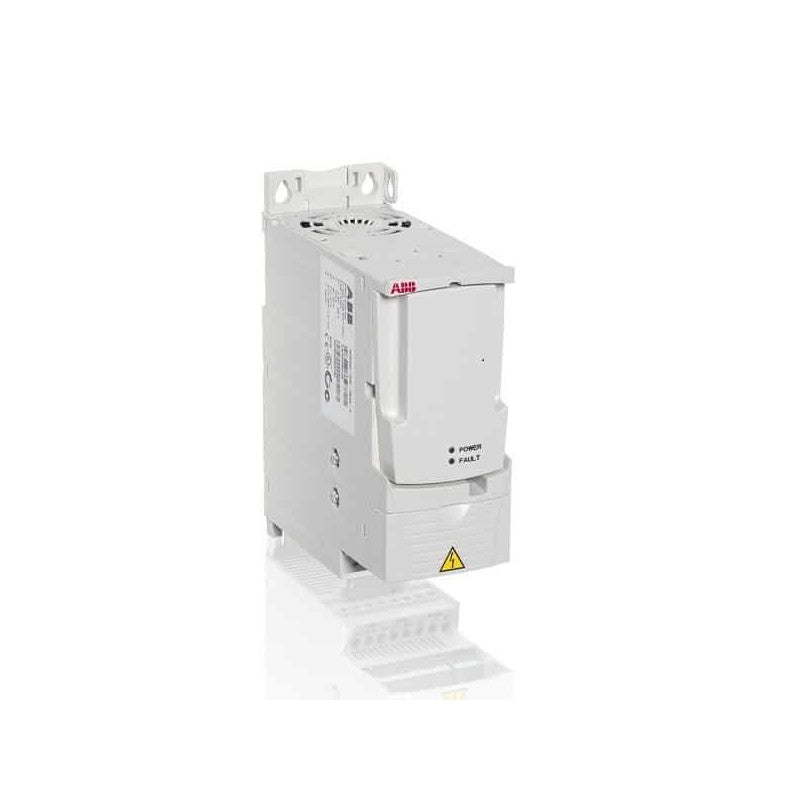

ACS355-03U-02A4-4 - ABB
ABB ACS355-03U-02A4-4 - ABB
$741.18
Only 8 units left

DRIVE, 3/4 KW, 1 HP, 2.4 A, 380-480 VAC, 3 PHASE
ACS310-03U-13A8-4 - ABB
ABB ACS310-03U-13A8-4 - ABB
$0.00
Sold Out

Variable Frequency Drive, 400 – 480 VAC 3 Phase Input, 480 VAC 3 Phase Output, 12.5 Amps
ACH550-VCR-012A-4 ABB
ABB ACH550-VCR-012A-4 ABB
$0.00
Sold Out

DRIVE, 7.5HP, 11.9AMP, 3PH, 5.5KW, 380-480VAC, 48/63HZ
ACH550-UH-078A-4 ABB
ABB ACH550-UH-078A-4 ABB
$3,470.29
Only 4 units left

AC DRIVE, 550 SERIES, 3 PHASE, 380-480 V AC, 50/60 HZ, 77 A, 60 HP
ACH550-UH-045A-4 ABB
ABB ACH550-UH-045A-4 ABB
$3,523.90
Only 3 units left

AC DRIVE, 550 SERIES, 3 PHASE, 380-480 V AC, 50/60 HZ, 44 A, 30 HP
ACH550-UH-017A-2 ABB
ABB ACH550-UH-017A-2 ABB
$2,526.99
Only 3 units left

AC DRIVE, 550 SERIES, 3 PHASE, 208-240 V AC, 50/60 HZ, 16.7 A, 5 HP
ACH550-PDR-072A-4 ABB
ABB ACH550-PDR-072A-4 ABB
$6,578.99
Only 1 unit left

AC DRIVE, 380-480V, 3PHASE

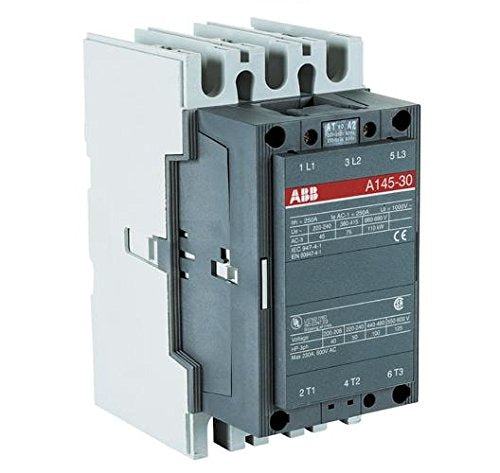

A145N4-30-11-84 ABB
ABB A145N4-30-11-84 ABB
$0.00
Sold Out

CONTACTOR, NM SZ 4, 120/60, OPEN

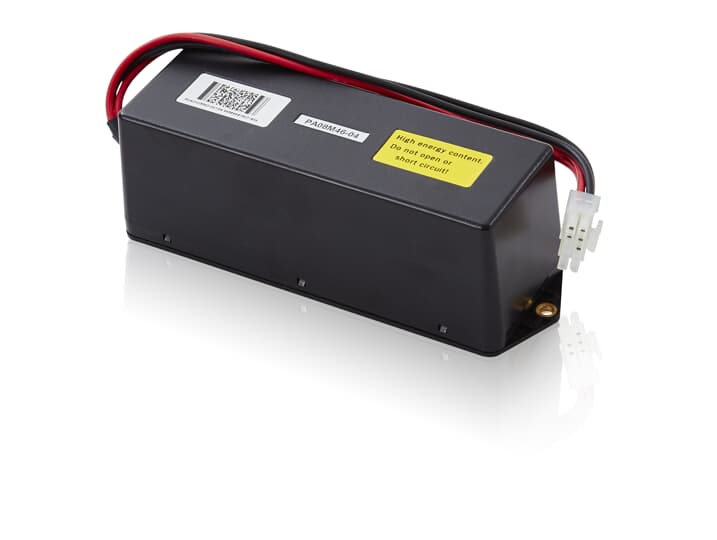

3HAC025562-001 ABB - DSQC 655
ABB 3HAC025562-001 ABB - DSQC 655
$538.76
Only 8 units left

DSQC 655 Capacitor Unit
3BHE024855R0101 ABB
ABB 3BHE024855R0101 ABB
$2,814.78
Only 5 units left

INVERTER BOARD, UFC921 A101
3AUA0000040000 ABB
ABB 3AUA0000040000 ABB
$1,676.50
In stock, 11 units

Ordering

Core Credit:
0.00
Customs Tariff Number:
850490
HS Code:
850490 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Parts
Invoice Description:
DriveWindow 2.x (Win2000, XP, Vista, Win7/32 and 64-bit, Win8/32 and 64-bit), incl. RUSB-02 connecti
Made To Order:
No
Minimum Order Quantity:
1 piece
Order Multiple:
1 piece
Quote Only:
No
Selling Unit of Measure:
piece

Dimensions

Product Net Weight:
0.579 kg
1.276 lb
0.579 kg
1.276 lb
Product Net Depth / Length:
22 mm
0.866 in
22 mm
0.866 in
Product Net Height:
26 mm
1.024 in
26 mm
1.024 in
Product Net Width:
36 mm
1.417 in
36 mm
1.417 in
Package Level 1 Units:
1 carton

Technical

Frame Size:
Undefined

Environmental

WEEE Category:
Product Not in WEEE Scope

External Classifications and Standards

UNSPSC:
39120000
39122004
39120000
39122004

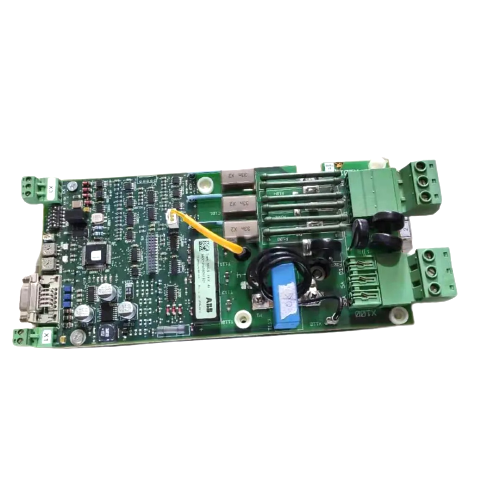

3ADT314500R1501 ABB - SDCS-FEX-4A
ABB 3ADT314500R1501 ABB - SDCS-FEX-4A
$2,230.40
Only 4 units left

FIELD-EXCITER BOARD, INVERTER ACCESSORY

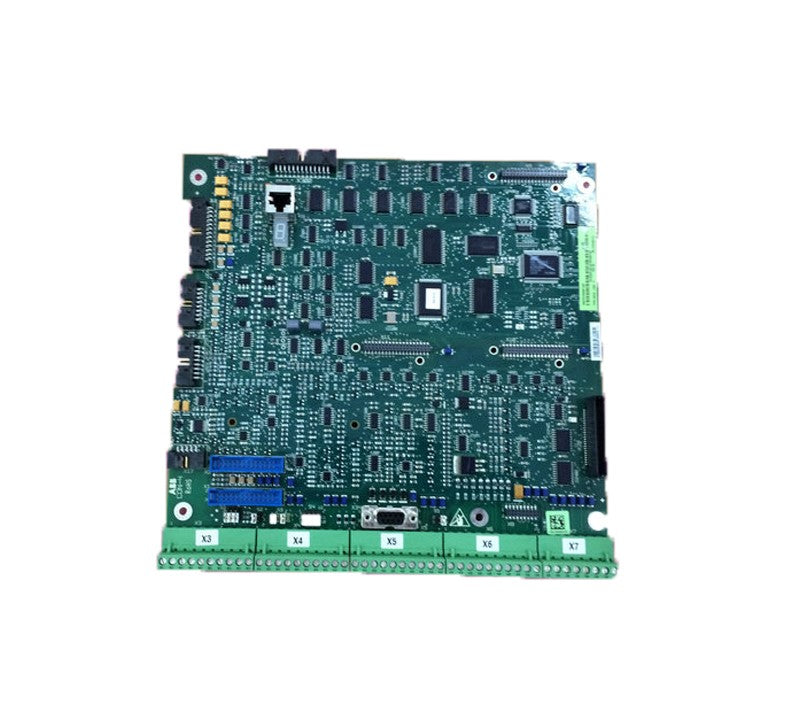

3ADT313900R1501 ABB - SDCS-CON-4-COAT-ROHS
ABB 3ADT313900R1501 ABB - SDCS-CON-4-COAT-ROHS
$2,840.09
Only 5 units left

Additional Information

ABB Type Designation:
-
CN8:
85371098
Core Credit:
0.00
Country or Territory of Origin:
China
Hong Kong Special Administrative Region of China
China
Hong Kong Special Administrative Region of China
Customs Tariff Number:
85049090
Frame Size:
Spare_Parts
Gross Volume:
0.011 m³
Gross Weight:
0.4 kg
Invoice Description:
SDCS-CON-4 COAT-ROHS CONTROL BOARD
Made To Order:
No
Minimum Order Quantity:
1 piece
Order Multiple:
1 piece
Package Level 1 Gross Weight:
0.4 kg
Package Level 1 Units:
1 piece
Part Type:
New
Product Name:
SDCS-CON-4 COAT-ROHS CONTROL BOARD
Product Net Weight:
0.4 kg
Product Type:
Spare_Parts
Quote Only:
No
Replaced Product ID (OLD):
Selling Unit of Measure:
piece
Stocked At (Warehouses):
Finland
Menden, Germany
New Berlin,Wisconsin, United States
Beijing, China
Singapore, Singapore
Tokyo, Japan
Finland
Bangalore, India
Finland
Menden, Germany
New Berlin,Wisconsin, United States
Beijing, China
Singapore, Singapore
Tokyo, Japan
Finland
Bangalore, India
Technical Information:
-
WEEE Category:
Product Not in WEEE Scope

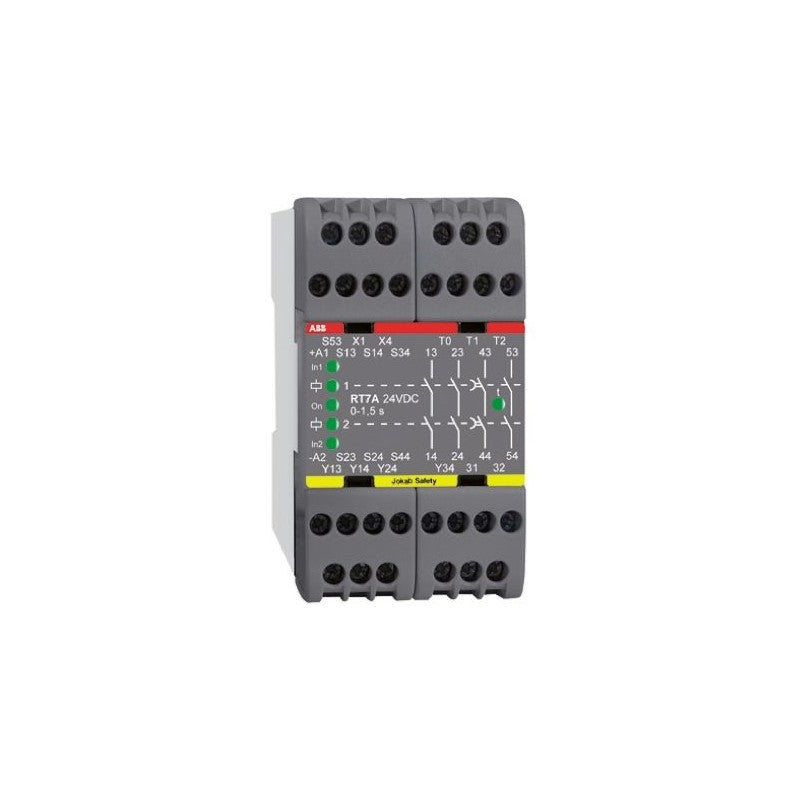

2TLA010028R2000 ABB - RT7A 24dc
ABB 2TLA010028R2000 ABB - RT7A 24dc
$1,941.77
Only 5 units left

Safety relay, RT7 A 24DC Safety relay 1.5 s

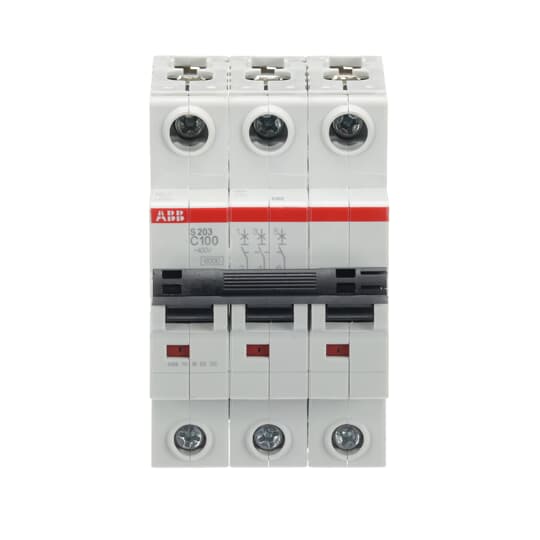

2CDS253001R0824 ABB - S203-C100
ABB 2CDS253001R0824 ABB - S203-C100
$108.86
Only 7 units left

ABB EcoSolutions

Technical

Dielectric Test Voltage:
50 / 60 Hz - 1 min 2 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(230 V AC) 10 kA
(400 V AC) 6 kA
(400 V) 6 kA
(230 V AC) 10 kA
(400 V AC) 6 kA
(400 V) 6 kA
Rated Service Short-Circuit Breaking Capacity (Ics):
(400 V AC) 6 kA
Power Supply Connection:
Arbitrary
Contact Position Indication:
Red ON / Green OFF
Energy Limiting Class:
3
Electrical Endurance:
10000 AC cycle
Mechanical Endurance:
20000 cycle
Number of Protected Poles:
3
Number of Poles:
3P
Tightening Torque:
3 N·m
Actuator Type:
Toggle
Screw Terminal Type:
Failsafe Bi-directional Cylinder-lift Terminal
Actuator Marking:
I / O
Actuator Material:
Insulation Group II, Black, Sealable
Recommended Screw Driver:
Pozidriv 2
Accessories Available:
Yes
Connecting Capacity:
Busbar 16/16 mm²
Conductor 2.5 ... 50 mm²
Flexible 4 ... 35 mm²
Rigid 2.5 ... 50 mm²
Stranded 2.5 ... 50 mm²
Busbar 16/16 mm²
Conductor 2.5 ... 50 mm²
Flexible 4 ... 35 mm²
Rigid 2.5 ... 50 mm²
Stranded 2.5 ... 50 mm²
Installation Size:
acc. to DIN 43880 1
Terminal Type:
Screw Terminals

Electrical

Tripping Characteristic:
C
Rated Operational Voltage:
acc. to IEC 60898-1 400 V AC
acc. to IEC 60947-2 400 V AC
acc. to IEC 60898-1 400 V AC
acc. to IEC 60947-2 400 V AC
Operational Voltage:
Maximum (Incl. Tolerance) 440 V AC
Minimum 12 V AC
Maximum (Incl. Tolerance) 440 V AC
Minimum 12 V AC
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp):
4 kV
at 2000 m 5 kV
at Sea Level 6.2 kV
4 kV
at 2000 m 5 kV
at Sea Level 6.2 kV
Input Voltage Type:
AC
Rated Current (In):
100 A
Rated Short-Circuit Capacity:
(AC) 6 kA
(DC) 6 kA
(230 V AC) 6 kA
(400 V AC) 6 kA
(400 V) 6 kA
(AC) 6 kA
(DC) 6 kA
(230 V AC) 6 kA
(400 V AC) 6 kA
(400 V) 6 kA
Rated Conditional Short-Circuit Current (Inc):
(230 V) 10 kA
(400 V) 20 kA
(230 V) 10 kA
(400 V) 20 kA
Rated Frequency (f):
50 / 60 Hz
Power Loss:
29.4 W
at Rated Operating Conditions per Pole 9.8 W
29.4 W
at Rated Operating Conditions per Pole 9.8 W
Overvoltage Category:
III

Design

Housing Material:
Insulation Group I, RAL 7035

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20200320
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240821
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Ambient Air Temperature:
Operation -25 ... +55 °C
Storage -40 ... +70 °C
Operation -25 ... +55 °C
Storage -40 ... +70 °C
Reference Ambient Air Temperature:
30 °C
Degree of Protection:
IP20
IP40
Enclosure with Cover IP40
IP20
IP40
Enclosure with Cover IP40
Pollution Degree:
3
Environmental Conditions:
28 cycles
with 55 °C / 90-96 %
and 25 °C / 95-100 %
28 cycles
with 55 °C / 90-96 %
and 25 °C / 95-100 %
Resistance to Vibrations:
20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27:
25g 2 shocks 13 ms

Dimensions

Width in Number of Modular Spacings:
3.0
Product Net Width:
52.5 mm
Product Net Height:
88 mm
Product Net Depth / Length:
69 mm
Product Net Weight:
0.42 kg
Built-In Depth (t2):
69 mm

Engineering

Ordering

Package Level 1 Units:
carton 1 piece
Package Level 1 Gross Weight:
16 kg
E-Number (Finland):
3210642
E-Number (Norway):
1682955

Certificates and Declarations

Declaration of Conformity - CE:
Declaration of Conformity - UKCA:

Installation

Instructions and Manuals:
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position:
any

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000042 - Miniature circuit breaker (MCB)
ETIM 10:
EC000042 - Miniature circuit breaker (MCB)
UNSPSC:
39121603
eClass:
V11.0 : 27141901
IDEA Granular Category Code (IGCC):
4897 >> Miniature circuit breakers
Object Classification Code:
F
Standards:
IEC/EN 60898-1
IEC/EN 60947-2
IEC/EN 60898-1
IEC/EN 60947-2
Certification Agency:
EN
IEC
EN
IEC
Standardization Body:
EN
IEC
EN
IEC

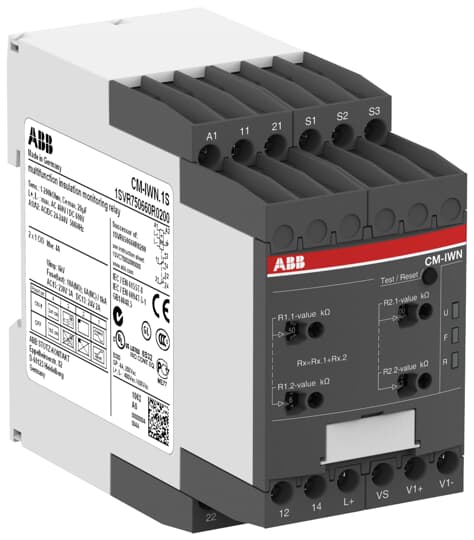

1SVR750660R0200 ABB - CM-IWN.1S
ABB 1SVR750660R0200 ABB - CM-IWN.1S
$661.84
Only 10 units left

Ordering

EAN:
4016779852623
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
45 mm
Product Net Height:
85.6 mm
Product Net Depth / Length:
104.8 mm
Product Net Weight:
0.241 kg

Technical

Function:
Unearthed AC systems
Unearthed DC systems
Unearthed mixed AC / DC systems
Up to 400 V AC
Up to 600 V DC
Unearthed AC systems
Unearthed DC systems
Unearthed mixed AC / DC systems
Up to 400 V AC
Up to 600 V DC
Measuring Range:
1 ... 200 kΩ
Rated Control Supply Voltage (Us):
24 ... 240 V AC/DC
Rated Frequency (f):
Measuring Circuit 15 ... 400 Hz
Output:
2 x 1 c/o or 1 x 2 c/o contacts, configurable
Terminal Type:
Screw Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Minimum Switching Capacity:
24 V
10 mA
24 V
10 mA
Rated Impulse Withstand Voltage (Uimp):
Measuring Circuit / Output Circuit 6 kV
Output Circuit 1 / Output Circuit 2 4 kV
Supply Circuit / Measuring Circuit 6 kV
Supply Circuit / Output Circuit 6 kV
Measuring Circuit / Output Circuit 6 kV
Output Circuit 1 / Output Circuit 2 4 kV
Supply Circuit / Measuring Circuit 6 kV
Supply Circuit / Output Circuit 6 kV
Rated Insulation Voltage (Ui):
Measuring Circuit / Output Circuit 600 V
Output Circuit 1 / Output Circuit 2 300 V
Supply Circuit / Measuring Circuit 600 V
Supply Circuit / Output Circuit 300 V
Measuring Circuit / Output Circuit 600 V
Output Circuit 1 / Output Circuit 2 300 V
Supply Circuit / Measuring Circuit 600 V
Supply Circuit / Output Circuit 300 V
Degree of Protection:
Housing IP50
Terminals IP20
Housing IP50
Terminals IP20
Overvoltage Category:
III
Pollution Degree:
3
Short-Circuit Protective Devices:
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
System Leakage Capacitance (CE):
20 µF
Electrical Durability:
AC-12 100000 cycle
Mechanical Durability:
Nr. Operations 30000000 cycle
Connecting Capacity:
Flexible with Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 2.5 mm²
Flexible with Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque:
0.6 ... 0.8 N·m
Wire Stripping Length:
8 mm
Recommended Screw Driver:
0.8 x 4
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61326-2-4
IEC/EN 61557-1
IEC/EN 61557-8
UL 508
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61326-2-4
IEC/EN 61557-1
IEC/EN 61557-8
UL 508

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Output Circuit 300 V AC
Contact Rating UL/CSA:
B300
Connecting Capacity UL/CSA:
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-14 AWG
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-14 AWG
Tightening Torque UL/CSA:
7.08 in·lb
Pilot Duty UL/CSA:
B300
Flammability According to UL94:
V-0

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude Permissible:
Without Derating 2000 m

ABB EcoSolutions

ABB EcoSolutions:
Yes

Certificates and Declarations

CB Certificate:
cULus Certificate:

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
97 mm
Package Level 1 Depth / Length:
52.5 mm
Package Level 1 Height:
109 mm
Package Level 1 Gross Weight:
0.27 kg
Package Level 1 EAN:
4016779852623

External Classifications and Standards

Object Classification Code:
B
ETIM 7:
EC001444 - Insulation and earth fault monitoring relay
ETIM 8:
EC001444 - Insulation and earth fault monitoring relay
ETIM 9:
EC001444 - Insulation and earth fault monitoring relay
eClass:
V11.0 : 27371807
UNSPSC:
39122331
E-Number (Finland):
2712256
E-Number (Norway):
4187802
E-Number (Sweden):
3860657
1SVR730824R9300 ABB - CM-PFS.S
ABB 1SVR730824R9300 ABB - CM-PFS.S
$159.88
Only 10 units left

Ordering

EAN:
4016779851947
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
85.6 mm
Product Net Depth / Length:
103.7 mm
Product Net Weight:
0.127 kg

Technical

Function:
Phase failure detection
Phase sequence monitoring
Phase failure detection
Phase sequence monitoring
Measuring Range:
(L-L) 200 ... 500 V AC
Time Range:
500 ms start-up delay
Rated Control Supply Voltage (Us):
(L-L) 200 ... 500 V AC
Rated Frequency (f):
Supply Circuit 50/60 Hz
Output:
2 c/o (SPDT) contacts
Terminal Type:
Screw Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Minimum Switching Capacity:
24 V
10 mA
24 V
10 mA
Rated Impulse Withstand Voltage (Uimp):
Input Circuit 6 kV
Output Circuit 4 kV
Input Circuit 6 kV
Output Circuit 4 kV
Rated Insulation Voltage (Ui):
Input Circuit / Output Circuit 600 V
Output Circuit 1 / Output Circuit 2 300 V
Input Circuit / Output Circuit 600 V
Output Circuit 1 / Output Circuit 2 300 V
Degree of Protection:
Housing IP50
Terminals IP20
Housing IP50
Terminals IP20
Overvoltage Category:
III
Pollution Degree:
3
Short-Circuit Protective Devices:
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Electrical Durability:
AC-12 100000 cycle
Mechanical Durability:
Nr. Operations 30000000 cycle
Connecting Capacity:
Flexible with Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 2.5 mm²
Flexible with Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 2.5 mm²
Tightening Torque:
0.6 ... 0.8 N·m
Wire Stripping Length:
8 mm
Recommended Screw Driver:
0.8 x 4
4.5
Pozidriv 1
0.8 x 4
4.5
Pozidriv 1
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 60255-27
IEC/EN 61000-6-2
IEC/EN 61000-6-3
UL 508
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 60255-27
IEC/EN 61000-6-2
IEC/EN 61000-6-3
UL 508

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Output Circuit 300 V AC
Contact Rating UL/CSA:
B300
Connecting Capacity UL/CSA:
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-14 AWG
Flexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-14 AWG
Tightening Torque UL/CSA:
7.08 in·lb
Pilot Duty UL/CSA:
B300

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Operation -25 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude Permissible:
Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
SCIP:
56fc38e3-b736-4b83-9e89-52f665d64cdc Germany
Simplified SCIP:
3341f646-1a9a-4065-94b8-c2b2c0187c40 Italy
6afb5db7-7f9d-4095-b539-242b414f7193 Germany
5ebae325-3d4f-4aa5-a6e4-1f56cd923bec Croatia
dd890426-285f-442d-8785-3654fca310e7 Norway
17e92b3a-c001-4112-9355-68ffd855c21b Germany
ceff6df6-b985-4856-883e-e42ad718689b Belgium
e36cdfe6-55ee-4b1b-ba1e-482f2414736c Finland
b823fb42-33d1-478d-99a5-537325bb8f27 Denmark
0d9b4915-a354-4ba3-b60b-03778cb0be7c Poland
bf4d162e-fc74-4c0f-bc33-7fb11e530319 France
b029317a-6c22-478a-b0d4-de48bee03dd1 Sweden
e59838dd-a179-4d5b-9619-64ce5259908f Germany
5cd9d81e-6449-4b1a-a4fb-798de111777c Sweden
6936519d-4a85-42eb-bebb-ff972c3c7c4c Poland
28814495-f69e-4f0d-9232-db444df6f00a France
d8440f20-f040-45ce-a29b-d4b5085ff2e4 Belgium
6da68da7-45f7-430a-886e-11e69f7beb7a Hungary
a41a02e8-6421-4814-8484-0d5195dc067d Spain
56ef4907-68f6-4b1b-b101-52c3080e9b68 Czech Republic
662a264f-80cd-46b3-b300-5f0dcbc4ebac Poland
1933829f-382a-40bc-ae2b-6b51b522f4ae Germany
3a5aaa86-614b-4543-9c8e-fcee83244e2c Estonia
3044e004-0351-4a3f-9eb5-d3af33e3a994 Netherlands
18d4b5a8-a3a2-4e6c-ae09-034612aca207 Hungary
6c3ac14a-a6c4-4f53-8829-7dde2dafcfb8 Greece
0c468727-097c-435c-be07-2fd709bed4e8 Portugal
206d3bbf-9f4e-43c6-8bae-03b750ccce31 Bulgaria
3341f646-1a9a-4065-94b8-c2b2c0187c40 Italy
6afb5db7-7f9d-4095-b539-242b414f7193 Germany
5ebae325-3d4f-4aa5-a6e4-1f56cd923bec Croatia
dd890426-285f-442d-8785-3654fca310e7 Norway
17e92b3a-c001-4112-9355-68ffd855c21b Germany
ceff6df6-b985-4856-883e-e42ad718689b Belgium
e36cdfe6-55ee-4b1b-ba1e-482f2414736c Finland
b823fb42-33d1-478d-99a5-537325bb8f27 Denmark
0d9b4915-a354-4ba3-b60b-03778cb0be7c Poland
bf4d162e-fc74-4c0f-bc33-7fb11e530319 France

ABB EcoSolutions

ABB EcoSolutions:
Yes

Certificates and Declarations

CB Certificate:
cULus Certificate:

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
97 mm
Package Level 1 Depth / Length:
30 mm
Package Level 1 Height:
109 mm
Package Level 1 Gross Weight:
0.152 kg
Package Level 1 EAN:
4016779851947

External Classifications and Standards

Object Classification Code:
B
ETIM 7:
EC001441 - Phase monitoring relay
ETIM 8:
EC001441 - Phase monitoring relay
ETIM 9:
EC001441 - Phase monitoring relay
eClass:
V11.0 : 27371803
UNSPSC:
39122332
E-Number (Finland):
2712286
E-Number (Norway):
4188094
E-Number (Sweden):
3860595
1SFL637001R7011 ABB - AF750-30-11-70
ABB 1SFL637001R7011 ABB - AF750-30-11-70
$1,501.68
Only 4 units left

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Popular Downloads

Dimensions

Product Net Width:
210 mm
Product Net Depth / Length:
242 mm
Product Net Height:
283 mm
Product Net Weight:
13.6 kg

Technical

Number of Main Contacts NO:
3
Number of Main Contacts NC:
0
Number of Auxiliary Contacts NO:
1
Number of Auxiliary Contacts NC:
1
Number of Poles:
3P
Rated Operational Voltage:
Main Circuit 1000 V
Rated Frequency (f):
Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith):
acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 1050 A
Rated Operational Current AC-1 (Ie):
(1000 V) 40 °C 1000 A
(1000 V) 55 °C 875 A
(1000 V) 70 °C 720 A
(690 V) 40 °C 1050 A
(690 V) 55 °C 875 A
(690 V) 70 °C 720 A
(1000 V) 40 °C 1000 A
(1000 V) 55 °C 875 A
(1000 V) 70 °C 720 A
(690 V) 40 °C 1050 A
(690 V) 55 °C 875 A
(690 V) 70 °C 720 A
Rated Operational Current AC-3 (Ie):
(415 V) 55 °C 750 A
(440 V) 55 °C 750 A
(500 V) 55 °C 750 A
(690 V) 55 °C 650 A
(1000 V) 55 °C 300 A
(380 / 400 V) 55 °C 750 A
(220 / 230 / 240 V) 55 °C 750 A
(415 V) 55 °C 750 A
(440 V) 55 °C 750 A
(500 V) 55 °C 750 A
(690 V) 55 °C 650 A
(1000 V) 55 °C 300 A
(380 / 400 V) 55 °C 750 A
(220 / 230 / 240 V) 55 °C 750 A
Rated Operational Current DC-1 (Ie):
(110 V) 1-Pole, 40 °C 1050 A
(110 V) 2 Poles in Series, 40 °C 1050 A
(220 V) 3 Poles in Series, 40 °C 1050 A
(600 V) 3 Poles in Series, 40 °C 1050 A
(850 V) 3 Poles in Series, 40 °C 1050 A
(110 V) 1-Pole, 40 °C 1050 A
(110 V) 2 Poles in Series, 40 °C 1050 A
(220 V) 3 Poles in Series, 40 °C 1050 A
(600 V) 3 Poles in Series, 40 °C 1050 A
(850 V) 3 Poles in Series, 40 °C 1050 A
Rated Operational Current DC-3 (Ie):
(110 V) 1-Pole, 40 °C 1050 A
(110 V) 2 Poles in Series, 40 °C 1050 A
(220 V) 3 Poles in Series, 40 °C 1050 A
(600 V) 3 Poles in Series, 40 °C 1050 A
(110 V) 1-Pole, 40 °C 1050 A
(110 V) 2 Poles in Series, 40 °C 1050 A
(220 V) 3 Poles in Series, 40 °C 1050 A
(600 V) 3 Poles in Series, 40 °C 1050 A
Rated Operational Current DC-5 (Ie):
(110 V) 1-Pole, 40 °C 1050 A
(110 V) 2 Poles in Series, 40 °C 1050 A
(220 V) 3 Poles in Series, 40 °C 1050 A
(600 V) 3 Poles in Series, 40 °C 1050 A
(110 V) 1-Pole, 40 °C 1050 A
(110 V) 2 Poles in Series, 40 °C 1050 A
(220 V) 3 Poles in Series, 40 °C 1050 A
(600 V) 3 Poles in Series, 40 °C 1050 A
Rated Operational Power AC-3 (Pe):
(415 V) 425 kW
(440 V) 450 kW
(500 V) 520 kW
(690 V) 600 kW
(1000 V) 400 kW
(380 / 400 V) 400 kW
(220 / 230 / 240 V) 220 kW
(415 V) 425 kW
(440 V) 450 kW
(500 V) 520 kW
(690 V) 600 kW
(1000 V) 400 kW
(380 / 400 V) 400 kW
(220 / 230 / 240 V) 220 kW
Rated Breaking Capacity AC-3:
8 x Ie AC-3
Rated Making Capacity AC-3:
10 x Ie AC-3
Short-Circuit Protective Devices:
gG Type Fuses 1000 A
Rated Short-time Withstand Current Low Voltage (Icw):
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 6400 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 1300 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 3500 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 7000 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 4500 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 6400 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 1300 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 3500 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 7000 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 4500 A
Maximum Breaking Capacity:
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 7500 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 7000 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 7500 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 7000 A
Rated Insulation Voltage (Ui):
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V
acc. to UL/CSA 600 V
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V
acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp):
Main Circuit 8 kV
Maximum Electrical Switching Frequency:
(AC-1) 300 cycles per hour
(AC-2 / AC-4) 60 cycles per hour
(AC-3) 300 cycles per hour
(AC-1) 300 cycles per hour
(AC-2 / AC-4) 60 cycles per hour
(AC-3) 300 cycles per hour
Mechanical Durability:
3 million
Maximum Mechanical Switching Frequency:
300 cycles per hour
Coil Operating Limits:
(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)
Rated Control Circuit Voltage (Uc):
50 Hz 100...250 V
60 Hz 100...250 V
DC Operation 100 ... 250 V
50 Hz 100...250 V
60 Hz 100...250 V
DC Operation 100 ... 250 V
Coil Consumption:
Holding at Max. Rated Control Circuit Voltage 50 Hz 12 V·A
Holding at Max. Rated Control Circuit Voltage 60 Hz 12 V·A
Holding at Max. Rated Control Circuit Voltage DC 5 V·A
Pull-in at Max. Rated Control Circuit Voltage 50 Hz 880 V·A
Pull-in at Max. Rated Control Circuit Voltage 60 Hz 880 V·A
Pull-in at Max. Rated Control Circuit Voltage DC 880 V·A
Holding at Max. Rated Control Circuit Voltage 50 Hz 12 V·A
Holding at Max. Rated Control Circuit Voltage 60 Hz 12 V·A
Holding at Max. Rated Control Circuit Voltage DC 5 V·A
Pull-in at Max. Rated Control Circuit Voltage 50 Hz 880 V·A
Pull-in at Max. Rated Control Circuit Voltage 60 Hz 880 V·A
Pull-in at Max. Rated Control Circuit Voltage DC 880 V·A
Power Loss:
at Rated Operating Conditions per Pole 50 W
Operate Time:
Between Coil De-energization and NC Contact Closing 50 ... 70 ms
Between Coil De-energization and NO Contact Opening 53 ... 73 ms
Between Coil Energization and NC Contact Opening 45 ... 115 ms
Between Coil Energization and NO Contact Closing 50 ... 120 ms
Between Coil De-energization and NC Contact Closing 50 ... 70 ms
Between Coil De-energization and NO Contact Opening 53 ... 73 ms
Between Coil Energization and NC Contact Opening 45 ... 115 ms
Between Coil Energization and NO Contact Closing 50 ... 120 ms
Connecting Capacity Main Circuit:
Bar 52 mm²
Rigid Al-Cable 3x185 mm²
Rigid Cu-Cable 300 mm²
Bar 52 mm²
Rigid Al-Cable 3x185 mm²
Rigid Cu-Cable 300 mm²
Connecting Capacity Auxiliary Circuit:
Flexible with Ferrule 2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm²
Flexible 1x0.75 ... 2.5 mm²
Solid 2 x 1 ... 4 mm²
Stranded 1 x 1 .... 4 mm²
Flexible with Ferrule 2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm²
Flexible 1x0.75 ... 2.5 mm²
Solid 2 x 1 ... 4 mm²
Stranded 1 x 1 .... 4 mm²
Connecting Capacity:
Bar 52 mm²
Rigid Al-Cable 3x185 mm²
Rigid Cu-Cable 300 mm²
Bar 52 mm²
Rigid Al-Cable 3x185 mm²
Rigid Cu-Cable 300 mm²
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Tightening Torque:
Cable Lug 45 N·m
Main Circuit 45 N·m
Cable Lug 45 N·m
Main Circuit 45 N·m
Terminal Type:
Main Circuit: Bars
Product Name:
Block Contactor

Technical UL/CSA

NEMA Size:
7
Horsepower Rating NEMA:
(230 V AC) Three Phase 300 Hp
(460 V AC) Three Phase 600 Hp
(575 V AC) Three Phase 600 Hp
(230 V AC) Three Phase 300 Hp
(460 V AC) Three Phase 600 Hp
(575 V AC) Three Phase 600 Hp
Maximum Operating Voltage UL/CSA:
Main Circuit 1000 V
General Use Rating UL/CSA:
(1000 V AC) 900 A
(600 V AC) 900 A
(1000 V AC) 900 A
(600 V AC) 900 A
Horsepower Rating UL/CSA:
(200 V AC) Three Phase 250 hp
(208 V AC) Three Phase 250 hp
(220 ... 240 V AC) Three Phase 300 hp
(440 ... 480 V AC) Three Phase 600 hp
(550 ... 600 V AC) Three Phase 700 hp
(200 V AC) Three Phase 250 hp
(208 V AC) Three Phase 250 hp
(220 ... 240 V AC) Three Phase 300 hp
(440 ... 480 V AC) Three Phase 600 hp
(550 ... 600 V AC) Three Phase 700 hp
Full Load Amps Motor Use:
(440 ... 480 V AC) Three Phase 722 A
(550 ... 600 V AC) Three Phase 672 A
(440 ... 480 V AC) Three Phase 722 A
(550 ... 600 V AC) Three Phase 672 A

Environmental

Ambient Air Temperature:
Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C
Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C
Close to Contactor for Storage -40 ... 70 °C
Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C
Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C
Close to Contactor for Storage -40 ... 70 °C
Maximum Operating Altitude Permissible:
Without Derating 3000 m
Resistance to Shock acc. to IEC 60068-2-27:
Shock Direction: A 5 g
Shock Direction: B1 5 g
Shock Direction: B2 5 g
Shock Direction: C1 5 g
Shock Direction: C2 5 g
Shock Direction: A 5 g
Shock Direction: B1 5 g
Shock Direction: B2 5 g
Shock Direction: C1 5 g
Shock Direction: C2 5 g

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CB Certificate:
CSA Certificate:
Declaration of Conformity - UKCA:
DNV Certificate:
EAC Certificate:
GL Certificate:
LOVAG Certificate:
RMRS Certificate:
UL Listing Card:

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
280 mm
Package Level 1 Depth / Length:
375 mm
Package Level 1 Height:
310 mm
Package Level 1 Gross Weight:
15 kg
Package Level 1 EAN:
7320500217702

External Classifications and Standards

Object Classification Code:
Q
ETIM 7:
EC000066 - Power contactor, AC switching
ETIM 8:
EC000066 - Power contactor, AC switching
ETIM 9:
EC000066 - Power contactor, AC switching
eClass:
V11.0 : 27371003
UNSPSC:
39121529
IDEA Granular Category Code (IGCC):
4758 >> Iec Contactors
E-Number (Finland):
3709335
E-Number (Norway):
4115300
E-Number (Sweden):
3228366

Recently viewed
