VFD-E, 3HP 460V, MICRO VECTOR DR
The CX5010 and CX5020 are Embedded PCs from the CX5000 series based on Intel Atom® processors and differ only by the CPU version. The CX5010 has a 1.1 GHz Intel Atom® Z510 processor, while the CX5020 has a 1.6 GHz Intel Atom® Z530 processor. Apart from the clock speed, the two processors also differ by the fact that the Z530 features hyperthreading technology, i.e. it has two virtual CPU cores for more effective execution of software.
7” (800 * 480) 65536 Colors TFT Cortex-A8 800MHz CPU 256MB RAM 256MB ROM 1 COM port / 1 extension COM port USB Host USB Client CE/UL certified Operating temperature: 0°C – 50°C Storage temperature: -20°C - 60°C Number of keystrokes: > 10,000k times
The C2000 Plus Series features precise speed, torque and position control functions that are suitable for both sensor and sensorless synchronous / asynchronous motors. 460 V – 3 Phase 132 kW – 175 HP – 260 A
The C2000 Plus Series features precise speed, torque and position control functions that are suitable for both sensor and sensorless synchronous / asynchronous motors. 460 V – 3 Phase 45 kW – 60 HP – 91 Amps
The C2000 Plus Series features precise speed, torque and position control functions that are suitable for both sensor and sensorless synchronous / asynchronous motors. Features Include: Advanced Drive Controls For both synchronous and asynchronous motors | Dual rating design (heavy duty / super heavy duty) | Speed / torque / position control mode Versatile Drive Controls Built-in PLC function | Built-in brake unit | Supports various network protocols | Position control Environmental Adaptability Built-in DC reactor | Built-in EMC filter | 50˚C operating temperature Modular Design Hot pluggable LCD keypad | I/O extension cards | Various PG (encoder) feedback cards | Network cards for fieldbus modules | Removable fan Others Fast Response to Impact Load | A Drive for Permanent Magnet (PM) Motors | High-Performance Field-oriented Control | Auto Energy-Saving Operation | Deceleration Energy Backup (DEB) | Drive System Management Platform
Standard Models (0-599 Hz) Without EMC Filter Part Number: VFD38AMS43ANSAA Nominal Input VAC: 480 Volts AC Input Range VAC: 460 Volts AC HP: 25 HP Amps (HD): 38A Amps (ND): 41A Input Phase : 3PH Operator Controls : Sold Seperately, See Accessories Brake Type : DC Injection; Dynamic Braking Motor Control-Max Level: Open Loop Vector-(Sensorless Vector) Closed Loop: NO AC Line Regenerative: NO Dynamic Braking Trans: Included Enclosure Rating: IP20 Frame Size : F1 Height: 11.81 Inches Width: 6.89 Inches Depth: 7.56 Inches Net Weight: 20 Lbs. Delta’s MS300 series is a standard compact vector control drive that inherits Delta’s superior drive technology. It supports both IM and PM motor control for application flexibility and provides STO safety mechanism. Also built-in various essential functions, including PLC capacity for simple programming needs, a communication slot for various communication cards, and a USB port to make data uploads and downloads fast and easy. Saving space, reducing setup and wiring time, while providing high efficiency and stability system ,all included in the MS300 series with drive size reduced up to 40%. Delta VFD MS300 Micro Drive Accessories
Standard Models (0-599 Hz) Without EMC Filter Part Number: Delta VFD1A5MS43ANSAA Nominal Input VAC: 480 Volts AC Input Range VAC: 460 Volts AC HP: .50 HP Amps (HD): 1.5A Amps (ND): 1.8A Input Phase : 3 PH Operator Controls: Sold Seperately, See Accessories Brake Type : DC Injection; Dynamic Braking Motor Control-Max Level: Open Loop Vector-(Sensorless Vector) Closed Loop: NO AC Line Regenerative: NO Dynamic Braking Trans: Included Enclosure Rating: IP20 Frame Size: A4 Height: 5.04 Inches Width: 2.68 Inches Depth: 5.08 Inches Net Weight: 4 Lbs. Delta’s MS300 series is a standard compact vector control drive that inherits Delta’s superior drive technology. It supports both IM and PM motor control for application flexibility and provides STO safety mechanism. Also built-in various essential functions, including PLC capacity for simple programming needs, a communication slot for various communication cards, and a USB port to make data uploads and downloads fast and easy. Saving space, reducing setup and wiring time, while providing high efficiency and stability system, all included in the MS300 series with drive size reduced up to 40%. Delta VFD MS300 Micro Drive Accessories
Delta’s VFD-EL-W series is the new generation compact vector control drive. Simple, delicate and durable design inherits Delta’s superior drive technology. Various essential functions are built-in as standard, including: Multi-step Operation; Torque Compensation; PID Control; Multi-Pump Control; Water Supply at Constant Pressure; Leakage Detection function and so on. 460 V – 3 Phase 0.75 KW – 1 HP – 2.5 A
Delta’s VFD-EL-W series is the new generation compact vector control drive. Simple, delicate and durable design inherits Delta’s superior drive technology. Various essential functions are built-in as standard, including: Multi-step Operation; Torque Compensation; PID Control; Multi-Pump Control; Water Supply at Constant Pressure; Leakage Detection function and so on. 1.2 KW – 2 HP – 7.5 A 230 V – 1 Phase
Delta’s VFD-EL-W series is the new generation compact vector control drive. Simple, delicate and durable design inherits Delta’s superior drive technology. Various essential functions are built-in as standard, including: Multi-step Operation; Torque Compensation; PID Control; Multi-Pump Control; Water Supply at Constant Pressure; Leakage Detection function and so on. 0.2 KW – 0.25 HP – 1.6 A 230 V – 1 Phase
Delta’s VFD-EL-W series is the new generation compact vector control drive. Simple, delicate and durable design inherits Delta’s superior drive technology. Various essential functions are built-in as standard, including: Multi-step Operation; Torque Compensation; PID Control; Multi-Pump Control; Water Supply at Constant Pressure; Leakage Detection function and so on. Features Include: Simple Speed Control Horizontal Movement Fixed Load Applications 230 V – 1 Phase 0.4 KW – 0.5 HP – 2.5 A
CP2000 Series AC motor drive for energy-saving HVAC systems and for pump and fan applications. The CP2000 Series is equipped with special HVAC parameters and PID control functions for efficient operation, as well as multi-segment V/F control curve and soft start functions to assist frequent torque change and constant output applications with energy-saving performance. 50 HP – 37 kW – 73 Amps 460 V – 3 Phase
Delta’s Sensorless Vector Control Drive CP2000 Series has extended the idea of energy saving and uses this principal as the basis of its design. The Delta CP2000 is specifically designed for applications such as air blowers, pumps and HVAC drives with its intelligent PID control providing the greatest efficiency. The Sensorless Vector Control (SVC) offers timely response to load torque increase/decrease which satisfies customer requirements for load changes while enhancing motor performance. The Delta CP2000 series provides you with the ultimate energy-saving solution for your applications. Drive, AC .5HP 460V 3PH 2.8A

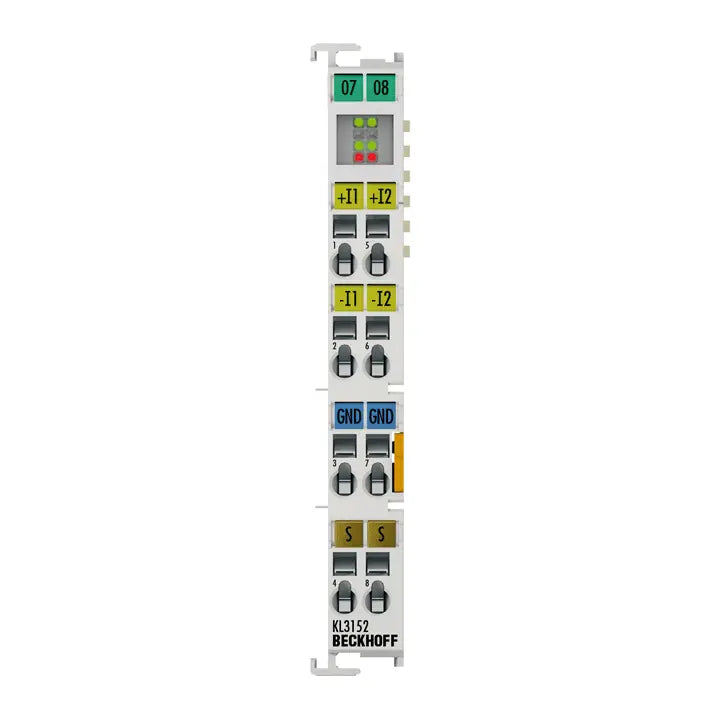

Bus Terminal, 2-channel analog input, current, 4…20 mA, 16 bit, differential, high-precision
EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 16 bit
EtherCAT Terminal, 2-channel relay output, 230 V AC, 30 V DC, 5 A, without power contacts

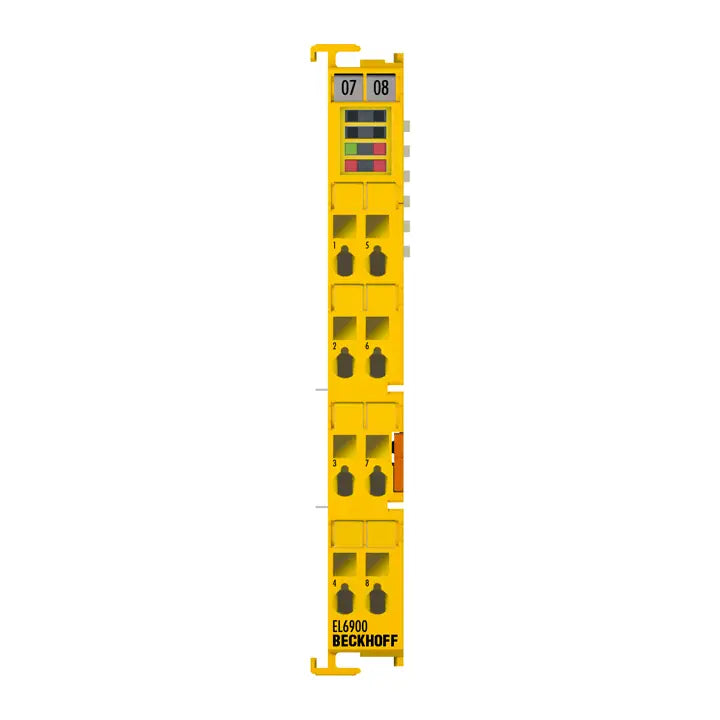

EtherCAT Terminal communication interface, TwinSAFE Logic

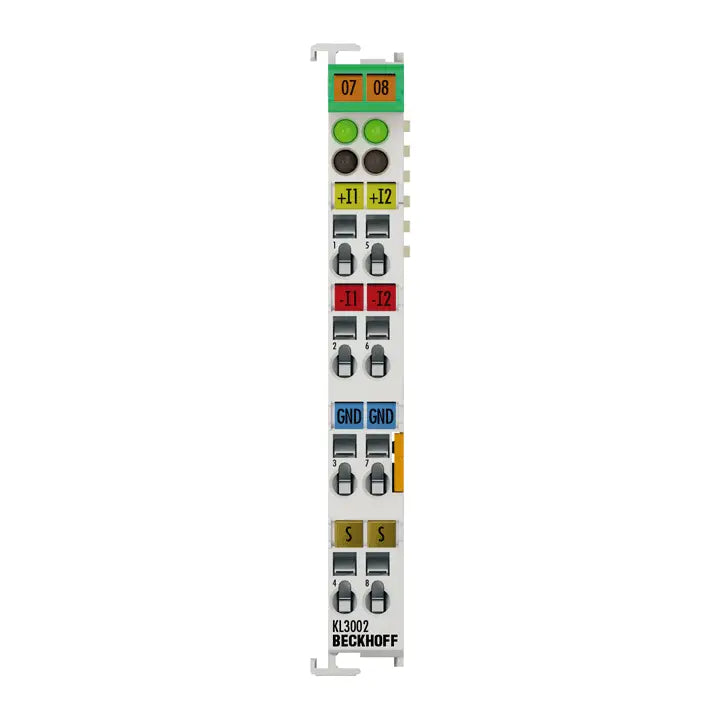

Bus Terminal, 2-channel analog input, voltage, ±10 V, 12 bit, differential

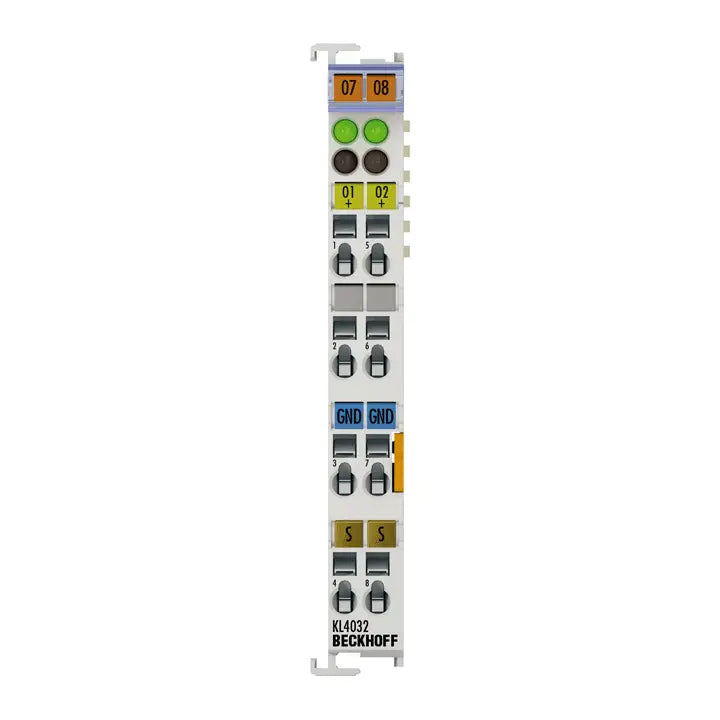

Bus Terminal, 2-channel analog output, voltage, ±10 V, 12 bit, differential

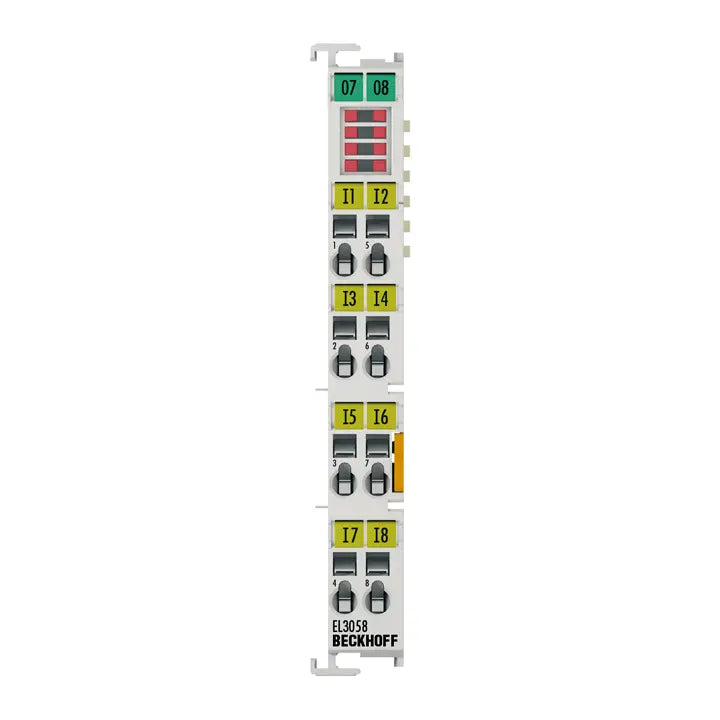

EtherCAT Terminal, 8-channel analog input, current, 4…20 mA, 12 bit, single-ended

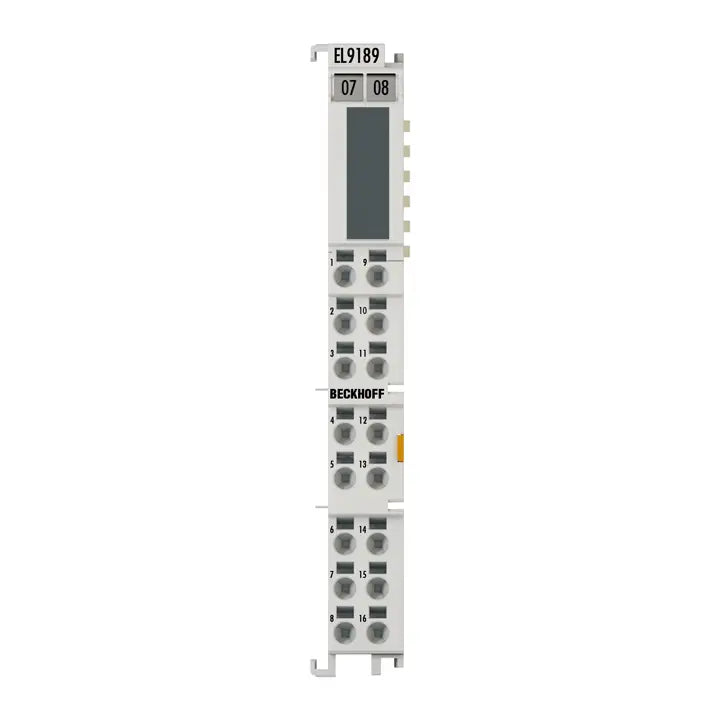

Potential distribution terminal, 16 x 0 V DC
EtherCAT Terminal, 2-channel PWM output, 24 V DC, 0.5 A
EtherCAT Terminal, 1-channel motion interface, stepper motor, 48 V DC, 5 A, with incremental encoder
