Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Altivar |

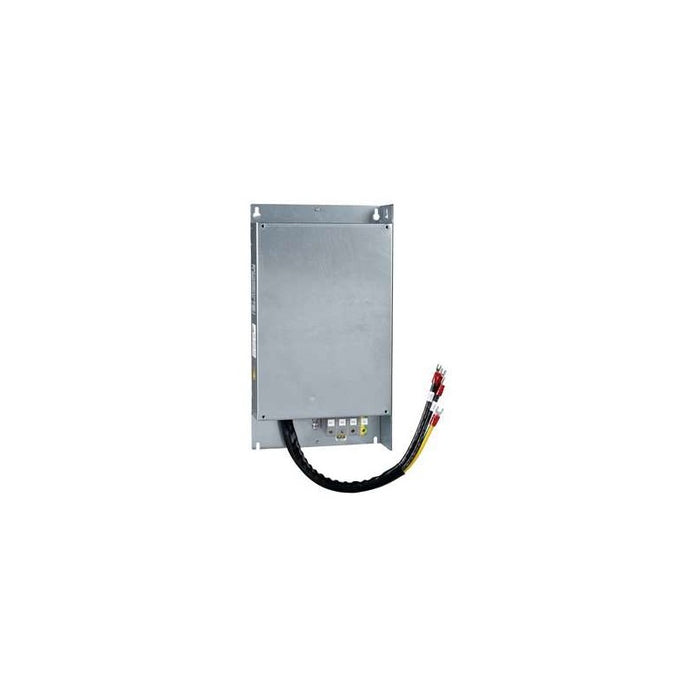

| Product or Component Type | EMC input filter |
| Range Compatibility | Altivar 61 Altivar 71 |
| Product compatibility | ATV61HU22M3 ATV61HU30M3 ATV61HU30N4 ATV61HU40M3 ATV61HU40N4 ATV71HU22M3 ATV71HU30M3 ATV71HU30N4 ATV71HU40M3 ATV71HU40N4 ATV71PU30N4Z ATV71PU40N4Z ATV71WU30N4 ATV71WU40N4 |
| Product Specific Application | Radio interference input filter |
| Line Rated Current | 26 A |
| Thermal losses | 18 W 200...240 V AC ATV61/ATV71 variable speed drives 6 W 380...480 V AC ATV61/ATV71 variable speed drives |
| Phase | Three phase |
Complementary
| Characteristic | Value(s) |
|---|---|
| Electrical connection | Terminal 6 mm² AWG 8 |
| Tightening torque | 13.3 lbf.in (1.5 N.m) |
| maximum earth leakage current | 8 mA 400 V 50 Hz 4.4 mA 400 V 50 Hz |
| power supply voltage | 200â¦240 V 380â¦500 V |
| Tolerance | 10 % |
| Product Weight | 8.8 lb(US) (4 kg) |
