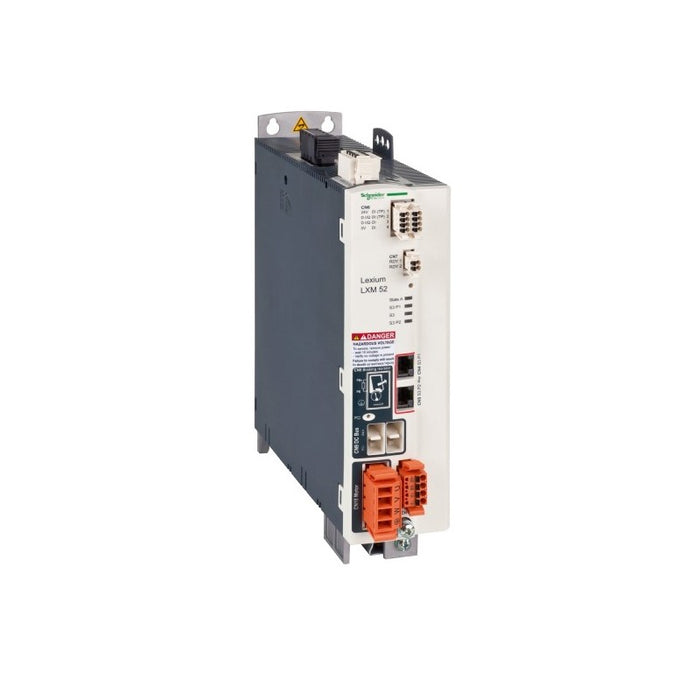

This product is part of the Lexium 52 & Motors range, an offer of standalone servo drives for PacDrive 3. The single drive features SERCOS III physical interface. It offers 4 digital/4 touch probe inputs and 4 digital outputs. It is a single drive with a rated supply voltage of 208V to 480V, a continuous output current of 10A and a continuous power of 3kW. It is furnished with connector terminals for electrical connection. It is an IP20 rated product. It weighs 2.7kg. It is suitable for general machine control, packaging machine automation and material handling applications. This product is certified by CE and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. This product is compatible with servo motor SH3 (100mm, 3 motor stacks), servo motor SH3 (100mm, 4 motor stacks) and servo motor SH3 (140mm, 1 motor stack). Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions. Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based automation solutions.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | PacDrive 3 |
| Device short name | LXM 52 |
| Product or Component Type | Single drive |
| Product compatibility | Servo motor SH3 3.9 in (100 mm), 3 optimized in terms of torque and speed Servo motor SH3 3.9 in (100 mm), 4 optimized in terms of torque and speed Servo motor SH3 5.5 in (140 mm), 1 optimized in terms of torque and speed Servo motor MH3 3.9 in (100 mm), 3 optimized in terms of torque and speed Servo motor MH3 5.5 in (140 mm), 1 optimized in terms of torque and speed |
| Component name | LXM52 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Phase | Three phase |
| [Us] rated supply voltage | 208...480 V - 15...10 % |
| Supply frequency | 50...60 Hz - 5...5 % |
| Continuous output current | 10 A 8 kHz |
| Output current 3s peak | 30 A |
| Continuous power | 5.6 kW |
| Nominal power | 3 kW |
| Switching frequency | 8 kHz |
| Overvoltage category | III |
| Electrical connection | Terminal 0.75...5.3 mm², AWG 18...AWG 10 CN1) Terminal 0.75...5.3 mm², AWG 18...AWG 10 CN10) |
| Tightening torque | CN1 6.02 lbf.in (0.68 N.m) CN10 6.02 lbf.in (0.68 N.m) |
| Number of inputs | 4 digital 4 touch probe |
| Discrete input voltage | 24 V DC |
| Number of outputs | 2 digital |
| Discrete output voltage | 24 V DC |
| Contact bounce time | > 1 ms compliment of STO_A, compliment of STO_B |
| Communication interface | SERCOS III, Integrated |
| Width | 2.7 in (68 mm) |
| Height | 10.6 in (270 mm) |
| Depth | 8.5 in (217 mm) |
| Product Weight | 6.0 lb(US) (2.7 kg) |
