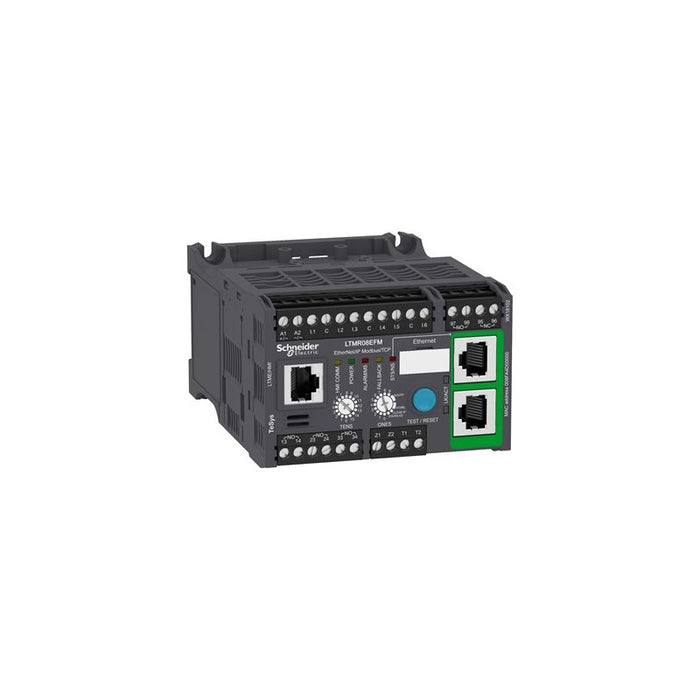

TeSys T is a motor management system that provides full motor monitoring, control, and protection when used with short circuit protection and a contactor. TeSys T manages most critical processes while reducing downtime and increasing productivity. TeSys T is a flexible system that integrates seamlessly into your automation system through five major communication protocols. TeSys T predicts what will happen in the process, as it accurately monitors current, voltage, and power over a wide range. This controller is the central component in the motor management system. The module manages the basic functions of the motor management system. It manages the measurement of 3 phase current via integral current transformers from 0.4 to 100 A or up to 810 A by external current transformers. It also measures ground current with internal or external ground sensors, motor temperature and the inputs and outputs for the various motor control modes, detected fault management and other functions. Ethernet/IP and Modbus/TCP protocol is used by this controller. Ethernet TCP/IP communication is used. This module has 6 discrete logic inputs, 3 relay logic outputs and a relay output for detected fault signaling overload relay. The current range of this controller is 0.4 to 8 amperes. 120 to 240 VAC is used to power this controller. Controller has the following certifications: UL, CSA NOM, ATEX, BV, EAC, RINA, LROS, DNV, ABS, GL, KERI, RMRoS, C-Tick and CCC.
Main
| Characteristic | Value(s) |
|---|---|
| Range | TeSys |
| product name | TeSys T |
| Device short name | LTMR |
| Product or Component Type | Motor controller |
| Device Application | Equipment monitoring and control |
| Measurement current | 0.4â¦8 A |
| [Us] rated supply voltage | 100...240 V AC 50/60 Hz |
| Current Consumption | 8...62.8 mA |
| Supply voltage limits | 93.5â¦264 V AC |
| Communication Port Protocol | Modbus TCP/EtherNet/IP |
| Bus type | Ethernet IEEE 802.3 0...159 10...100 Mbit/s, RJ45 2 shielded twisted pairs |
Complementary
| Characteristic | Value(s) |
|---|---|
| [Ui] rated insulation voltage | 690 V EN/IEC 60947-1 690 V CSA C22.2 No 14 690 V UL 508 |
| [Uimp] rated impulse withstand voltage | 4 kV supply, inputs and outputs EN/IEC 60947-4-1 6 kV current or voltage measurement circuit EN/IEC 60947-4-1 0.8 kV communication circuit EN/IEC 60947-4-1 |
| Short-circuit withstand | 100 kA conforming to EN/IEC 60947-4-1 |
| Associated fuse rating | 4 A gG output 0.5 A gG control circuit |
| Protection Type | Thermal overload protection Overload Thermal protection Locked rotor Phase failure Phase unbalance Load fluctuation Reverse polarity protection Overload (long time) Earth-leakage protection Power factor variation |
| Network and machine diagnosis type | Trip context information Phase fault and earth fault trip counters Trip history information Event recording Remaining operating time before overload tripping Starting current and time Fault recording Waiting time after overload tripping Running hours counter/operating time Motor control command recording |
| Logic input number | 6 |
| Input current | 3.1 mA 100 V 7.5 mA 240 V |
| Current state 0 guaranteed | Logic input 0...40 V <= 15 mA 25 ms |
| Current state 1 guaranteed | Logic input 79...264 V >= 2 mA 25 ms |
| maximum output switching frequency | 2 Hz |
| Load current | 5 A 250 V AC logic output 5 A 30 V DC logic output |
| Permissible power | 480 VA AC-15), Ie = 2 A, 500000 cycles output) 30 W DC-13), Ie = 1.25 A, 500000 cycles output) |
| Maximum operating rate | 1800 cyc/h |
| Contacts type and composition | 1 NO + 1 NC fault signal 3 NO |
| Metering type | Earth-fault current Imbalance current Temperature Average current Iavg Phase current I1, I2, I3 RMS |
| Measurement accuracy | 5...15 % earth fault current internal measurement 1 % voltage 100...830 V) 3 % power factor 5 % earth fault current external measurement +/- 30 min/year internal clock 0,02 Temperature 1 % current 5 % active and reactive power |
| Overvoltage category | III |
| Connection pitch | 0.20 in (5.08 mm) |
| Connections - terminals | Control circuit connector 1 0.0004â¦0.004 in² (0.25â¦2.5 mm²) AWG 24...AWG 14)flexible with cable end Control circuit connector 1 0.0003â¦0.004 in² (0.2â¦2.5 mm²) AWG 24...AWG 14)flexible without cable end Control circuit connector 1 0.0004â¦0.004 in² (0.25â¦2.5 mm²) AWG 24...AWG 14)flexible without cable end Control circuit connector 1 0.0003â¦0.004 in² (0.2â¦2.5 mm²) AWG 24...AWG 14)solid without cable end Control circuit connector 2 0.0003â¦0.002 in² (0.2â¦1 mm²) AWG 24...AWG 14)flexible with cable end Control circuit connector 2 0.0003â¦0.002 in² (0.2â¦1.5 mm²) AWG 24...AWG 14)flexible without cable end Control circuit connector 2 0.0008â¦0.002 in² (0.5â¦1.5 mm²) AWG 24...AWG 14)flexible without cable end Control circuit connector 2 0.0003â¦0.002 in² (0.2â¦1 mm²) AWG 24...AWG 14)solid without cable end |
| Tightening torque | Control circuit: 4.4â¦5.3 lbf.in (0.5â¦0.6 N.m) flat screwdriver 0.1 in (3 mm) |
| pollution degree | 3 |
| Electromagnetic compatibility | Electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 Radiated RF fields, 3, 10 V/m, conforming to EN/IEC 61000-4-3 Fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4 Fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4 Voltage dips and interruptions immunity test, 70 %, 500 ms, conforming to EN/IEC 61000-4-11 Conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6 Temperature sensor: surges (serial mode), 0.5 kV, conforming to EN/IEC 61000-4-5 Temperature sensor: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5 Control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5 Communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5 Relay outputs and supply: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5 Relay outputs and supply: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5 Control circuit: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5 |
| Width | 3.6 in (91 mm) |
| Height | 2.4 in (61 mm) |
| Depth | 4.8 in (122.5 mm) |
| Product Weight | 1.17 lb(US) (0.53 kg) |
| Web services | Web server |
| Compatibility code | LTMR |
