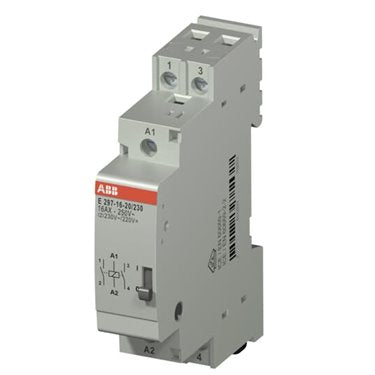

2TAZ311000R2012 ABB E297-16-20/230
ABB

2TAZ311000R2012 ABB E297-16-20/230

Technical

Function:
Monostable installation relay
Rated Control Circuit Voltage (Uc):
230 V AC
Number of Main Contacts NC:
0
Number of Main Contacts NO:
2
Number of Auxiliary Contacts NC:
0
Number of Auxiliary Contacts NO:
0
Sound dB (A):
(@distance 1 m) 60 dB
Tightening Torque:
1.2 - 1.5 N·m
Response Time:
<3 ms
Contact Type:
Normally Open (NO)
Coil Consumption:
Control Voltage V AC 230 V AC
Average Pull-in Value 50 Hz 0.36 A
Average Holding Value 50 Hz 1.970 W
Average Holding Value 50 Hz 0.009 A
Control Voltage V AC 230 V AC
Average Pull-in Value 50 Hz 0.36 A
Average Holding Value 50 Hz 1.970 W
Average Holding Value 50 Hz 0.009 A
Connecting Capacity:
Solid 1 x 1 ... 10 mm²
Flexible 2 x 2.5 mm²
Flexible with Cable End 1 x 0.75 ... 6 mm²
Flexible with Cable Lug 1 x 0.75 ... 6 mm²
Solid 1 x 1 ... 10 mm²
Flexible 2 x 2.5 mm²
Flexible with Cable End 1 x 0.75 ... 6 mm²
Flexible with Cable Lug 1 x 0.75 ... 6 mm²

Electrical

Rated Voltage (Ur):
250 V AC
Rated Operational Voltage:
250 V AC
Supply Voltage:
207 ... 253 V AC
Rated Insulation Voltage (Ui):
230 V AC/DC
Rated Control Supply Voltage (Us):
230 V AC
Rated Impulse Withstand Voltage (Uimp):
4 kV
Rated Current (In):
16 A
Rated Frequency (f):
50 .. 60 Hz
Maximum Lamp Load:
3000 W
Flourescent, Uncorrected Power Factor (cos. 0.5) 1800 W
Flourescent, Corrected Power Factor (cos. 0.9): Serial 3000 W
Flourescent, Corrected Power Factor (cos. 0.9): Parallel 2500 W
Flourescent, Corrected Power Factor (cos. 0.9): Single 1800 W
Flourescent, Corrected Power Factor (cos. 0.9): Double 2500 W
3000 W
Flourescent, Uncorrected Power Factor (cos. 0.5) 1800 W
Flourescent, Corrected Power Factor (cos. 0.9): Serial 3000 W
Flourescent, Corrected Power Factor (cos. 0.9): Parallel 2500 W
Flourescent, Corrected Power Factor (cos. 0.9): Single 1800 W
Flourescent, Corrected Power Factor (cos. 0.9): Double 2500 W
Power Loss:
1 W
Number of Contacts NO:
2

Design

RAL Number:
RAL 7035 - Light Grey
Color:
Grey

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20170426
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20190425
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Ambient Air Temperature:
Operation -25...+55 °C
Storage -40...+70 °C
Operation -25...+55 °C
Storage -40...+70 °C
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
1
Product Net Width:
18 mm
Product Net Height:
85 mm
Product Net Depth / Length:
62 mm
Product Net Weight:
121 g
Built-In Depth (t2):
62 mm

Ordering

Package Level 1 Units:
box 10 piece
Package Level 1 Gross Weight:
1286 g
E-Number (Norway):
1404059
E-Number (Sweden):
4001179

Certificates and Declarations

Declaration of Conformity - CE:
Declaration of Conformity - UKCA:
VDE Certificate:

Installation

Instructions and Manuals:
Mounting Type:
DIN-Rail

Popular Downloads

External Classifications and Standards

ETIM 9:
EC001652 - Installation relay
ETIM 10:
EC001652 - Installation relay
UNSPSC:
39122315
eClass:
V11.0 : 27142309
IDEA Granular Category Code (IGCC):
5349 >> Electromagnetic relay
Object Classification Code:
K
Standards:
EN 60669-1
EN 60669-2-2
EN 60669-1
EN 60669-2-2
Description
