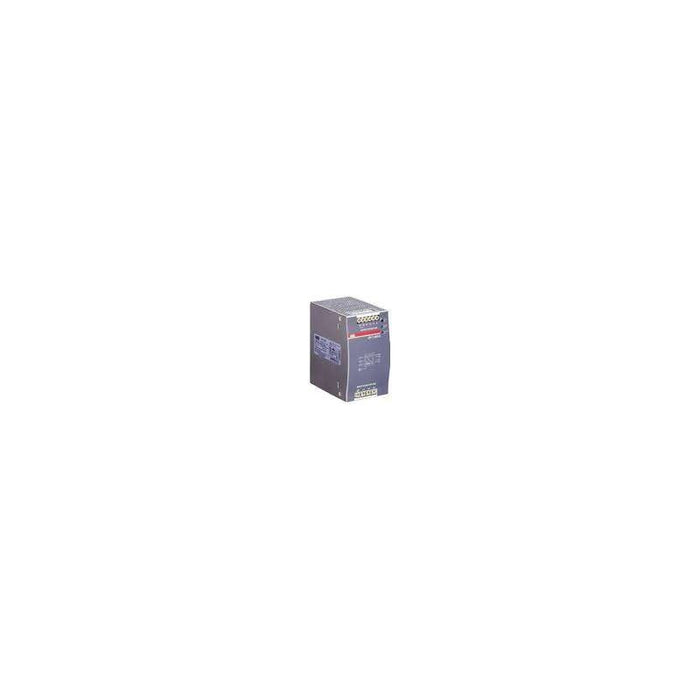

1SVR427054R0000 ABB - CP-T 24/5.0
ABB

1SVR427054R0000 ABB - CP-T 24/5.0

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85044095

Popular Downloads

Dimensions

Product Net Width:
74 mm
Product Net Height:
131 mm
Product Net Depth / Length:
119 mm
Product Net Weight:
0.78 kg

Container Information

Package Level 1 Width:
161 mm
Package Level 1 Depth / Length:
86 mm
Package Level 1 Height:
164 mm
Package Level 1 Gross Weight:
0.892 kg
Package Level 1 EAN:
4016779697866
Package Level 1 Units:
box 1 piece

Technical

Function:
Switch mode power supply
Number of Phases:
3-phase
Rated Input Voltage (UIN):
3x 400 ... 500 V AC
Input Voltage (Uin):
3 x 340 ... 575 V AC
480 ... 820 V DC
3 x 340 ... 575 V AC
480 ... 820 V DC
Rated Frequency (f):
50 Hz
Rated Frequency Limits:
47 ... 63 Hz
Characteristic of Output:
Hiccup-mode
Rated Output Power:
120 W
Output Power:
120 W
Rated Output Voltage:
24 V DC
Output Voltage (Uout):
24 V DC
Rated Output Current:
5 A
Output Current:
5 A
Rated Impulse Withstand Voltage (Uimp):
Input Circuit / Output Circuit 6 kV
Input Circuit / PE 4 kV
Input Circuit / Relay Contact 4 kV
Output Circuit / PE 0.8 kV
Input Circuit / Output Circuit 6 kV
Input Circuit / PE 4 kV
Input Circuit / Relay Contact 4 kV
Output Circuit / PE 0.8 kV
Rated Insulation Voltage (Ui):
Input Circuit / Output Circuit 500 V
Input Circuit / PE 500 V
Input Circuit / Relay Contact 500 V
Output Circuit / PE 50 V
Input Circuit / Output Circuit 500 V
Input Circuit / PE 500 V
Input Circuit / Relay Contact 500 V
Output Circuit / PE 50 V
Degree of Protection:
Housing IP20
Terminals IP20
Housing IP20
Terminals IP20
Pollution Degree:
2
Connecting Capacity Input Circuit:
Flexible with Ferrule 0.2 ... 4 mm²
Rigid 0.2 ... 6 mm²
Flexible with Ferrule 0.2 ... 4 mm²
Rigid 0.2 ... 6 mm²
Connecting Capacity Output Circuit:
Flexible with Ferrule 0.2 ... 4 mm²
Rigid 0.2 ... 6 mm²
Flexible with Ferrule 0.2 ... 4 mm²
Rigid 0.2 ... 6 mm²
Tightening Torque:
Auxiliary Circuit 1 N·m
Input Circuit 1 N·m
Output Circuit 0.6 N·m
Auxiliary Circuit 1 N·m
Input Circuit 1 N·m
Output Circuit 0.6 N·m
Wire Stripping Length:
Input Circuit 8 mm
Output Circuit 8 mm
Input Circuit 8 mm
Output Circuit 8 mm
Recommended Screw Driver:
PH2
Minimum Mounting Distance:
Electrical Conductive Board, Horizontal 25 mm
Electrical Conductive Board, Vertical 25 mm
Other Device Same Type, Horizontal 25 mm
Other Device Same Type, Vertical 25 mm
Electrical Conductive Board, Horizontal 25 mm
Electrical Conductive Board, Vertical 25 mm
Other Device Same Type, Horizontal 25 mm
Other Device Same Type, Vertical 25 mm
Mounting Position:
1
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
ANSI/ISA-12.12
CAN/CSA C22.2 No.107.1
CAN/CSA C22.2 No.213
CAN/CSA C22.2 No.60950
IEC/EN 63000
IEC 60950-1
IEC/EN 61000-6-2
IEC/EN 61000-6-3
UL 508
UL 60950
ANSI/ISA-12.12
CAN/CSA C22.2 No.107.1
CAN/CSA C22.2 No.213
CAN/CSA C22.2 No.60950
IEC/EN 63000
IEC 60950-1
IEC/EN 61000-6-2
IEC/EN 61000-6-3
UL 508
UL 60950

Technical UL/CSA

Connecting Capacity Input Circuit UL/CSA:
Rigid 24-10 AWG
Connecting Capacity Output Circuit UL/CSA:
Rigid 24-10 AWG
Tightening Torque UL/CSA:
Input Circuit 9 in·lb
Output Circuit 5.5 in·lb
Input Circuit 9 in·lb
Output Circuit 5.5 in·lb

Electromagnetic Compatibility

Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2:
Level 4 Air Discharge 15 kV
Level 4 Contact Discharge 8 kV
Level 4 Air Discharge 15 kV
Level 4 Contact Discharge 8 kV
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3:
Level 3 10 V/m
Surge Immunity acc. to IEC 61000-4-5:
Level 3 Line-to-Line 2 kV
Level 4 Line-to-Line 4 kV
Level 3 Line-to-Line 2 kV
Level 4 Line-to-Line 4 kV
Conducted Disturbances Immunity acc. to IEC 61000-4-6:
Level 3 10 V
Electromagnetic Compatibility (EMC):
Immunity - Class B
Emission - Environment B
Immunity - Class B
Emission - Environment B

Environmental

Ambient Air Temperature:
Operation -40 ... +70 °C
Storage -40 ... +85 °C
Operation -40 ... +70 °C
Storage -40 ... +85 °C
Maximum Operating Altitude Permissible:
5000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
REACH Declaration:
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CQC Certificate:
cUL Certificate:

External Classifications and Standards

Object Classification Code:
T
ETIM 9:
EC002540 - DC-power supply
ETIM 10:
EC002540 - DC-power supply
eClass:
V11.0 : 27040701
UNSPSC:
39121004
E-Number (Finland):
2712069
E-Number (Norway):
6609470
E-Number (Sweden):
5218717
