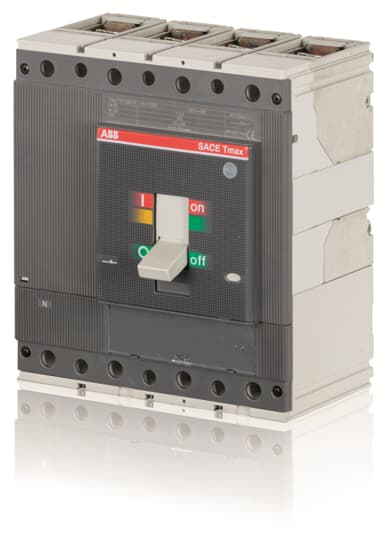

1SDA054600R1 ABB - T5D 400 4p F F

ABB EcoSolutions

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT):
Toxic Substances Control Act - TSCA:
SCIP:
589159d5-0945-415f-8498-665412027854 Italy
Simplified SCIP:
aa73c34b-fd1b-4137-853b-6aab5474bba0 Germany
bcb09c46-4b46-425f-9db8-951888f274a6 Poland
1a4acb0f-173b-4f15-9df6-63979fe0cb7b Germany
bb1fb6f8-1e39-409b-bc4c-b7aaf94d9b9a Poland
e2f43e0a-04a8-437d-816a-5dc709ec73b0 Norway
1201cb38-5614-4f57-b49e-1cc7c9873aed France
b07bd7f3-3f88-4107-b8e6-223622229815 Sweden
e8f46076-d043-4b25-887b-9b7b0bf7597b Germany
af39ee33-d129-4d8d-97bd-23a75c6cf39c France
80ed9396-d3c0-4898-ae06-fb2bd4e6fe11 Netherlands
55bfe880-90d4-4340-9ab8-d9b6d4c44de0 Spain
46f71b8d-7b71-4e43-8dbc-d0f22d2bea84 Netherlands
54ef9ea8-d92f-4348-8ab3-a0c69ee38e78 Finland
440853a0-f494-4fe3-8fc8-481d8807702c Netherlands
3fd445d0-de8f-47be-951a-16b6fd797b2a Germany
94305b50-34f0-4b00-8d9a-52cd83bf5fcf Germany
c17a6f49-3c47-4d48-89a9-06cb72ab0d82 Croatia
7f76282f-4cc7-42c0-9bdf-48aa3a5aa52a Czech Republic
ed7aca7e-0ff0-4ddd-aa06-50caa3eee911 Poland
3189dfc3-cab5-40fd-b865-898df3ff479d Netherlands
328e1385-c6fb-4339-a37e-d397e571ca75 Netherlands
4e9f5e44-6edb-451e-8ca4-2fe1c653349b Estonia
41ce5e52-aa69-4787-9961-c5b7b9b0a260 Portugal
5667a9d9-ac36-419e-9dbd-08550fb3e584 Sweden
ce7c75e6-1358-465b-b96a-f753940497b3 Denmark
66a76ad5-468b-48c7-a398-6d831820764d Greece
848360e4-0160-424d-919d-9d2a64e9b1fd Bulgaria
aa73c34b-fd1b-4137-853b-6aab5474bba0 Germany
bcb09c46-4b46-425f-9db8-951888f274a6 Poland
1a4acb0f-173b-4f15-9df6-63979fe0cb7b Germany
bb1fb6f8-1e39-409b-bc4c-b7aaf94d9b9a Poland
e2f43e0a-04a8-437d-816a-5dc709ec73b0 Norway
1201cb38-5614-4f57-b49e-1cc7c9873aed France
b07bd7f3-3f88-4107-b8e6-223622229815 Sweden
e8f46076-d043-4b25-887b-9b7b0bf7597b Germany
af39ee33-d129-4d8d-97bd-23a75c6cf39c France
80ed9396-d3c0-4898-ae06-fb2bd4e6fe11 Netherlands

Ordering

E-Number (Finland):
3655614
E-Number (Norway):
4383618
EAN:
8015644556983
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
186 mm
Product Net Height:
205 mm
Product Net Depth / Length:
103.5 mm
Product Net Weight:
5.472 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
248 mm
Package Level 1 Height:
240 mm
Package Level 1 Depth / Length:
285 mm
Package Level 1 Gross Weight:
5.76 kg
Package Level 1 EAN:
8015644556983

Additional Information

Product Main Type:
SACE Tmax T
Product Name:
Moulded Case Circuit Breaker
Product Type:
Switch Disconnector
Suitable For:
T5
Suitable for Product Class:
Moulded Case Circuit Breakers
Version:
F

Technical

Mechanical Durability:
20000 cycle
120 cycles per hour
20000 cycle
120 cycles per hour
Number of Poles:
4P
Power Loss:
at Rated Operating Conditions per Pole 16.5 W
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
690 V AC
750 V DC
690 V AC
750 V DC
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 6 A
Rated Uninterrupted Current (Iu):
400 A
Short-Circuit Performance Level:
D
Standards:
IEC
Sub-type:
T5
Terminal Connection Type:
Fixed Circuit-Breakers
Front
Fixed Circuit-Breakers
Front
Test Voltage Max (Utest):
3000 V
Test Voltage at Industrial Frequency for 1 Minute:
3000 V

Certificates and Declarations

Data Sheet, Technical Information:
Declaration of Conformity - CE:
Instructions and Manuals:
Instructions and Manuals (Part 2):

External Classifications and Standards

ETIM 9:
EC000216 - Switch disconnector (low voltage)
ETIM 10:
EC000216 - Switch disconnector (AC)
Object Classification Code:
Q
UNSPSC:
39121100
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.1 : 27371403

Sale price$1,448.55
1-year warranty
FREE WORDWIDE SHIPPING
Est. delivery between and
Estimated delivery dates are estimates only. Int'l customers allow a few more days. For more precise delivery estimates, please contact us at support@plc-direct.com. Contact us in advance for expedited shipping options.
Condition:
$0.00
$1,448.55
$0.00
