This ABL8 converter module supplies direct current voltage. It has a rated input of 24V to 28.8V DC, a rated output current of 2A at 12V DC and a rated power output of 24W. This converter module is designed for automation and instrumentation circuits requiring extra low voltage (ELV / SELV). It finely adjusts the output voltage with a rotary trimmer, to take into account the voltage at the end of your auxiliary control circuit. It has LED diagnostics indicator available in the front for troubleshooting instantly. It weighs 0,300kg. It is a functionnal module for power supply for industrial use, rail mounting. It is certified by RCM, EAC, CCSAus, UL. This functional module is mainly compatible with Modicon ABL8RP and Modicon ABL8WP Universal power supplies. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Phaseo Universal |
| Product or Component Type | Converter module |
| Kw Rating | 24 W |
| Input voltage | 24...28.8 V DC |
| Output voltage | 12 V DC |
| Power supply output current | 2 A |
Complementary
| Characteristic | Value(s) |
|---|---|
| Input voltage limits | 22...30 V |
| Efficiency | 82 % |
| Power dissipation in W | 4 W |
| Input protection type | Against reverse polarity |
| Output voltage limits | 7...15 V |
| Line and load regulation | 1...3 % |
| Residual ripple | <= 100 mV |
| Output protection type | Against overload, protection technology: automatic reset Against overvoltage, protection technology: tripping if U > 7.8 V, automatic reset Against short-circuits, protection technology: automatic reset |
| Connections - terminals | For input connection: screw type terminals, connection capacity: 2 x 0.5...2 x 4 mm² AWG 24...AWG 10 For output connection: screw type terminals, connection capacity: 2 x 0.5...2 x 4 mm² AWG 24...AWG 10 |
| Fixing mode | By clips 35 mm symmetrical DIN rail horizontal By clips 35 mm symmetrical DIN rail vertical |
| Operating altitude | 6561.68 ft (2000 m) |
| Name of test | Induced electromagnetic field conforming to IEC 61000-4-6 level 3 Radiated electromagnetic field conforming to IEC 61000-4-3 level 3 Rapid transient conforming to IEC 61000-4-4 level 3 Surge conforming to IEC 61000-4-5 level 2 Conducted/radiated emissions conforming to EN 55022 Class B Electrostatic discharges conforming to IEC 61000-4-2 Emission conforming to IEC 61000-6-3 |
| Local signalling | 1 LED (green) for output voltage (> 6 V) |
| Product Weight | 0.7 lb(US) (0.3 kg) |
voltage transformer - 230..400 V - 1 x 115 V - 400 VA
voltage transformer - 230..400 V - 1 x 24 V - 630 VA
Regulated SMPS with auto reset - 1 or 2-phase - 100...240 V AC - 24 V - 2.5 A
voltage transformer - 230..400 V - 1 x 230 V - 250 VA
voltage transformer - 230..400 V - 1 x 24 V - 1600 VA

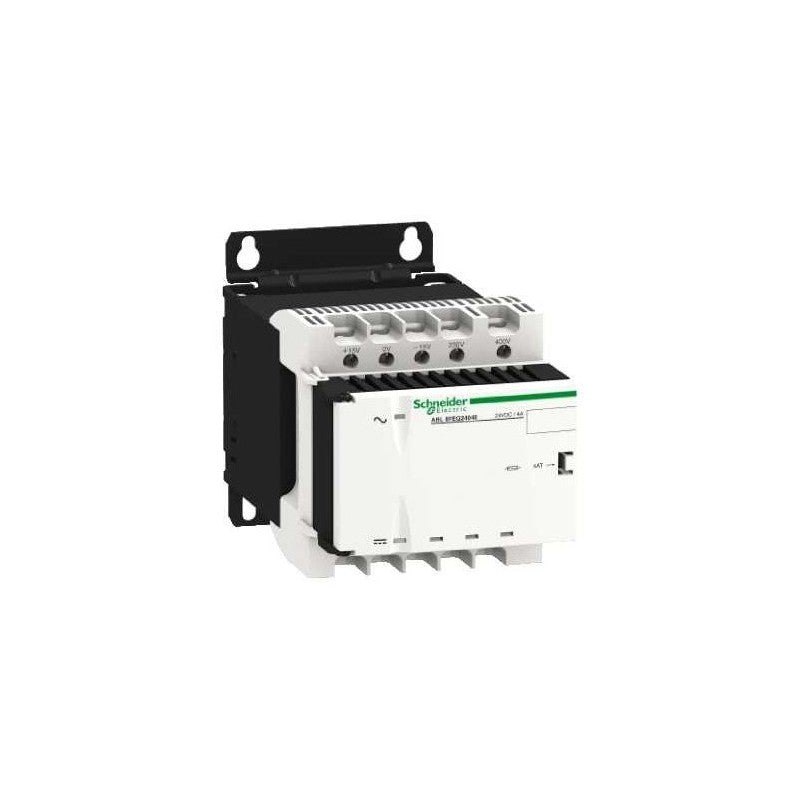

This ABL8 filtered rectified power supply (PSU) supplies direct current voltage. It has a rated input of 230V AC, a rated output current of 0.5A at 24V DC and a rated power of 12W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It has integrated fuse for easy to maintain short circuit protection. It installs on DIN rail and is 87mm-wide. It weighs 1,280kg. It is a power supply for industrial use, rail mounting. Iy is certified with UL 508, CULus, KC and EAC. The GB2CB05, GB2CD05, GB2DB05 and GB2CS05 3-pole thermal-magnetic circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Main
| Characteristic | Value(s) |
|---|---|
| Range of product | Modicon Rectified |
| Product or component type | Power supply |
| Power supply type | Rectified and filtered |
| Rated power in W | 12 W |
| Nominal input voltage | 230 V AC single phase, terminal(s): N-L1 400 V AC phase to phase, terminal(s): L1-L2 |
| Output voltage | 24 V DC |
| Power supply output current | 0.5 A |
| Anti-harmonic filter | Low frequency harmonic currents |
| Product certifications | UL 508 cULus KC EAC |
Complementary
| Characteristic | Value(s) |
|---|---|
| Network frequency limits | 47â¦63 Hz |
| Input voltage limits | 207...253 V 360...440 V |
| Power Factor | 0.656 at 230 V 0.881 at 400 V |
| Efficiency | 71 % |
| Power dissipation in W | 3.48 W |
| Output coupling | Parallel Series |
| Output protection type | Against overload and short-circuits, protection technology: internal fuse, 0.5 A, 5 x 20 mm, T curve Against overvoltage, protection technology: 2 J peak limiter |
| Hold-up time | 17 ms |
| Status LED | 1 LED (green) output voltage 1 LED (orange) input voltage |
| Residual ripple | <= 1200 MV |
| Connections - terminals | For input connection: screw type terminals, connection capacity: 5 x 2.5...5 x 4 mm² AWG 14...AWG 11 For input ground connection: screw type terminals, connection capacity: 1 x 2.5...1 x 4 mm² AWG 14...AWG 11 For output connection: screw type terminals, connection capacity: 4 x 2.5...4 x 4 mm² AWG 14...AWG 11 |
| Depth | 123.0 mm |
| Height | 108 mm |
| Width | 87 mm |
| Product weight | 1.28 kg |
| Compatibility code | ABL8F |
This ABL7 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 5A at 12V DC and a rated power output of 60W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It provides a power reserve allowing to deliver a current of 150% its nominal rating for a short time allows handling of simultaneous inrush current when starting a process. It installs on DIN rail and is 54mm-wide. It weighs 1,000kg. It is a power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No60950-1 standards. It is certified by CSA 22-2 No950, EAC, CULus 508, RCM, KC, TÃV. The GB2CB06, GB2CD06, GB2DB06, GB2CS06 miniature circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. The ABL8MEM/ABL7RM (modular) range meets all the needs of simple automation systems with power ratings from 7 to 60W and an output voltage of 5V DC, 12V DC, or 24V DC.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Power Supply |
| Product or Component Type | Power supply |
| Power supply type | Regulated switch mode |
| Nominal input voltage | 100...240 V AC phase to phase L1-L2 100...240 V AC single phase N-L1 110...220 V DC |
| Kw Rating | 60 W |
| Output voltage | 12 V DC |
| Power supply output current | 5 A |
Complementary
| Characteristic | Value(s) |
|---|---|
| Efficiency at full load | 100...250 V AC 85...264 V AC |
| Input protection type | Integrated fuse (not interchangeable) |
| Inrush current | 30 A |
| Power factor | 0.98 at 12 V DC |
| Efficiency | 85 % |
| Output voltage adjustment | 100...120 % adjustable |
| Power dissipation in W | 10.6 W |
| Current consumption | 0.4 A 240 V AC 0.8 A 100 V AC |
| Output protection type | Against overload, protection technology: 1.1 x In Against overvoltage, protection technology: tripping if U > 1.5 x Un Against short-circuits, protection technology: manual or automatic reset Against undervoltage, protection technology: tripping if U < 0.8 x Un |
| Connections - terminals | Screw type terminals 2 x 0.14...2 x 2.5 mm², AWG 26...AWG 14) input connection Screw type terminals 1 x 0.14...1 x 2.5 mm², AWG 26...AWG 14) input ground connection Screw type terminals 2 x 0.14...2 x 2.5 mm², AWG 26...AWG 14) output connection Screw type terminals 1 x 0.14...1 x 2.5 mm², AWG 26...AWG 14) output ground connection |
| Status LED | 1 LED (Green) output voltage 1 LED (Orange) input voltage |
| Depth | 4.7 in (120 mm) |
| Height | 4.7 in (120 mm) |
| Width | 2.1 in (54 mm) |
| Product Weight | 2.2 lb(US) (1 kg) |
| Output coupling | Parallel Series |
| Marking | CE |
| Mounting support | 75 x 7.5 mm symmetrical DIN rail 35 x 15 mm symmetrical DIN rail 35 x 7.5 mm symmetrical DIN rail |
| Operating position | Vertical |
| Supply | SELV IEC 60950-1 SELV IEC 60204-1 SELV IEC 60364-4-41 |
| Dielectric strength | 3000 V with between input and ground 3000 V with between input and output 500 V with between output and ground 500 V with between outputs |
This ABL7 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 2.5A at 48V DC and a rated power output of 144W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It provides a power reserve allowing to deliver a current of 150% its nominal rating for a short time allows handling of simultaneous inrush current when starting a process. It installs on DIN rail and is 54mm-wide. It weighs 1,000kg. It is a power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No60950-1 standards. It is certified by CSA 22-2 No950, EAC, UL508, RCM, KC, TÃV. The GB2CB08, GB2CD08, GB2DB08, GB2CS08 miniature circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. The ABL8MEM/ABL7RM (modular) range meets all the needs of simple automation systems with power ratings from 7 to 60W and an output voltage of 5V DC, 12V DC, or 24V DC.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Power Supply |
| Product or Component Type | Power supply |
| Power supply type | Regulated switch mode |
| Nominal input voltage | 100...240 V AC phase to phase L1-L2 100...240 V AC single phase N-L1 110...220 V DC |
| Kw Rating | 120 W |
| Output voltage | 48 V DC |
| Power supply output current | 2.5 A |
Complementary
| Characteristic | Value(s) |
|---|---|
| Efficiency at full load | 85...264 V AC 100...250 V AC |
| Input protection type | Integrated fuse (not interchangeable) |
| Inrush current | 30 A |
| Power factor | 0.98 at 48 V DC |
| Efficiency | 85 % |
| Output voltage adjustment | 100...120 % adjustable |
| Power dissipation in W | 25.4 W |
| Current consumption | 1 A 100 V AC 0.6 A 240 V AC |
| Output protection type | Against overload, protection technology: 1.1 x In Against overvoltage, protection technology: tripping if U > 1.5 x Un Against short-circuits, protection technology: manual or automatic reset Against undervoltage, protection technology: tripping if U < 0.8 x Un |
| Connections - terminals | Screw type terminals 2 x 0.14...2 x 2.5 mm², AWG 26...AWG 14) input connection Screw type terminals 4 x 0.14...4 x 2.5 mm², AWG 26...AWG 14) output connection Screw type terminals 1 x 0.14...1 x 2.5 mm², AWG 26...AWG 14) input ground connection Screw type terminals 2 x 0.14...2 x 2.5 mm², AWG 26...AWG 14) output ground connection |
| Status LED | 1 LED (Green) output voltage 1 LED (Orange) input voltage |
| Depth | 4.7 in (120 mm) |
| Height | 4.7 in (120 mm) |
| Width | 2.1 in (54 mm) |
| Product Weight | 2.2 lb(US) (1 kg) |
| Output coupling | Series Parallel |
| Marking | CE |
| Mounting support | 75 x 7.5 mm symmetrical DIN rail 35 x 7.5 mm symmetrical DIN rail 35 x 15 mm symmetrical DIN rail |
| Operating position | Vertical |
| Supply | SELV IEC 60950-1 SELV IEC 60204-1 SELV IEC 60364-4-41 |
| Dielectric strength | 3000 V with between input and ground 3000 V with between input and output 500 V with between output and ground 500 V with between outputs |
voltage transformer - 230..400 V - 1 x 115 V - 630 VA
voltage transformer - 230..400 V - 1 x 24 V - 250 VA
voltage transformer - 230..400 V - 1 x 24 V - 160 VA

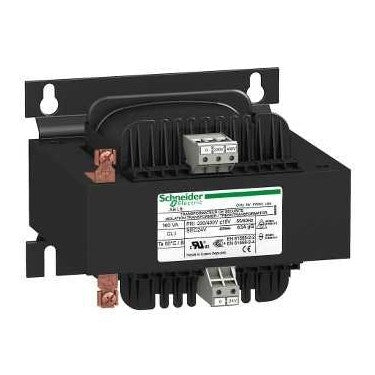

This ABL6 transformer supplies alternating current to control circuits while isolating them from mains power. It has a rated input voltage of 230V to 400V AC, a rated output voltage of 12V AC and a rated power of 160VA. It offers an economic way to supply each consuming load individually, or by groups of loads, in applications such as mining, refining. It is ideal for systems accepting low voltage AC power, such as motor protection relays, contactors.
Main
| Characteristic | Value(s) |
|---|---|
| Range of product | Modicon Transformer Optimized |
| Product or component type | Safety and isolation transformer |
| Rated power in VA | 160 VA |
| Input voltage | 230 V AC single phase, terminal(s): N-L1 400 V AC phase to phase, terminal(s): L1-L2 |
| Output voltage | 12 V AC |
| Secondary winding | Single |
| Protective cover | Without |
| Ambient air temperature for operation | -20â¦50 °C |
Complementary
| Characteristic | Value(s) |
|---|---|
| Input voltage limits | 360...440 V 207...253 V |
| Network frequency limits | 47â¦63 Hz |
| Input voltage tolerance | +/- 15 V |
| Efficiency | 88 % |
| Power dissipation in W | 21.8 W |
| Output sustained overvoltage | 7 % (no load, hot state) |
| Maximum voltage drop at rated load | 0.4 % |
| No load losses | 9.1 W |
| Short-circuit voltage | 0,069 |
| Output protection type | Against overload, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection Against overvoltage, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection Against short-circuits, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection |
| Connections - terminals | For input connection: screw type terminals, connection capacity: 5 x 4 mm² AWG 11 For input ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 11 For output connection: screw type terminals, connection capacity: 2 x 4 mm² AWG 11 |
| Marking | CE |
| Fixing mode | By 4 screws diameter: 5.8 mm on vertical panel, operating position: horizontal By 4 screws diameter: 5.8 mm on vertical panel, operating position: vertical By 4 screws diameter: 5.8 mm on horizontal panel with derating to 90 % |
| Operating altitude | 3000 m |
| Electrical insulation class | Class B |
| Width | 105.0 mm |
| Height | 81.0 mm |
| Depth | 112.0 mm |
| Product weight | 2.95 kg |
This ABL6 transformer supplies alternating current to control circuits while isolating them from mains power. It has a rated input voltage of 230V to 400V AC, a rated output voltage of 24V AC and a rated power of 400VA. It offers an economic way to supply each consuming load individually, or by groups of loads, in applications such as mining, refining. It is ideal for systems accepting low voltage AC power, such as motor protection relays, contactors.
Main
| Characteristic | Value(s) |
|---|---|
| Range of product | Modicon Transformer Optimized |
| Product or component type | Safety and isolation transformer |
| Rated power in VA | 400 VA |
| Input voltage | 230 V AC single phase, terminal(s): N-L1 400 V AC phase to phase, terminal(s): L1-L2 |
| Output voltage | 24 V AC |
| Secondary winding | Single |
| Protective cover | Without |
| Ambient air temperature for operation | -20â¦50 °C |
Complementary
| Characteristic | Value(s) |
|---|---|
| Input voltage limits | 360...440 V 207...253 V |
| Network frequency limits | 47â¦63 Hz |
| Input voltage tolerance | +/- 15 V |
| Efficiency | 92 % |
| Power dissipation in W | 34.8 W |
| Output sustained overvoltage | 4 % (no load, hot state) |
| Maximum voltage drop at rated load | 0.7 % |
| No load losses | 12.4 W |
| Short-circuit voltage | 0,045 |
| Output protection type | Against overload, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection Against overvoltage, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection Against short-circuits, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection |
| Connections - terminals | For input connection: screw type terminals, connection capacity: 5 x 4 mm² AWG 11 For input ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 11 For output connection: screw type terminals, connection capacity: 2 x 10 mm² AWG 6 |
| Marking | CE |
| Fixing mode | By 4 screws diameter: 5.8 mm on vertical panel, operating position: horizontal By 4 screws diameter: 5.8 mm on vertical panel, operating position: vertical By 4 screws diameter: 5.8 mm on horizontal panel with derating to 90 % |
| Operating altitude | 3000 m |
| Electrical insulation class | Class B |
| Width | 135.0 mm |
| Height | 120.0 mm |
| Depth | 136.0 mm |
| Product weight | 6.31 kg |
voltage transformer - 230..400 V - 1 x 230 V - 2500 VA
voltage transformer - 230..400 V - 1 x 24 V - 2500 VA
voltage transformer - 230..400 V - 1 x 115 V - 2500 VA
voltage transformer - 230..400 V - 1 x 230 V - 630 VA
voltage transformer - 230..400 V - 1 x 12 V - 250 VA
voltage transformer - 230..400 V - 1 x 115 V - 1000 VA
This ABL6 transformer supplies alternating current to control circuits while isolating them from mains power. It has a rated input voltage of 230V to 400V AC, a rated output voltage of 115V AC and a rated power of 1.6kVA / 1600VA. It offers an economic way to supply each consuming load individually, or by groups of loads, in applications such as mining, refining. It is ideal for systems accepting low voltage AC power, such as motor protection relays, contactors.
Main
| Characteristic | Value(s) |
|---|---|
| Range of product | Modicon Transformer Optimized |
| Product or component type | Safety and isolation transformer |
| Rated power in VA | 1600 VA |
| Input voltage | 230 V AC single phase, terminal(s): N-L1 400 V AC phase to phase, terminal(s): L1-L2 |
| Output voltage | 115 V AC |
| Secondary winding | Single |
| Protective cover | Without |
| Ambient air temperature for operation | -20â¦50 °C |
Complementary
| Characteristic | Value(s) |
|---|---|
| Input voltage limits | 207...253 V 360...440 V |
| Network frequency limits | 47â¦63 Hz |
| Input voltage tolerance | +/- 15 V |
| Efficiency | 96 % |
| Power dissipation in W | 66.7 W |
| Output sustained overvoltage | 2 % (no load, hot state) |
| Maximum voltage drop at rated load | 0.1 % |
| No load losses | 23.7 W |
| Short-circuit voltage | 0,0245 |
| Output protection type | Against overload, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection Against overvoltage, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection Against short-circuits, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection |
| Connections - terminals | For input connection: screw type terminals, connection capacity: 5 x 4 mm² AWG 11 For input ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 11 For output connection: screw type terminals, connection capacity: 2 x 4 mm² AWG 11 |
| Marking | CE |
| Fixing mode | By 4 screws diameter: 7 mm on vertical panel, operating position: horizontal By 4 screws diameter: 7 mm on vertical panel, operating position: vertical By 4 screws diameter: 7 mm on horizontal panel with derating to 90 % |
| Operating altitude | 3000 m |
| Electrical insulation class | Class B |
| Width | 174.0 mm |
| Height | 169.0 mm |
| Depth | 163.0 mm |
| Product weight | 20.07 kg |

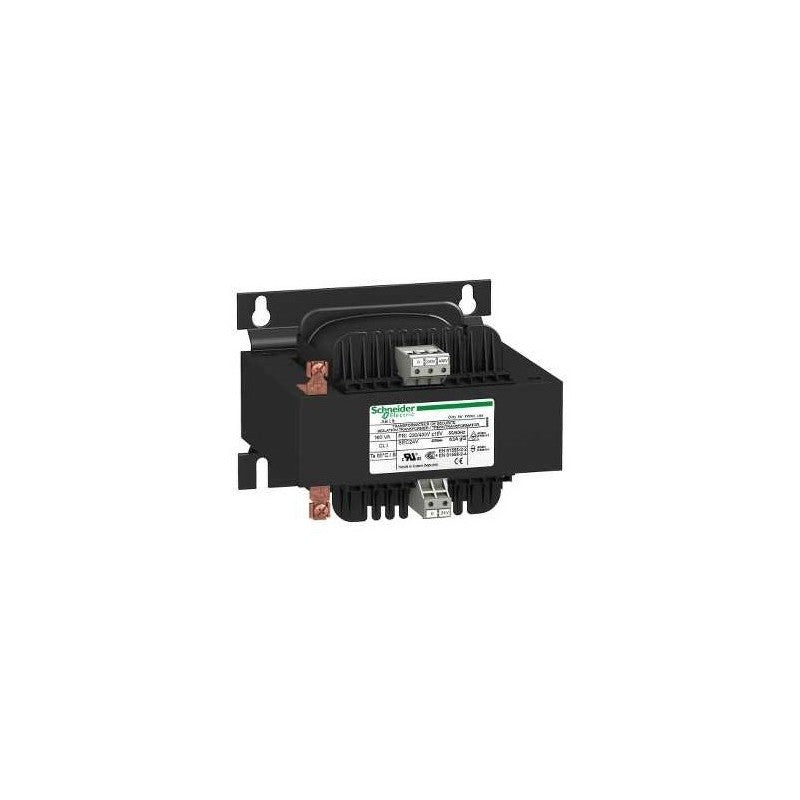

This ABL6 transformer supplies alternating current to control circuits while isolating them from mains power. It has a rated input voltage of 230V to 400V AC, a rated output voltage of 115V AC and a rated power of 250VA. It offers an economic way to supply each consuming load individually, or by groups of loads, in applications such as mining, refining. It is ideal for systems accepting low voltage AC power, such as motor protection relays, contactors.
Main
| Characteristic | Value(s) |
|---|---|
| Range of product | Modicon Transformer Optimized |
| Product or component type | Safety and isolation transformer |
| Rated power in VA | 250 VA |
| Input voltage | 230 V AC single phase, terminal(s): N-L1 400 V AC phase to phase, terminal(s): L1-L2 |
| Output voltage | 115 V AC |
| Secondary winding | Single |
| Protective cover | Without |
| Ambient air temperature for operation | -20â¦50 °C |
Complementary
| Characteristic | Value(s) |
|---|---|
| Input voltage limits | 360...440 V 207...253 V |
| Network frequency limits | 47â¦63 Hz |
| Input voltage tolerance | +/- 15 V |
| Efficiency | 90 % |
| Power dissipation in W | 27.8 W |
| Output sustained overvoltage | 5 % (no load, hot state) |
| Maximum voltage drop at rated load | 0.7 % |
| No load losses | 12.5 W |
| Short-circuit voltage | 0,0528 |
| Output protection type | Against overload, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection Against overvoltage, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection Against short-circuits, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection |
| Connections - terminals | For input connection: screw type terminals, connection capacity: 5 x 4 mm² AWG 11 For input ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 11 For output connection: screw type terminals, connection capacity: 2 x 4 mm² AWG 11 |
| Marking | CE |
| Fixing mode | By 4 screws diameter: 5.8 mm on vertical panel, operating position: horizontal By 4 screws diameter: 5.8 mm on vertical panel, operating position: vertical By 4 screws diameter: 5.8 mm on horizontal panel with derating to 90 % |
| Operating altitude | 3000 m |
| Electrical insulation class | Class B |
| Width | 120.0 mm |
| Height | 93.0 mm |
| Depth | 122.0 mm |
| Product weight | 4.05 kg |

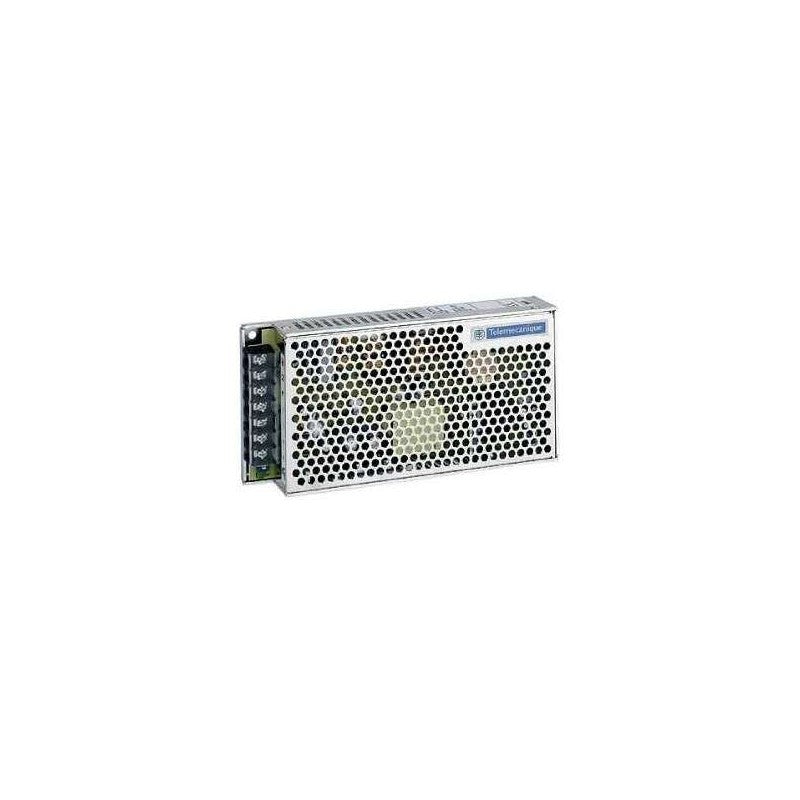

This Phaseo ABL1 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 10A at 24V DC and a rated power of 240W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It has LED diagnostics indicator available in the front for troubleshooting instantly. Its width is 200mm, its height is 98mm, its depth is 65mm. It weighs 0.880kg. It is certified with KC, RCM, CSA 22-2 No 60950-1, EAC, TUV 60950-1, CCSAus and UL 508. It is a power supply for commercial use, panel mount; It is compatible with reversible mounting bracket type ABL1A01 and ABL1A02 clip-on mounting plate. It installs on panel with reversible mounting bracket or mounting plate fixing by screw. ABL1 power supplies bring energy to your automated systems. ABL1 power supplies are designed for simple and repetitive machines, dedicated power supplies are particularly quality/price competitive due to their simplicity and compactness. The main applications to use Phaseo ABL1 power supply are lifts, display panels, escalators, carwash, foodstuff ovens, etc.
Main
| Characteristic | Value(s) |
|---|---|

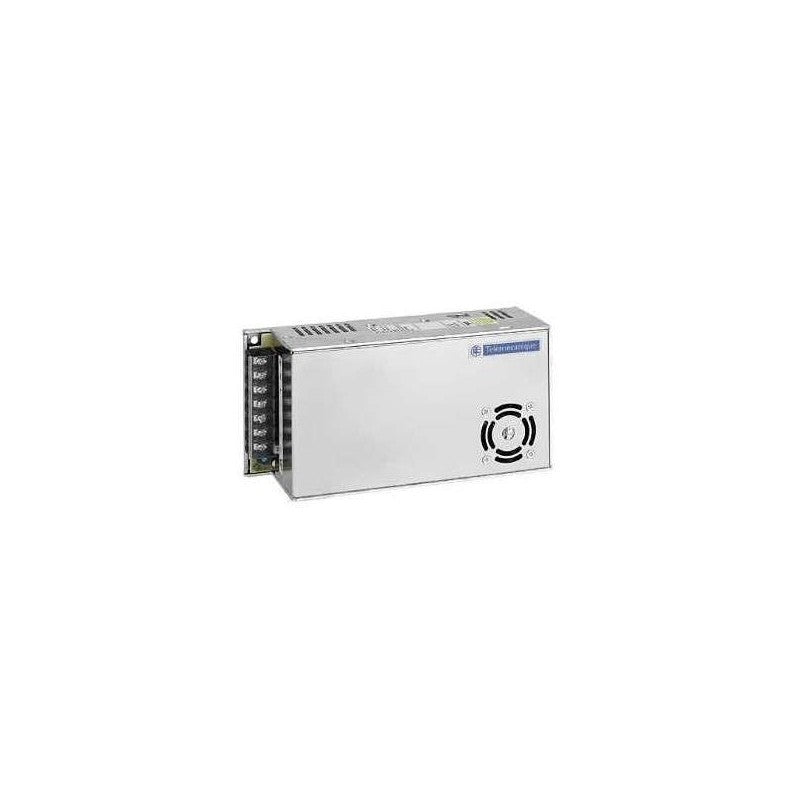

| Range of Product | Phaseo Dedicated |
| Product or Component Type | Power supply |
| Power supply type | Regulated switch mode |
| Kw Rating | 240 W |
| Main Input Voltage | 100...120 V AC single phase 200...240 V AC single phase 180...370 V DC |
| Output voltage | 24 V DC |
| Power supply output current | 10 A |
| Operating position | Any position |
| Vibration resistance | 2 gn (f= 9â¦150 Hz) conforming to EN/IEC 61131-2 3.5 mm (f= 5â¦9 Hz) conforming to EN/IEC 61131-2 |
| Name of test | Conducted interference conforming to EN 61000-4-8 level 4 Electrostatic discharges conforming to EN/IEC 61000-4-2 level 3 Induced electromagnetic field conforming to EN/IEC 61000-4-6 level 3 Radiated electromagnetic field conforming to EN/IEC 61000-4-3 level 3 Rapid transient conforming to IEC 61000-4-4 level 3 Conducted/radiated emissions conforming to EN 55022 Class B Conducted/radiated emissions conforming to EN/IEC 55011 Emission conforming to EN/IEC 61000-6-3 Primary outage conforming to IEC 61000-4-11 Surge conforming to EN/IEC 61000-4-5 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Input voltage limits | 170...264 V 85...132 V |
| Network Frequency | 47...63 Hz |
| Inrush current | 50 A at 115 V AC 100 A at 230 V AC |
| Cos phi | 0.65 |
| Efficiency | 80 % |
| Power dissipation in W | 60 W |
| Current consumption | 3 A at 240 V 6 A at 100 V |
| Input protection type | Integrated fuse (not interchangeable) |
| Output voltage limits | 21.6...26.4 V |
| Line and load regulation | +/- 3 % |
| Holding time | >= 10 ms at 100 V >= 40 ms at 240 V |
| Output protection type | Against overload, protection technology: 1.1...1.5 x In Against overvoltage, protection technology: tripping if U > 1.25 x Un Against short-circuits, protection technology: automatic reset Thermal |
| Connections - terminals | For ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 12 For input connection: screw type terminals, connection capacity: 2 x 4 mm² AWG 12 For output connection: screw type terminals, connection capacity: 4 x 4 mm² AWG 12 |
| Marking | CE |
| Mounting Support | Reversible mounting bracket Panel |
| Operating altitude | 6561.68 ft (2000 m) |
| Output coupling | Series Parallel |
| Overvoltage category | II |
| Meantime between failure [MTBF] | 100000 h at 104 °F (40 °C) |
| Status LED | 1 LED (Green) output voltage |
| Product Weight | 1.94 lb(US) (0.88 kg) |
regulated SMPS - single Phase - 100..240 V input - 24 V output - 100 W
