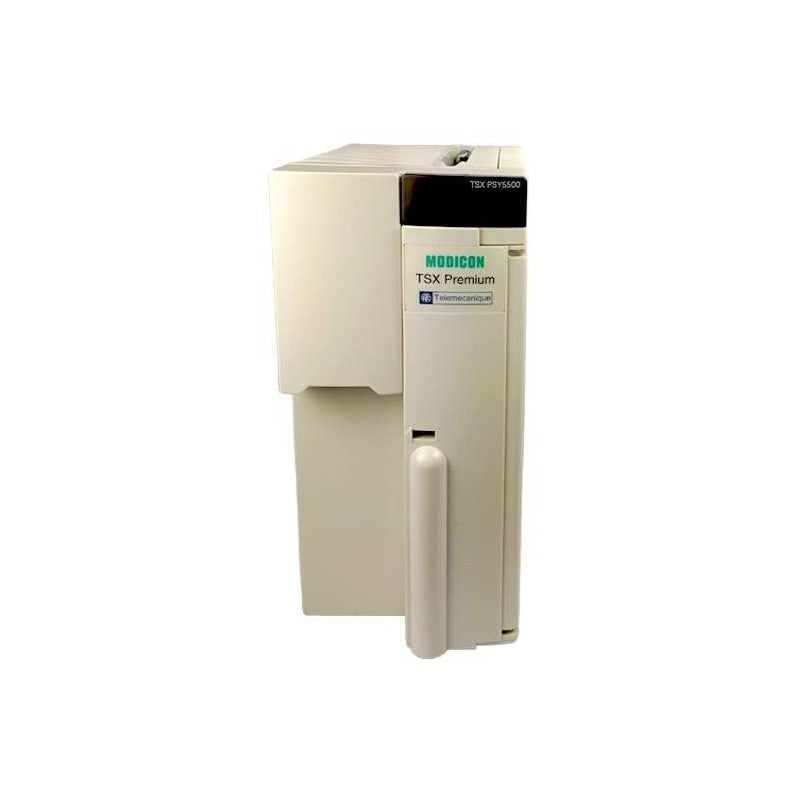

POWER SUPPLY MODULE 220VAC 50HZ
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Premium Automation platform |
| Product or Component Type | Power supply module |
Complementary
| Characteristic | Value(s) |
|---|---|
| Primary voltage | 24 V DC 19.2...30 V |
| Input current | <= 1500 mA 24 V |
| Inrush current | 100 A 24 V |
| I²t on activation | 12.5 A².s |
| It on activation | 0.2 A.s |
| Protection type | Internal fuse 3.5 A 5 x 20 mm time-delayed primary circuit Overload protection secondary circuit Overvoltage protection secondary circuit Short-circuit protection secondary circuit |
| Total useful secondary power | 30 W |
| Secondary power | 15 W 24 V DC 15 W 5 V DC |
| Current at secondary voltage | 0.6 A 24 V DC relay power supply 3 A 5 V DC |
| Marking | CE |
| Local signalling | 1 LED (green) for presence of voltages (OK) 1 LED (red) for battery fault (BAT) |
| Module format | Standard |
| Product Weight | 1.19 lb(US) (0.54 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Premium Automation platform |
| Product or Component Type | Power supply module |
Complementary
| Characteristic | Value(s) |
|---|---|
| Primary voltage | 24 V DC 19.2...30 V |
| Input current | <= 1500 mA 24 V |
| Inrush current | 100 A 24 V |
| I²t on activation | 12.5 A².s |
| It on activation | 0.2 A.s |
| Protection type | Internal fuse 3.5 A 5 x 20 mm time-delayed primary circuit Overload protection secondary circuit Overvoltage protection secondary circuit Short-circuit protection secondary circuit |
| Total useful secondary power | 30 W |
| Secondary power | 15 W 24 V DC 15 W 5 V DC |
| Current at secondary voltage | 0.6 A 24 V DC relay power supply 3 A 5 V DC |
| Marking | CE |
| Local signalling | 1 LED (green) for presence of voltages (OK) 1 LED (red) for battery fault (BAT) |
| Module format | Standard |
| Product Weight | 1.19 lb(US) (0.54 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Premium Automation platform |
| Product or Component Type | Power supply module |
Complementary
| Characteristic | Value(s) |
|---|---|
| Primary voltage | 24...48 V DC 19.2...60 V |
| Input current | <= 1500 mA 48 V <= 3000 mA 24 V |
| Inrush current | 15 A 24 V 15 A 48 V |
| I²t on activation | 50 A².s 24 V 55 A².s 48 V |
| It on activation | 6 A.s 48 V 7 A.s 24 V |
| Protection type | Internal fuse 5 A 5 x 20 mm time-delayed primary circuit Overload protection secondary circuit Overvoltage protection secondary circuit Short-circuit protection secondary circuit |
| Total useful secondary power | 50 W |
| Secondary power | 19 W 24 V DC 35 W 5 V DC |
| Current at secondary voltage | 0.8 A 24 V DC relay power supply 7 A 5 V DC |
| Insulation resistance | >= 10 mOhm primary/ground >= 10 mOhm primary/secondary |
| Marking | CE |
| Local signalling | 1 LED (green) for presence of voltages (OK) 1 LED (red) for battery fault (BAT) |
| Module format | Double |
| Product Weight | 1.96 lb(US) (0.89 kg) |
