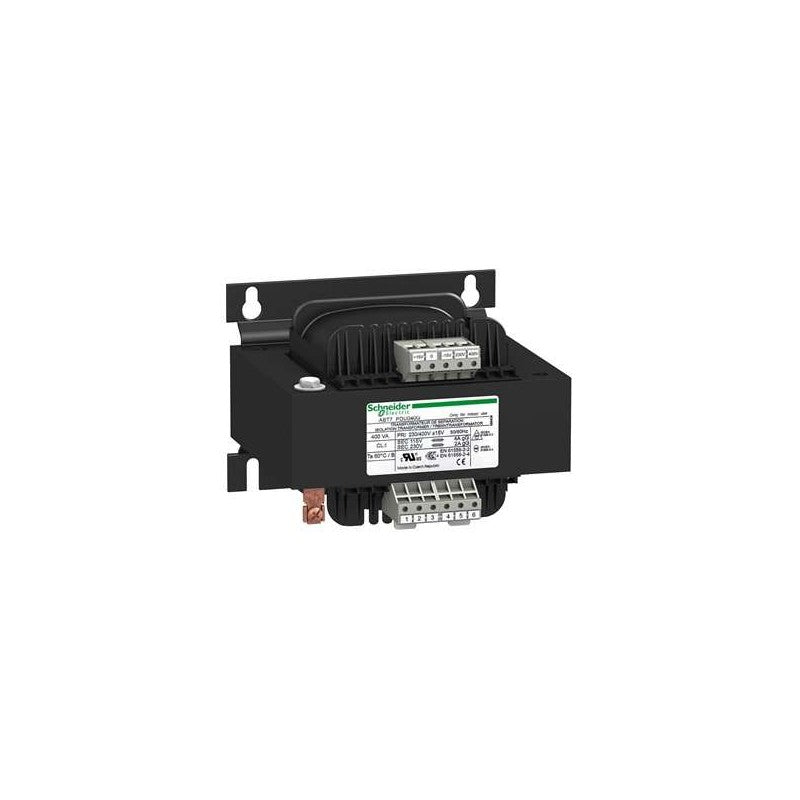

This ABT7 transformer supplies alternating current to control circuits while isolating them from mains power. It has a rated input voltage of 230V to 400V AC, a rated output voltage of 24/48V AC thanks to its double secondary winding, and a rated power of 630VA. It offers an economic way to supply each consuming load individually, or by groups of loads, in applications such as mining, refining. It is ideal for systems accepting low voltage AC power, such as motor protection relays, contactors.
Main
| Characteristic | Value(s) |
|---|---|
| Range of product | Modicon Transformer Universal |
| Product or component type | Safety and isolation transformer |
| Rated power in VA | 630 VA |
| Input voltage | 230 V AC single phase, terminal(s): N-L1 400 V AC phase to phase, terminal(s): L1-L2 |
| Output voltage | 24/48 V AC |
| Secondary winding | Double |
| Protective cover | Without |
| Ambient air temperature for operation | -20â¦60 °C |
Complementary
| Characteristic | Value(s) |
|---|---|
| Input voltage limits | 207...253 V 360...440 V |
| Network frequency limits | 47â¦63 Hz |
| Input voltage tolerance | +/- 15 V |
| Efficiency | 90 % |
| Power dissipation in W | 70 W |
| Voltage variation at nominal load | 0,0416 at 230 V 0,0454 at 400 V |
| Output sustained overvoltage | 0,048 (no load, hot state) |
| Maximum voltage drop at rated load | 4.37 % |
| No load losses | 24.01 W |
| Short-circuit voltage | 0,05 |
| Output protection type | Against overload, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection Against overvoltage, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection Against short-circuits, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection |
| Connections - terminals | For input connection: screw type terminals, connection capacity: 5 x 4 mm² AWG 11 For input ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 11 For output connection: screw type terminals, connection capacity: 6 x 10 mm² AWG 6 |
| Marking | CE |
| Fixing mode | By 4 screws diameter: 7 mm on vertical panel, operating position: horizontal By 4 screws diameter: 7 mm on vertical panel, operating position: vertical By 4 screws diameter: 7 mm on horizontal panel with derating to 90 % |
| Output coupling | Parallel Series by internal jumper Grounding of secondary |
| Operating altitude | 3000 m |
| Electrical insulation class | Class F |
| Width | 150.0 mm |
| Height | 123.0 mm |
| Depth | 164.0 mm |
| Product weight | 7.99 kg |

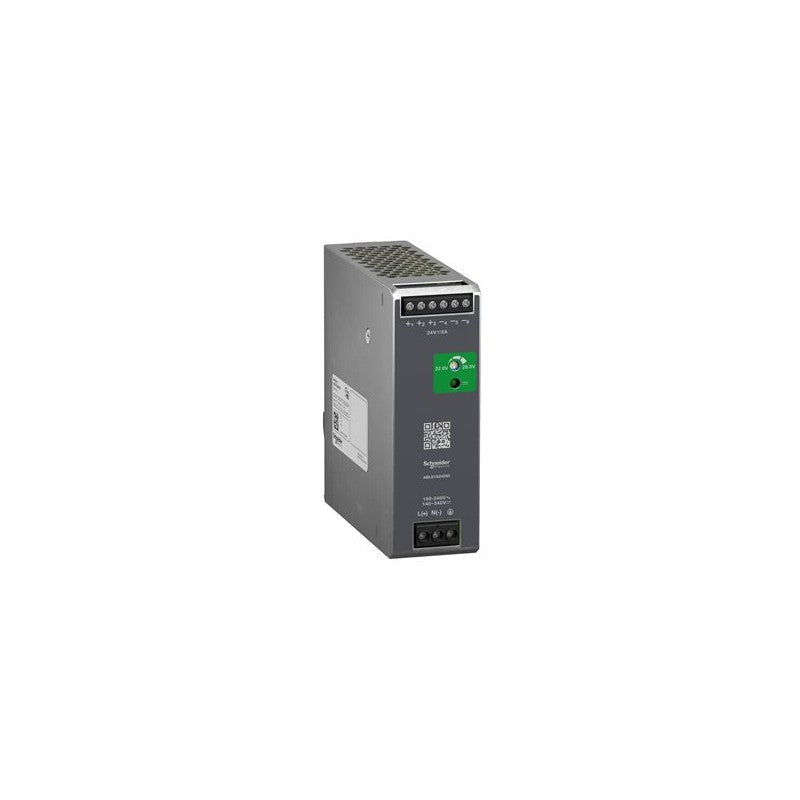

Regulated Power Supply, 100-240V AC, 24V 5 A, single phase, Optimized
voltage transformer - 230..400 V - 2 x 115 V - 630 VA
voltage transformer - 230..400 V - 2 x 24 V - 250 VA

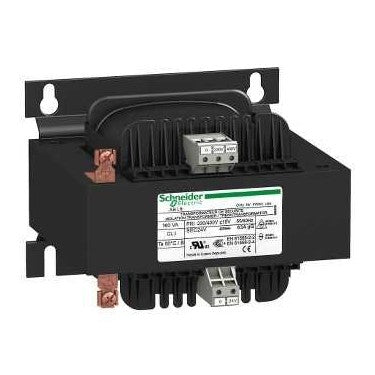

This ABL6 transformer supplies alternating current to control circuits while isolating them from mains power. It has a rated input voltage of 230V to 400V AC, a rated output voltage of 230V AC and a rated power of 1kVA / 1000VA. It offers an economic way to supply each consuming load individually, or by groups of loads, in applications such as mining, refining. It is ideal for systems accepting low voltage AC power, such as motor protection relays, contactors.
Main
| Characteristic | Value(s) |
|---|---|
| Range of product | Modicon Transformer Optimized |
| Product or component type | Safety and isolation transformer |
| Rated power in VA | 1000 VA |
| Input voltage | 230 V AC single phase, terminal(s): N-L1 400 V AC phase to phase, terminal(s): L1-L2 |
| Output voltage | 230 V AC |
| Secondary winding | Single |
| Protective cover | Without |
| Ambient air temperature for operation | -20â¦50 °C |
Complementary
| Characteristic | Value(s) |
|---|---|
| Input voltage limits | 207...253 V 360...440 V |
| Network frequency limits | 47â¦63 Hz |
| Input voltage tolerance | +/- 15 V |
| Efficiency | 94 % |
| Power dissipation in W | 63.8 W |
| Output sustained overvoltage | 3 % (no load, hot state) |
| Maximum voltage drop at rated load | 5 % |
| No load losses | 26.5 W |
| Short-circuit voltage | 0,0324 |
| Output protection type | Against overload, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection Against overvoltage, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection Against short-circuits, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection |
| Connections - terminals | For input connection: screw type terminals, connection capacity: 5 x 4 mm² AWG 11 For input ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 11 For output connection: screw type terminals, connection capacity: 2 x 4 mm² AWG 11 |
| Marking | CE |
| Fixing mode | By 4 screws diameter: 7 mm on vertical panel, operating position: horizontal By 4 screws diameter: 7 mm on vertical panel, operating position: vertical By 4 screws diameter: 7 mm on horizontal panel with derating to 90 % |
| Operating altitude | 3000 m |
| Electrical insulation class | Class B |
| Width | 174.0 mm |
| Height | 138.0 mm |
| Depth | 163.0 mm |
| Product weight | 14.48 kg |
voltage transformer - 230..400 V - 2 x 24 V - 400 VA
This ABT7 transformer supplies alternating current to control circuits while isolating them from mains power. It has a rated input voltage of 230V AC, a rated output voltage of 24V AC and a rated power of 250VA. It offers an economic way to supply each consuming load individually, or by groups of loads, in applications such as mining, refining motor control centers (MCC). It is ideal for systems accepting low voltage AC power, such as motor protection relays, contactors.
Main
| Characteristic | Value(s) |
|---|---|
| Range of product | Modicon Transformer Economic |
| Product or component type | Safety and isolation transformer |
| Rated power in VA | 250 VA |
| Input voltage | 230 V AC phase to phase, terminal(s): L1-L2 230 V AC single phase, terminal(s): N-L1 |
| Output voltage | 24 V AC |
| Secondary winding | Single |
| Protective cover | Without |
| Ambient air temperature for operation | -20â¦40 °C |
Complementary
| Characteristic | Value(s) |
|---|---|
| Input voltage limits | 207...253 V |
| Network frequency limits | 47â¦63 Hz |
| Input voltage tolerance | +/- 15 V |
| Efficiency | 89 % |
| Power dissipation in W | 30.9 W |
| Voltage variation at nominal load | 5.04 % at 230 V |
| Output sustained overvoltage | 0,063 (no load, hot state) |
| Maximum voltage drop at rated load | 6.25 % |
| No load losses | 12.3 W |
| Short-circuit voltage | 0,083 |
| Output protection type | Against overload, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection Against overvoltage, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection Against short-circuits, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection |
| Connections - terminals | For input connection: screw type terminals, connection capacity: 4 x 2.5...4 x 4 mm² AWG 14...AWG 11 For input ground connection: screw type terminals, connection capacity: 1 x 2.5...1 x 4 mm² AWG 14...AWG 11 For output connection: screw type terminals, connection capacity: 2 x 2.5...2 x 4 mm² AWG 14...AWG 11 |
| Marking | CE |
| Fixing mode | By 4 screws diameter: 5 mm on vertical panel, operating position: horizontal By 4 screws diameter: 5 mm on vertical panel, operating position: vertical By 4 screws diameter: 5 mm on horizontal panel with derating to 90 % |
| Operating altitude | 3000 m |
| Electrical insulation class | Class B |
| Width | 97.0 mm |
| Height | 105.0 mm |
| Depth | 105.0 mm |
| Product weight | 3.54 kg |
voltage transformer - 230 V - 1 x 24 V - 400 VA
voltage transformer - 230..400 V - 2 x 115 V - 100 VA
This Modicon ABLP regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 120V AC or 200 to 240V AC, a rated output current of 6.2A at 24V DC and a rated power of 150W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It provides a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected It has LED diagnostics indicator available in the front for troubleshooting instantly. Its width is 159mm, its height is 30mm, its depth is 97mm. It weighs 0.360kg. It is certified with CB-Scheme, cULus Listed, cURus recognized, RCM and EAC. It is a power supply for commercial use, panel mount; It is compatible with ABLPA01 mounting plate. It installs on panel on side or on base with mounting plate fixing by screw. ABLP power supplies bring energy to your automated systems. ABLP power supplies are designed for simple and repetitive machines, dedicated power supplies are particularly quality/price competitive due to their simplicity and compactness. The main applications to use Modicon ABLP power supply are lifts, display panels, escalators, carwash, foodstuff ovens, etc.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Power Supply |
| Product or Component Type | Power supply |
| Power supply type | Regulated switch mode |
| Variant option | Panel mount |
| Enclosure Material | Aluminum |
| Nominal input voltage | 100...120 V AC single phase 200...240 V AC single phase |
| Kw Rating | 150 W |
| Output voltage | 24 V DC |
| Power supply output current | 6.25 A |
Complementary
| Characteristic | Value(s) |
|---|---|
| Efficiency at full load | 90...132 V AC 170...264 V AC |
| Nominal network frequency | 50â¦60 Hz |
| Network system compatibility | TN TT IT |
| Maximum leakage current | 1 mA 240 V AC |
| Input protection type | Integrated fuse (not interchangeable) 4 A |
| Inrush current | 35 A 115 V 70 A 230 V |
| Power factor | 0.55 at 115 V AC 0.45 at 230 V AC |
| Efficiency | 88.8 % 230 V AC |
| Output voltage adjustment | 21.6...26.4 V |
| Power dissipation in W | 29 W |
| Current consumption | < 3.2 A 115 V AC < 1.9 A 230 V AC |
| Turn-on time | < 500 ms |
| Holding time | > 20 ms 115 V AC > 40 ms 230 V AC |
| Startup with capacitive loads | 7000 µF |
| Residual ripple | < 170 mV |
| Meantime between failure [MTBF] | 700000 h at 77 °F (25 °C), full load conforming to SR 332 |
| Output protection type | Against overload and short-circuits, protection technology: automatic reset Against over temperature, protection technology: manual reset Against overvoltage, protection technology: manual reset |
| Connections - terminals | Screw connection 0.75...2.5 mm², AWG 18...AWG 14) without wire end ferrule Screw connection 0.75...1.5 mm², AWG 18...AWG 16) with wire end ferrule |
| Line and load regulation | < 0.5 % network 0 to 100 % load at 77 °F (25 °C) < 1 % network full voltage range in line at 77 °F (25 °C) |
| Status LED | 1 LED (Green) output voltage |
| Depth | 6.3 in (159 mm) |
| Height | 1.2 in (30 mm) |
| Width | 3.8 in (97 mm) |
| Product Weight | 0.79 lb(US) (0.36 kg) |
| Output coupling | Parallel Serial |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 Double-profile DIN rail panel mounting |
| Supply | SELV IEC 60950-1 SELV IEC 60204-1 SELV IEC 60364-4-41 |
| Dielectric strength | 3750 V AC with input to output |
| Service life | 10 year(s) |
| Overvoltage category | II |

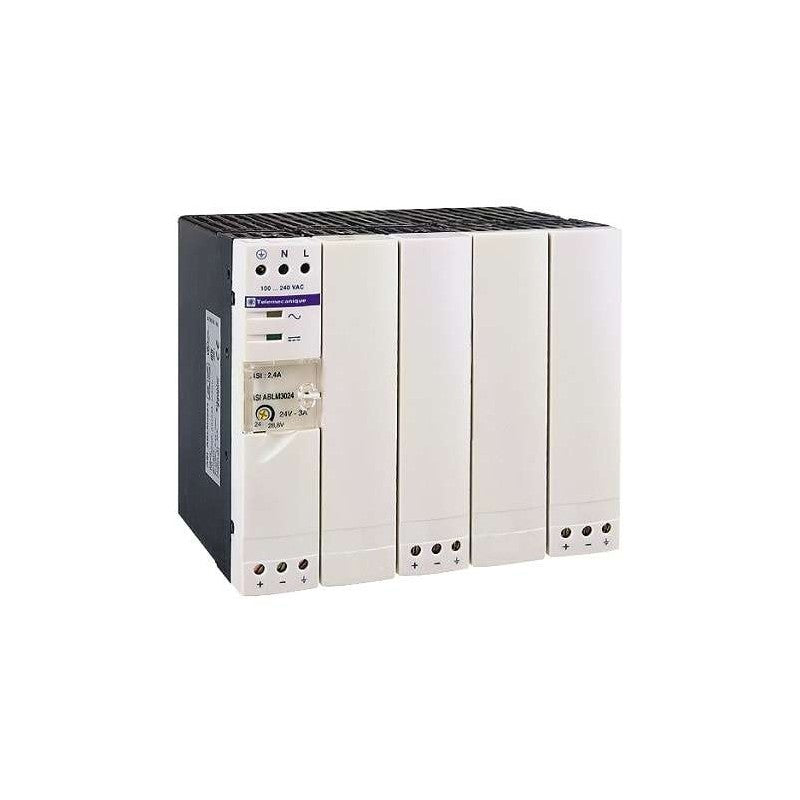

Regulated Power Supply, 100-240V AC, 24V 10 A, single phase, Optimized
This ABLM regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 2,1A at 12V DC and a rated power output of 25W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on omega rail or fixing by screw. Its width is 30mm, its height is 75mm, its depth is 92,8mm. It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 0.170kg. It is a power supply for industrial use, rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. The type of protection is 4A, B or C curve. It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. Thanks to their modular housing, they can be installed either in enclosures or industrial panels by clipping on omega (DIN) rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Power Supply |
| Product or Component Type | Power supply |
| Power supply type | Regulated switch mode |
| Variant option | Modular |
| Enclosure Material | Plastic |
| Nominal input voltage | 100...240 V AC single phase 100...240 V AC phase to phase |
| Kw Rating | 25 W |
| Output voltage | 12 V DC |
| Power supply output current | 2.1 A |
Complementary
| Characteristic | Value(s) |
|---|---|
| Efficiency at full load | 90...264 V AC |
| Nominal network frequency | 50â¦60 Hz |
| Network system compatibility | TN TT IT |
| Maximum leakage current | 0.25 mA 240 V AC |
| Input protection type | Integrated fuse (not interchangeable) 3.15 A External protection (recommended) 20 A Curve B External protection (recommended) 20 A Curve C External protection (recommended) 4 A Curve B External protection (recommended) 4 A Curve C |
| Inrush current | 25 A 115 V 50 A 230 V |
| Power factor | 0.48 at 115 V AC 0.38 at 230 V AC |
| Efficiency | 85 % 115 V AC 85 % 230 V AC |
| Output voltage adjustment | 12...15 V |
| Power dissipation in W | 4.6 W |
| Current consumption | < 0.8 A 115 V AC < 0.6 A 230 V AC |
| Turn-on time | < 2 s |
| Holding time | > 20 ms 115 V AC > 60 ms 230 V AC |
| Startup with capacitive loads | 3000 µF |
| Residual ripple | < 100 mV |
| Meantime between failure [MTBF] | 2500000 h at 77 °F (25 °C), full load 1000000 h at 131 °F (55 °C), 80 % load |
| Output protection type | Against overload and short-circuits, protection technology: automatic reset Against over temperature, protection technology: manual reset Against overvoltage, protection technology: manual reset |
| Connections - terminals | Screw connection 0.5...1.5 mm², AWG 20...AWG 16) without wire end ferrule input/output Screw connection 0.5...1 mm², AWG 20...AWG 18) with wire end ferrule input/output |
| Line and load regulation | < 0.5 % network in line < 1 % network 0 to 100 % load |
| Status LED | 1 LED (Green) output voltage |
| Depth | 2.2 in (55.6 mm) |
| Height | 3.6 in (91 mm) |
| Width | 1.4 in (36 mm) |
| Product Weight | 0.375 lb(US) (0.170 kg) |
| Output coupling | Serial |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 Double-profile DIN rail panel mounting |
| Supply | SELV IEC 60950-1 SELV IEC 60204-1 SELV IEC 60364-4-41 |
| Dielectric strength | 3000 V AC input/output |
| Service life | 10 year(s) |
| Overvoltage category | II |
rectified and filtered Power Supply - 3-Phase - 400 V AC - 24 V - 40 A
rectified and filtered Power Supply - 3-Phase - 400 V AC - 24 V - 60 A

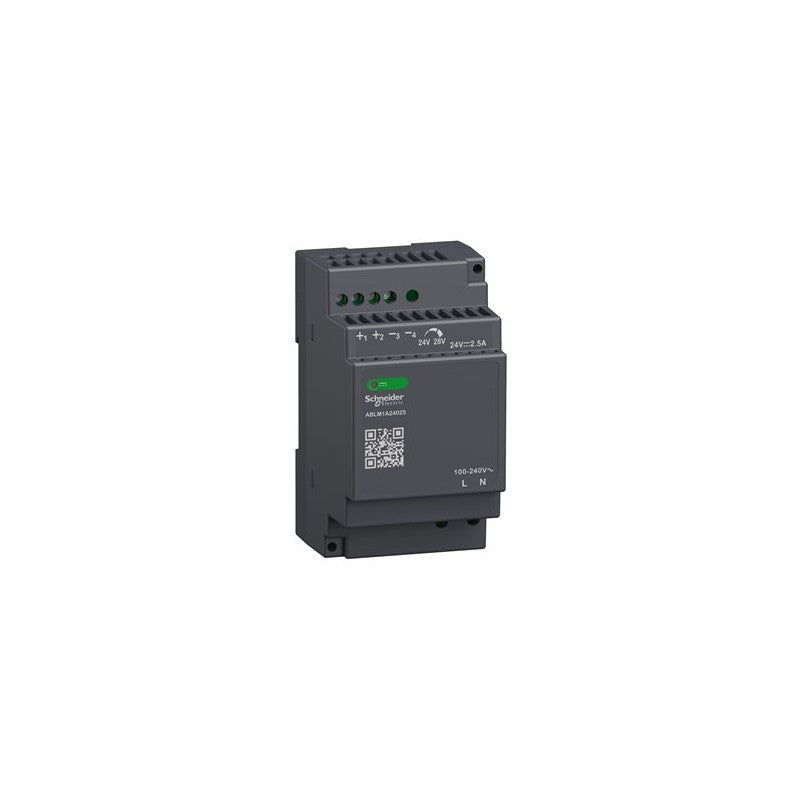

Regulated Power Supply, 100-240V AC, 24V 2.5 A, single phase, Modular

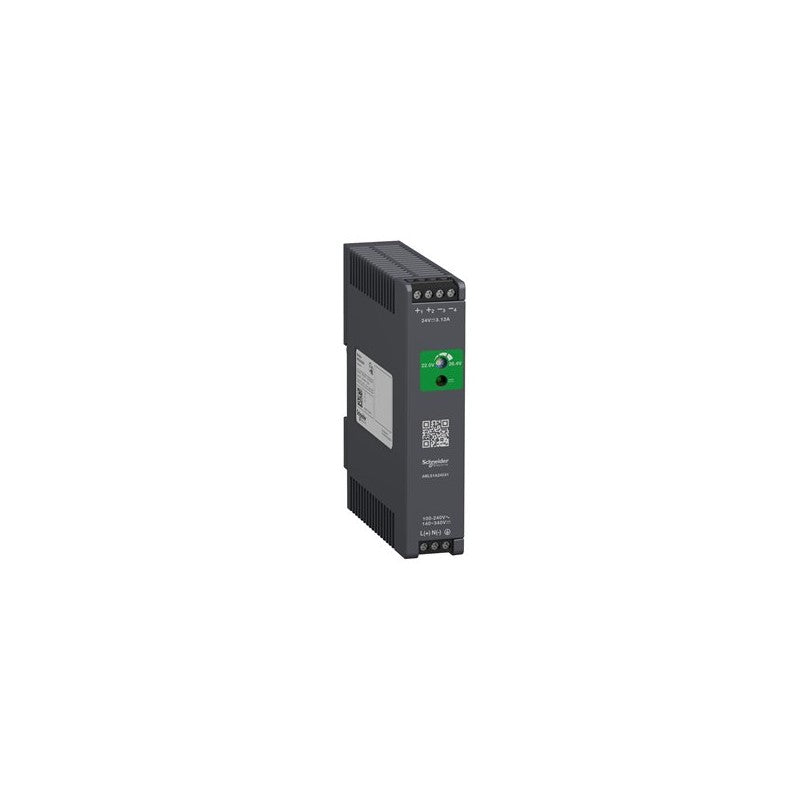

This ABLS regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC and 140 V to 340 V DC, a rated output current of 3,13A at 24V DC and a rated power output of 75W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on omega rail or fixing by screw. Its width is 27mm, its height is 123,6mm, its depth is 102mm. It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 0.220kg. It is a power supply for industrial use, rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. The type of protection is 10A, C curve or 13A, B-curve. It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. Thanks to its book housing, it can be installed either in enclosures or industrial panels by clipping on omega (DIN) rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Power Supply |
| Product or Component Type | Power supply |
| Power supply type | Regulated switch mode |
| Variant option | Optimized |
| Enclosure Material | Plastic |
| Nominal input voltage | 100...240 V AC single phase 100...240 V AC phase to phase 140...340 V DC |
| Kw Rating | 75 W |
| Output voltage | 24 V DC |
| Power supply output current | 3.13 A |
Complementary
| Characteristic | Value(s) |
|---|---|
| Efficiency at full load | 85...264 V AC without temperature derating 120...375 V DC without temperature derating |
| Nominal network frequency | 50â¦60 Hz |
| Network system compatibility | TN TT IT |
| Maximum leakage current | 1 mA 240 V AC |
| Input protection type | Integrated fuse (not interchangeable) 5 A External protection (recommended) 20 A Curve C External protection (recommended) 13 A Curve B External protection (recommended) 10 A Curve C |
| Inrush current | 40.0 A 115 V 80.0 A 230 V |
| Power factor | 0.55 at 115 V AC 0.45 at 230 V AC |
| Efficiency | 88 % 230 V AC |
| Output voltage adjustment | 21.6...26.4 V |
| Power dissipation in W | 15 W |
| Current consumption | < 1.8 A 115 V AC < 1 A 230 V AC < 0.8 A 140 V DC |
| Turn-on time | < 1.2 s |
| Holding time | > 20 ms 115 V AC > 40 ms 230 V AC |
| Startup with capacitive loads | 5000 µF |
| Residual ripple | < 120 mV |
| Meantime between failure [MTBF] | 700000 h at 77 °F (25 °C), full load conforming to SR 332 |
| Output protection type | Against overload and short-circuits, protection technology: automatic reset Against over temperature, protection technology: manual reset Against overvoltage, protection technology: manual reset |
| Connections - terminals | Screw connection 0.5...2.5 mm², AWG 20...AWG 14) output Screw connection 0.75...2.5 mm², AWG 18...AWG 14) input |
| Line and load regulation | < 0.5 % network 0 to 100 % load at 77 °F (25 °C) < 1 % network full voltage range in line at 77 °F (25 °C) |
| Status LED | 1 LED (Green) output voltage |
| Depth | 4.02 in (102 mm) |
| Height | 4.9 in (123.6 mm) |
| Width | 1.06 in (27 mm) |
| Product Weight | 0.49 lb(US) (0.22 kg) |
| Output coupling | Parallel Serial |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 Double-profile DIN rail |
| Supply | SELV IEC 60950-1 SELV IEC 60204-1 SELV IEC 60364-4-41 |
| Dielectric strength | 3000 V AC with input to output |
| Service life | 10 year(s) |
| Overvoltage category | II |
This ABLM regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 4,17A at 12V DC and a rated power output of 50W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on omega rail or fixing by screw. Its width is 53mm, its height is 91mm, its depth is 55,6mm. It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 0.221kg It is a power supply for industrial use, rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. The type of protection is 6A, C curve or 10A, B-curve. It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. Thanks to their modular housing, they can be installed either in enclosures or industrial panels by clipping on omega (DIN) rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Power Supply |
| Product or Component Type | Power supply |
| Power supply type | Regulated switch mode |
| Variant option | Modular |
| Enclosure Material | Plastic |
| Nominal input voltage | 100...240 V AC single phase 100...240 V AC phase to phase |
| Kw Rating | 50 W |
| Output voltage | 12 V DC |
| Power supply output current | 4.17 A |
Complementary
| Characteristic | Value(s) |
|---|---|
| Efficiency at full load | 90...264 V AC |
| Nominal network frequency | 50â¦60 Hz |
| Network system compatibility | TN TT IT |
| Maximum leakage current | 0.25 mA 240 V AC |
| Input protection type | Integrated fuse (not interchangeable) 3.15 A External protection (recommended) 20 A Curve B External protection (recommended) 20 A Curve C External protection (recommended) 10 A Curve B External protection (recommended) 6 A Curve C |
| Inrush current | 30 A 115 V 60 A 230 V |
| Power factor | 0.50 at 115 V AC 0.39 at 230 V AC |
| Efficiency | 88 % 115 V AC 88 % 230 V AC |
| Output voltage adjustment | 12...15 V |
| Power dissipation in W | 5.5 W |
| Current consumption | < 1.5 A 115 V AC < 1 A 230 V AC |
| Turn-on time | < 2 s |
| Holding time | > 20 ms 115 V AC > 60 ms 230 V AC |
| Startup with capacitive loads | 3000 µF |
| Residual ripple | < 100 mV |
| Meantime between failure [MTBF] | 1500000 h at 77 °F (25 °C), full load 1000000 h at 131 °F (55 °C), 80 % load |
| Output protection type | Against overload and short-circuits, protection technology: automatic reset Against over temperature, protection technology: manual reset Against overvoltage, protection technology: manual reset |
| Connections - terminals | Screw connection 0.5...2.5 mm², AWG 20...AWG 14) without wire end ferrule output Screw connection 0.5...1.5 mm², AWG 20...AWG 16) with wire end ferrule output Screw connection 0.5...1.5 mm², AWG 20...AWG 16) input |
| Line and load regulation | < 0.5 % network in line < 1 % network 0 to 100 % load |
| Status LED | 1 LED (Green) output voltage |
| Depth | 2.2 in (55.6 mm) |
| Height | 3.6 in (91 mm) |
| Width | 2.09 in (53 mm) |
| Product Weight | 0.487 lb(US) (0.221 kg) |
| Output coupling | Serial Parallel |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 Double-profile DIN rail panel mounting |
| Supply | SELV IEC 60950-1 SELV IEC 60204-1 SELV IEC 60364-4-41 |
| Dielectric strength | 3000 V AC input/output |
| Service life | 10 year(s) |
| Overvoltage category | II |

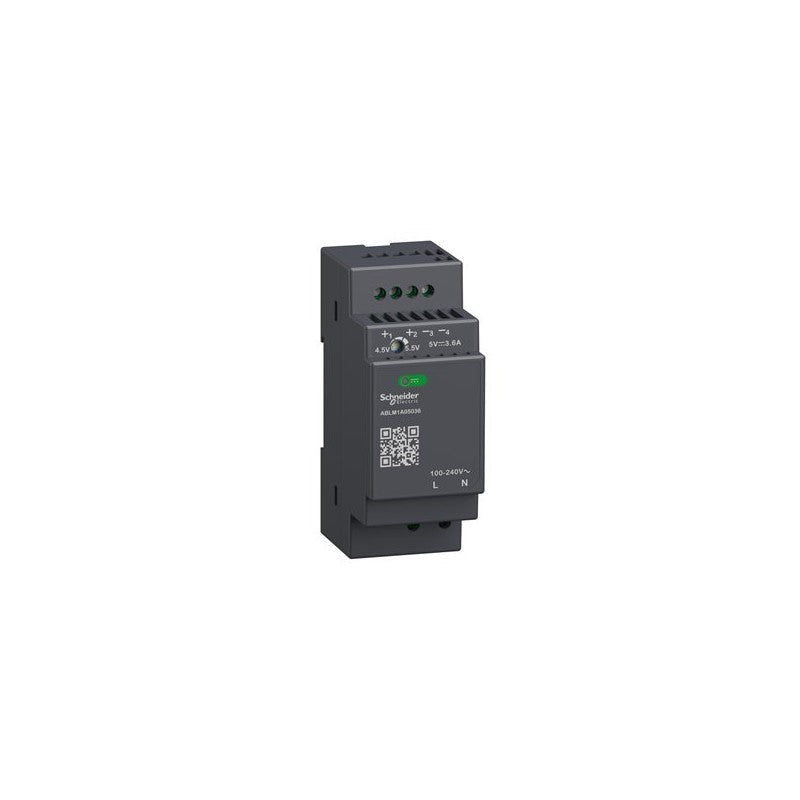

Regulated Power Supply, 100-240V AC, 5V 3.6 A, single phase, Modular

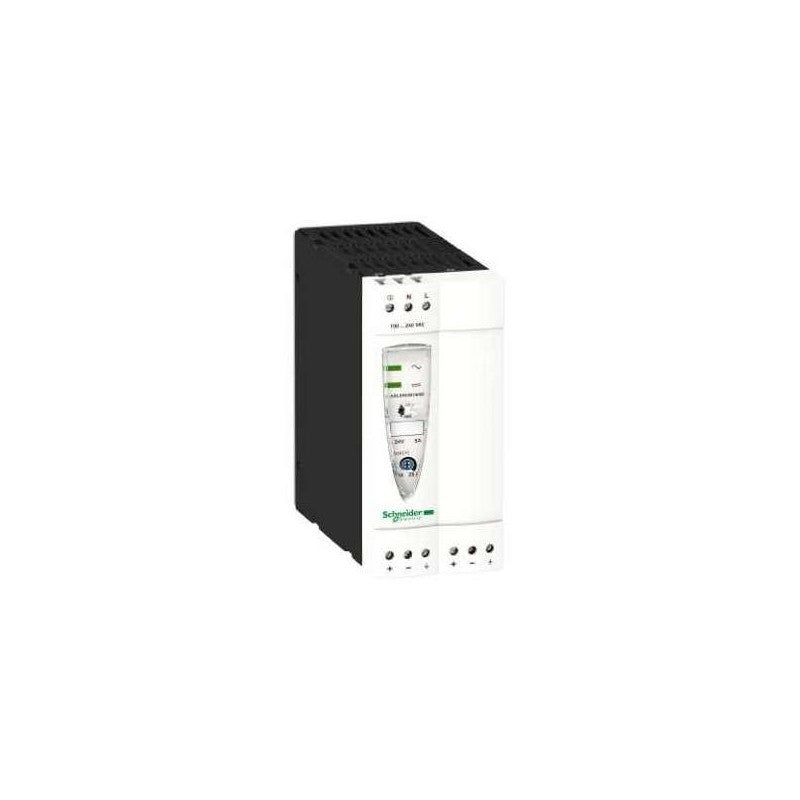

Phaseo Power supply, Regulated SMPS - 1 or 2-phase - 100..240 V AC - 24 V - 5 A

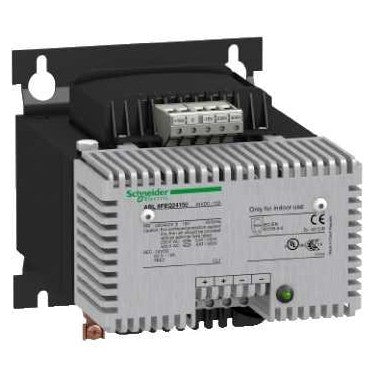

rectified and filtered Power Supply - 1 or 2-Phase - 400 V AC - 24 V - 15 A

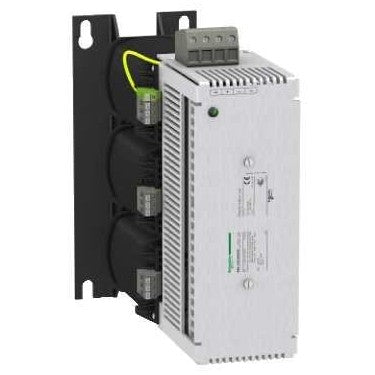

This ABL8 3-phase filtered rectified power supply (PSU) supplies direct current voltage. It has a rated input of 400V AC, a rated output current of 30A at 24V DC and a rated power of 720W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail and is 185mm-wide. It weighs 13,000kg. It is a power supply for industrial use, rail mounting. It is certified with UL 508, CULus, KC and EAC. The GV2RT07 thermal magnetic circuit breaker is recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Main
| Characteristic | Value(s) |
|---|---|
| Range of product | Modicon Rectified |
| Product or component type | Power supply |
| Power supply type | Rectified and filtered |
| Rated power in W | 720 W |
| Nominal input voltage | 400 V AC three phase, terminal(s): L1, L2, L3 |
| Output voltage | 24 V DC |
| Power supply output current | 30 A |
| Anti-harmonic filter | Low frequency harmonic currents |
| Product certifications | UL 508 cULus KC EAC |
Complementary
| Characteristic | Value(s) |
|---|---|
| Network frequency limits | 47â¦63 Hz |
| Input voltage limits | 360...440 V |
| Power Factor | 0.835 at 400 V |
| Efficiency | 77 % |
| Power dissipation in W | 165 W |
| Output coupling | Series Parallel |
| Output protection type | Against overvoltage, protection technology: 2 J peak limiter Against overload and short-circuits, protection technology: external fuse, 40 A |
| Hold-up time | 7 ms |
| Status LED | 1 LED (green) output voltage |
| Connections - terminals | For input ground connection: screw type terminals, connection capacity: 1 x 2.5...1 x 4 mm² AWG 14...AWG 11 For input connection: screw type terminals, connection capacity: 9 x 2.5...9 x 4 mm² AWG 14...AWG 11 For output connection: screw type terminals, connection capacity: 4 x 10...4 x 16 mm² AWG 8...AWG 6 |
| Depth | 247.0 mm |
| Height | 107.0 mm |
| Width | 240 mm |
| Product weight | 13.24 kg |
| Compatibility code | ABL8T |
