voltage transformer - 230..400 V - 1 x 230 V - 160 VA
rectified and filtered Power Supply - 3-Phase - 400 V AC - 24 V - 10 A
rectified and filtered Power Supply - 1 or 2-Phase - 400 V AC - 24 V - 10 A

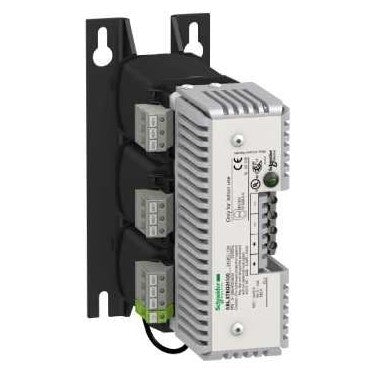

This ABL8 3-phase filtered rectified power supply (PSU) supplies direct current voltage. It has a rated input of 400V AC, a rated output current of 20A at 24V DC and a rated power of 480W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail and is 185mm-wide. It weighs 9,900kg. It is a power supply for industrial use, rail mounting. It is certified with UL 508, CULus, KC and EAC. The GV2RT06 thermal magnetic circuit breaker is recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Main
| Characteristic | Value(s) |
|---|---|
| Range of product | Modicon Rectified |
| Product or component type | Power supply |
| Power supply type | Rectified and filtered |
| Rated power in W | 480 W |
| Nominal input voltage | 400 V AC three phase, terminal(s): L1, L2, L3 |
| Output voltage | 24 V DC |
| Power supply output current | 20 A |
| Anti-harmonic filter | Low frequency harmonic currents |
| Product certifications | EAC KC UL 508 cULus |
Complementary
| Characteristic | Value(s) |
|---|---|
| Network frequency limits | 47â¦63 Hz |
| Input voltage limits | 360...440 V |
| Power Factor | 0.81 at 400 V |
| Efficiency | 78 % |
| Power dissipation in W | 105 W |
| Output coupling | Parallel Series |
| Output protection type | Against overvoltage, protection technology: 2 J peak limiter Against overload and short-circuits, protection technology: external fuse, 25 A |
| Hold-up time | 6 ms |
| Status LED | 1 LED (green) output voltage |
| Connections - terminals | For input ground connection: screw type terminals, connection capacity: 1 x 2.5...1 x 4 mm² AWG 14...AWG 11 For input connection: screw type terminals, connection capacity: 9 x 2.5...9 x 4 mm² AWG 14...AWG 11 For output connection: screw type terminals, connection capacity: 4 x 10...4 x 16 mm² AWG 8...AWG 6 |
| Depth | 213.0 mm |
| Height | 102.0 mm |
| Width | 220 mm |
| Product weight | 9.79 kg |
| Compatibility code | ABL8T |
voltage transformer - 230..400 V - 1 x 115 V - 160 VA
POWER SUPPLY WITH REGULATED SWITCHING - 1 OR 2 PHASES - 100..240 V AC - 24 V - 3 A

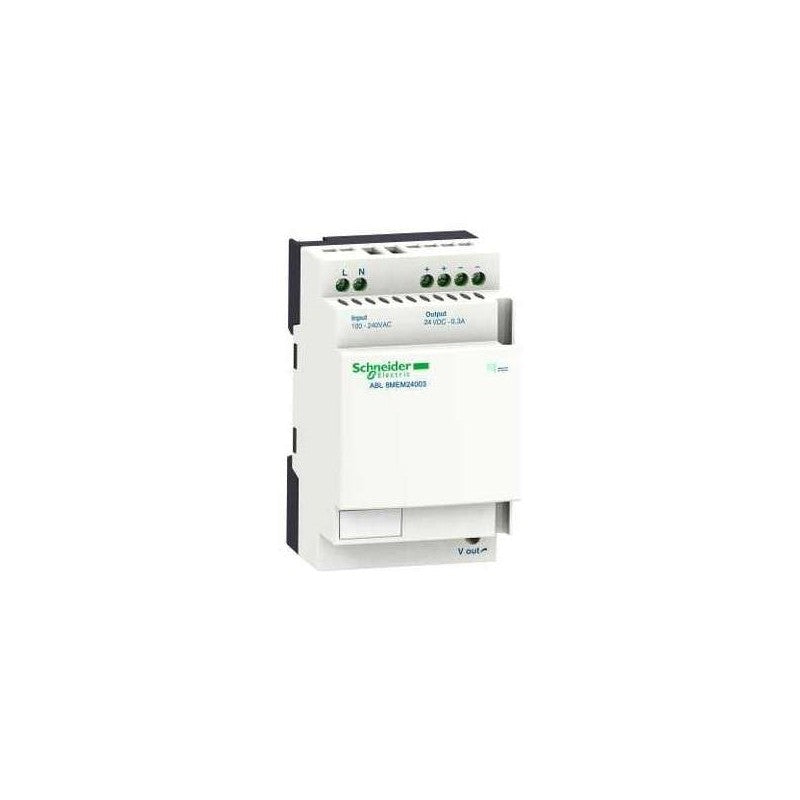

Regulated SMPS - 1 or 2-phase - 100..240 V AC - 24 V - 0.3 A
This ABL8 filtered rectified power supply (PSU) supplies direct current voltage. It has a rated input of 230V AC, a rated output current of 4A at 24V DC and a rated power of 96W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It has integrated fuse for easy to maintain short circuit protection. It installs on DIN rail and is 87mm-wide. It weighs 2,900kg. It is a power supply for industrial use, rail mounting. It is certified with UL 508, CULus, KC and EAC. The GB2CB06, GB2CD06, GB2DB06 and GB2CS06 3-pole thermal-magnetic circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Main
| Characteristic | Value(s) |
|---|---|
| Range of product | Modicon Rectified |
| Product or component type | Power supply |
| Power supply type | Rectified and filtered |
| Rated power in W | 96 W |
| Nominal input voltage | 230 V AC single phase, terminal(s): N-L1 400 V AC phase to phase, terminal(s): L1-L2 |
| Output voltage | 24 V DC |
| Power supply output current | 4 A |
| Anti-harmonic filter | Low frequency harmonic currents |
| Product certifications | cULus KC UL 508 EAC |
Complementary
| Characteristic | Value(s) |
|---|---|
| Network frequency limits | 47â¦63 Hz |
| Input voltage limits | 360...440 V 207...253 V |
| Power Factor | 0.689 at 230 V 0.867 at 400 V |
| Efficiency | 75 % |
| Power dissipation in W | 24 W |
| Output coupling | Series Parallel |
| Output protection type | Against overload and short-circuits, protection technology: internal fuse, 4 A, 5 x 20 mm, T curve Against overvoltage, protection technology: 2 J peak limiter |
| Hold-up time | 14 ms |
| Status LED | 1 LED (green) output voltage 1 LED (orange) input voltage |
| Residual ripple | <= 1200 MV |
| Connections - terminals | For input connection: screw type terminals, connection capacity: 5 x 2.5...5 x 4 mm² AWG 14...AWG 11 For input ground connection: screw type terminals, connection capacity: 1 x 2.5...1 x 4 mm² AWG 14...AWG 11 For output connection: screw type terminals, connection capacity: 4 x 2.5...4 x 4 mm² AWG 14...AWG 11 |
| Depth | 164.0 mm |
| Height | 108 mm |
| Width | 87 mm |
| Product weight | 2.98 kg |
| Compatibility code | ABL8F |

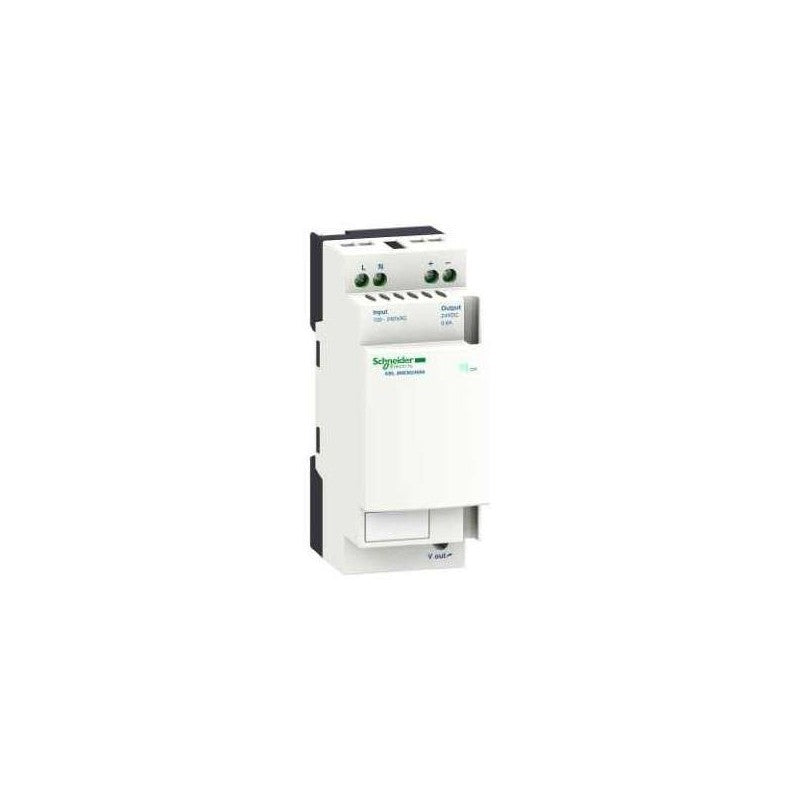

regulated SMPS - 1 or 2-Phase - 100..240 V AC - 24 V - 1.2 A
This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 0.6A at 24V DC and a rated power output of 15W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on DIN rail and is 36mm-wide. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It provides a power reserve allowing to deliver a current of 150% its nominal rating for a short time allows handling of simultaneous inrush current when starting a process. It weighs 0,100kg. It is a power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No60950-1 standards. It is certified by KC, TUV60950-1, RCM, EAC, CCSAus, CSA22-2 No 950, CULus 508. The GB2CB07, GB2CD07, GB2DB07, GB2CS07 miniature circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. The ABL8MEM/ABL7RM (modular) range meets all the needs of simple automation systems with power ratings from 7 to 60 W and an output voltage of 5 V DC, 12 V DC, or 24V DC.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Power Supply |
| Product or Component Type | Power supply |
| Power supply type | Regulated switch mode |
| Nominal input voltage | 100...240 V AC phase to phase L1-L2 100...240 V AC single phase N-L1 120...250 V DC |
| Kw Rating | 15 W |
| Output voltage | 24 V DC |
| Power supply output current | 0.6 A |
Complementary
| Characteristic | Value(s) |
|---|---|
| Efficiency at full load | 85...264 V AC |
| Input protection type | Integrated fuse (not interchangeable) |
| Inrush current | 20 A |
| Power factor | 0.5 at 24 V DC |
| Efficiency | 80 % |
| Output voltage adjustment | 22.2...28.8 V adjustable |
| Power dissipation in W | 3.8 W |
| Current consumption | 0.25 A 240 V AC 0.4 A 100 V AC |
| Residual ripple | 250 mV |
| Output protection type | Thermal Against short-circuits |
| Connections - terminals | Screw type terminals 2 x 0.14...2 x 2.5 mm², AWG 26...AWG 14) input connection Screw type terminals 2 x 0.14...2 x 2.5 mm², AWG 26...AWG 14) output connection |
| Status LED | 1 LED (Green) output voltage |
| Depth | 2.3 in (59 mm) |
| Height | 3.9 in (100 mm) |
| Width | 1.4 in (36 mm) |
| Product Weight | 0.2 lb(US) (0.1 kg) |
| Output coupling | Parallel Series |
| Marking | CE |
| Mounting support | 35 x 7.5 mm symmetrical DIN rail panel 2 screws, diameter : 4 mm 35 x 15 mm symmetrical DIN rail |
| Operating position | Vertical |
| Supply | SELV IEC 60950-1 SELV IEC 60204-1 SELV IEC 60364-4-41 |
| Dielectric strength | 3000 V with between input and output |

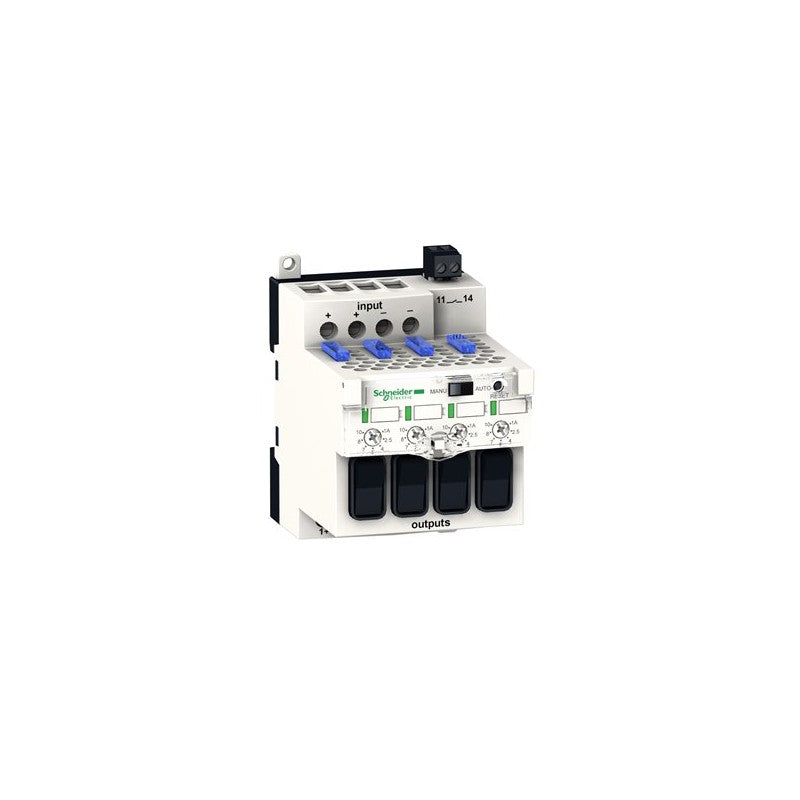

electronic protection module - 28..28.8 V DC - 10 A - for regulated SMPS
regulated SMPS - 1 or 2-Phase - 100..240 V AC - 5 V - 4 A
Rectified and filtered power supply - 1 or 2-phase - 400 V AC - 24 V - 1 A

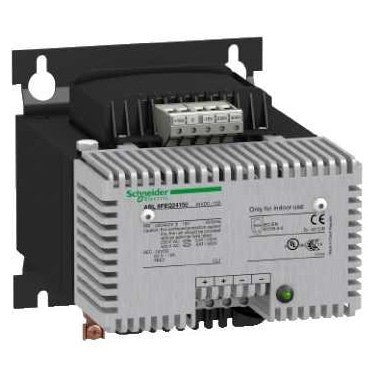

This ABL8 filtered rectified power supply (PSU) supplies direct current voltage. It has a rated input of 230V AC, a rated output current of 20A at 24V DC and a rated power of 480W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It has integrated fuse for easy to maintain short circuit protection. It installs on DIN rail and is 87mm-wide. It weighs 13,220kg. It is a power supply for industrial use, rail mounting. It is certified with UL 508, CULus, KC and EAC. The GB2CB09, GB2CD09, GB2DB09 and GB2CS09 3-pole thermal-magnetic circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Main
| Characteristic | Value(s) |
|---|---|
| Range of product | Modicon Rectified |
| Product or component type | Power supply |
| Power supply type | Rectified and filtered |
| Rated power in W | 480 W |
| Nominal input voltage | 230 V AC single phase, terminal(s): N-L1 400 V AC phase to phase, terminal(s): L1-L2 |
| Output voltage | 24 V DC |
| Power supply output current | 20 A |
| Anti-harmonic filter | Low frequency harmonic currents |
| Product certifications | UL 508 cULus KC EAC |
Complementary
| Characteristic | Value(s) |
|---|---|
| Network frequency limits | 47â¦63 Hz |
| Input voltage limits | 360...440 V 207...253 V |
| Power Factor | 0.671 at 400 V 0.698 at 230 V |
| Efficiency | 80 % |
| Power dissipation in W | 96 W |
| Output coupling | Series Parallel |
| Output protection type | Against overvoltage, protection technology: 2 J peak limiter Against overload and short-circuits, protection technology: external fuse, 25 A |
| Hold-up time | 10 ms |
| Status LED | 1 LED (green) output voltage 1 LED (orange) input voltage |
| Residual ripple | <= 1200 MV |
| Connections - terminals | For input connection: screw type terminals, connection capacity: 5 x 2.5...5 x 4 mm² AWG 14...AWG 11 For input ground connection: screw type terminals, connection capacity: 1 x 2.5...1 x 4 mm² AWG 14...AWG 11 For output connection: screw type terminals, connection capacity: 4 x 4 mm² AWG 11 |
| Depth | 217.0 mm |
| Height | 128.0 mm |
| Width | 174.0 mm |
| Product weight | 13.32 kg |
| Compatibility code | ABL8F |
This ABL6 transformer supplies alternating current to control circuits while isolating them from mains power. It has a rated input voltage of 230V to 400V AC, a rated output voltage of 115V AC and a rated power of 100VA. It offers an economic way to supply each consuming load individually, or by groups of loads, in applications such as mining, refining. It is ideal for systems accepting low voltage AC power, such as motor protection relays, contactors.
Main
| Characteristic | Value(s) |
|---|---|
| Range of product | Modicon Transformer Optimized |
| Product or component type | Safety and isolation transformer |
| Rated power in VA | 100 VA |
| Input voltage | 230 V AC single phase, terminal(s): N-L1 400 V AC phase to phase, terminal(s): L1-L2 |
| Output voltage | 115 V AC |
| Secondary winding | Single |
| Protective cover | Without |
| Ambient air temperature for operation | -20â¦50 °C |
Complementary
| Characteristic | Value(s) |
|---|---|
| Input voltage limits | 360...440 V 207...253 V |
| Network frequency limits | 47â¦63 Hz |
| Input voltage tolerance | +/- 15 V |
| Efficiency | 86 % |
| Power dissipation in W | 16.3 W |
| Output sustained overvoltage | 8 % (no load, hot state) |
| Maximum voltage drop at rated load | 0.6 % |
| No load losses | 7.1 W |
| Short-circuit voltage | 0,0751 |
| Output protection type | Against overload, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection Against overvoltage, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection Against short-circuits, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection |
| Connections - terminals | For input connection: screw type terminals, connection capacity: 5 x 4 mm² AWG 11 For input ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 11 For output connection: screw type terminals, connection capacity: 2 x 4 mm² AWG 11 |
| Marking | CE |
| Fixing mode | By 4 screws diameter: 4.8 mm on vertical panel, operating position: horizontal By 4 screws diameter: 4.8 mm on vertical panel, operating position: vertical By clips (with mounting plate) on 35 mm symmetrical DIN rail By 4 screws diameter: 4.8 mm on horizontal panel with derating to 90 % |
| Operating altitude | 3000 m |
| Electrical insulation class | Class B |
| Width | 84.0 mm |
| Height | 86.0 mm |
| Depth | 94.0 mm |
| Product weight | 2.02 kg |

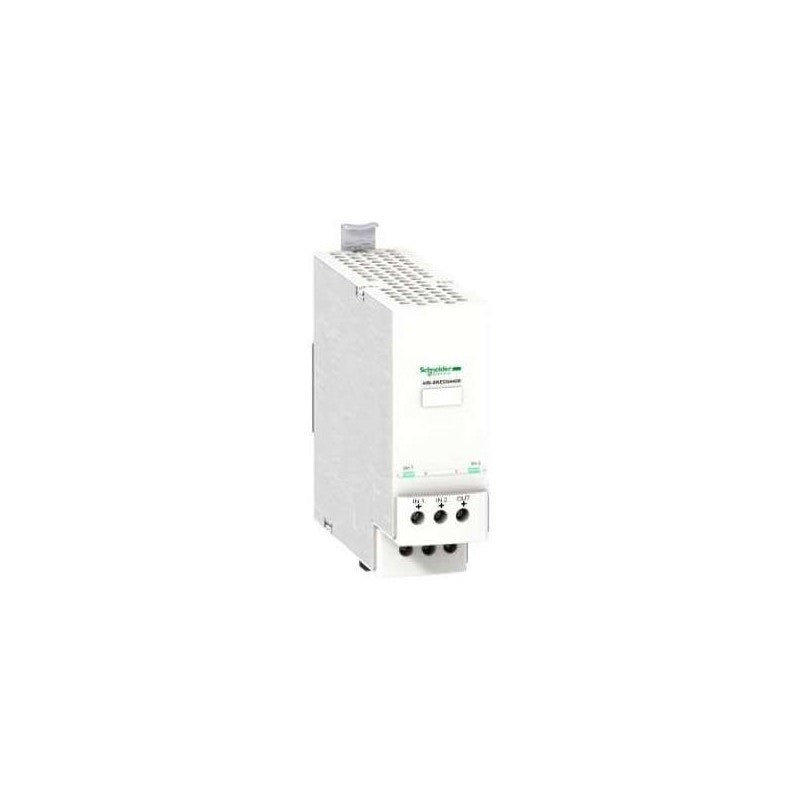

This ABL8 redundancy solution supplies direct current voltage. It has a rated input of 24V to 28.8V DC, a rated output current of 40A. This redundancy solution is designed to bring continuity to auxiliary power even during failure of one out of 2 power supply units. It can be used to supply the nominal power to the application even if one of the power supplies is inoperable or otherwise unavailable. It has LED diagnostics indicator available in the front for troubleshooting instantly. It weighs 0,700kg. It is a functionnal module for power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. It is certified by EAC, RCM. This functional module is mainly compatible with Modicon ABL8RP and Modicon ABL8WP Universal power supplies. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Phaseo |
| Product or Component Type | Redundancy module |
| Input voltage | 24...28.8 V DC |
| Output voltage | (Uin-0.2) V DC |
| Maximum output current | 40 A |
Complementary
| Characteristic | Value(s) |
|---|---|
| Input voltage limits | 22...30 V |
| Input current | 20 A |
| Number of output channels | 1 |
| Output protection type | Against overload, protection technology: external protection by power supply Against short-circuits, protection technology: external protection by power supply |
| Connections - terminals | For output connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² AWG 20...AWG 8 For input connection: screw type terminals, connection capacity: 4 x 0.5...4 x 10 mm² AWG 20...AWG 8 For diagnostic relay: removable screw terminal block, connection capacity: 1 x 2.5 mm² AWG 14 |
| Fixing mode | By clips 35 mm symmetrical DIN rail horizontal By clips 35 mm symmetrical DIN rail vertical |
| Output coupling | Parallel |
| Operating altitude | 6561.68 ft (2000 m) |
| Marking | CE |
| Name of test | Electrostatic discharges IEC 61000-4-2 Emission IEC 61000-6-3 Induced electromagnetic field IEC 61000-4-6 level 3 Radiated electromagnetic field IEC 61000-4-3 level 3 Rapid transient IEC 61000-4-4 level 3 Surge IEC 61000-4-5 level 2 Conducted/radiated emissions EN 55022 Class B Emission EN 50081-1 |
| Local signalling | 1 LED per input (green) for power supply status 1 relay for power supply status |
| Product Weight | 1.5 lb(US) (0.7 kg) |

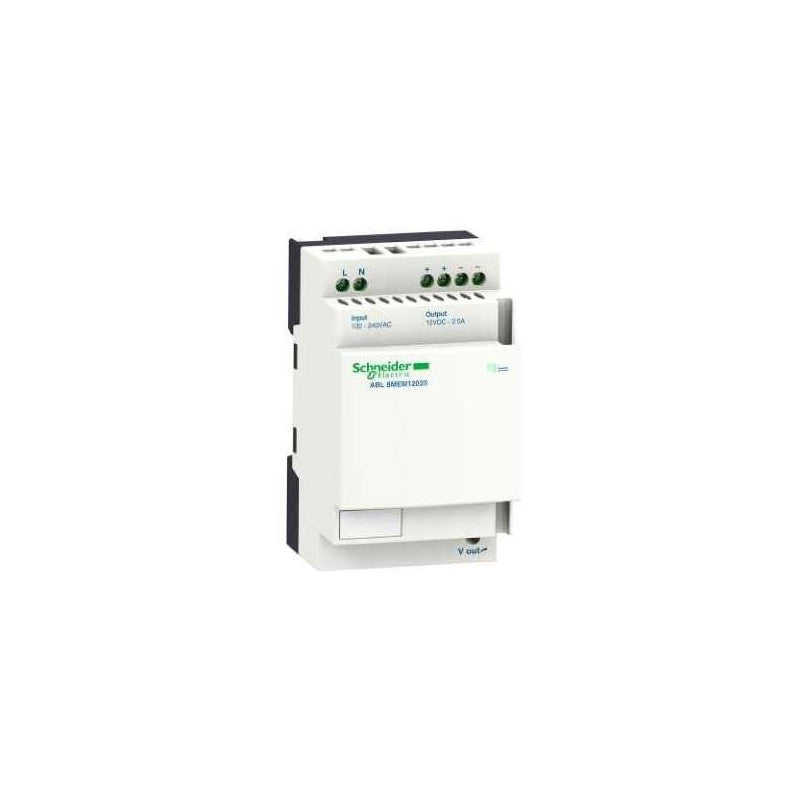

This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 2.1A at 5V DC and a rated power output of 25W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on DIN rail and is 54mm-wide. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It provides a power reserve allowing to deliver a current of 150% its nominal rating for a short time allows handling of simultaneous inrush current when starting a process. It weighs 0.227kg. It is a power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 satndards. It is certified by EAC, RCM, KC, TUV 60950-1, CCSAus, CSA 22-2 No 950, CULus 508. The GB2CB07, GB2CD07, GB2DB07, GB2CS07 miniature circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. The ABL8MEM/ABL7RM (modular) range meets all the needs of simple automation systems with power ratings from 7 to 60 W and an output voltage of 5 V DC, 12 V DC, or 24V DC.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Power Supply |
| Product or Component Type | Power supply |
| Power supply type | Regulated switch mode |
| Nominal input voltage | 100...240 V AC phase to phase L1-L2 100...240 V AC single phase N-L1 120...250 V DC |
| Kw Rating | 25 W |
| Output voltage | 12...15 V DC |
| Power supply output current | 2.1 A |
Complementary
| Characteristic | Value(s) |
|---|---|
| Efficiency at full load | 85...264 V AC |
| Input protection type | Integrated fuse (not interchangeable) |
| Inrush current | 20 A |
| Power factor | 0.5 at 12...15 V DC |
| Efficiency | 80 % |
| Output voltage adjustment | 11.4...15 V adjustable |
| Power dissipation in W | 6.2 W |
| Current consumption | 0.35 A 240 V AC 0.6 A 100 V AC |
| Residual ripple | 250 mV |
| Output protection type | Against short-circuits |
| Connections - terminals | Screw type terminals 2 x 0.14...2 x 2.5 mm², AWG 26...AWG 14) input connection Screw type terminals 4 x 0.14...4 x 2.5 mm², AWG 26...AWG 14) output connection |
| Status LED | 1 LED (Green) output voltage |
| Depth | 2.3 in (59 mm) |
| Height | 3.9 in (100 mm) |
| Width | 2.1 in (54 mm) |
| Product Weight | 0.430 lb(US) (0.195 kg) |
| Output coupling | Parallel Series |
| Marking | CE |
| Mounting support | 35 x 7.5 mm symmetrical DIN rail 35 x 15 mm symmetrical DIN rail panel 2 screws, diameter : 4 mm |
| Operating position | Vertical |
| Supply | SELV IEC 60950-1 SELV IEC 60204-1 SELV IEC 60364-4-41 |
| Dielectric strength | 3000 V with between input and output |
battery - 24 V DC - 75 A - 7 AH - for battery control module

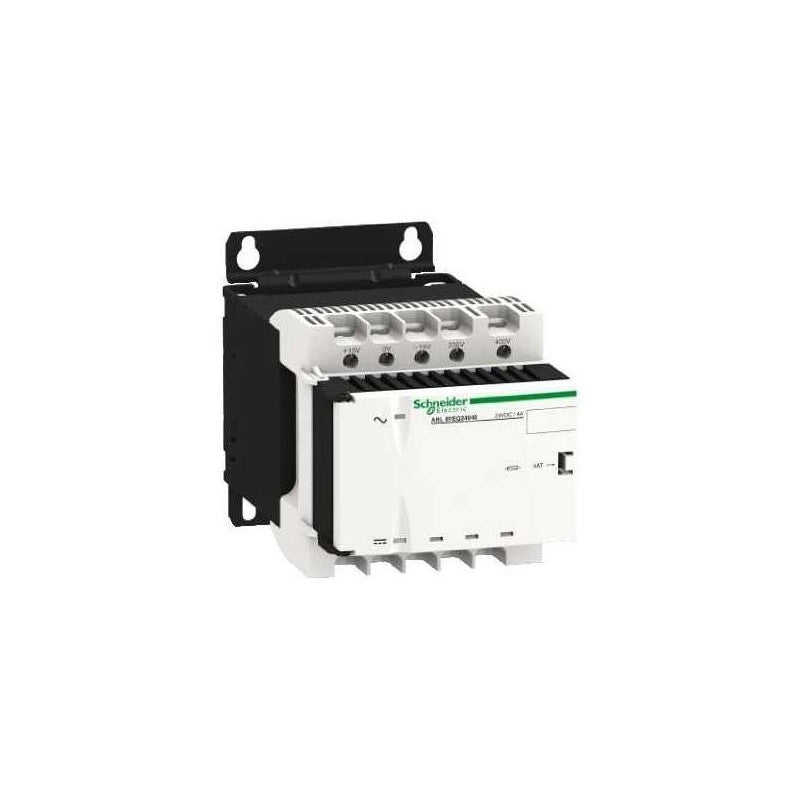

rectified and filtered Power Supply - 1 or 2-Phase - 400 V AC - 24 V - 2 A
Converter module 30 W - 24..28.8 V DC, 5 V DC - 6 A - for regulated SMPS

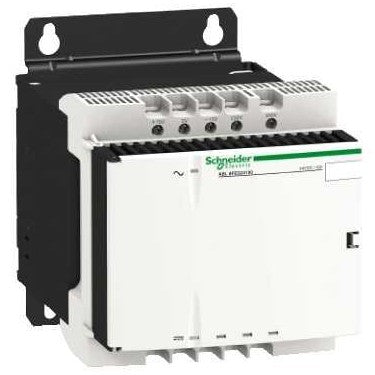

rectified and filtered Power Supply - 1 or 2-Phase - 400 V AC - 24 V - 6 A
Battery- 24 V DC - 32 A - 3.2 AH - for battery control module

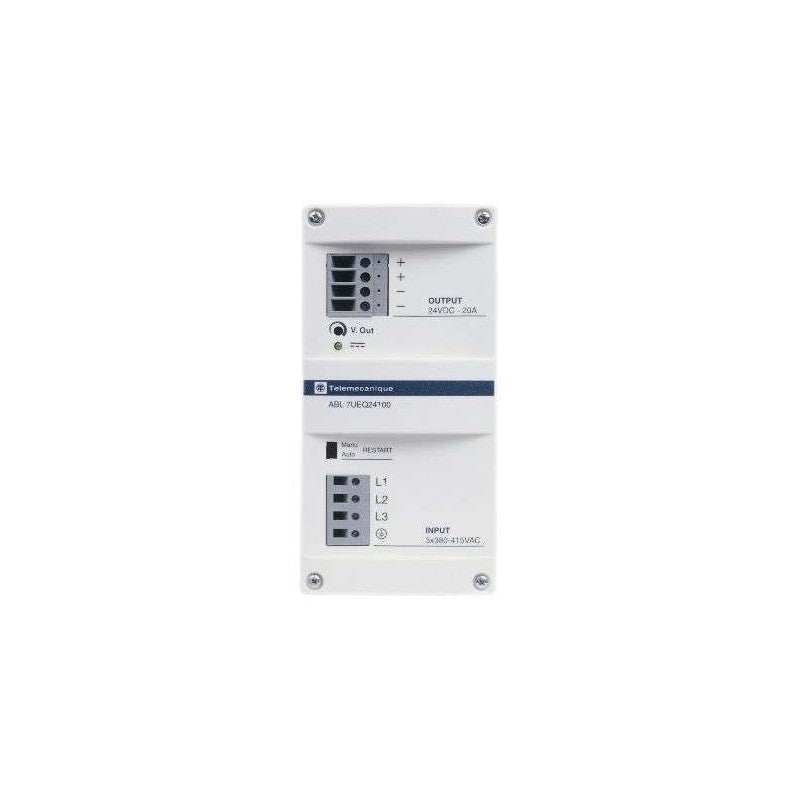

POWER SUPPLY .7AMP, 380-415VAC, 50/60HZ, 24VDC, 10AMP
