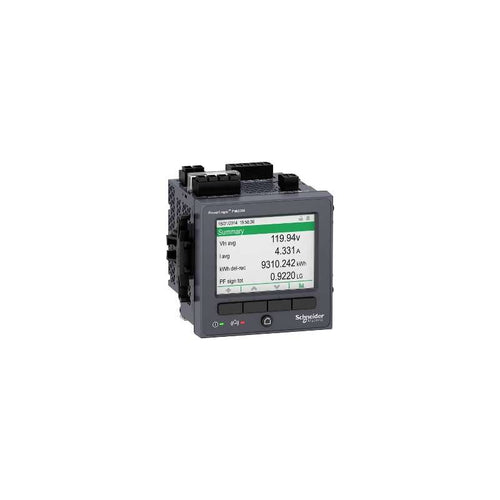

The PowerLogic PM8000 series meters are compact, cost-effective multifunction power meters that will help you ensure reliability and efficiency of your power-critical facility. They reveal and provide understanding of complex power quality conditions enabling action to be taken to mitigate any issue. The PowerLogic PM8000 series meters have the versatility to perform nearly any job you need a meter to do, wherever you need it! The modular, flexible ION technology architecture enables a simple, building block approach for customizing each meter to any application. With patented Disturbance Direction Detection, revenue grade accuracy, multiple communication ports, onboard power quality analysis, web interface and a color graphical display. Certified by third party labs for energy accuracy (IEC 62052-11, IEC 62052-22, IEC 62052-24) and power quality (IEC 62586-2, IEC 61000-4-30 Class S). The PowerLogic PM8000 series provides data quality confidence you can count on. Cybersecurity features include secure protocols (HTTPS, SFTP), security event logging, Syslog protocol. Ability to enable/disable communication ports, and 50 user configurable accounts. With 512 MB of memory to support 50 data logs, 50+ user-definable alarms, waveform captures, 1/2 cycle RMS logging, custom web pages, min/max logs, energy trends, and Time of Use. The ability to timestamp events to +/-1 ms utilizing time synchronization method that include PTP (IEEE1588), NTP, IRIG-B, GPS ASCII (RS485) and network time set function. 3 digital inputs and one digital output, plus the ability to add up to 4 option modules. I/O option modules include 2 relays and 6 digital inputs or 2 analog outputs and 4 analog inputs. Wide control power range of 90-415 VAC / 110-415 VDC. Operating environment of -25 to +70C; Humidity rating of 5% to 95%; Altitude up to 3000 m. Panel mounting (1/4 DIN) with integrated display.
Main
| Characteristic | Value(s) |
|---|---|
| Range | PowerLogic |
| product name | PowerLogic PM8000 |
| Product or Component Type | Power meter |
| Device short name | PM8240 |
| Market segment | Buildings large building cost management: billing: sub feeder Buildings small building network management: main incomer Buildings medium building network management: main incomer Buildings large building network management: main incomer Buildings large building network management: sub feeder Buildings multi-site network management: main incomer Buildings multi-site network management: sub feeder Data center network management: main incomer Data center network management: sub feeder Healthcare network management: main incomer Healthcare network management: sub feeder Industry network management: main incomer Industry network management: sub feeder Utility: sub feeder |
| model type | Standard |
Complementary
| Characteristic | Value(s) |
|---|---|
| Power quality analysis | EN 50160 2010 compliance report IEEE 519 2014 compliance report IEC 61000-4-30 class S power quality measurement up to the 63rd harmonic harmonic distortion waveform capture voltage sag and swell detection programmablity (logic and math functions) IEC 62586 power quality monitoring disturbance direction detection rapid voltage change |
| Device Application | Power monitoring WAGES metering |
| Type of measurement | Current Voltage Frequency Active and reactive power total Apparent power total Power factor total Active and reactive power per phase, rms Apparent power per phase, rms Power factor per phase, rms |
| supply voltage | 90...415 V AC 45...65 Hz +/- 10 % 110...415 V DC +/- 10 % |
| Network Frequency | 50 Hz 60 Hz |
| Line Rated Current | 1 A 5 A 10 A |
| Poles description | 3P + N 3P 1P + N |
| Power Consumption in VA | 16 VA 230 V AC |
| Display Type | Colour TFT LCD |
| Display Resolution | 320 x 240 pixels QVGA |
| Sampling rate | 256 samples/cycle |
| Measurement current | 50â¦10000 mA |
| Analogue input type | Voltage (impedance 5 MOhm) Current (impedance 0.3 mOhm) |
| Measurement voltage | 57â¦400 V AC 42...69 Hz between phase and neutral 100â¦690 V AC 42...69 Hz between phases |
| Frequency measurement range | 42â¦69 Hz |
| Number of inputs | 3 digital 30 V AC 3 digital 60 V DC |
| Measurement accuracy | Current +/- 0.1 % Voltage +/- 0.1 % Active energy +/- 0.2 % |
| Accuracy class | Class 0.2S active energy IEC 62053-22 Class 0.2 active energy ANSI C12.20 Class 0.2 active power IEC 61557-12 Class 0.5S reactive energy IEC 62053-24 Class 0.5 power factor IEC 61557-12 Class 0.2 voltage IEC 61557-12 Class 0.2 current IEC 61557-12 |
| Number of Outputs | 1 pulse |
| Information displayed | Voltage Current Frequency Power Energy consumption Harmonic distortion |
| Communication port protocol | Modbus RTU 115 kbauds - 2-wire ION 115 kbauds - 2-wire DNP3 IEC 61850 Modbus TCP/IP Ethernet Modbus TCP/IP daisy chain 10/100 Mbit/s RSTP 801.1d 2004 |
| Communication port support | ETHERNET Screw terminal block RS485 |
| Communication Network Type | IPv6 (internet protocol) |
| Data recording | Min/max of instantaneous values Waveform logs Sequence of event recording Time stamping Alarm logs Trending/forecasting Sag and swell logs Harmonics logs GPS synchronisation Data logs Event logs 50 data recorders |
| Memory capacity | 512 MB |
| Web services | Customizable home page File upload/download via FTP File upload/download via SFTP Web server Alarm notification by e-mail Viewing of captured waveform (FTP) Viewing of captured waveform (web) HTTPS server |
| Communication Service | SMTP e-mail notification RSTP support NTP time synchronization DHCP PTP time synchronization |
| Cybersecurity | Enable/disable communication ports Password protection Syslog protocol support Robust security logs Port hardening |
| Mounting Mode | Flush-mounted |
| Mounting support | Framework |
| Installation category | III |
| Safety Construction | III400â¦690 V conforming to IEC 61010-1:ed. 3 III400â¦690 V conforming to EN 61010-1:ed. 3 III347â¦600 V conforming to UL 61010-1:ed. 3 III347â¦600 V conforming to CSA C22.2 No 61010-1:ed. 3 |
| Standards | IEC 61557-12 IEC 62052-11 IEC 62053-24 IEC 62053-22 IEEE 1588 IEC 62586-2 IEC 61326-1 |
| Product certifications | CE CULus N998 |
| Width | 3.8 in (96 mm) |
| Depth | 3.05 in (77.5 mm) |
| Height | 3.8 in (96 mm) |
| Product Weight | 20.5 oz (581 g) |

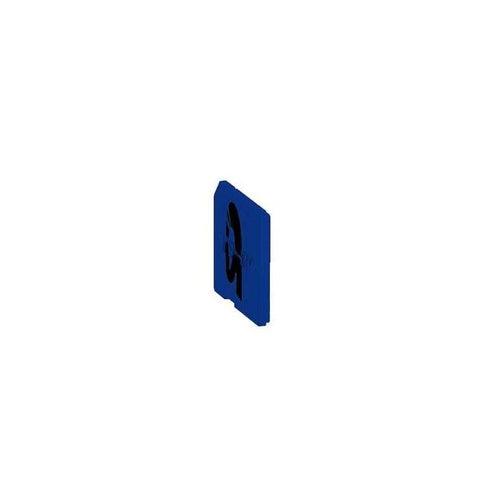

This SD card is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This SD flash memory card is an accessory of M340 processor. It is designed with data storage memory capacity of 8MB. This product is robust, high quality and based on the latest innovative technology. It supports transparent ready class B10 web server. It weighs 0.002kg. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. This memory card is compatible with Modicon M340 BMXP342010, BMXP342000, BMXP341000, BMXP342030, BMXP342020 process module and BMXPRA0100 peripheral remote I/O adaptor. The SD card is to be inserted in the front slot equipped with a protective door. Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices. This card is intended for backing up the two memory areas on the processor module's internal RAM. The data is backed up automatically by duplication, when the Programmable Logic Controller (PLC) is turned off.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon M340 automation platform |
| Accessory / Separate Part Type | Memory card |
| Product Compatibility | BMXP342010 BMXP342000 BMXP341000 BMXP342030 BMXP342020 BMXPRA0100 |
| Memory capacity | 8 MB |
| Web server | Transparent ready class B10 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product Weight | 0.004 lb(US) (0.002 kg) |

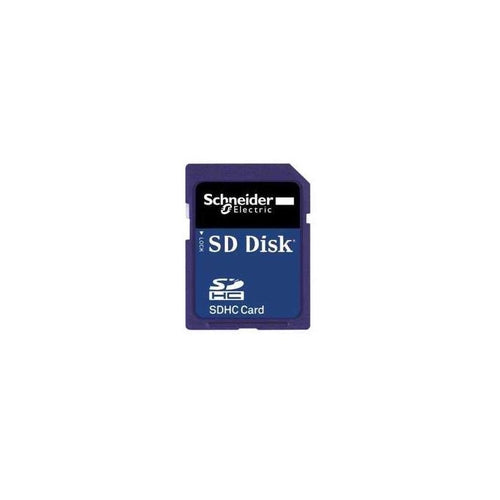

SD flash memory card - 4 Go - for M580 processor

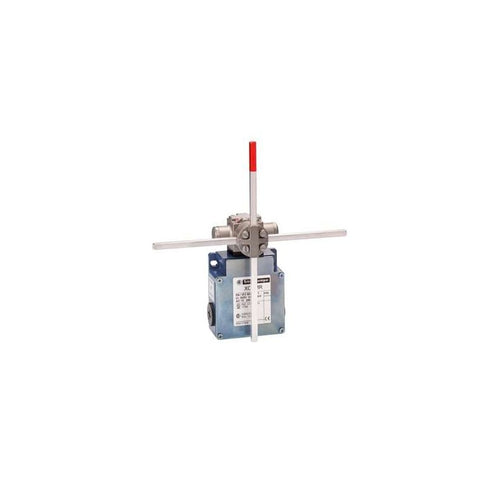

limit switch XCKMR - stay put crossed rods lever 6mm - 2x(2 NC) - slow - Pg13
rack X80 - 10 slots - Redundant PS - Ethernet backplane
backplane expander M340 - for multiracks configuration

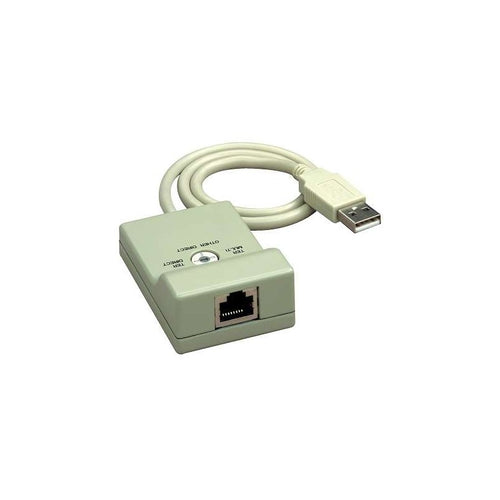

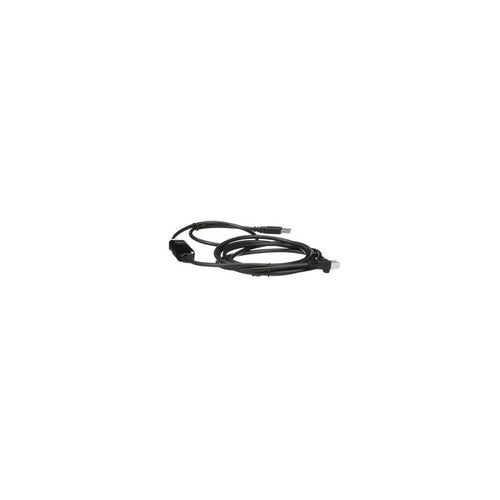

This cordset is part of the Twido range, an offer of base controllers. This connection cordset is suitable for PC terminal. It is furnished with RS485 connector for USB PC side and mini DIN connector for processor side. The length of this cable is 0.4m. It weighs 0.144kg. It is suitable for all potentially dangerous machines requiring protection for both the operator and the machine. It is compatible with Modicon Premium TSXP572./3, TSX Micro, Atrium TSXPCI5720/35, Premium TSXP570./1 and Tap junction TSXPACC01. The modular and configurable safety controller is able to monitor multiple safety functions on and around a machine protecting operators. Safety controllers are dedicated to safety applications requiring conformity up to performance level PL e/category 4 EN ISO 13849-1 and SIL3 EN/IEC 61508.
Main
| Characteristic | Value(s) |
|---|---|
| Accessory / separate part category | Connection accessories |
| Accessory / Separate Part Type | Connecting cable |
| Accessory / separate part designation | Connection cordset for PC terminal |
| Accessory / separate part destination | Premium TSXP572./3. TSX Micro Atrium TSXPCI5720/35 Premium TSXP570./1. Tap junction TSXPACC01 |
| Cable length | 1.3 ft (0.4 m) |
Complementary
| Characteristic | Value(s) |
|---|---|
| Range Compatibility | Modicon Premium automation platform Modicon Atrium automation platform |
| Electrical connection | 1 connector USB PC side RS485 1 connector mini DIN processor side |
| Product Weight | 0.317 lb(US) (0.144 kg) |

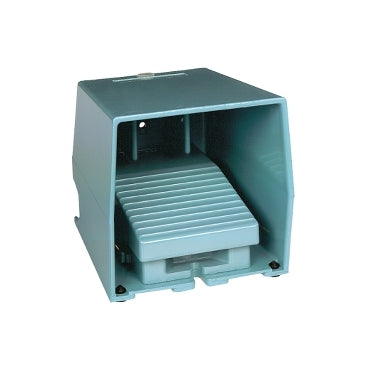

Single foot switch, metal, blue, with cover, 1 NO + 1 NC
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This Ethernet backplane rack is an accessory of programmable automation controllers. This 12-slot dual Ethernet and X-bus backplane provides 12 slots with 8 Ethernet and X-bus connectors for mixed modules and 4 X-bus connectors for X-bus modules. This product is robust, high quality and based on the latest innovative technology. It is an Ethernet backplane rack with a current of 164mA at 24V DC and 86mA at 3.3V DC. It is furnished with 1 connector (XBE) expansion module for electrical connection. It offers 1500000 hours of MTBF. It is an IP20 rated product. It weighs 1.377kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This Ethernet backplane rack is compatible with specific application module, I/O module, BMXCPS power supply, BMX processor and BME processor. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon X80 |
| Accessory / Separate Part Type | Rack |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of slots | 8 bus X + Ethernet 4 bus X |
| Product Compatibility | I/O module Specific application module BMXCPS power supply BMX processor BME processor |
| Power consumption in W | 283 mW 3.3 V DC 3.9 W 24 V DC |
| Electrical connection | 1 connector (XBE) expansion module |
| Fixing mode | By 4 M6 screws plate By 4 screws 0.17â¦0.25 in (4.32â¦6.35 mm) panel |
| Current consumption | 164 mA 24 V DC 86 mA 3.3 V DC |
| MTBF reliability | 1166108 H |
| Product Weight | 3.036 lb(US) (1.377 kg) |

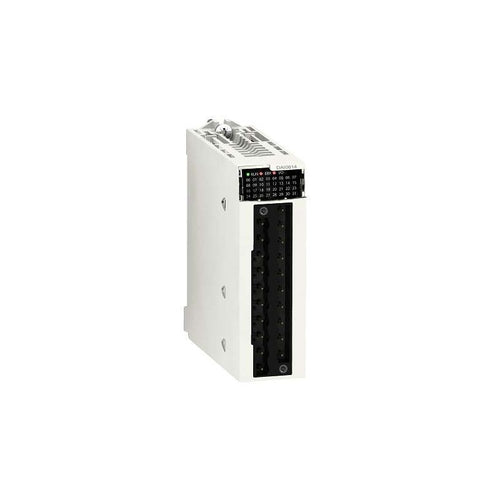

Discrete input module X80 - 8 inputs - 100...120 V AC isolated
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This Ethernet backplane rack is an accessory of programmable automation controllers. This 4-slot dual Ethernet and X-bus backplane provides 4 slots with 4 Ethernet and X-bus connectors for mixed modules. This product is robust, high quality and based on the latest innovative technology. It is an Ethernet backplane rack with a current of 118mA at 24V DC and 49mA at 3.3V DC. It is furnished with 1 connector (XBE) expansion module for electrical connection. It offers 2000000 hours of MTBF. It is an IP20 rated product. It weighs 0.705kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This Ethernet backplane rack is compatible with specific application module, I/O module, BMXCPS power supply, BMX processor and BME processor. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon X80 |
| Accessory / Separate Part Type | Rack |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of slots | 4 bus X + Ethernet |
| Product Compatibility | I/O module BMX processor Specific application module BMXCPS power supply BME processor |
| Power consumption in W | 162 mW 3.3 V DC 2.8 W 24 V DC |
| Electrical connection | 1 connector (XBE) expansion module |
| Fixing mode | By 4 screws 0.17â¦0.25 in (4.32â¦6.35 mm) panel By 4 M6 screws plate By clips 35 mm symmetrical DIN rail |
| Current consumption | 49 mA 3.3 V DC 118 mA 24 V DC |
| MTBF reliability | 1588025 H |
| Product Weight | 1.554 lb(US) (0.705 kg) |
connection cable USB/RJ45 - for connection between PC and drive
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This Ethernet backplane rack is an accessory of programmable automation controllers. This 8-slot dual Ethernet and X-bus backplane provides 8 slots with 8 Ethernet and X-bus connectors for mixed modules. This product is robust, high quality and based on the latest innovative technology. It is an Ethernet backplane rack with a current of 164mA at 24V DC and 64mA at 3.3V DC. It is furnished with 1 connector (XBE) expansion module for electrical connection. It offers 1700000 hours of MTBF. It is an IP20 rated product. It weighs 1.06kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This Ethernet backplane rack is compatible with specific application module, I/O module, BMXCPS power supply, BMX processor and BME processor. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon X80 |
| Accessory / Separate Part Type | Rack |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of slots | 8 bus X + Ethernet |
| Product Compatibility | I/O module BMX processor Specific application module BMXCPS power supply BME processor |
| Power consumption in W | 211 mW 3.3 V DC 3.9 W 24 V DC |
| Electrical connection | 1 connector (XBE) expansion module |
| Fixing mode | By 4 screws 0.17â¦0.25 in (4.32â¦6.35 mm) panel By 4 M6 screws plate By clips 35 mm symmetrical DIN rail |
| Current consumption | 64 mA 3.3 V DC 164 mA 24 V DC |
| MTBF reliability | 1297516 H |
| Product Weight | 2.34 lb(US) (1.06 kg) |

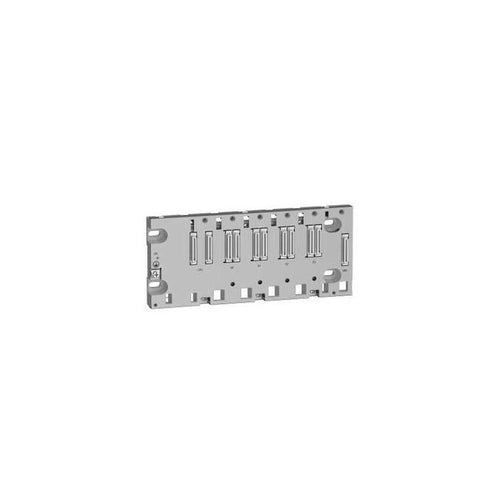

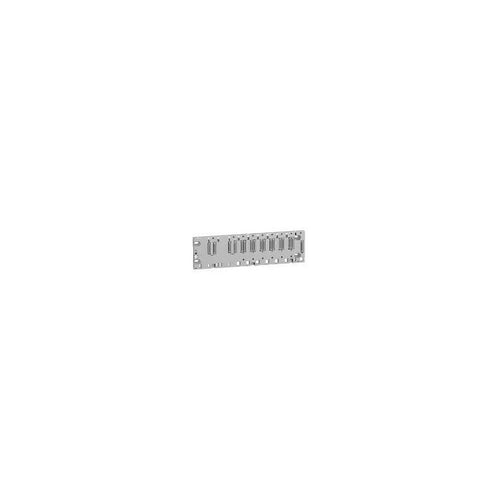

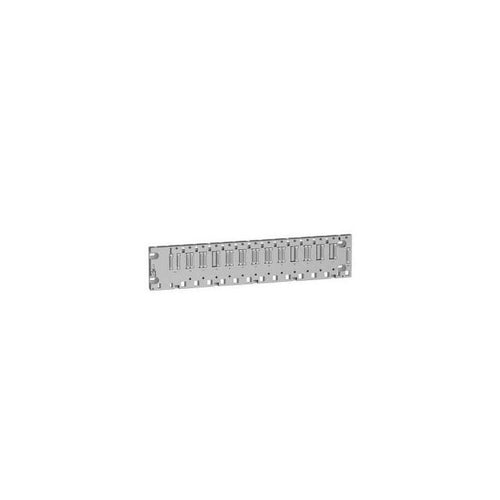

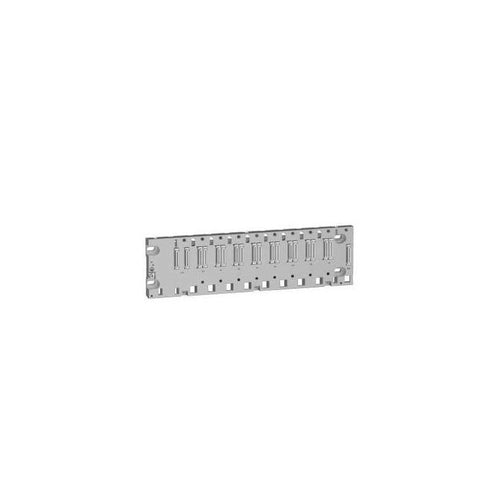

rack X80 - 6 slots - Redundant PS - Ethernet backplane
This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This Ethernet backplane rack is an accessory of M340 processor. This X-bus backplane provides 12 bus X slots. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is an Ethernet backplane rack with a power of 0.74W. It is furnished with 1 connector (XBE) expansion module for electrical connection. It is an IP20 rated product. It weighs 1.27kg. It is suitable for severe environments, medium to large process applications. This Ethernet backplane rack is compatible with specific application module, I/O module, BMXCPS power supply and BMXP34 processor. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon X80 |
| Product or Component Type | Ruggedized backplane |
| Product Specific Application | For severe environments |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of slots | 12 bus X |
| Product Compatibility | BMXP34 processor BMXCPS power supply I/O module Specific application module |
| Power Consumption in W | 0.83 W |
| Electrical connection | 1 connector (XBE) expansion module |
| Fixing mode | By 4 M4/M5/M6 screws panel By 4 M4/M5/M6 screws mounting plate |
| Height | 4.08 in (103.7 mm) |
| Width | 19.8 in (503.2 mm) |
| Depth | 0.7 in (19 mm) |
| Product Weight | 2.80 lb(US) (1.27 kg) |
This Multi9 C60BP is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 50A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 54mm x (H) 103mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Main
| Characteristic | Value(s) |
|---|---|
| Range | Multi9 |
| product name | Multi9 C60 |
| Product or Component Type | Miniature circuit-breaker |
| Device short name | C60BP |
| Device Application | Distribution |
| Poles description | 3P |
| Number of protected poles | 3 |
| Line Rated Current | 50 A 77 °F (25 °C) EN/IEC 60947-2 |
| Network type | AC |
| Trip unit technology | Thermal-magnetic |
| Curve code | D |
| Breaking capacity | 6 kA Icu 440 V AC EN/IEC 60947-2 10 kA Icu 415 V AC EN/IEC 60947-2 20 kA Icu 240 V AC EN/IEC 60947-2 6 kA Icu 440 V AC GB 14048.2 10 kA Icu 415 V AC GB 14048.2 20 kA Icu 240 V AC GB 14048.2 10 kA AIR 240 V AC UL 489 10 kA AIR 240 V AC CSA C22.2 No 5 |
| Standards | EN/IEC 60947-2 GB 14048.2 UL 489 CSA C22.2 No 5 |
| Product certifications | IEC CCC CSA UL |
Complementary
| Characteristic | Value(s) |
|---|---|
| [Ue] rated operational voltage | 240 V AC 50/60 Hz 415 V AC 50/60 Hz 440 V AC 50/60 Hz |
| Magnetic tripping limit | 12 x In +/- 20 % AC |
| [Ics] rated service breaking capacity | 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 15 kA 75 % EN/IEC 60947-2 - 240 V AC 4.5 kA 75 % GB 14048.2 - 440 V AC 7.5 kA 75 % GB 14048.2 - 415 V AC 15 kA 75 % GB 14048.2 - 240 V AC |
| [Ui] rated insulation voltage | 500 V AC EN/IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kVEN/IEC 60947-2 |
| Suitability for isolation | Yes EN/IEC 60947-2 |
| Contact position indicator | Yes |
| Control Type | Toggle |
| Local signalling | ON/OFF indication |
| Mounting Mode | Clip-on |
| Mounting Support | DIN rail |
| 9 mm pitches | 6 |
| Height | 4.06 in (103 mm) |
| Width | 2.1 in (54 mm) |
| Depth | 2.8 in (72 mm) |
| color | Gray |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles |
| Provision for padlocking | Padlockable |
| Connections - terminals | Tunnel type terminal top or bottom) 0.002â¦0.05 in² (1â¦35 mm²) AWG 18...AWG 2) - rigid Tunnel type terminal top or bottom) 0.002â¦0.04 in² (1â¦25 mm²) AWG 18...AWG 3) - flexible with ferrule Tunnel type terminal top or bottom) 0.002â¦0.04 in² (1â¦25 mm²) AWG 18...AWG 3) - flexible |
| Wire stripping length | 0.6 in (14 mm) for top or bottom connection |
| Tightening torque | 31.0 lbf.in (3.5 N.m) top or bottom |
| Earth-leakage protection | Without |

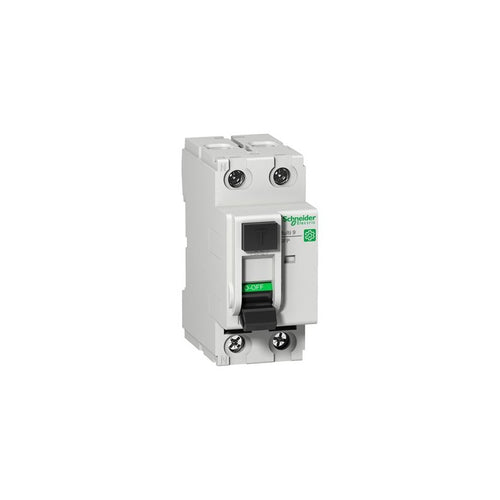

Multi 9 - GFP - RCCB - 2P - 40A - class A SI - 480Y/277 V - 26 mA instantaneous
It is a spare part for the Micrologic cord for Compact NSX and PowerPact multistandard devices. This allows to connect the USB maintenance interface to the Micrologic trip unit.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | ComPact NSX100...250 ComPact NSX400...630 ComPact NSXm |
| Range | ComPacT |
| Product or Component Type | Testing cable |
| Accessory / separate part category | Connection accessory |
| Device short name | spare MicroLogic cord |
| Range compatibility | ComPacT ComPacT NSX PowerPact PowerPact Multistandard TeSys TeSys GV4 |
| Product Compatibility | MicroLogic |
Complementary
| Characteristic | Value(s) |
|---|---|
| Offer type | Spare part |
| Compatibility code | Spare MicroLogic cord |
Main
| Characteristic | Value(s) |
|---|---|
| Accessory / separate part category | Connection accessories |
| Accessory / Separate Part Type | Connecting cable |
| Accessory / separate part designation | Connection cordset for PC terminal |
| Accessory / separate part destination | Premium TSX574./5. Quantum 140CPU6.1 |
| Cable length | 6.6 ft (2 m) |
Complementary
| Characteristic | Value(s) |
|---|---|
| Range Compatibility | Modicon Quantum automation platform Modicon Premium automation platform |
| Electrical connection | 1 connector RJ45 processor side 1 connector USB PC side 1 connector mini DIN processor side |
| Product Weight | 0.33 lb(US) (0.15 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Premium Automation platform |
| Accessory / separate part designation | Configurable SRAM application/file memory extension |
| Accessory / Separate Part Type | Memory extension |
| Product or Component Type | SRAM memory |
| Accessory / separate part category | Separate parts |
| Accessory / separate part destination | Processor |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product Compatibility | TSX57C. TSX570. to TSX576. TSXPCI572./3. |
| Memory type | SRAM |
| Memory capacity | 192...7168 kB application 6976...0 kB data storage |
| Slot | Slot 0 |
| Product Weight | 0.168 lb(US) (0.076 kg) |

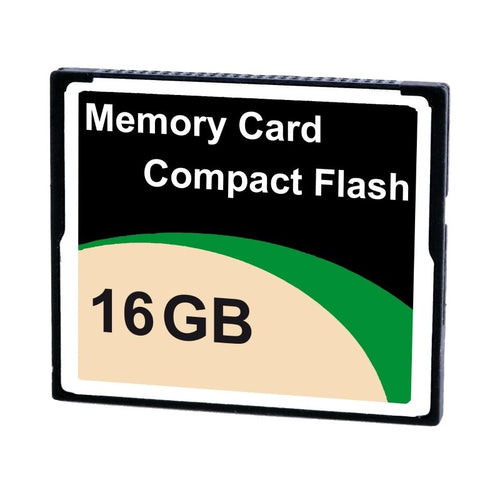

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Harmony iPC |
| Product or Component Type | Memory cartridge |
| Accessory / separate part category | Spare part |
| Accessory / separate part destination | 12" Harmony Panel PC |
Complementary
| Characteristic | Value(s) |
|---|---|
| Data storage equipment | 16 GB CFast card SLC |
RACK 10 SLOT W/PAB1 I/O

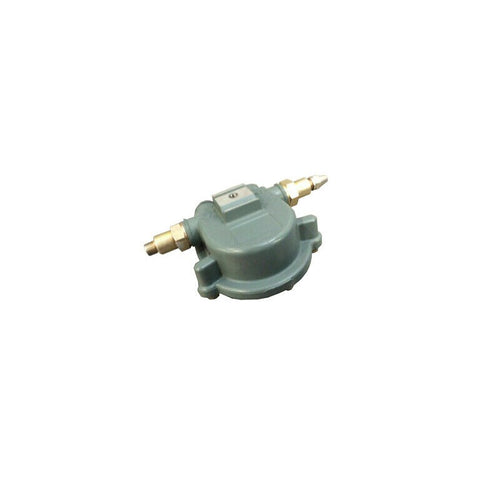

Junction Box Mapway 4 Drop Taps

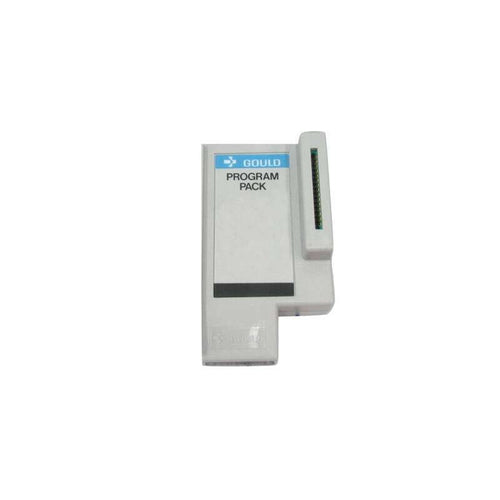

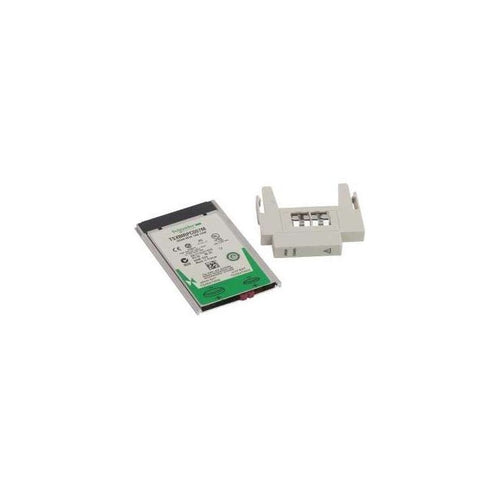

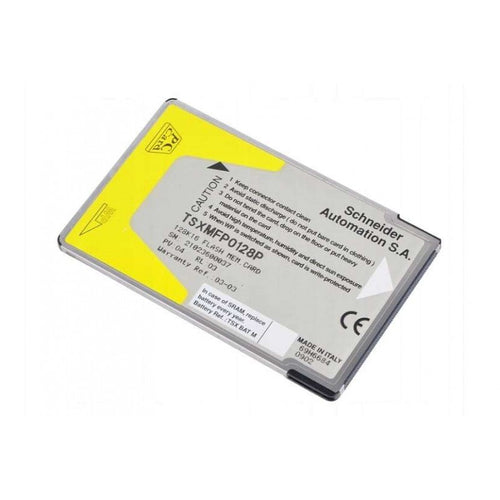

FLASH MEMORY CARD 128K
