1 year warranty
| Product | |
| Article Number (Market Facing Number) | 6AV21232GB030AX0 | 6AV21232GB030AX0 |
| Product Description | SIMATIC HMI, KTP700 Basic, Basic Panel, Key/touch operation, 7" TFT display, 65536 colors, PROFINET interface, configurable from WinCC Basic V13/ STEP 7 Basic V13, contains open-source software, which is provided free of charge see enclosed CD |
| Product family | Standard devices 2nd Generation |
| Product Lifecycle (PLM) | PM300:Active Product |
| Additional Product Information | |
| EAN | 4034106029210 |
| UPC | 887621773120 |
| Commodity Code | 85371091 |
| LKZ_FDB/ CatalogID | ST80.1J |
| Product Group | 2263 |
| Group Code | R141 |
| Country of origin | China |
| SCIP number | Not available |
| Delivery information | |
| Net Weight (lb) | 2.154 lb |
| Package size unit of measure | Inch |
| Packaging Quantity | 1 |
| Product | |
| Article Number (Market Facing Number) | 6AV21240MC010AX0 | 6AV21240MC010AX0 |
| Product Description | SIMATIC HMI TP1200 Comfort, Comfort Panel, touch operation, 12" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0, configurable from WinCC Comfort V11 |
| Product family | Comfort Panels standard devices |
| Product Lifecycle (PLM) | PM300:Active Product |
| Additional Product Information | |
| EAN | 4025515079002 |
| UPC | 040892686050 |
| Commodity Code | 85371098 |
| LKZ_FDB/ CatalogID | ST80.1N |
| Product Group | 3404 |
| Group Code | R141 |
| Country of origin | Germany |
| SCIP number | Not available |
| Delivery information | |
| Net Weight (lb) | 7.628 lb |
| Package size unit of measure | Inch |
| Packaging Quantity | 1 |
| Product | |
| Article Number (Market Facing Number) | 6AV21240GC010AX0 | 6AV21240GC010AX0 |
| Product Description | SIMATIC HMI TP700 Comfort, Comfort Panel, touch operation, 7" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0, configurable from WinCC Comfort V11 |
| Product family | Comfort Panels standard devices |
| Product Lifecycle (PLM) | PM300:Active Product |
| Additional Product Information | |
| EAN | 4025515079026 |
| UPC | 040892783421 |
| Commodity Code | 85371098 |
| LKZ_FDB/ CatalogID | ST80.1N |
| Product Group | 3403 |
| Group Code | R141 |
| Country of origin | Germany |
| SCIP number | 0b4dac5f-f856-4a04-a078-6d75cd7fbb9e |
| Delivery information | |
| Net Weight (lb) | 3.523 lb |
| Package size unit of measure | Inch |
| Packaging Quantity | 1 |
| Product | |
| Article Number (Market Facing Number) | 6AV21240JC010AX0 | 6AV21240JC010AX0 |
| Product Description | SIMATIC HMI TP900 Comfort, Comfort Panel, touch operation, 9" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0, configurable from WinCC Comfort V11 |
| Product family | Comfort Panels standard devices |
| Product Lifecycle (PLM) | PM300:Active Product |
| Additional Product Information | |
| EAN | 4025515079019 |
| UPC | 040892686043 |
| Commodity Code | 85371091 |
| LKZ_FDB/ CatalogID | ST80.1N |
| Product Group | 3404 |
| Group Code | R141 |
| Country of origin | Germany |
| SCIP number | Not available |
| Delivery information | |
| Net Weight (lb) | 5.598 lb |
| Package size unit of measure | Inch |
| Packaging Quantity | 1 |
| Product | |
| Article Number (Market Facing Number) | 6AV21232DB030AX0 | 6AV21232DB030AX0 |
| Product Description | SIMATIC HMI, KTP400 Basic, Basic Panel, Key/touch operation, 4" TFT display, 65536 colors, PROFINET interface, configurable from WinCC Basic V13/ STEP 7 Basic V13, contains open-source software, which is provided free of charge see enclosed CD |
| Product family | Standard devices 2nd Generation |
| Product Lifecycle (PLM) | PM300:Active Product |
| Additional Product Information | |
| EAN | 4034106029203 |
| UPC | 887621830281 |
| Commodity Code | 85371091 |
| LKZ_FDB/ CatalogID | ST80.1J |
| Product Group | 2263 |
| Group Code | R141 |
| Country of origin | China |
| SCIP number | Not available |
| Delivery information | |
| Net Weight (lb) | 1.010 lb |
| Package size unit of measure | Inch |
| Packaging Quantity | 1 |
12.1 Touch Panel
5.7 Touch Panel
NS Series, NS10-V2 Programmable Terminal, 10.4 inch high definition TFT color LCD, 256 display colors, 640 x 480 dots, built-in Ethernet, Black case, 24 VDC, 20.4 – 27.6 VDC voltage range, 25 W max
Touch screen HMI, 7 inch WVGA (800 x 480 pixel), TFT color, Ethernet + USB Host
| Product | |
| Article Number (Market Facing Number) | 6AV21240GC010AX0 | 6AV21240GC010AX0 |
| Product Description | SIMATIC HMI TP700 Comfort, Comfort Panel, touch operation, 7" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0, configurable from WinCC Comfort V11 |
| Product family | Comfort Panels standard devices |
| Product Lifecycle (PLM) | PM300:Active Product |
| Additional Product Information | |
| EAN | 4025515079026 |
| UPC | 040892783421 |
| Commodity Code | 85371098 |
| LKZ_FDB/ CatalogID | ST80.1N |
| Product Group | 3403 |
| Group Code | R141 |
| Country of origin | Germany |
| SCIP number | 0b4dac5f-f856-4a04-a078-6d75cd7fbb9e |
| Delivery information | |
| Net Weight (lb) | 3.523 lb |
| Package size unit of measure | Inch |
| Packaging Quantity | 1 |
| Product | |

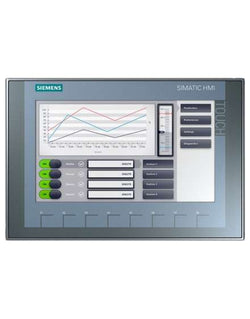

| Article Number (Market Facing Number) | 6AV21232JB030AX0 | 6AV21232JB030AX0 |
| Product Description | SIMATIC HMI, KTP900 Basic, Basic Panel, Key/touch operation, 9" TFT display, 65536 colors, PROFINET interface, configurable from WinCC Basic V13/ STEP 7 Basic V13, contains open-source software, which is provided free of charge see enclosed CD |
| Product family | Standard devices 2nd Generation |
| Product Lifecycle (PLM) | PM300:Active Product |
| Additional Product Information | |
| EAN | 4034106029234 |
| UPC | 887621830274 |
| Commodity Code | 85371091 |
| LKZ_FDB/ CatalogID | ST80.1J |
| Product Group | 2262 |
| Group Code | R141 |
| Country of origin | China |
| SCIP number | Not available |
| Delivery information | |
| Net Weight (lb) | 3.049 lb |
| Package size unit of measure | Inch |
| Packaging Quantity | 1 |
Touch screen HMI, 8.4 inch, TFT, 256 colors (32,768 colors for .BMP/.JPG), 640x480 pixels, 2 x RS-232C ports, Ethernet (10/100 Base-T), 60MByte memory, 24 VDC, black case
Touch screen HMI, 8.4 inch, TFT, 256 colors (32,768 colors for .BMP/.JPG), 640x480 pixels, 2 x RS-232C ports, 60MByte memory, 24 VDC, black case
| Product | |
| Article Number (Market Facing Number) | 6AV21240GC130AX0 | 6AV21240GC130AX0 |
| Product Description | SIMATIC HMI TP700 Comfort Outdoor, Comfort Panel, touch operation, 7" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0 (Microsoft support including security updates discontinued) configurable from WinCC Comfort V13 SP1, HSP |
| Product family | Comfort Panels Outdoor |
| Product Lifecycle (PLM) | PM300:Active Product |
| Additional Product Information | |
| EAN | 4047623405986 |
| UPC | 804766232954 |
| Commodity Code | 85371091 |
| LKZ_FDB/ CatalogID | ST80.1N |
| Product Group | 3403 |
| Group Code | R141 |
| Country of origin | Germany |
| SCIP number | Not available |
| Delivery information | |
| Net Weight (lb) | 4.010 lb |
| Package size unit of measure | Inch |
| Packaging Quantity | 1 |
SIMATIC HMI TP1500 Comfort, Comfort Panel, Touch operation, 15" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 24 MB configuration memory, WEC 2013, configurable from WinCC Comfort V14 SP1 with HSP
| Product | |
| Article Number (Market Facing Number) | 6AV66470AB113AX0 | 6AV66470AB113AX0 |
| Product Description | *** spare part *** SIMATIC HMI KTP600 Basic mono PN, Basic Panel, key/touch operation, 6" STN display, 4 gray levels, PROFINET interface, configurable as of WinCC flexible 2008 SP2 Compact/ WinCC Basic V10.5/ STEP 7 Basic V10.5, contains open-source software, which is provided free of charge see enclosed CD |
| Product family | Not available |
| Product Lifecycle (PLM) | PM410:Product cancellation |
| Additional Product Information | |
| EAN | 6940408100572 |
| UPC | 040892549294 |
| Commodity Code | 85371091 |
| LKZ_FDB/ CatalogID | ST80E |
| Product Group | 4548 |
| Group Code | R141 |
| Country of origin | China |
| SCIP number | Not available |
| Delivery information | |
| Net Weight (lb) | 2.901 lb |
| Package size unit of measure | Inch |
| Packaging Quantity | 1 |
| Product | |
| Article Number (Market Facing Number) | 6AV66420BA011AX1 | 6AV66420BA011AX1 |
| Product Description | *** spare part *** SIMATIC TP 177B 6" PN/DP STN 256 color display MPI/PROFIBUS DP protocol RS485/RS422/USB interface Ethernet 10/100 interface printer interface slot for MMC configurable with WinCC flexible 2005 |
| Product family | Not available |
| Product Lifecycle (PLM) | PM410:Product cancellation |
| Additional Product Information | |
| EAN | 4025515076506 |
| UPC | 662643396836 |
| Commodity Code | 85371091 |
| LKZ_FDB/ CatalogID | ST80E |
| Product Group | 4356 |
| Group Code | R141 |
| Country of origin | Germany |
| SCIP number | Not available |
| Delivery information | |
| Net Weight (lb) | 2.286 lb |
| Package size unit of measure | Inch |
| Packaging Quantity | 1 |
Touch screen HMI, 12.1 inch wide screen, TFT LCD, 24bit color, 1280x800 resolution, frame color : Black
| Product | |
| Article Number (Market Facing Number) | 6AV21252GB230AX0 | 6AV21252GB230AX0 |
| Product Description | SIMATIC HMI KTP700F Mobile, 7.0" TFT display, 800x 480 pixel, 16m colors, key and touch operation, 8 function keys, 1x PROFINET/Industrial Ethernet interface, 1x multimedia card, 1x USB, Key-operated switch, acknowledgement button, 1 emergency stop/stop button configurable from WinCC Comfort V13 SP1 |
| Product family | Mobile Panels 2nd Generation |
| Product Lifecycle (PLM) | PM300:Active Product |
| Additional Product Information | |
| EAN | 4047623404729 |
| UPC | 804766158070 |
| Commodity Code | 85371091 |
| LKZ_FDB/ CatalogID | ST80.1F |
| Product Group | 4A66 |
| Group Code | R141 |
| Country of origin | Germany |
| SCIP number | Not available |
| Delivery information | |
| Net Weight (lb) | 3.049 lb |
| Package size unit of measure | Inch |
| Packaging Quantity | 1 |
| Product | |
| Article Number (Market Facing Number) | 6AV66430CD011AX1 | 6AV66430CD011AX1 |
| Product Description | The new part, as of 01.01.2015, is blocked for delivery. Spare part can continue to be purchased as required, but price may deviate from new part. Further information under SIMATIC current entry ID: 109486162. For questions, the familiar contact persons are available to you. SIMATIC MP 277 10" Touch Multi Panel with retentive memory 10.4" TFT display 6 MB configuration memory configurable with WinCC flexible 2005 Standard SP1 |
| Product family | Ordering Data Overview |
| Product Lifecycle (PLM) | PM400:Announcement of product phase-out |
| Additional Product Information | |
| EAN | 4025515075349 |
| UPC | 662643396904 |
| Commodity Code | 85371091 |
| LKZ_FDB/ CatalogID | ST9.80 |
| Product Group | 2347 |
| Group Code | R141 |
| Country of origin | Germany |
| SCIP number | Not available |
| Delivery information | |
| Net Weight (lb) | 7.147 lb |
| Package size unit of measure | Inch |
| Packaging Quantity | 1 |
4.3 Touch Panel
OPERATOR INTERFACE, 5.7 INCH TFT, 22 MM, 1 SERIAL, ETHERNET, 1 USB, AIO: 4 IN 2 OUT, DIO: 12 IN 6 OUT, SOURCE, 24 VDC
5.7 Touch Panel
Touch screen HMI, 10.4 inch, TFT, 256 colors (32,768 colors for .BMP/.JPG), 640x480 pixels, 2 x RS-232C ports, 60MByte memory, 24 VDC, black case
