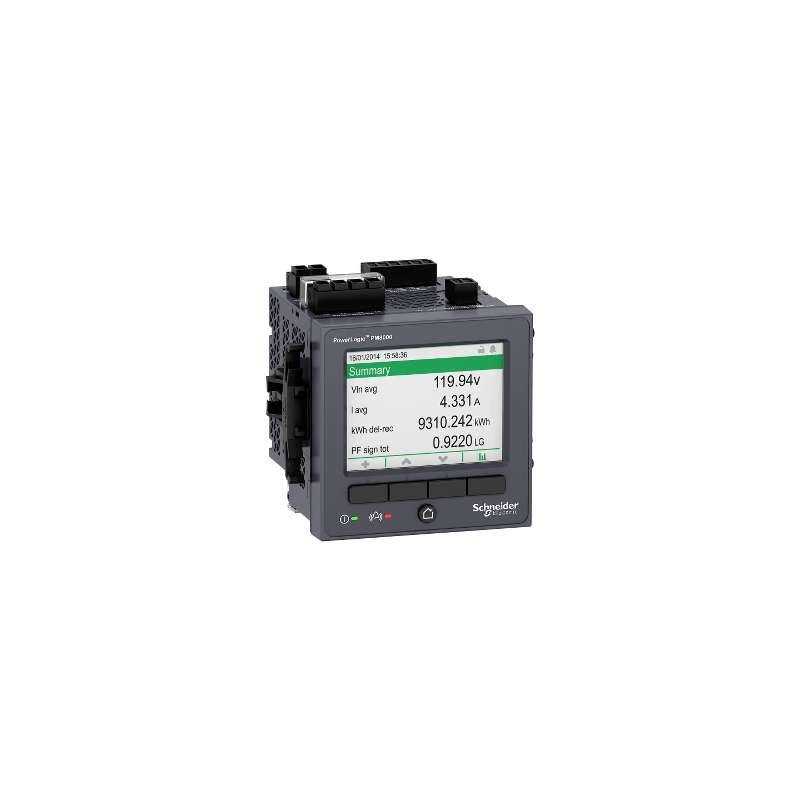

The METSEPM8240 is a panel-mount power quality meter from the Schneider Electric PowerLogic PM8000 series, designed for intermediate power metering and monitoring applications in commercial buildings and industrial facilities. This compact 1/4 DIN meter features an integrated color TFT LCD display and provides revenue-grade accuracy for monitoring voltage, current, frequency, power, energy consumption, and harmonic distortion up to the 63rd harmonic. It offers advanced power quality analysis capabilities conforming to IEC 61000-4-30 Class S, with waveform capture, voltage sag and swell detection, and compliance reporting for EN 50160 and IEEE 519. The meter includes 512 MB of onboard memory supporting 50 data logs, customizable alarms, min/max logging, and Time of Use tracking. It provides multiple communication options including Modbus RTU, Modbus TCP/IP, DNP3, and IEC 61850, along with cybersecurity features and a built-in web server for remote access and configuration.
Item Details
- Brand Name: Schneider Electric
- Manufacturer: Schneider Electric
- Item Type Name: Power Quality Meter
- Product Family / Series: PowerLogic PM8000
- Device Short Name: PM8240
- Secondary Brand: Merlin Gerin
Product Specifications
- supply_voltage_ac: 90 to 415 V AC
- supply_voltage_dc: 110 to 415 V DC
- current_rating: 1/5/10 A
- network_frequency: 42 to 69 Hz
- power_consumption: 18 to 36 VA
- memory_capacity: 512 MB
- sampling_rate_low: 10752 Hz (256 samples/cycle at 42 Hz)
- sampling_rate_high: 17664 Hz (256 samples/cycle at 69 Hz)
- voltage_accuracy: ±0.1%
- current_accuracy: ±0.1%
- active_energy_accuracy: ±0.2%
- harmonic_analysis: Up to 63rd harmonic
- display_type: Color TFT LCD, 320 x 240 pixels QVGA
- digital_inputs: 3 (30 V AC, 60 V DC)
- digital_outputs: 1 pulse output
- number_of_phases: Three phase (1P+N, 3P, 3P+N)
- communication_protocols: Modbus RTU, Modbus TCP/IP, DNP3, IEC 61850, ION daisy chain
- communication_speed: 115 kbauds
- degree_of_protection: IP30 (body), IP54 (front)
- mounting_type: Panel mount (1/4 DIN)
- resistance: 0.3 mOhm
Additional Details
- Certifications / Approvals: IEC 62053-22 Class 0.2S, ANSI C12.20 Class 0.2, IEC 62053-24 Class 0.5S, IEC 61557-12, IEC 61000-4-30 Class S, IEC 62586-2, EN 50160, EN 50470-1, EN 50470-3, UL 61010-1, IEC 61010-1 CAT III 400-690V, CSA C22.2 No 61010-1, CE, RoHS Compliant
- Applications: WAGES metering, power monitoring, power quality analysis
- Expandability: Up to 4 I/O option modules (2 relays + 6 digital inputs or 2 analog outputs + 4 analog inputs)
- Data Logging: 50 data logs, 50+ user-definable alarms
- Time Synchronization: PTP (IEEE 1588), NTP, IRIG-B, GPS ASCII (RS485)
- Cybersecurity Features: HTTPS, SFTP, security event logging, Syslog protocol, 50 user accounts
Measurements
- Dimensions: 96 mm W x 96 mm H x 77.5 mm D
- Dimensions Imperial: 3.78 in W x 3.78 in H x 3.05 in D
