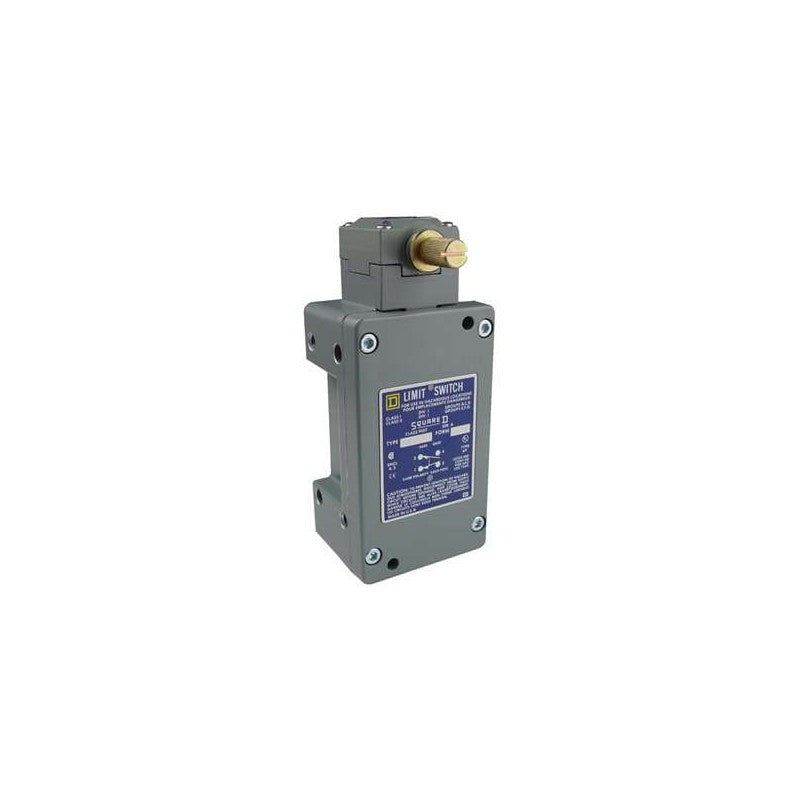

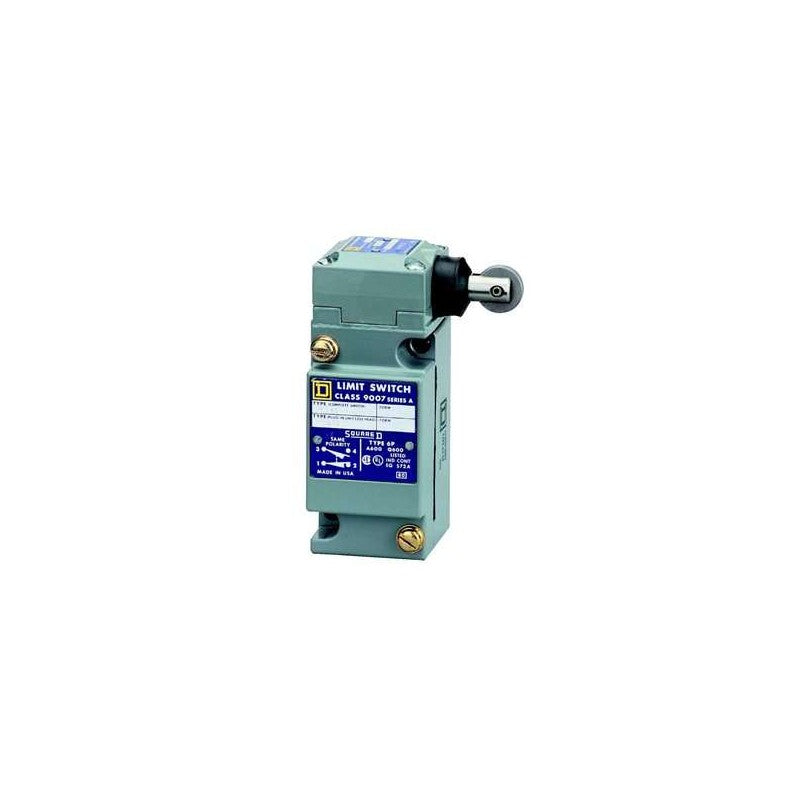

LIMIT SWITCH 600V 10AMP C +OPTIONS

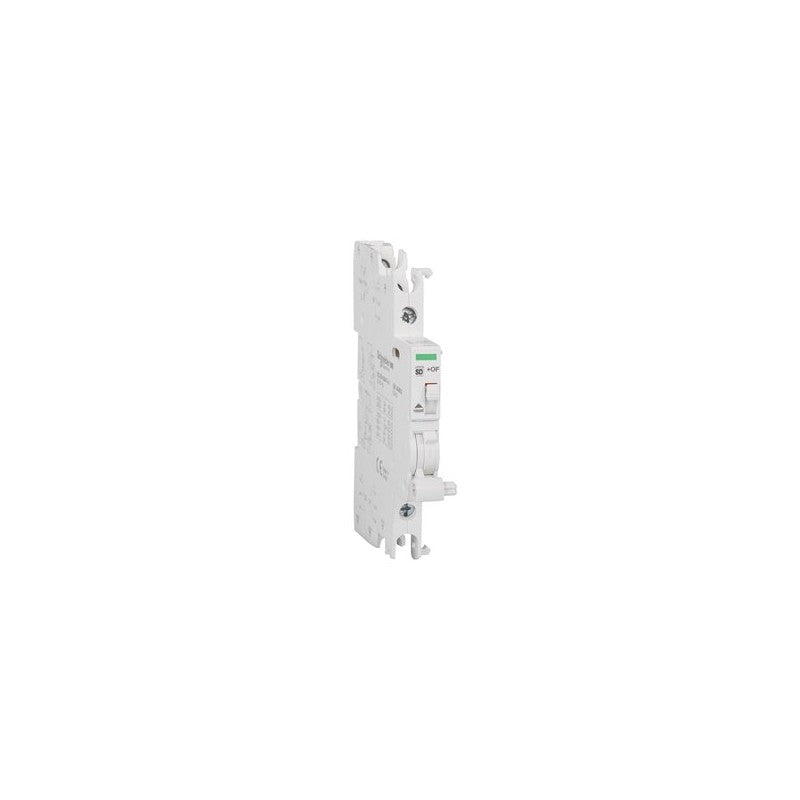

auxiliary contact, Acti9, iOF/SD+OF, 2OC, AC/DC

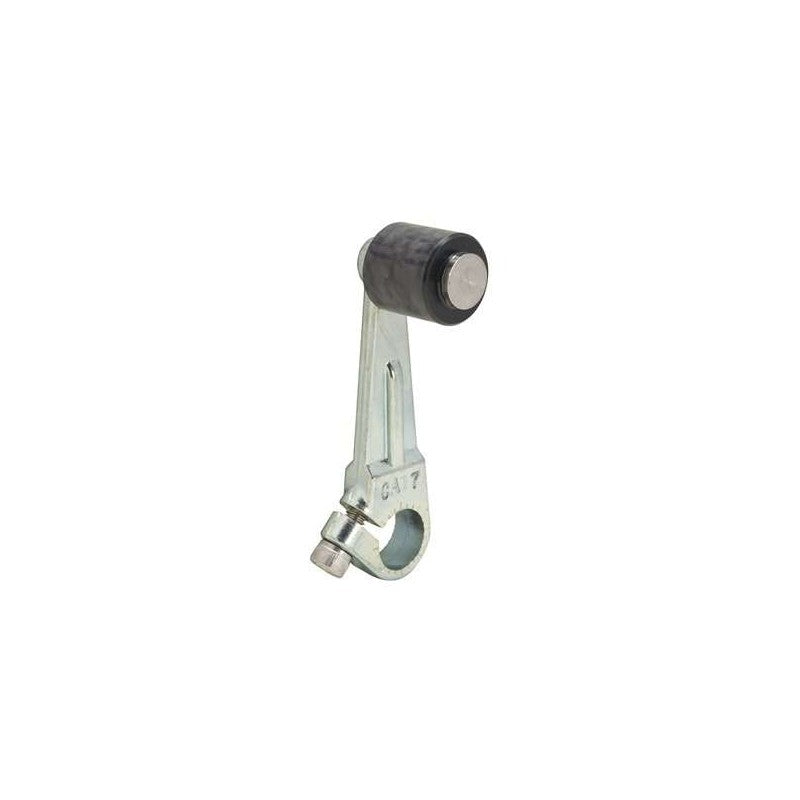

LIMIT SWITCH LEVER ARM 2IN C

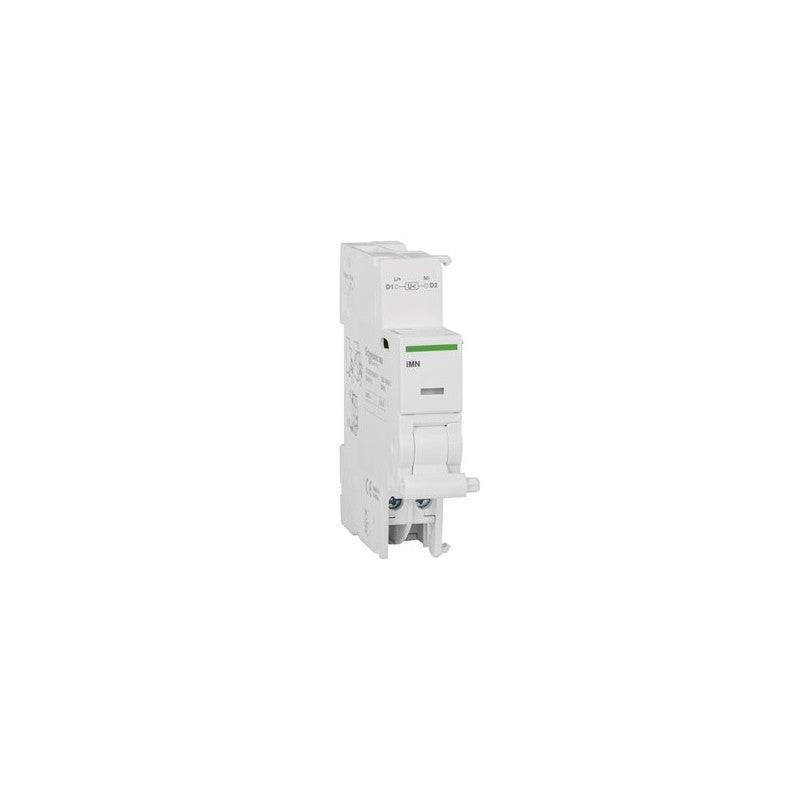

This Acti 9 iMN electrical auxiliary is an instantaneous undervoltage release. It is dedicated to Acti9 iC60, iID, iDPN Vigi, iSW-NA. It prevents device closing again until its input voltage has been restored. Emergency stoppage by normally open pushbutton. It ensures the safety of power supply circuits for several machines by preventing uncontrolled restarting. The width in 9mm pitches is 2. It trips the device with which it is combined when its input voltage decreases (between 70% and 35% of Un). The Uc control circuit voltage is 220â¦240VAC. The Ue rated operational voltage is 200VAC to 240VAC. The operating frequency is 50Hz or 60Hz. It can be mounted on a DIN rail for modular installation. The product color is white (RAL9003). The operating temperature is -35°C to + 70°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.
Main
| Characteristic | Value(s) |
|---|---|
| range of product | Acti9 |
| Product or component type | Undervoltage release |
| Device short name | iMN |
| [Uc] control circuit voltage | 220...240 V AC 50/60 Hz |
| control type | Standard |
| 9 mm pitches | 2 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Range compatibility | Acti9 iC60H RCBO Acti9 iC60H RCBO PoN Acti9 iC60H2 RCBO Acti9 iC60N RCBO Acti9 iKQE RCBO |
| Local signalling | Action indicator |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Comb busbar and distribution block compatibility | Top and bottom: YES |
| Width | 18 mm |
| Colour | White |
| Connections - terminals | Clamp terminal - 1 cable(s) 8 mm² - rigid Clamp terminal - 2 cable(s) 2.7 mm² - rigid Clamp terminal - 1 cable(s) 6 mm² - flexible Clamp terminal - 2 cable(s) 2.7 mm² - flexible with cable end |
| Tightening torque | 1 N.m |
| Compatibility code | IMN |

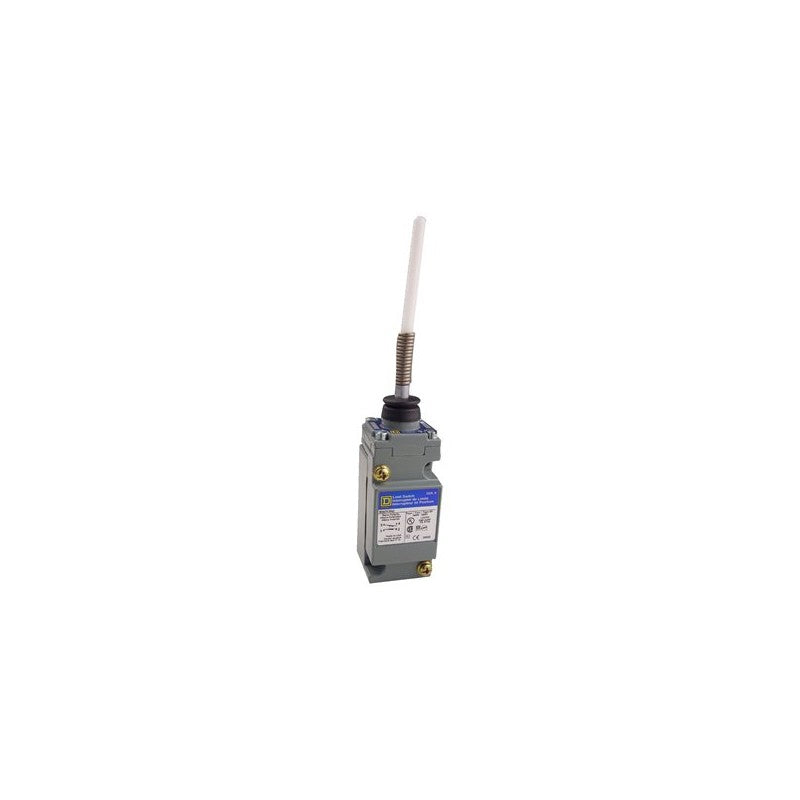

9007C limit switch - 1 NO/NC - wobble head - plastic rod
This Acti9 iMN electrical auxiliary is an instantaneous undervoltage release. It is dedicated to Acti9 iC60, iID, iDPN Vigi, iSW-NA. It prevents device closing again until its input voltage has been restored. The width in 9mm pitches is 2. The Uc control circuit voltage is 220â¦240VAC. It can be mounted on a DIN rail for modular installation. The product color is white (RAL9003). The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.
Main
| Characteristic | Value(s) |
|---|---|
| range of product | Acti9 |
| Product or component type | Undervoltage release |
| Device short name | iMNs |
| [Uc] control circuit voltage | 220...240 V AC 50/60 Hz |
| control type | Delayed |
| 9 mm pitches | 2 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Range compatibility | Acti9 iC60H RCBO Acti9 iC60H RCBO PoN Acti9 iC60H2 RCBO Acti9 iC60N RCBO Acti9 iKQE RCBO |
| Local signalling | Action indicator |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Comb busbar and distribution block compatibility | Top and bottom: YES |
| Width | 18 mm |
| Colour | White |
| Connections - terminals | Clamp terminal - 1 cable(s) 10 mm² - rigid Clamp terminal - 2 cable(s) 2.9 mm² - rigid Clamp terminal - 1 cable(s) 8 mm² - flexible Clamp terminal - 2 cable(s) 2.9 mm² - flexible with cable end |
| Tightening torque | 1 N.m |
| Compatibility code | IMNs |

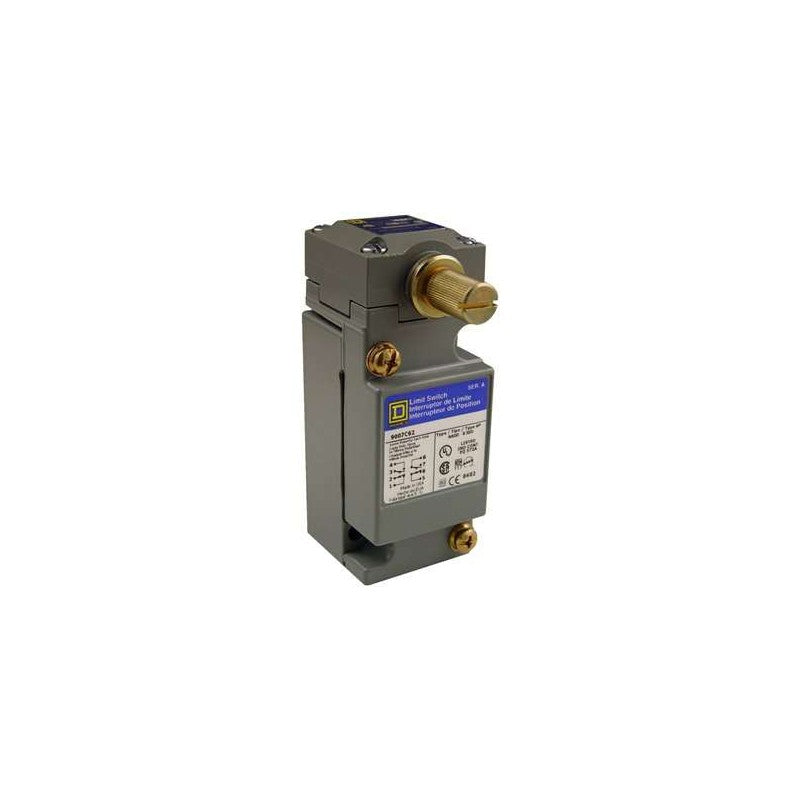

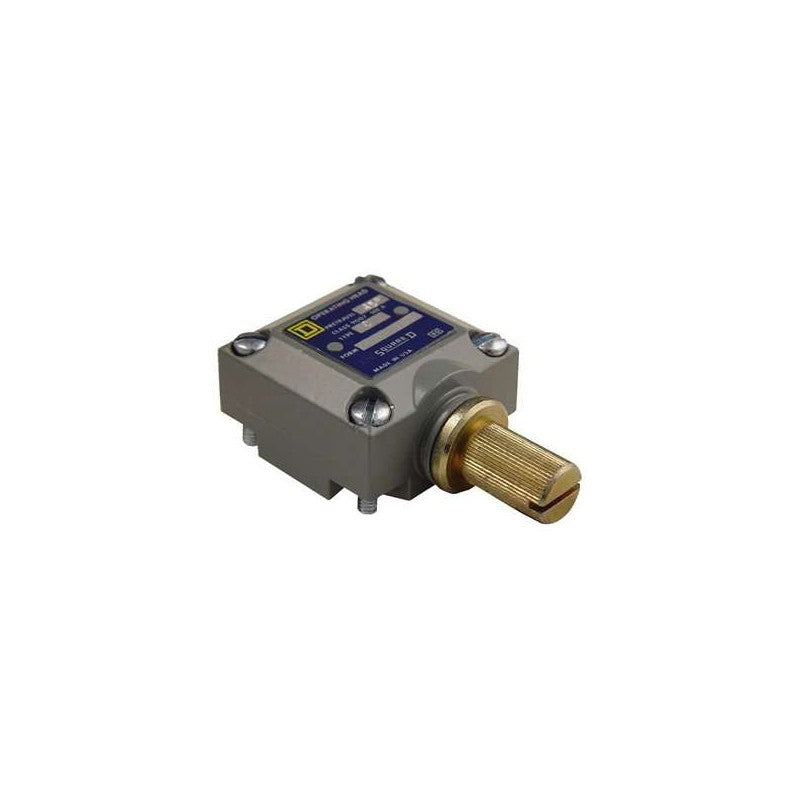

9007C limit switch - 2 NO/NC - rotary head - CW+CCW - low differential

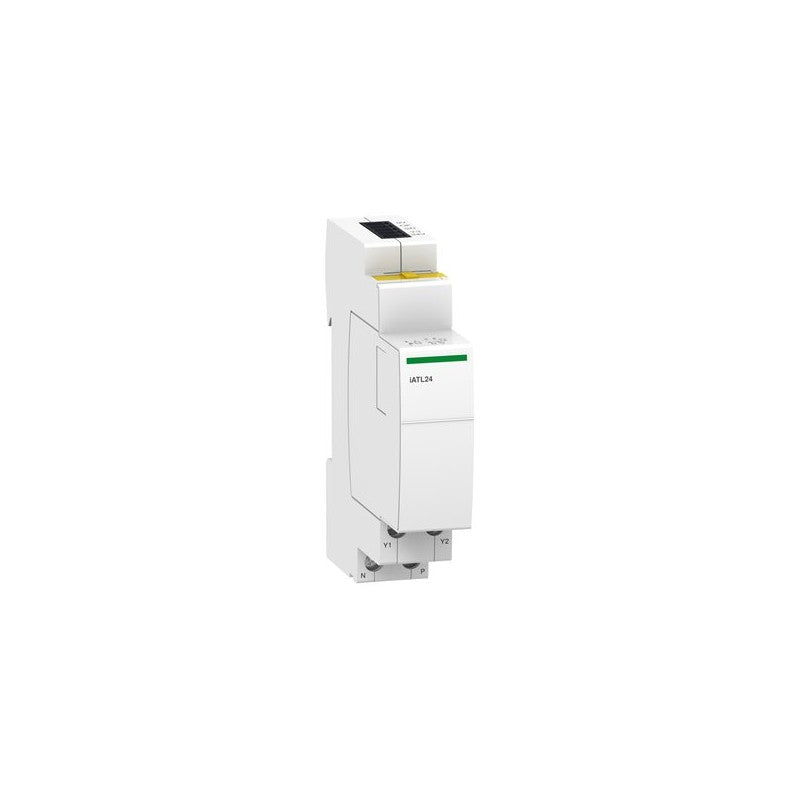

Acti 9 iATL24 control and remote indication with Ti24 connector

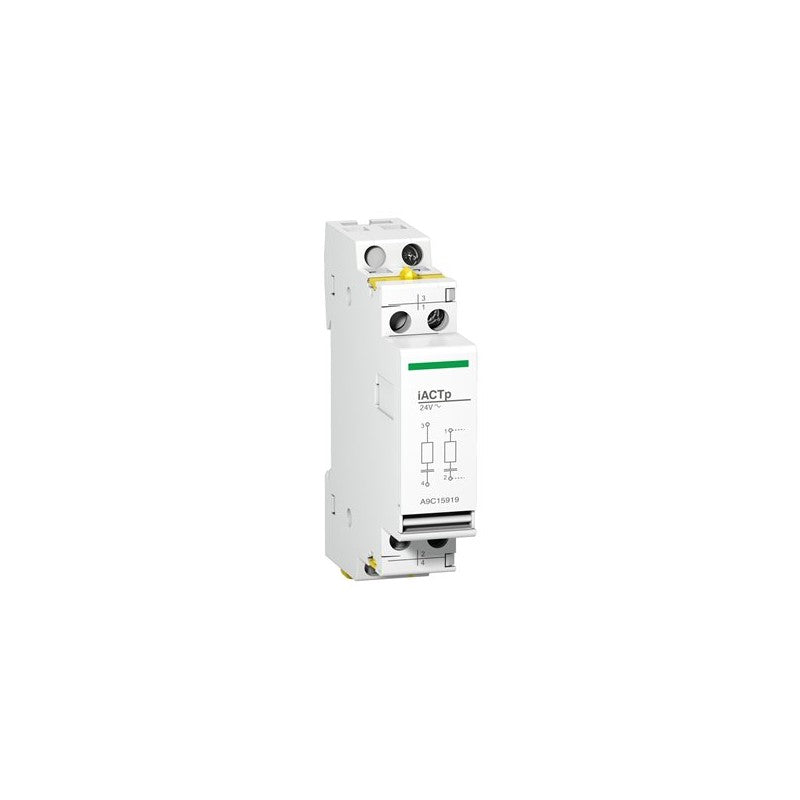

This Acti 9 iACTp is modular and reliable overvoltage protection auxiliary (2 circuits). It operates from 12VAC to 48VAC, at a frequency of 50/60 Hz. Mounting is performed on the left of Acti9 iCT contactors. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. it si compatible only with Acti9 iCT greater or equal than 25A. This auxiliary is an interference suppressor which limits overvoltage on the control circuit. This product is compliant with IEC/EN 61095.
Main
| Characteristic | Value(s) |
|---|---|
| Range | Acti9 |
| Product or component type | Overvoltage protection auxiliary (2 circuits) |
| Device short name | iACTp |
| [Uc] control circuit voltage | 12...48 V AC 50/60 Hz |
Complementary
| Characteristic | Value(s) |
|---|---|
| Type of setting | Time delay configuration |
| Time delay range | 1...36000 s |
| Hold-in power consumption in VA | 3 VA |
| Mounting mode | Fixed, on the left of CT |
| Mounting support | DIN rail |
| 9 mm pitches | 2 |
| Height | 81 mm |
| Width | 18 mm |
| Depth | 60 mm |
| Colour | White |
| Overvoltage category | III |
| [Uimp] rated impulse withstand voltage | 4 kV |
| [Ui] rated insulation voltage | 440 V |
| Standards | IEC/EN 61095 |
| Connections - terminals | Control circuit: tunnel type terminals 2 cable(s) 2.5 mm² flexible Control circuit: tunnel type terminals 2 cable(s) 1.5 mm² rigid Control circuit: tunnel type terminals 1 cable(s) 1.5â¦2.5 mm² rigid Control circuit: tunnel type terminals 1 cable(s) 1.5â¦2.5 mm² flexible with ferrule Control circuit: yellow clips |
| Wire stripping length | 9 mm |
| Tightening torque | 0.8 N.m |
| Range compatibility | Acti9 iCT |
| Market segment | Residential Small commercial |
| Compatibility code | IACTp |

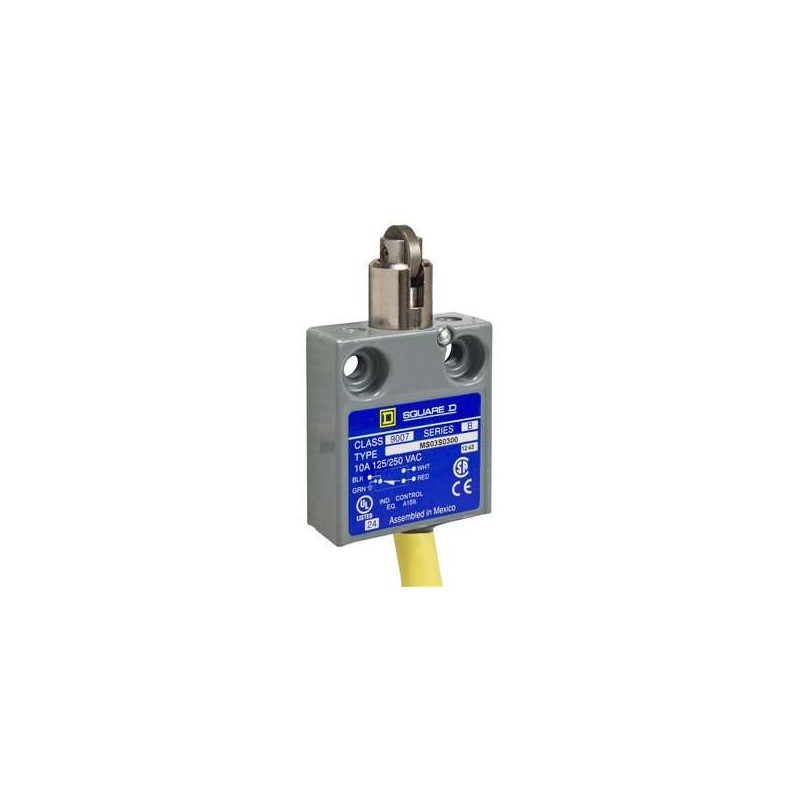

LIMIT SWITCH 240VAC 10AMP MS +OPTION

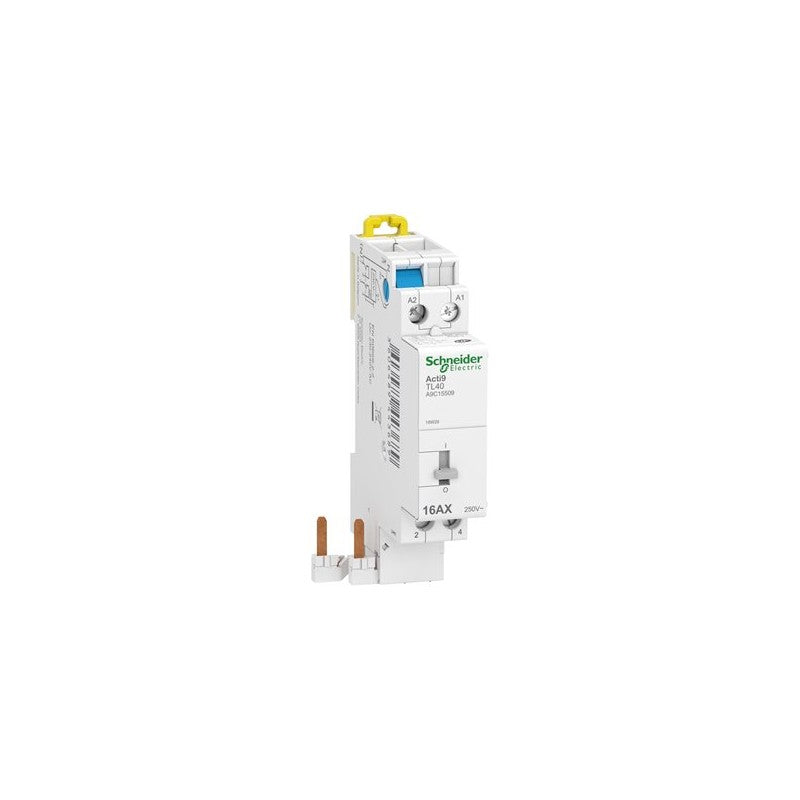

impulse relay, Acti9 TL40, 2P, 1NO, 16 A, 230 V AC, 50 Hz

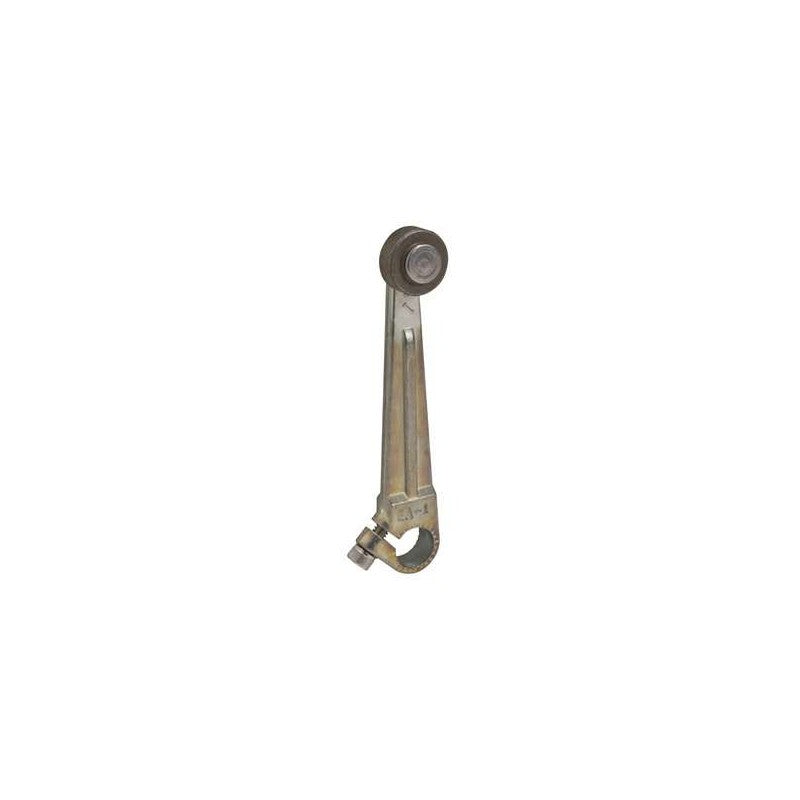

LIMIT SWITCH LEVER ARM 21/2IN C

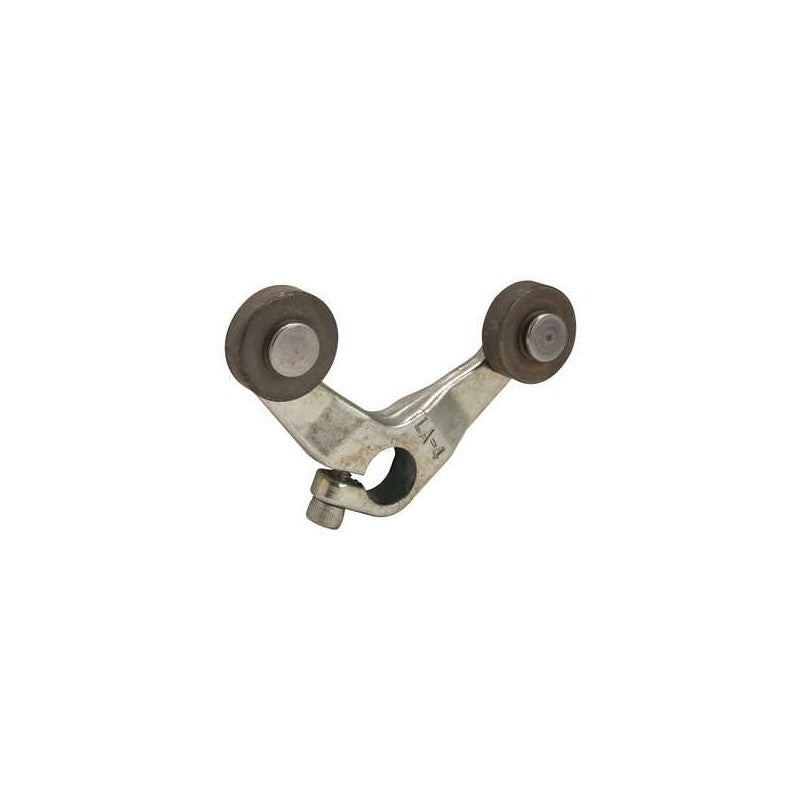

LIMIT SWITCH LEVER ARM AW+C +OPTIONS

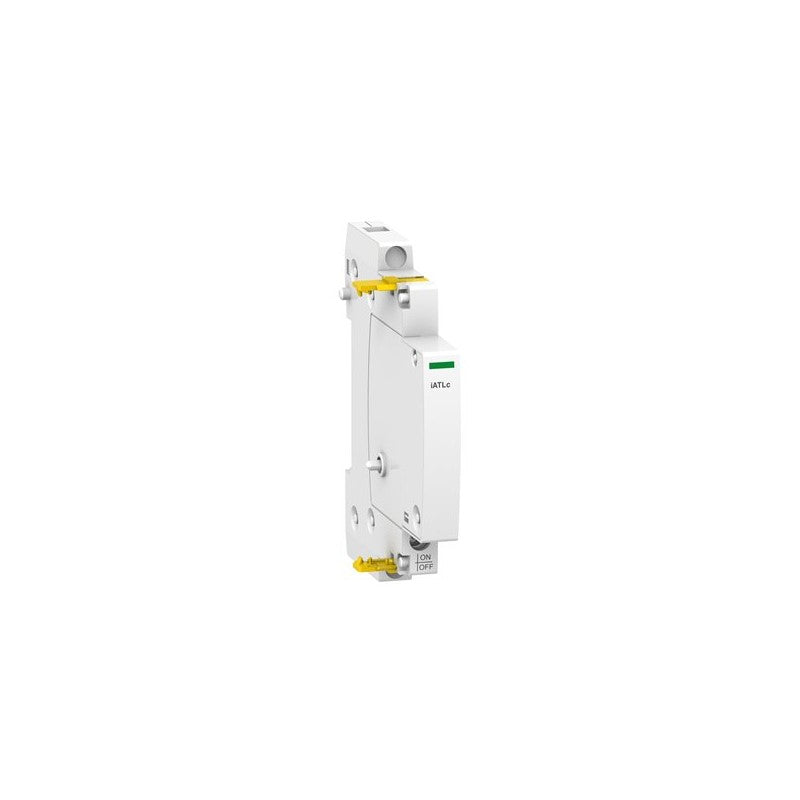

This Acti 9 iATLc is reliable centralized control auxiliary. Control voltage is between 24VAC and 240VAC. Mounting is performed on the right of iTL impulse relay with yellow clips. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. It is associated with iTL impulse relays to allow centralized control of a group of impulse relays. This product is compliant with EN/IEC 60669-2-2.
Main
| Characteristic | Value(s) |
|---|---|
| range of product | Acti9 |
| Device short name | iATLc |
| Product or component type | Centralized control auxiliary |
| [Uc] control circuit voltage | 24...240 V AC 50/60 Hz impulse |
Complementary
| Characteristic | Value(s) |
|---|---|
| [Ui] rated insulation voltage | 440 V |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Remote control type | 2 entries for switch |
| Mounting mode | Fixed, on right side of TL |
| Mounting support | DIN rail |
| 9 mm pitches | 1 |
| Height | 81 mm |
| Width | 9 mm |
| Depth | 69 mm |
| Colour | White |
| Connections - terminals | Tunnel type terminals0.5â¦4 mm² - rigid Tunnel type terminals0.5â¦4 mm² - rigid - with cable end Tunnel type terminals1â¦4 mm² - flexible Tunnel type terminals1â¦4 mm² - flexible - with cable end |
| Wire stripping length | 11 mm |
| Tightening torque | 1 N.m |
| Range compatibility | Acti9 iTL Acti9 iTLi Acti9 iTLs |
| Product compatibility | ITL (32 A) ITL (16 A) |

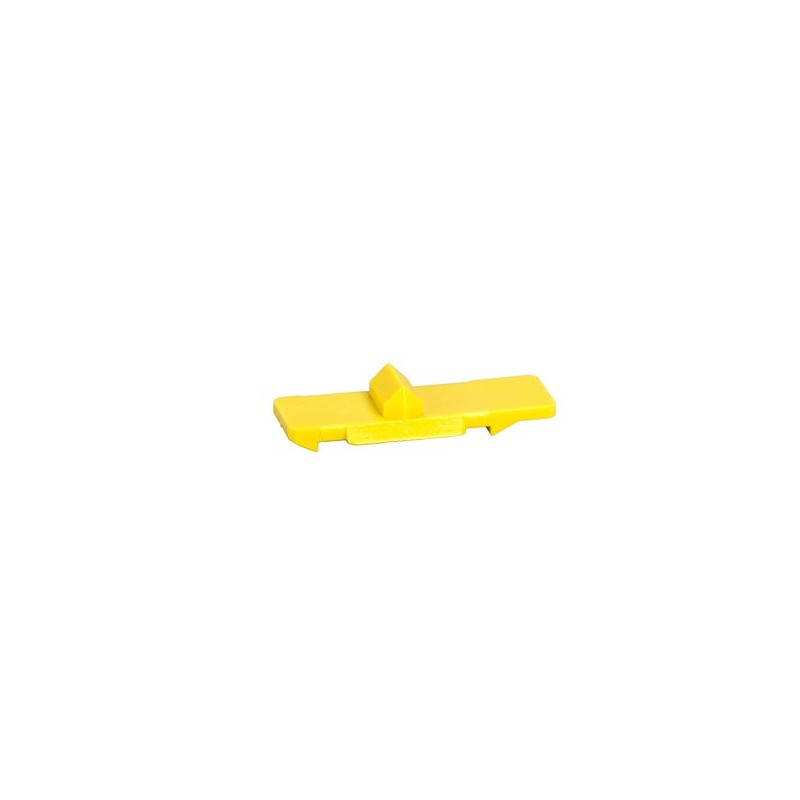

Yellow clips accessories (set of 10 clips)
9007C limit switch - 2 NO/NC - side push rod plunger
LIMIT SWITCH 600V 10AMP C +OPTIONS

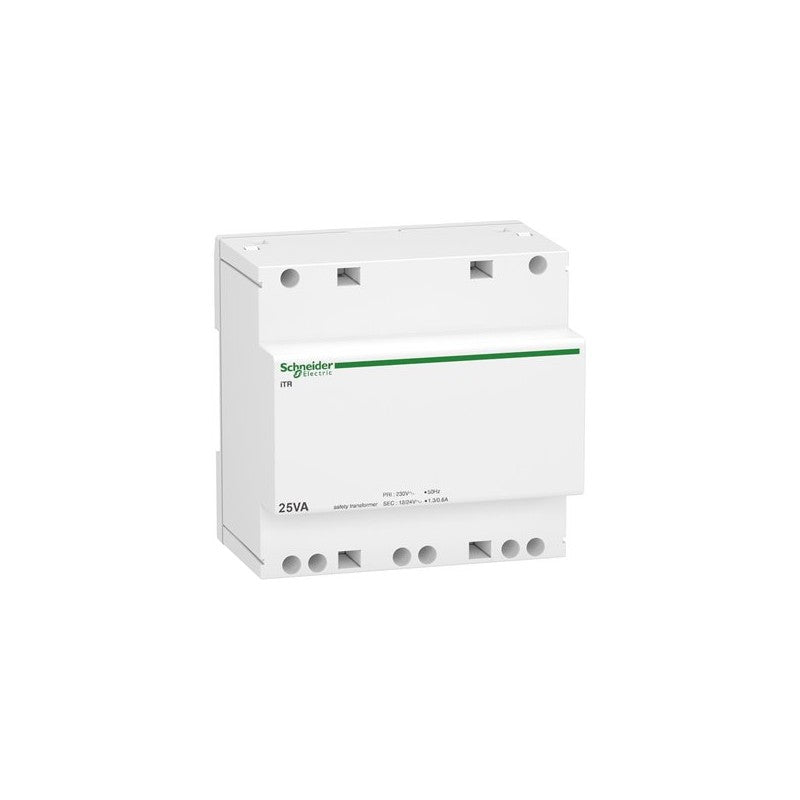

modular safety transfomer iTR - 230 V 50..60 Hz - output 12..24 V - 25 VA

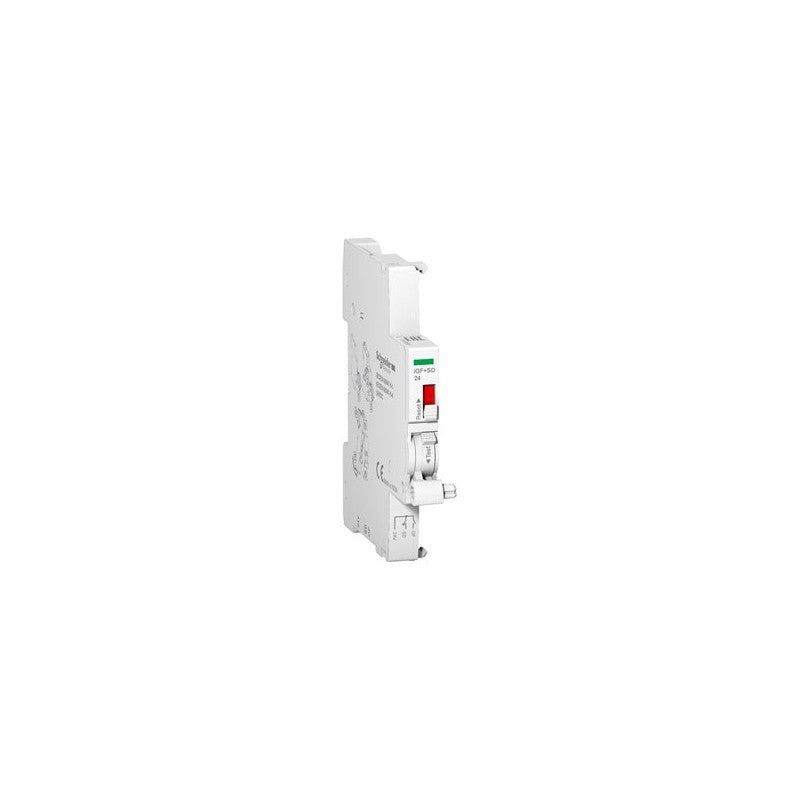

auxiliary contact, Acti9, iOF+SD 24, 1NO + 1NC, DC

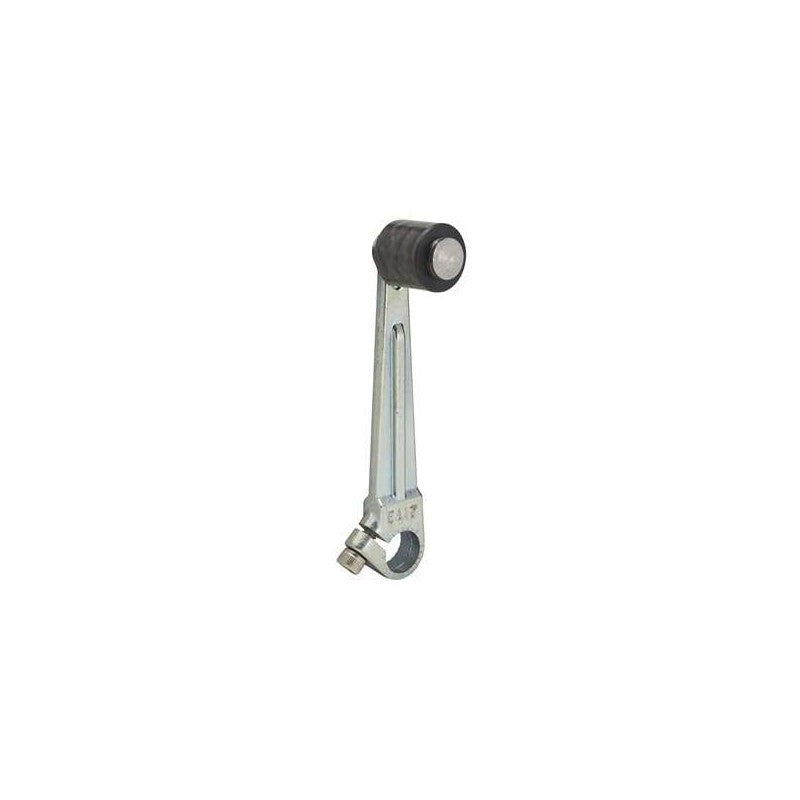

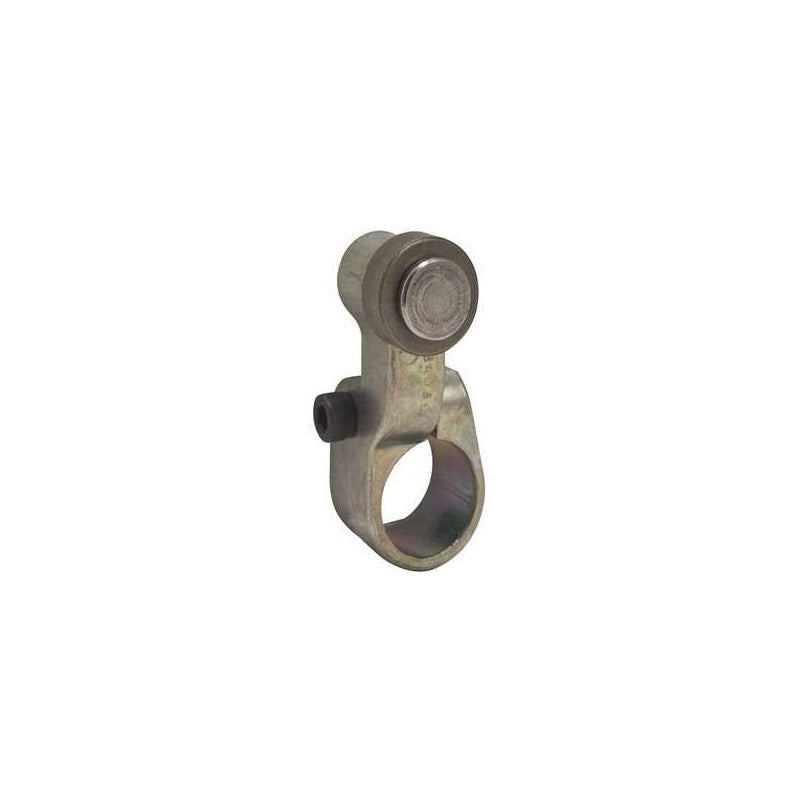

9007T/FT limit switch lever - zinc - fixed length - outside offset steel roller

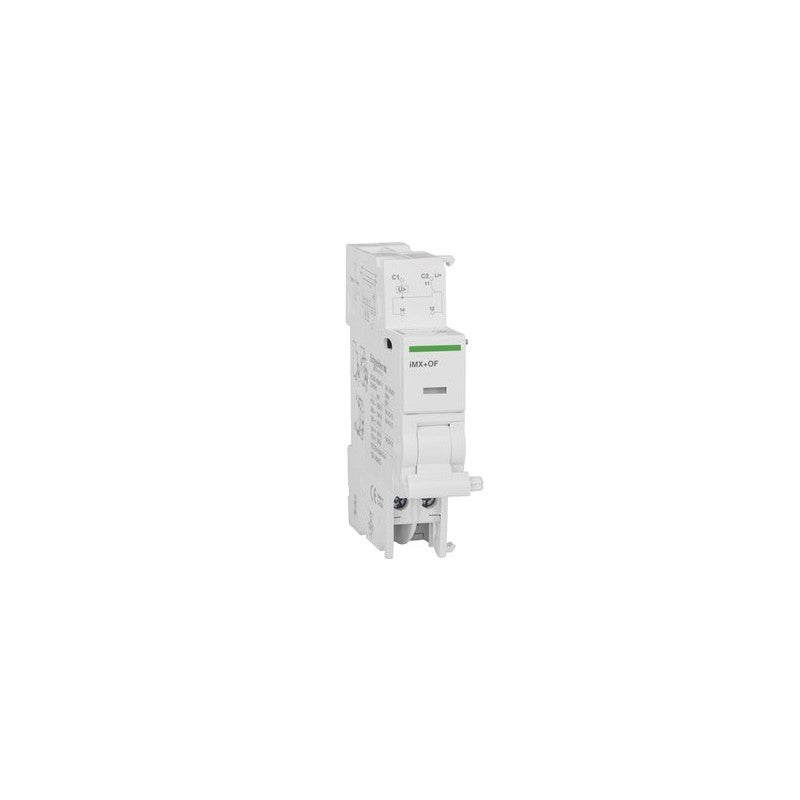

This Acti 9 MX+OF electrical tripping auxiliary for is a shunt trip release. It is dedicated to Acti9 iC60, iID, iDPN Vigi, iSW-NA. This device includes an open/close contact OF to indicated the position of the associated device. Emergency stoppage by normally open pushbutton. The product trips the associated device when it is powered on by emergency pushbutton. The width in 9mm pitches is 2. The Ue rated operational voltage is 100VAC to 415VAC or 110VDC to 130VDC. The operating frequency is 50Hz or 60Hz. The Ie rated operational current is 6A under 24VDC, 2A under 48VDC, 1.5A under 60VDC, 1A under 130VDC. The Ie rated operational current is 6A under 24VAC to 240VAC, 3A under 415VAC. There is a mechanical state indicator light, red on the front face. It can be mounted on a DIN rail for modular installation. The product color is white (RAL9003). The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standard and EN 62019-2 standard only for C120.
Main
| Characteristic | Value(s) |
|---|---|
| range of product | Acti9 |
| Product or component type | Shunt trip release with OC contact |
| Device short name | iMX+OF |
| Signal contacts composition | 1 C/O |
| [In] rated current | AC-12 3 A at 415 V, AC 50 Hz AC-12 6 A at 100 V, AC 50 Hz AC-12 6 A at 230 V, AC 50 Hz DC-12 1 A at 110 V, DC DC-12 1 A at 130 V, DC |
| [Uc] control circuit voltage | 100...415 V AC 50/60 Hz 110...130 V DC |
| 9 mm pitches | 2 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Range compatibility | Acti9 iC60H RCBO Acti9 iC60H RCBO PoN Acti9 iC60H2 RCBO Acti9 iC60N RCBO Acti9 iKQE RCBO |
| Local signalling | Action indicator |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Comb busbar and distribution block compatibility | Top: YES |
| Width | 18 mm |
| Colour | White |
| Connections - terminals | Clamp terminal - 2 cable(s) 2.5 mm² - flexible with cable end Clamp terminal - 1 cable(s) 6 mm² - rigid Clamp terminal - 2 cable(s) 2.5 mm² - rigid Clamp terminal - 1 cable(s) 4 mm² - flexible |
| Tightening torque | 1 N.m |
| Compatibility code | IMX+OF |
LIMIT SWITCH LEVER ARM 21/2IN C
LIMIT SWITCH 600V 10AMP C +OPTIONS

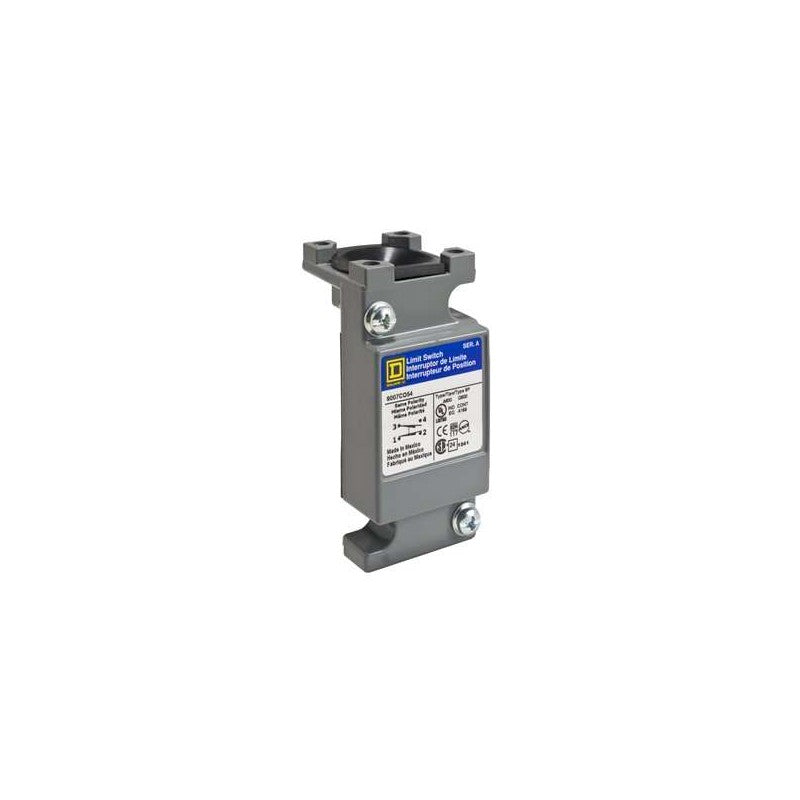

LIMIT SWITCH PLUG IN UNIT 600V 10A C
