1 year warranty
This Acti 9 iATEt is reliable time delay auxiliary. It operates from 24VAC to 240VAC and 24VDC to 110VDC control voltage. Mounting is performed on the left of iTL impulse relay or iCT contactor with yellow clips. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. 5 time delays are possible, 1 for iTL and 4 for iCT. This product is compliant with EN/IEC 60669-2-2.
Main
| Characteristic | Value(s) |
|---|---|
| Range | Acti9 |
| Product or component type | Time delay auxiliary |
| Device short name | iATEt |
| [Uc] control circuit voltage | 24...110 V DC impulse 24...240 V AC 50/60 Hz maintained |
Complementary
| Characteristic | Value(s) |
|---|---|
| Type of setting | Time delay configuration |
| Time delay range | 2 s...10 min 2 s...10 h 6...60 s 1...10 s 6 s...1 h |
| Maximum output current | 0.2 A holding 3 A inrush |
| Hold-in power consumption in VA | 5 VA |
| Mounting mode | Fixed, on the left of TL or CT |
| Mounting support | DIN rail |
| 9 mm pitches | 2 |
| Height | 81 mm |
| Width | 18 mm |
| Depth | 60 mm |
| Colour | White |
| Overvoltage category | III |
| [Uimp] rated impulse withstand voltage | 4 kV |
| [Ui] rated insulation voltage | 440 V |
| Standards | EN/IEC 60669-2-2 |
| Connections - terminals | Output connection: yellow clips Input connection: tunnel type terminals 2 cable(s) 2.5 mm² flexible Input connection: tunnel type terminals 2 cable(s) 1.5 mm² rigid |
| Wire stripping length | 9 mm |
| Tightening torque | 0.8 N.m |
| Range compatibility | Acti9 iCT Acti9 iTL |
| Market segment | Small commercial Residential |
| Compatibility code | IATEt |
9007FT foundry limit switch - universal - maintained - CW+CCW - PG 13.5
9007FT foundry limit switch - standard - spring return - CW+CCW - M20
LIMIT SWITCH LEVER ARM T+FT+OPTIONS
SNAP SWITCH 600V 10AMP CB +OPTIONS

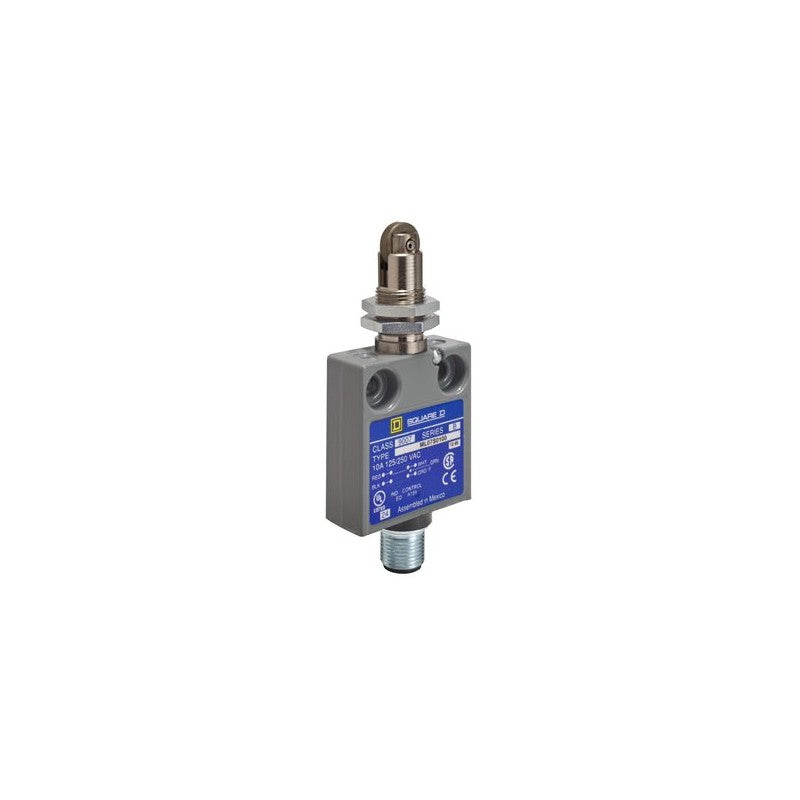

9007MS limit switch - parallel roller plunger - bushing mount - M12 DC bottom
