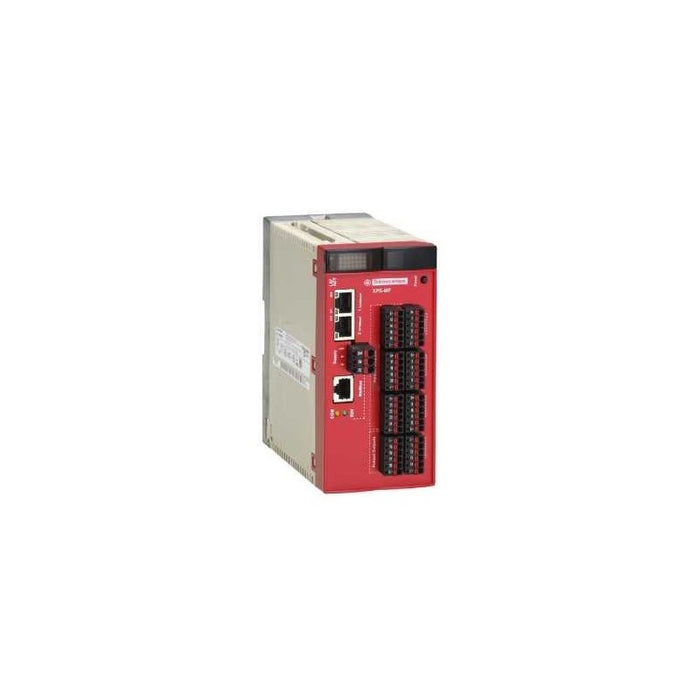

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Preventa Safety automation |
| Product or Component Type | Preventa safety PLC compact |
| Safety module name | XPSMF40 |
| Safety module application | F use with numerous machine safety functions and for the protection of personel |
| Safety use category | Category 4 maximum EN 954-1 Performance level e EN/ISO 13849-1 SIL 3 EN/IEC 61508 |
| Structure type | 10BASE-T/100BASE-TX, Modbus TCP/IP 10BASE-T/100BASE-TX, safe Ethernet |
Complementary
| Characteristic | Value(s) |
|---|---|
| Function of module | Monitoring safety actuators discrete output Monitoring safety detection discrete input Monitoring safety dialogue discrete input Monitoring safety dialogue discrete output Monitoring short-circuit and line break line control outputs |
| [Us] Rated Supply Voltage | 24 V DC - 15...20 % |
| Supply | SELV or PELV EN/IEC 60950 |
| No load current | 0.5 A |
| Protection Type | 10 A internal fuse |
| Clock | With, supplied by backup capacitor for 1 week following loss of supply |
| Response Time | Depending on size of application |
| Memory description | User logic 250 kB application User logic 250 kB data |
| Group of channels | 2 groups of 4 line control outputs |
| Discrete I/O number | 24 configurable |
| Maximum discrete input number | 24 not isolated |
| Voltage state 0 guaranteed | <= 24 V discrete input |
| Voltage state 1 guaranteed | 24...30 V discrete input |
| Current state 0 guaranteed | <= 1.5 mA discrete input) |
| Current state 1 guaranteed | 3.5...4.5 mA discrete input) |
| Discrete input voltage | 20 V |
| Discrete input current | 100 mA |
| Maximum input resistance | 7 kOhm |
| Input overvoltage protection | -10â¦35 V discrete input |
| Maximum discrete output number | 24 not isolated |
| Discrete output voltage | 24 V DC |
| Output voltage tolerance | +/- 2% |
| Discrete output current | 1 A 140 °F (60 °C) channels 4, 8, 12, 16, 20 and 24) 2 A 122 °F (50 °C) channels 4, 8, 12, 16, 20 and 24) 0.5 A 140 °F (60 °C) channels 1 to 3, 5 to 7, 9 to 11,13 to 15, 17 to 19, 21 to 23) <= 7 A all channels) |
| Minimum load | 2 mA per discrete output |
| Maximum leakage current | 1 mA 2 V at state 0 discrete output |
| Overload protection | Shutdown of outputs concerned with cyclic reconnection |
| Output voltage | 20 V line control outputs |
| Nominal output current | 60 mA line control outputs |
| Communication port protocol | Safe Ethernet 2 RJ45 100 Mbps, 10 Mbps dual twisted pair cable, category 5D or better Modbus TCP/IP 2 RJ45 100 Mbps, 10 Mbps dual twisted pair cable, category 5D or better Modbus RTU 1 RJ45, RS485 shielded dual twisted pair cable |
| Exchange mode | Half duplex, full duplex, autonegotiation Modbus TCP/IP Half duplex, full duplex, autonegotiation safe Ethernet |
| Method of access | Slave Modbus TCP/IP Slave V0 Modbus serial |
| Number of addresses | 122 Modbus serial |
| Concept | Transparent Ready, Modbus TCP/IP |
| Web server | Class A10, Modbus TCP/IP |
| Web services | Modbus identification request, Modbus TCP/IP Modbus TCP/IP messaging (reading/writing of data words), Modbus TCP/IP Modbus TCP/IP server, Modbus TCP/IP Standard 502, Modbus TCP/IP |
| Maximum number of connections | 1 to 20, Modbus TCP/IP |
| Operating distance | <= 300 m between station discrete input <= 300 m between station discrete output |
| Number of terminal blocks | 1 power supply 2 line control outputs 6 discrete input/output circuit 8 line control outputs |
| Connections - terminals | Discrete input/output circuit captive spring terminals, 1 x 0.5 mm² AWG 20) flexible with cable end Line control outputs captive spring terminals, 1 x 0.5 mm² AWG 20) flexible with cable end Discrete input/output circuit captive screw clamp terminals, 1 x 0.14...1 x 1.5 mm² AWG 25...AWG 15) solid without cable end Line control outputs captive screw clamp terminals, 1 x 0.14...1 x 1.5 mm² AWG 25...AWG 15) solid without cable end Discrete input/output circuit captive screw clamp terminals, 1 x 0.14...1 x 1.5 mm² AWG 28...AWG 16) flexible without cable end Line control outputs captive screw clamp terminals, 1 x 0.14...1 x 1.5 mm² AWG 28...AWG 16) flexible without cable end Power supply captive screw clamp terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible without cable end Power supply captive screw clamp terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) solid without cable end Discrete input/output circuit captive screw clamp terminals, 1 x 0.25...1 x 0.5 mm² AWG 23...AWG 20) flexible with cable end Line control outputs captive screw clamp terminals, 1 x 0.25...1 x 0.5 mm² AWG 23...AWG 20) flexible with cable end Discrete input/output circuit captive screw clamp terminals, 1 x 0.25...1 x 1.5 mm² AWG 23...AWG 15) flexible without cable end Line control outputs captive screw clamp terminals, 1 x 0.25...1 x 1.5 mm² AWG 23...AWG 15) flexible without cable end Power supply captive screw clamp terminals, 1 x 0.25...1 x 2.5 mm² AWG 23...AWG 14) flexible with cable end Power supply captive screw clamp terminals, 1 x 0.25...1 x 2.5 mm² AWG 23...AWG 14) flexible without cable end Discrete input/output circuit captive spring terminals, 1 x 0.14...1 x 1.5 mm² AWG 26...AWG 16) solid without cable end Line control outputs captive spring terminals, 1 x 0.14...1 x 1.5 mm² AWG 26...AWG 16) solid without cable end Discrete input/output circuit captive spring terminals, 1 x 0.14...1 x 1.5 mm² AWG 26...AWG 17) flexible without cable end Line control outputs captive spring terminals, 1 x 0.14...1 x 1.5 mm² AWG 26...AWG 17) flexible without cable end Power supply captive spring terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible without cable end Power supply captive spring terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) solid without cable end Discrete input/output circuit captive spring terminals, 1 x 0.25...1 x 0.34 mm² AWG 22) flexible without cable end Line control outputs captive spring terminals, 1 x 0.25...1 x 0.34 mm² AWG 22) flexible without cable end Power supply captive spring terminals, 1 x 0.25...1 x 2.5 mm² AWG 23...AWG 12) flexible with cable end Power supply captive spring terminals, 1 x 0.25...1 x 2.5 mm² AWG 23...AWG 12) flexible without cable end |
| Tightening torque | Discrete input/output circuit 1.95â¦2.21 lbf.in (0.22â¦0.25 N.m) captive screw clamp terminals Line control outputs 1.95â¦2.21 lbf.in (0.22â¦0.25 N.m) captive screw clamp terminals Power supply 4.4 lbf.in (0.5 N.m) captive screw clamp terminals |
| Wire stripping length | 0.4 in (10 mm) power supply captive screw clamp terminals 0.4 in (9 mm) discrete input/output circuit captive screw clamp terminals 0.4 in (9 mm) discrete input/output circuit captive spring terminals 0.4 in (9 mm) line control outputs captive screw clamp terminals 0.4 in (9 mm) line control outputs captive spring terminals 0.4 in (9 mm) power supply captive spring terminals |
| Current consumption | 8 A 24 V DC on power supply |
| Mounting Support | 35 mm symmetrical DIN rail |
| Depth | 6.02 in (153 mm) |
| Height | 6.0 in (151.5 mm) |
| Width | 2.9 in (74 mm) |
| Product Weight | 2.2 lb(US) (1 kg) |
