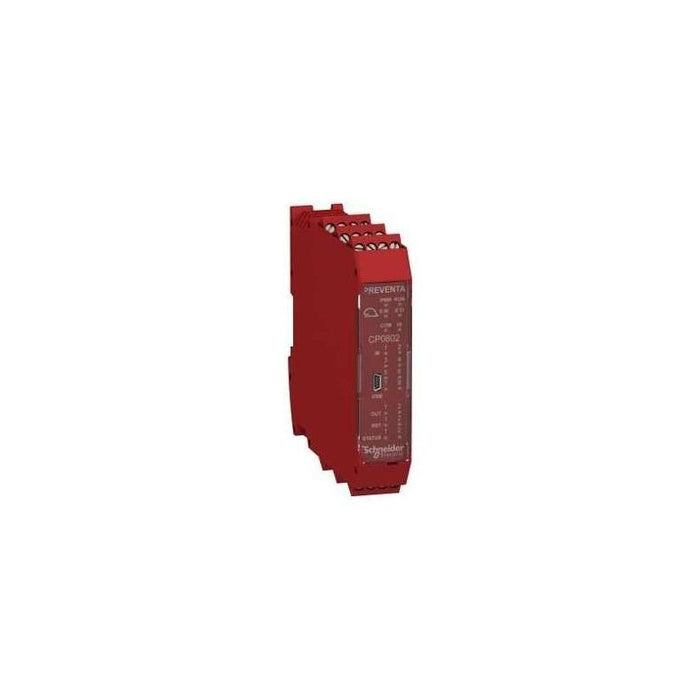

This Modicon MCM safety controller CPU is supplied with 24Vdc, has 8 safe digital inputs, 2 start/restart interlock inputs, 2 output OSSD pairs, 4 test outputs and 2 status outputs and is fitted with captive screw clamp terminals. It embeds a Mini USB 2.0 connector to receive the configuration done with the software EcoStruxure Machine Expert - HVAC. It is an appropriate solution for machines with a small number of safety functions requiring the configuration flexibility of a safety controller. It can be used as standalone or with fourteen expansion modules. The system is expandable up to 128 inputs, 16 outputs and up to 32 diagnostic status outputs, ideal for machines requiring multiple safety function monitoring. This safety controller CPU figures LEDs on its front face, displaying the status (power supply, run, internal or external errors, inputs status, communication, master enable, restart signal, output channels). It is a CPU with a rated supply voltage of 24V DC and a maximum power dissipation of 3W. It is furnished with spring clamp terminals, removable terminal block for electrical connection. It is an IP20 rated product. It weighs 0.25kg. Its dimension are 22.5mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It is powered with 24 VDC. It is ideal for monitoring safety functions such as emergency stop, guard monitoring, perimeter guarding, position monitoring, speed monitoring and enabling movement. The safe controller CPU Modicon MCM are certified by TüV SÃD meeting the industrial safety standards of Category 4, PL e according to EN/ISO 13849-1 and SILCL 3 according to IEC/EN 61508 and IEC/EN 60261. Compatible accessories for Modicon MCM module are a memory card and the backplane connector. The safety controller CPU instals on Omega 35mm DIN rail conforming to EN 50022. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Safety automation |
| Device short name | XPSMCM |
| Electrical Connection | Screw terminal |
| Product or Component Type | Safety controller CPU |
| [Us] rated supply voltage | 24 V - 20...20 % DC |
| Number of inputs | 8 digital input connection 2 digital interlock start/restart or external device monitoring |
| Number of outputs | 2 safety outputs OSSD contactor/drive connection 4 test line control outputs 2 configurable diagnostic connection |
| Discrete input voltage | 24 V |
| Discrete output current | 400 mA |
| Discrete input current | 400 mA |
| Discrete input type | Safety input PNP |
| Discrete output type | PNP |
| Function of module | Emergency stop ISO 13850 Guard monitoring EN/ISO 14119 Enabling switch monitoring IEC 60947-5-1 Light curtain monitoring IEC 61496-1 Foot switch monitoring IEC 60947-5-1 Magnetic switch monitoring EN/ISO 14119 Two-hand control EN 574 Safety mat monitoring EN/ISO 14119 Enabling switch monitoring IEC 61326-1 Muting function of light curtains IEC 60947-5-1 Counter functions IEC 61800-5-2 Speed monitoring IEC 61800-5-2 |
| Backplane connector | Without |
Complementary
| Characteristic | Value(s) |
|---|---|
| Synchronisation time between inputs | < 0.5 ms |
| Power dissipation in W | 3 W |
| Maximum number of I/O expansion module | 14 128 input 14 16 output |
| Integrated connection type | Backplane expansion bus USB 2.0 port |
| Data storage equipment | SD card optional) |
| Inductive load | 30 mH |
| Load capacitance | 0.82 µF |
| Safety level | Can reach category 4 ISO 13849-1 Can reach PL = e ISO 13849-1 Type 4 IEC 61496-1 SILCL 3 IEC 62061 |
| Quality labels | CE |
| Local signalling | 1 LED green PWR power ON 1 LED green RUN RUN (status) 1 LED red E IN internal error 1 LED red E EX external error 1 LED orange COM communication 1 LED blue EN master enable 8 LEDs yellow IN input status 2 LEDs green/red OUT output status 2 LEDs yellow RST restart signal 2 LEDs yellow STATUS output channel |
| Connections - terminals | 6 captive screw terminals, removable terminal block |
| Cable cross section | 0.0003â¦0.002 in² (0.2â¦1.5 mm²) - AWG 24...AWG 16 flexible without cable end 0.0003â¦0.004 in² (0.2â¦2.5 mm²) - AWG 24...AWG 14 flexible without cable end 0.0004â¦0.002 in² (0.25â¦1 mm²) - AWG 23...AWG 18 flexible with cable end, without bezel 0.0004â¦0.004 in² (0.25â¦2.5 mm²) - AWG 23...AWG 14 flexible with cable end, with bezel 0.0004â¦0.002 in² (0.25â¦1.5 mm²) - AWG 23...AWG 16 flexible with cable end, without bezel 0.0008â¦0.002 in² (0.5â¦1.5 mm²) - AWG 20...AWG 16 flexible with cable end, with double bezel 0.0003â¦0.002 in² (0.2â¦1 mm²) - AWG 24...AWG 18 solid without cable end 0.0003â¦0.004 in² (0.2â¦2.5 mm²) - AWG 24...AWG 14 solid without cable end |
| Mounting support | Omega 35 mm DIN rail EN 50022 |
| Depth | 4.5 in (114.5 mm) |
| Height | 3.9 in (99 mm) |
| Width | 0.9 in (22.5 mm) |
| Product Weight | 0.55 lb(US) (0.25 kg) |
