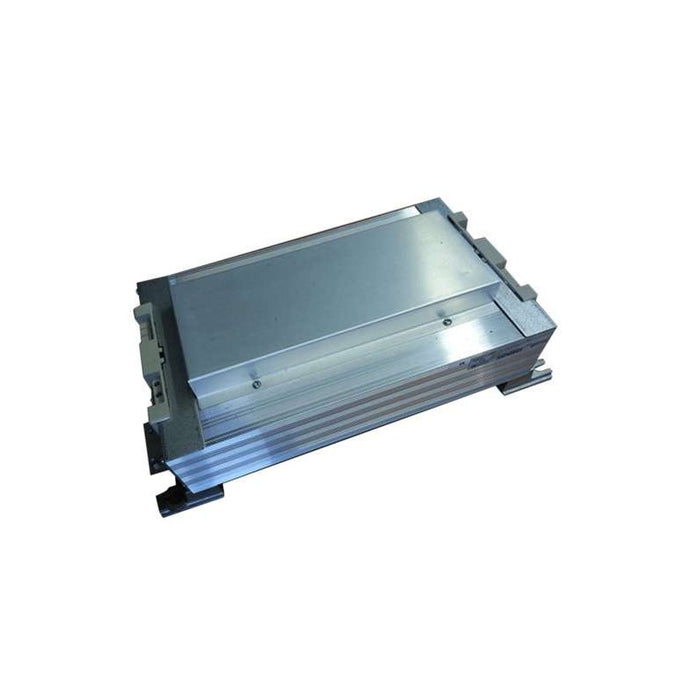

VW3A58451 Schneider Electric

This output LR filter is designed to reduce the dv/dt at the motor terminals and enlarge the maximum motor cable length. This cell comprises 3 high-frequency chokes and 3 resistors and its protection index is IP20. It is compatible with Altivar 312, Altivar 31 and Altivar easy 310.

Main

Characteristic Value(s)
Product or component type LR filter cell
Range compatibility Altivar 31C
Altivar 312
Easy Altivar 310
Altivar 312 Solar
Easy Altivar 310L
Product specific application Output filter
Product compatibility ATV312H018M2
ATV312H018M3
ATV312H037M2
ATV312H037M3
ATV312H037N4
ATV312H055M2
ATV312H055M3
ATV312H055N4
ATV312H075M2
ATV312H075M3
ATV312H075N4
ATV312H075S6
ATV312HU11M2
ATV312HU11M3
ATV312HU11N4
ATV312HU15M2
ATV312HU15M3
ATV312HU15N4
ATV312HU22N4
ATV312HU22S6
ATV312HU30N4
ATV312HU40N4
ATV312HU40S6
ATV312HU55S6
ATV31C018M2
ATV31C037M2
ATV31C037N4
ATV31C055M2
ATV31C055N4
ATV31C075M2
ATV31C075N4
ATV31CD11N4
ATV31CD15N4
ATV31CU11M2
ATV31CU11N4
ATV31CU15M2
ATV31CU15N4
ATV31CU22N4
ATV31CU30N4
ATV31CU40N4
Variable speed drive ATV310 at 0.37 kW
Variable speed drive ATV310 at 0.75 kW
Variable speed drive ATV310 at 1.5 kW
Variable speed drive ATV310L at 0.75 kW
Variable speed drive ATV310L at 1.5 kW
Variable speed drive ATV310L at 2.2 kW
Variable speed drive ATV310L at 3.0 kW
Variable speed drive ATV310L at 4.0 kW
Variable speed drive ATV310L at 5.5 kW
maximum length of motor cable 100 m shielded cable 0.5...4 kHz)
Thermal losses 150 W
[In] rated current 10 A

Complementary

Characteristic Value(s)
Product weight 7.4 kg
Price on request
Ask for quote


Notify Me When Available
