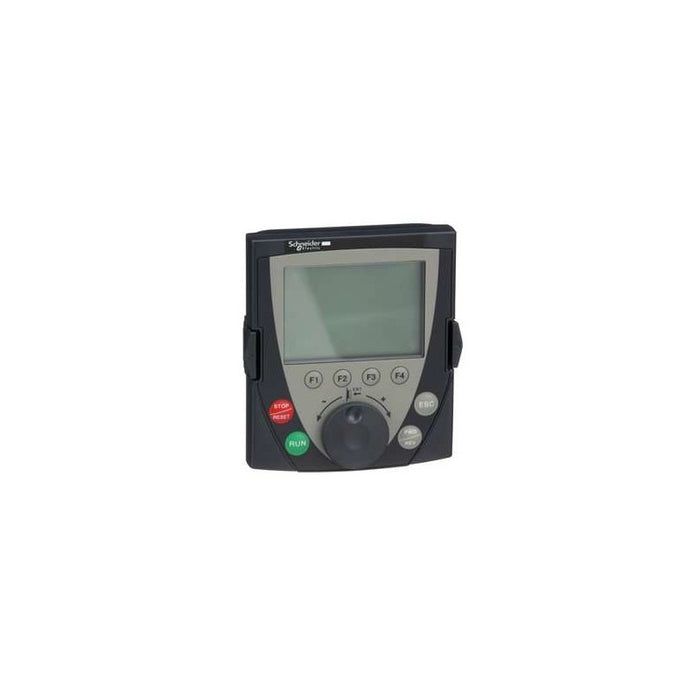

The VW3A1101 is a remote graphic display terminal designed for Schneider Electric Altivar variable speed drives. It features a high-resolution 240 x 160 pixel LCD display with an 8-line interface, providing clear visibility of drive parameters, error messages, and performance data. The terminal enables operators to remotely control, adjust, and configure drive settings, display current motor and I/O values, and save up to 4 configuration files for downloading. With IP54 protection, the unit is resistant to dust and water splashes, making it suitable for harsh industrial environments. It mounts on enclosure doors to provide convenient human-machine interface access without direct contact with the drive, particularly useful where drives are located in hard-to-reach or hazardous areas. The device supports multiple user languages including English, French, German, Spanish, Italian, and Chinese.
Item Details
- Brand Name: Schneider Electric
- Manufacturer: Schneider Electric
- Item Type Name: Remote Graphic Display Terminal
- Product Family / Series: Altivar VW3A
- Part Number: VW3A1101
- Accessory Category: Display and signalling accessories
- Accessory Type: Display terminal
- Compatible Drives: Altivar 312, Altivar 61, Altivar 71, Altivar 32, Altivar 212, Altivar Lift, Altivar 61Q, Altivar 71Q, Altivar 312 Solar, Altivar Machine ATV320, Altivar Machine ATV340
Product Specifications
- display_type: LCD graphic display
- pixel_resolution: 240 x 160 pixels
- display_lines: 8 lines
- ip_protection_rating: IP54
- operating_temperature_range: -15 to 50 °C
- mounting_location: Enclosure door
- supported_languages: English, French, German, Spanish, Italian, Chinese
- configuration_file_storage: 4 files
Additional Details
- Country of Origin*: France
- Rohs Compliant: Yes
- Required Accessory: Remote-mounting cordset VW3A1104Rxx (ordered separately)
*Country of origin may vary.
Measurements
- Weight: 0.145 kg
- Package Dimensions: 7.0 cm H x 16.5 cm W x 23.0 cm L
- Package Weight: 0.275 kg
