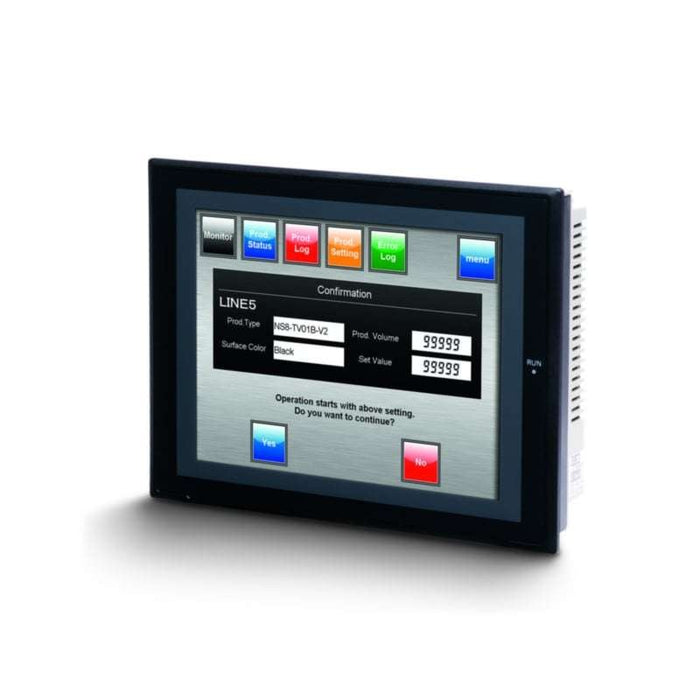

The Omron NS8-TV01B-V2 is an 8.4-inch programmable terminal featuring a TFT color touchscreen with LED backlight. It displays 256 colors natively and supports 32,768 colors for bitmap and JPEG image files at a resolution of 640x480 pixels. The unit includes 60 MB of program memory and supports multiple communication protocols including dual RS-232C serial ports and Ethernet 10/100 Base-T connectivity. Designed for industrial automation applications, it integrates with Omron CS/CJ-series and NJ-series controllers and features Smart Active Parts for simplified configuration. The device operates on 24 VDC power supply with a consumption of 25 watts and offers IP65-rated protection in a black flush-mount enclosure suitable for machine control and monitoring applications.
Item Details
- Brand Name: Omron
- Manufacturer: Omron
- Item Type Name: Human Machine Interface (HMI) Touchscreen
- Product Family / Series: NS Series
- Case Color: Black
Product Specifications
- display_size: 8.4 inch
- display_type: TFT color LCD with LED backlight
- resolution: 640x480 pixels
- display_colors: 256 colors (32,768 colors for BMP/JPG)
- memory_capacity: 60 MB (Program)
- power_supply: 24 V DC
- power_consumption: 25 W
- communication_ports: 2x RS-232C (9-pin D-Sub), Ethernet 10/100 Base-T (RJ45), USB
- mounting_type: Flush mount
- protection_rating: IP65
- operating_temperature: 0 to 50 °C
Additional Details
- Lifecycle Status: Discontinued by manufacturer
- Certifications / Approvals: cULus (Class I Division 2 Products for Hazardous Locations), NK Lloyd, EC Directives
