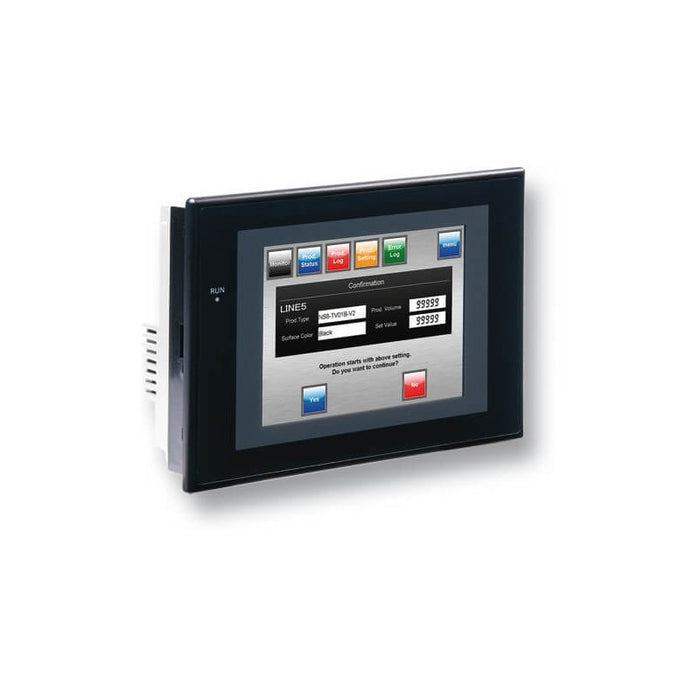

The Omron NS5-SQ10B-ECV2 is a compact programmable terminal from the NS Series designed for industrial automation and machine control applications. This touchscreen HMI features a 5.7-inch TFT color LCD display with 320x240 pixel resolution capable of showing 256 colors in standard mode and up to 32,768 colors for BMP and JPG images. The unit provides versatile connectivity through RS-232C serial ports, USB interface, and Ethernet communications, enabling seamless integration with Omron PLCs and other industrial control equipment. With 60 MB of internal memory for screen data and applications, the NS5-SQ10B-ECV2 supports comprehensive HMI functionality including PLC troubleshooting, machine diagnostics, parameter management, and multi-language support. The device operates on 24 VDC power supply and is designed for reliable performance in demanding industrial environments with extended LED backlight life and robust environmental protection.
Item Details
- Brand Name: Omron
- Manufacturer: Omron Automation and Safety
- Item Type Name: Human Machine Interface (HMI)
- Product Family / Series: NS Series
- Model Number: NS5-SQ10B-ECV2
- Frame Color: Black
Product Specifications
- display_type: TFT Color LCD with LED backlight
- screen_size: 5.7 inch
- display_resolution: 320 x 240 pixels
- display_area: 88.4 mm x 117.7 mm
- color_depth: 256 colors (32,768 for BMP/JPG)
- display_brightness: 250 cd/m²
- touchscreen_type: Resistive touch
- memory_capacity: 60 MB
- communication_interfaces: RS-232C (2 ports), USB, Ethernet
- connector_type: 9-pin D-Sub connectors x 2
- rated_voltage: 24 V DC
- voltage_range: 20.4 to 27.6 V DC
- power_consumption: 15 W max
- operating_temperature: 0°C to 50°C
- storage_temperature: -20°C to 60°C
- humidity_range: 10% to 90% RH (non-condensing)
- vibration_resistance: 10 to 57 Hz at 0.075 mm amplitude, 57 to 150 Hz at 9.8 m/s²
- noise_immunity_common_mode: 1000 Vp-p
- noise_immunity_normal_mode: 300 Vp-p
- backlight_life: 50,000 hours
- mounting_type: Flush mounting
- protection_rating: IP65 / UL Type 4
- language_support: 42 languages
Additional Details
- Certifications / Approvals: CE, UL/cUL, NK Lloyd, EC Directives
- Programming Software: CX-One
- Hs Code: 85371000
Measurements
- Weight: 1.0 kg max
- Panel Dimensions: 148 mm x 118 mm
