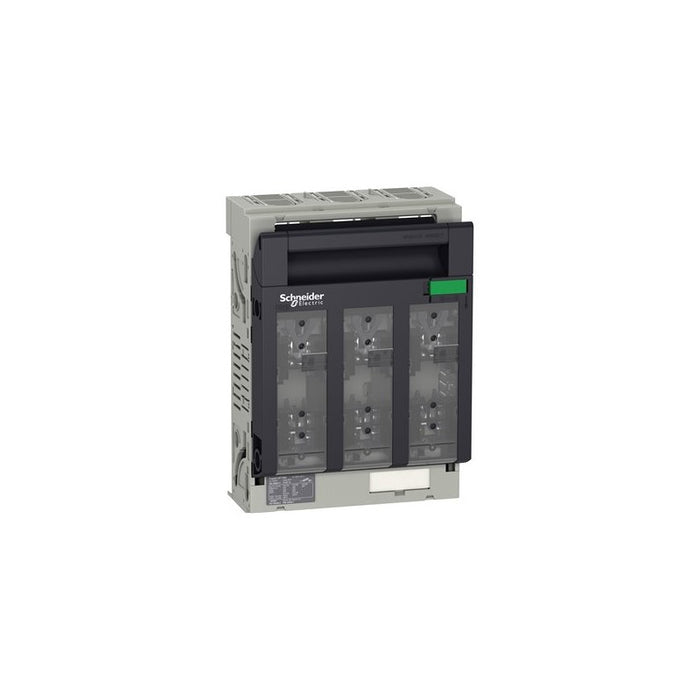

"This device FuPacT ISFT400 is a 3 poles fuse switch disconnector, fixed and front connected." "FuPacT ISFT features offer more flexibility in terms of mounting and cabling" "It is a basic device for mounting on a busbars with turnable hooks." "The rated operational current is 400A at 690VAC for AC21B utilisation category, 400A at 690VAC for AC22B." "Fuse link type is DIN NH02." "It complies with IEC 60947-1 and IEC 60947-3 standards."

Main

Characteristic Value(s)
Range FuPacT
product name FuPacT ISFT
Device short name ISFT400
Product or component type Fuse-switch disconnector
Device application Equipment protection, monitoring and control
Distribution
Signalling function Separated fuse monitor
Poles description 3P
Number of fuse carriers 3
Fuse type DIN
Fuse size NH2
Suitability for isolation Yes conforming to EN/IEC 60947-3
Visible break Yes
Contact position indicator Yes
[Ith] conventional free air thermal current 400 A ( 40 °C ) power dissipation per fuse: 34 W
[Ithe] conventional enclosed thermal current 400 A at 40 °C, Power dissipation per fuse: 34 W
Maximum power dissipation per pole 44 W
[Ue] rated operational voltage 690 V AC 50/60 Hz
440 V DC
800 V AC 50/60 Hz AC-20
800 V DC DC-20
[Ui] rated insulation voltage 1000 V AC 50/60 Hz
1000 V DC
[Uimp] rated impulse withstand voltage 8 kV
[Ie] rated operational current AC-21B: 400 A at 220/240 V AC 50/60 Hz
AC-21B: 400 A at 380/415 V AC 50/60 Hz
AC-21B: 400 A at 440/480 V AC 50/60 Hz
AC-21B: 400 A at 500 V AC 50/60 Hz
AC-21B: 400 A at 660/690 V AC 50/60 Hz
AC-22B: 400 A at 220/240 V AC 50/60 Hz
AC-22B: 400 A at 380/415 V AC 50/60 Hz
AC-22B: 400 A at 440/480 V AC 50/60 Hz
AC-22B: 400 A at 500 V AC 50/60 Hz
AC-22B: 400 A at 660/690 V AC 50/60 Hz
DC-21B: 400 A at 220 V DC (3 poles in series)
DC-21B: 400 A at 440 V DC (3 poles in series)
DC-22B: 400 A at 220 V DC (3 poles in series)

Complementary

Characteristic Value(s)
[Iq] Breaking capacity with fuses (kA RMS) 80 kA at 415 V (AC)
80 kA at 500 V (AC)
25 kA at 690 V (AC)
[Icw] rated short-time withstand current 15.2 kA for 1 s
[Icm] Rated short-circuit making capacity 30.4 kA at 690 V
Rated duty Uninterrupted
control type Fuse carriers handle
Provision for padlocking Lead seal
Mounting position Vertical
Horizontal
Mounting mode Fixed
Mounting support Mounting plate
Busbars
Mounting location Side by side
Contact operation Single-break
Mechanical durability 1000 cycles
Electrical durability AC-21B: 200 cycles 690 V AC 50/60 Hz
AC-22B: 200 cycles 690 V AC 50/60 Hz
AC-23B: 200 cycles 415 V AC 50/60 Hz
Connections - terminals Screw connection downstream M10 400 A
Hook-on upstream 400 A 60 mm
Tightening torque 8 N.m for terminal
Width 210 mm
Height 306 mm
Depth 130 mm
Product weight 2 kg
Standards EN/IEC 60947-1
EN/IEC 60947-3
Product certifications CE
CCC
EAC
