1 year warranty
Ask for quote

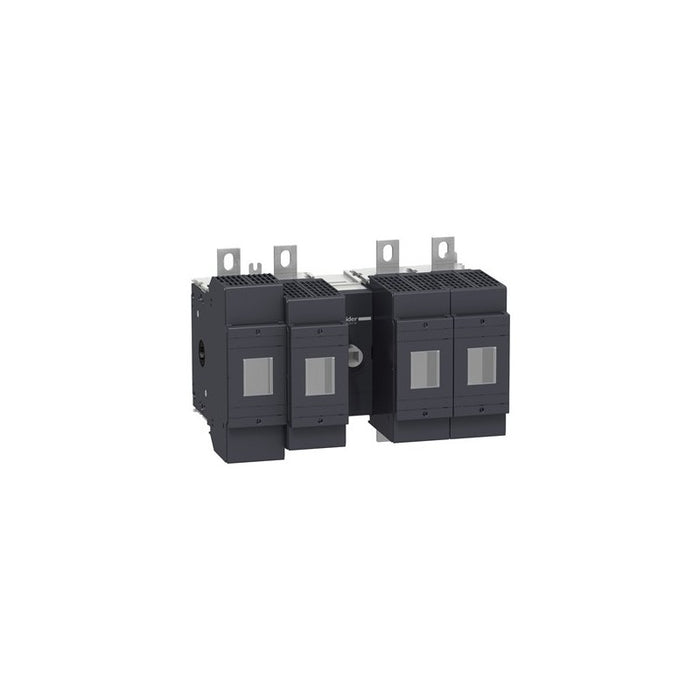

| Characteristic | Value(s) |
|---|---|
| control type | Operating shaft (without handle) |
| Rotary handle mounting location | Front |
| Mounting mode | Fixed |
| Mounting support | Mounting plate |
| [Ie] rated operational current | AC-22A: 400 A at 220/240 V AC 50/60 Hz AC-22A: 400 A at 380/415 V AC 50/60 Hz AC-22A: 400 A at 440/480 V AC 50/60 Hz AC-22A: 400 A at 500/525 V AC 50/60 Hz AC-22A: 400 A at 660/690 V AC 50/60 Hz AC-23A: 400 A at 220/240 V AC 50/60 Hz AC-23A: 400 A at 380/415 V AC 50/60 Hz AC-23A: 400 A at 440/480 V AC 50/60 Hz AC-23A: 400 A at 500/525 V AC 50/60 Hz AC-23A: 400 A at 660/690 V AC 50/60 Hz DC-22A: 400 A at 125 V DC (2 poles in series) DC-23A: 400 A at 125 V DC (2 poles in series) AC-22A: 400 A at 480 V AC 50/60 Hz conforming to NEMA AC-23A: 400 A at 480 V AC 50/60 Hz conforming to NEMA DC-22A: 400 A at 250 V DC (3 poles in series) DC-23A: 400 A at 250 V DC (3 poles in series) |
| [Ith] conventional free air thermal current | 400 A ( 40 °C ) power dissipation per fuse: 45 W vertical 283 A ( 70 °C ) horizontal 283 A ( 70 °C ) vertical 302 A ( 65 °C ) horizontal 302 A ( 65 °C ) vertical 321 A ( 60 °C ) horizontal 321 A ( 60 °C ) vertical 338 A ( 55 °C ) horizontal 338 A ( 55 °C ) vertical 355 A ( 50 °C ) horizontal 355 A ( 50 °C ) vertical 370 A ( 45 °C ) horizontal 370 A ( 45 °C ) vertical 385 A ( 40 °C ) horizontal 400 A ( 35 °C ) horizontal |
| [Ithe] conventional enclosed thermal current | 360 A at 40 °C, Power dissipation per fuse: 37 W (610 mm x 508 mm x 254 mm) 400 A at 40 °C, Power dissipation per fuse: 30 W (610 mm x 508 mm x 254 mm) |
| Maximum power | AC-23: 132 kW at 220/240 V AC 50/60 Hz AC-23: 220 kW at 380/400 V AC 50/60 Hz AC-23: 230 kW at 415 V AC 50/60 Hz AC-23: 280 kW at 500/525 V AC 50/60 Hz AC-23: 400 kW at 660/690 V AC 50/60 Hz |
| Rated duty | Uninterrupted |
| [Ui] rated insulation voltage | 1000 V AC 50/60 Hz 1000 V DC |
| [Uimp] rated impulse withstand voltage | 12 kV |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz 1000 V AC 50/60 Hz AC-20 1000 V DC DC-20 750 V DC |
| [Im] rated making and breaking capacity | Icm 220 kA at 500 V conforming to DIN (with fuse) Icn 100 kA at 500 V conforming to DIN (with fuse) Icm 176 kA at 415 V conforming to DIN (with fuse) Icm 176 kA at 690 V conforming to DIN (with fuse) Icn 80 kA at 415 V conforming to DIN (with fuse) Icn 80 kA at 690 V conforming to DIN (with fuse) Icm 48 kA at 690 V (without fuse) Icm 59 kA at 415 V (without fuse) Icm 63.5 kA at 500 V (without fuse) |
| Suitability for isolation | Yes conforming to IEC 60947-1 |
| Contact position indicator | Yes |
| Contact operation | Double-break |
