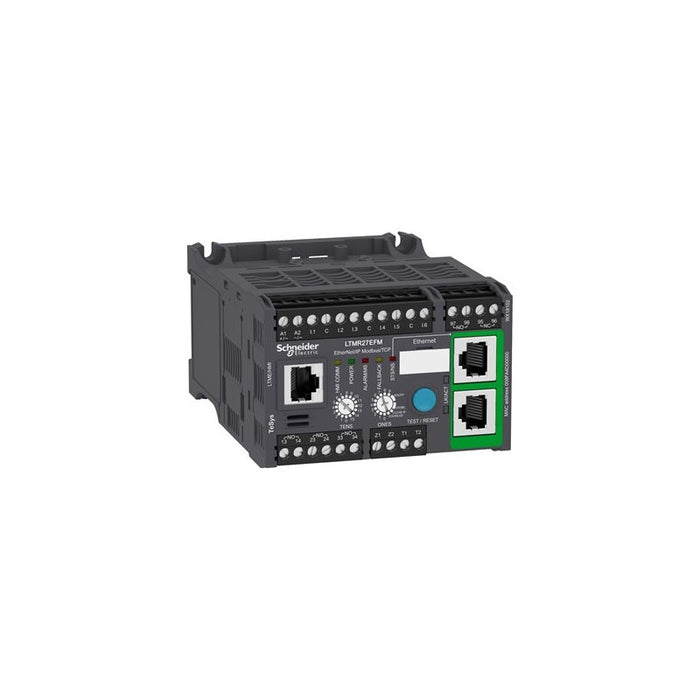

The Schneider Electric LTMR27EFM is a TeSys T series intelligent motor controller designed for motor management, monitoring, control, and protection applications. This device integrates Ethernet/IP and Modbus TCP communication protocols, enabling seamless integration into industrial automation systems. It features 6 logic inputs and 3 logic outputs for flexible control configurations. The controller provides comprehensive motor protection with a current range of 1.35 to 27 A and operates on 100 to 240 VAC power supply at 50/60 Hz. Equipped with integrated current transformers for precise measurement of current, voltage, and power, the LTMR27EFM helps predict process conditions and reduce downtime. The device must be used in conjunction with short circuit protection and a contactor for complete motor protection. It mounts on DIN rail and is designed for critical industrial processes requiring predictive monitoring and advanced motor management capabilities.
Item Details
- Brand Name: Schneider Electric
- Manufacturer: Schneider Electric
- Item Type Name: Motor Controller
- Product Family / Series: TeSys T
- Series: LTMR
Product Specifications
- current_range: 1.35 to 27 A
- power_supply: 100 to 240 V AC
- frequency: 50/60 Hz
- communication_protocols: Ethernet/IP, Modbus TCP
- logic_inputs: 6
- logic_outputs: 3
- contact_configuration: 1NO-1NC/3NO
- output_rating: 5 A at 250 V AC / 5 A at 30 V DC
- control_current_100vac: 3.1 mA
- control_current_240vac: 7.5 mA
- ethernet_standard: IEEE 802.3
- ethernet_speed: 10-100 Mbit/s
- connector_type: RJ45
- operating_temperature: -20 to 60 °C
- voltage_rating: 690 V
- electrical_connections: Terminal screw
- enclosure_rating: IP20/IP54
- mounting: DIN Rail
Additional Details
- Certifications / Approvals: EN/IEC 60947-1, CSA C22.2 No 14, UL 508
- Rohs Compliant: Yes
- Integrated Measurement: 3 integrated measurement CTs
Measurements
- Dimensions: 91 mm W x 122.5 mm D x 61 mm H
