1 year warranty
Ask for quote

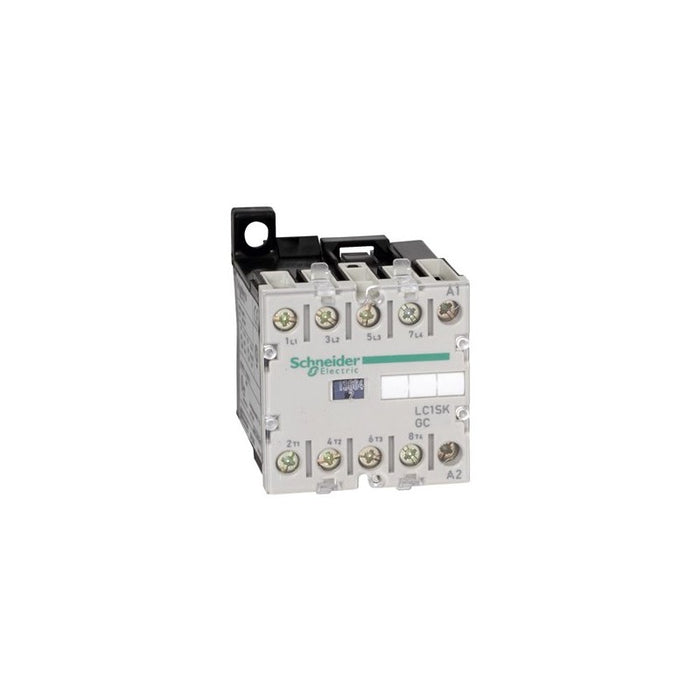

| Characteristic | Value(s) |
|---|---|
| Control circuit type | AC 50/60 Hz |
| [Uc] control circuit voltage | 24 V AC 50/60 Hz |
| [Ith] conventional free air thermal current | 20 A (at 131 °F (55 °C)) for power circuit |
| Irms rated making capacity | 85 A AC conforming to NF C 63-110 85 A AC conforming to IEC 60947 |
| Rated breaking capacity | 68 A at <= 400 V conforming to NF C 63-110 68 A at <= 400 V conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 60 A 131 °F (55 °C) for power circuit |
| Associated fuse rating | 20 A gI at <= 440 V for power circuit |
| Average impedance | 4 mOhm - Ith 20 A 50 Hz for power circuit |
| [Ui] rated insulation voltage | Power circuit 690 V BS 5424 Power circuit 690 V IEC 60947 Power circuit 690 V UL 508 Power circuit 690 V VDE 0110 group C Power circuit 690 V CSA C22.2 No 14 |
| Mounting Support | Panel Rail |
| Standards | EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 |
| Product Certifications | CB Scheme CE UKCA EAC cULus |
| Connections - terminals | connector 1 0.002â¦0.009 in² (1.5â¦6 mm²)solid connector 2 0.002â¦0.006 in² (1.5â¦4 mm²)solid connector 1 0.0008â¦0.009 in² (0.5â¦6 mm²)flexible without cable end connector 2 0.0005â¦0.004 in² (0.35â¦2.5 mm²)flexible without cable end connector 1 0.0005â¦0.009 in² (0.35â¦6 mm²)flexible with cable end connector 2 0.0005â¦0.002 in² (0.35â¦1.5 mm²)flexible with cable end |
| Tightening torque | Power circuit 7.08 lbf.in (0.8 N.m) connector pozidriv No 1 |
| Operating time | 6...8 ms coil de-energisation and NO opening 7...14 ms coil energisation and NO closing |
| Mechanical durability | 10 Mcycles |
| Maximum operating rate | 1200 cyc/h |
| Control circuit voltage limits | Operational: 0.85...1.1 Uc at 50/60 Hz (at <131 °F (55 °C)) Drop-out: 0.2...0.75 Uc at 50/60 Hz (at <131 °F (55 °C)) |
| Inrush power in VA | 23 VA 50/60 Hz (at 68 °F (20 °C)) |
| Hold-in power consumption in VA | 4.9 VA 50/60 Hz (at 68 °F (20 °C)) |
| Heat dissipation | 1.5 W 50/60 Hz |
All PLC Direct products come with a 1-year warranty. The warranty is issued by PLC Direct. Warranty coverage commences at the date of purchase. The warranty is for mechanical defects or failures not caused by human factors including but not limited to (a) incorrect installation, (b) operating the unit in sub-optimal conditions or in scenarios not recommended by the manufacturer, (c) poor unit maintenance, etc. The warranty does not cover programming or software related issues.
If the product is eligible for PLC Direct’s warranty coverage and the customer encounters an issue with the product, we will request the item is shipped to us for diagnosis and examination. Regardless of the cause of product issues, the customer will bear responsibility for the cost of shipping the unit to PLC Direct for evaluation. Where the unit was damaged by human factors, we will offer a repair or replace quote; in cases where damage was caused by human factors, the customer is responsible for the cost of shipping the repaired/replaced unit from PLC Direct to the customer. Where the unit was not damaged by human factors but is covered by PLC Direct’s warranty, we will repair or replace the unit at our cost (or, in rare cases, refund you your purchase); in such cases, PLC Direct will bear the cost of shipping the repaired or replaced product back to the customer. It is up to PLC Direct’s discretion whether to repair, replace, or refund the customer in such cases. Diagnoses can take time to complete based on technician availability and the complexity of diagnosis.
In no event shall PLC Direct be liable for any damages except actual damages up to, but not exceeding, the amount paid to us for the product, including we shall not be liable for any consequential or indirect damages or lost profits whether or not advised of same.
PLC Direct offers free shipping worldwide. Product ship from a various warehouses worldwide based on the customer's and the product's location. The estimated delivery date on the product page is PLC Direct's best estimated assuming a US-based shipping destination.
Regardless of where the product is shipping from, PLC Direct covers all duties for US-based shipping destinations. For non-US-based shipping destinations, customers are responsible for duties as appropriate.
PLC Direct's focus is on balancing price with lead time. Some but not all products can be expedited. If you have questions about delivery ETAs, please contact our team.
