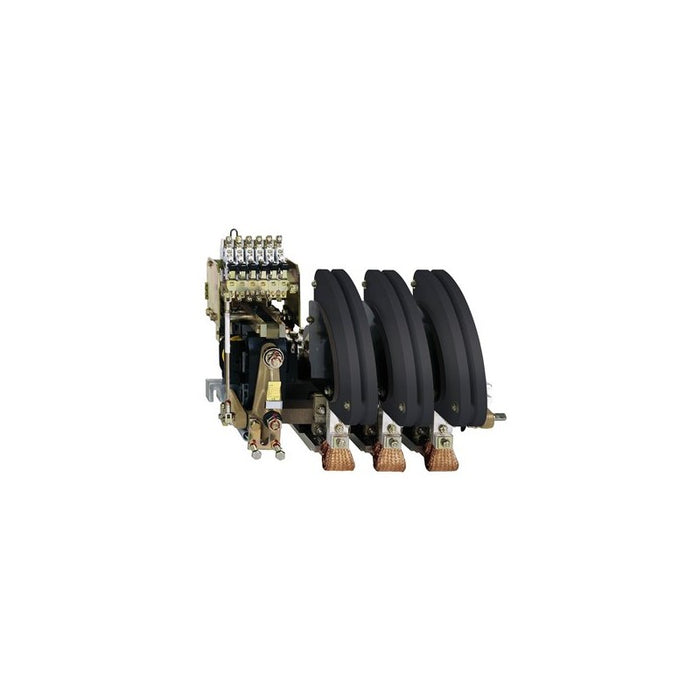

| Characteristic | Value(s) |
|---|---|
| Control circuit voltage limits | Drop-out: 0.3...0.5 Uc at 50...400 Hz Operational: 0.85...1.1 Uc at 50...400 Hz |
| [Ui] rated insulation voltage | 1000 V - power circuit IEC 60158-1 1000 V - power circuit IEC 60947-4 1500 V - power circuit VDE 0110 group C |
| Mounting Mode | Fixed |
| Mounting Support | Notched mounting rails Bar support bracket |
| Tightening torque | Power circuit 309.8 lbf.in (35 N.m) bars |
| [Ue] rated operational voltage | Power circuit <= 1000 V AC 50/60 Hz |
| [Ith] conventional free air thermal current | 1250 A (at 104 °F (40 °C)) for power circuit |
| Irms rated making capacity | 10000 A at 1000 V AC for power circuit conforming to IEC 60158-1 10000 A at 1000 V AC for power circuit conforming to IEC 60947-4 |
| Rated breaking capacity | 10000 A at 440 V for power circuit conforming to IEC 60158-1 10000 A at 440 V for power circuit conforming to IEC 60947-4 4000 A at 1000 V for power circuit conforming to IEC 60158-1 4000 A at 1000 V for power circuit conforming to IEC 60947-4 8000 A at 660...690 V for power circuit conforming to IEC 60158-1 8000 A at 660...690 V for power circuit conforming to IEC 60947-4 9000 A at 500 V for power circuit conforming to IEC 60158-1 9000 A at 500 V for power circuit conforming to IEC 60947-4 |
| Associated fuse rating | 1200 A aM at <= 440 V for power circuit 1200 A gI at <= 440 V for power circuit 1500 A gI at <= 440 V for power circuit |
| Average impedance | 0.18 mOhm - Ith 1250 A 50 Hz for power circuit |
| Power dissipation per pole | 180 W AC-3 - Ith 1250 A 280 W AC-1 - Ith 1250 A |
| Inrush power in VA | 1300 VA |
| Hold-in power consumption in VA | 31 VA 50/60 Hz |
| Operating time | 100...150 ms closing 50...100 ms opening |
| Mechanical durability | 1200000 cycles |
| Maximum operating rate | 120 cyc/h 131 °F (55 °C) |
| Height | 19.3 in (490 mm) |
| Width | 22.4 in (570 mm) |
| Depth | 18.7 in (475 mm) |
| Product Weight | 125.7 lb(US) (57 kg) |
