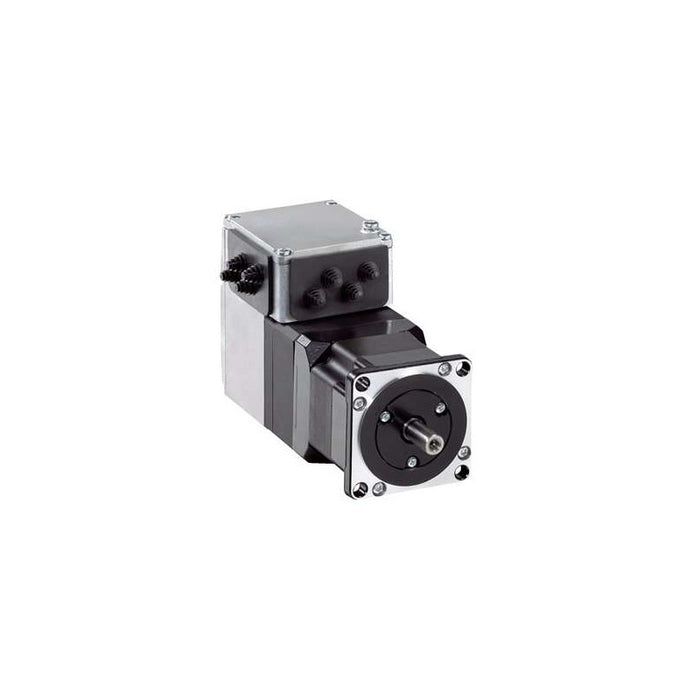

This product is part of the Lexium ILA range, an offer of motion integrated drives for motion control. The motion integrated drive with a 6-pole AC synchronous servo motor features an integrated EtherNet/IP communication interface and untapped shaft without holding brake. It is an equipped with a multi-turn encoder (16,384 points/turn x 4096 turns). The AC synchronous servo motor with a rated supply voltage of 24V, 48V DC, a peak current consumption of 11000mA and a nominal speed of 7000RPM at 48V. The shaft dimensions are 9mm (diameter) x 20mm (length). It is furnished with industrial connector for electrical connection. It is an IP41 (shaft bushing) and IP54 (total except shaft bushing) rated product. Its dimensions are 189.3mm (length) x 57mm (width) and the centering collar dimensions are 1.6mm (depth) x 50mm (diameter) with 66.6mm mounting hole. It weighs 1.4kg. It is suitable for printing, paper, packaging, handling, labelling, textile industry, electronics manufacture and medical technology applications. This product is certified by CE, TUV, CUL and UL. It meets EN/IEC 61800-3, EN 61800-3 2001, EN/IEC 50178, EN 61800-3 2001-02, IEC 61800-3, Ed 2 and EN 50347 standards. It supports 57mm flange mount with a natural convection cooling system. Lexium integrated drives integrate motor, positioning controller, power electronics, Fieldbus and safety function in a single device. Integrated drives for motion control with stepper, servo or brushless DC motor.

Main

Characteristic Value(s)
Range of Product Lexium integrated drive
Product or Component Type Motion integrated drive
Device short name ILA
Motor Type AC Synchronous Servo Motor
Number of motor poles 6
Phase Single phase
[Us] rated supply voltage 48 V
24 V
Network type DC
Communication interface Ethernet/IP, Integrated
Length 7.5 in (189.3 mm)
Winding type High speed of rotation and medium torque
Electrical Connection Industrial connector
Holding brake Without
Gear box type Without
Nominal speed 5000 rpm 24 V
7000 rpm 48 V
Nominal torque 2.74 lbf.in (0.31 N.m)

Complementary

Characteristic Value(s)
Transmission Rate 125, 250, 500 kbauds
Mounting Support Flange
Motor flange size 2.2 in (57 mm)
Number of motor stacks 1
Centring collar diameter 2.0 in (50 mm)
centring collar depth 0.06 in (1.6 mm)
Number of mounting holes 4
Mounting holes diameter 0.2 in (5.2 mm)
Circle diameter of the mounting holes 2.6 in (66.6 mm)
Feedback type Multi turn encoder
Shaft end Untapped
Second shaft Without second shaft end
Shaft diameter 0.4 in (9 mm)
Shaft length 0.8 in (20 mm)
Supply voltage limits 18…55.2 V
Current consumption 11000 mA peak
7500 mA maximum continuous
Associated fuse rating 16 A
Commissioning interface RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)
Input/output type 4 signals (each be used as input or output)
Voltage state 0 guaranteed -3...4.5 V
Voltage state 1 guaranteed 15...30 V
Discrete input current 10 mA at 24 V safety input
2 mA at 24 V 24 V signal interface
Discrete output voltage 23...25 V
Maximum switching current 100 mA per output
200 mA total
Protection Type Safe torque off
Short circuit of the output voltage
Overload of output voltage
Peak stall torque 3.98 lbf.in (0.45 N.m)
Continuous stall torque 2.74 lbf.in (0.31 N.m)
Speed feedback resolution 16384 points/turn x 4096 turns
Accuracy error +/- 0.05 °
Rotor inertia 0.095 kg.cm²
Maximum radial force Fr 89 N
Maximum axial force Fa 104 N force pressure)
104 N tensile force)
Service life in hours 20000 h bearing
Marking CE
type of cooling Natural convection
Product Weight 3.09 lb(US) (1.4 kg)
Price on request
Ask for quote

Notify Me When Available

This product is part of the Lexium ILA range, an offer of motion integrated drives for motion control. The motion integrated drive with a 6-pole AC synchronous servo motor features an integrated EtherNet/IP communication interface and untapped shaft without holding brake. It is an equipped with a multi-turn encoder (16,384 points/turn x 4096 turns). The AC synchronous servo motor with a rated supply voltage of 24V, 48V DC, a peak current consumption of 11000mA and a nominal speed of 7000RPM at 48V. The shaft dimensions are 9mm (diameter) x 20mm (length). It is furnished with industrial connector for electrical connection. It is an IP41 (shaft bushing) and IP54 (total except shaft bushing) rated product. Its dimensions are 189.3mm (length) x 57mm (width) and the centering collar dimensions are 1.6mm (depth) x 50mm (diameter) with 66.6mm mounting hole. It weighs 1.4kg. It is suitable for printing, paper, packaging, handling, labelling, textile industry, electronics manufacture and medical technology applications. This product is certified by CE, TUV, CUL and UL. It meets EN/IEC 61800-3, EN 61800-3 2001, EN/IEC 50178, EN 61800-3 2001-02, IEC 61800-3, Ed 2 and EN 50347 standards. It supports 57mm flange mount with a natural convection cooling system. Lexium integrated drives integrate motor, positioning controller, power electronics, Fieldbus and safety function in a single device. Integrated drives for motion control with stepper, servo or brushless DC motor.

Main

Characteristic Value(s)
Range of Product Lexium integrated drive
Product or Component Type Motion integrated drive
Device short name ILA
Motor Type AC Synchronous Servo Motor
Number of motor poles 6
Phase Single phase
[Us] rated supply voltage 48 V
24 V
Network type DC
Communication interface Ethernet/IP, Integrated
Length 7.5 in (189.3 mm)
Winding type High speed of rotation and medium torque
Electrical Connection Industrial connector
Holding brake Without
Gear box type Without
Nominal speed 5000 rpm 24 V
7000 rpm 48 V
Nominal torque 2.74 lbf.in (0.31 N.m)

Complementary

Characteristic Value(s)
Transmission Rate 125, 250, 500 kbauds
Mounting Support Flange
Motor flange size 2.2 in (57 mm)
Number of motor stacks 1
Centring collar diameter 2.0 in (50 mm)
centring collar depth 0.06 in (1.6 mm)
Number of mounting holes 4
Mounting holes diameter 0.2 in (5.2 mm)
Circle diameter of the mounting holes 2.6 in (66.6 mm)
Feedback type Multi turn encoder
Shaft end Untapped
Second shaft Without second shaft end
Shaft diameter 0.4 in (9 mm)
Shaft length 0.8 in (20 mm)
Supply voltage limits 18…55.2 V
Current consumption 11000 mA peak
7500 mA maximum continuous
Associated fuse rating 16 A
Commissioning interface RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)
Input/output type 4 signals (each be used as input or output)
Voltage state 0 guaranteed -3...4.5 V
Voltage state 1 guaranteed 15...30 V
Discrete input current 10 mA at 24 V safety input
2 mA at 24 V 24 V signal interface
Discrete output voltage 23...25 V
Maximum switching current 100 mA per output
200 mA total
Protection Type Safe torque off
Short circuit of the output voltage
Overload of output voltage
Peak stall torque 3.98 lbf.in (0.45 N.m)
Continuous stall torque 2.74 lbf.in (0.31 N.m)
Speed feedback resolution 16384 points/turn x 4096 turns
Accuracy error +/- 0.05 °
Rotor inertia 0.095 kg.cm²
Maximum radial force Fr 89 N
Maximum axial force Fa 104 N force pressure)
104 N tensile force)
Service life in hours 20000 h bearing
Marking CE
type of cooling Natural convection
Product Weight 3.09 lb(US) (1.4 kg)
Characteristic Value(s)
Transmission Rate 125, 250, 500 kbauds
Mounting Support Flange
Motor flange size 2.2 in (57 mm)
Number of motor stacks 1
Centring collar diameter 2.0 in (50 mm)
centring collar depth 0.06 in (1.6 mm)
Number of mounting holes 4
Mounting holes diameter 0.2 in (5.2 mm)
Circle diameter of the mounting holes 2.6 in (66.6 mm)
Feedback type Multi turn encoder
Shaft end Untapped
Second shaft Without second shaft end
Shaft diameter 0.4 in (9 mm)
Shaft length 0.8 in (20 mm)
Supply voltage limits 18…55.2 V
Current consumption 11000 mA peak
7500 mA maximum continuous
Associated fuse rating 16 A
Commissioning interface RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)
Input/output type 4 signals (each be used as input or output)
Voltage state 0 guaranteed -3...4.5 V
Voltage state 1 guaranteed 15...30 V
Discrete input current 10 mA at 24 V safety input
2 mA at 24 V 24 V signal interface
Discrete output voltage 23...25 V
Maximum switching current 100 mA per output
200 mA total
Protection Type Safe torque off
Short circuit of the output voltage
Overload of output voltage
Peak stall torque 3.98 lbf.in (0.45 N.m)
Continuous stall torque 2.74 lbf.in (0.31 N.m)
Speed feedback resolution 16384 points/turn x 4096 turns
Accuracy error +/- 0.05 °
Rotor inertia 0.095 kg.cm²
Maximum radial force Fr 89 N
Maximum axial force Fa 104 N force pressure)
104 N tensile force)
Service life in hours 20000 h bearing
Marking CE
type of cooling Natural convection
Product Weight 3.09 lb(US) (1.4 kg)
