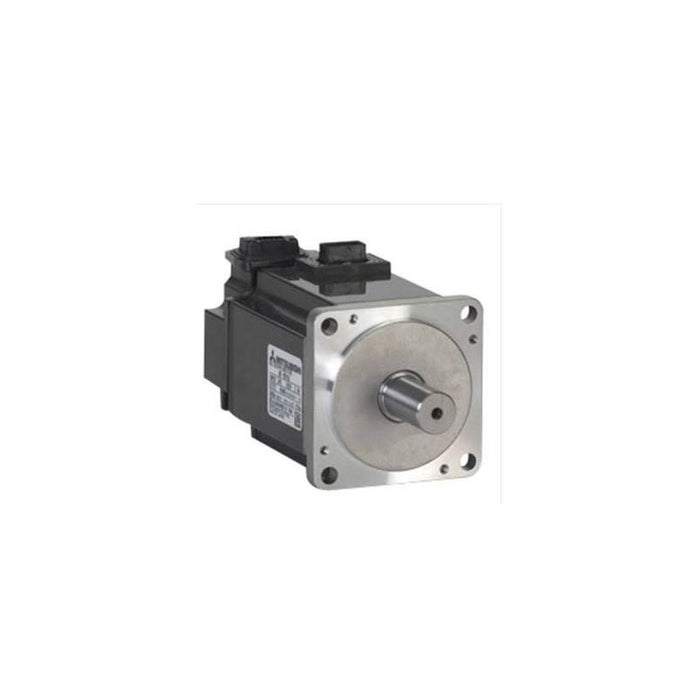

The HG-SR202K is an AC brushless rotary servo motor from Mitsubishi Electric's MELSERVO J4 series, designed for precision motion control in industrial automation applications. This medium inertia, medium capacity servo motor features a keyed shaft design for secure mechanical coupling and incorporates a built-in 22-bit absolute encoder for high-resolution feedback. The motor delivers 2 kW of rated output power at 2000 rpm with a rated torque of 9.5 Nm. It operates on 200V AC class supply voltage with a rated current of 9.6 A. The motor utilizes natural cooling and is rated IP67 for dust and water ingress protection. Equipped with two MS-type connectors, it is suitable for demanding industrial environments requiring accurate position and speed control in applications such as robotics, packaging machinery, and CNC equipment.
Item Details
- Brand Name: Mitsubishi Electric
- Manufacturer: Mitsubishi Electric
- Item Type Name: AC Servo Motor
- Product Family / Series: MELSERVO J4 series
- Series: HG Series
- Inertia Class: Medium inertia
- Capacity Class: Medium power capacity
- Shaft Type: Keyed shaft
- Cooling Method: Natural cooling
Product Specifications
- rated_output_power: 2000 W
- rated_torque: 9.5 Nm
- rated_speed: 2000 rpm
- supply_voltage: 200 V AC class
- rated_current: 9.6 A
- encoder_resolution: 22-bit
- encoder_type: Absolute feedback encoder
- feedback_resolution_equivalent: 4194304 ppr
- flange_size: 176x176 mm
- ingress_protection: IP67
- connector_type: 2 x MS-type connectors
Additional Details
- Certifications / Approvals: CE marking, TUV Rheinland, cULus, UL, KC, EN61800-3, EN60034-1, EN62061 SIL CL3, EN50581, UL1004-1, UL1004-6, CSA, EAC
- Operating Temperature: 0 to +40 °C
Measurements
- Weight: 10.00 lbs
