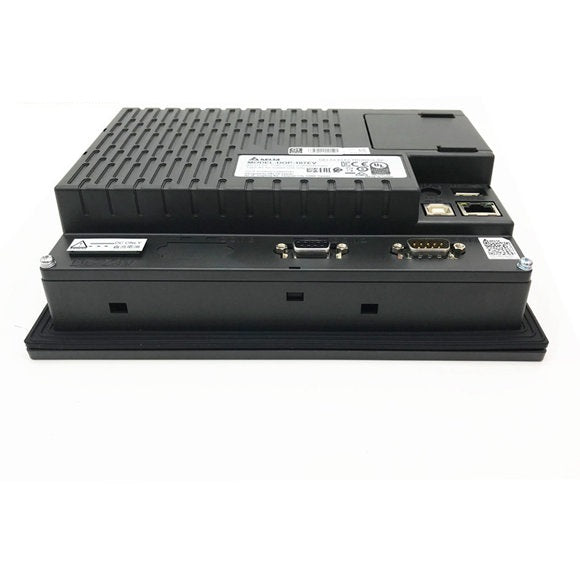

The DOP-107EV is a 7-inch TFT LCD human machine interface from Delta Electronics' DOP-100 Series. It features a widescreen display with 800x480 pixel resolution and 65,536 colors, powered by an ARM Cortex-A8 processor running at 800 MHz. The unit includes 256 MB RAM and 256 MB ROM for robust application performance. Connectivity options include built-in Ethernet, two RS-232/RS-485/RS-422 configurable COM ports, USB Host and USB Client interfaces. Designed for industrial automation applications, the HMI provides intuitive operator interface capabilities with four-wire resistive touchscreen technology rated for over 10 million presses. The unit is panel-mountable with CE and UL certifications, suitable for indoor installation in manufacturing, process control, and machine monitoring environments.
Item Details
- Brand Name: Delta
- Manufacturer: Delta Electronics, Inc.
- Item Type Name: Human Machine Interface (HMI)
- Product Family / Series: DOP-100 Series
- Model: DOP-107EV
- Product Type: Standard Ethernet Type (2 COM) HMI
Product Specifications
- display_size: 7 inch
- display_type: TFT LCD
- resolution: 800 x 480 pixels
- colors: 65,536 colors (16-bit)
- backlight_brightness: 400 cd/m²
- processor: ARM Cortex-A8 800 MHz
- ram: 256 MB
- rom: 256 MB
- touchscreen_type: Four-wire resistive
- touchscreen_durability: >10,000,000 presses
- communication_ports: 2 COM ports (RS-232/RS-485/RS-422) + 1 extension COM port
- ethernet: Built-in Ethernet (LAN)
- usb: USB Host and USB Client
- operating_temperature: 0°C to 50°C
- storage_temperature: -20°C to 60°C
- backup_battery: 3V lithium battery CR2032
- cooling_method: Natural air cooling
- power_supply: 24V DC
- max_panel_thickness: 5 mm
- mounting_type: Panel mount
Additional Details
- Country of Origin*: CN
- Certifications / Approvals: CE, UL, RoHS Exempt
- Programming Software: DOPSoft
*Country of origin may vary.
Measurements
- Weight: 970 g
- Panel Cutout: 226 x 128.7 mm
- Overall Dimensions: 261.3 x 189.3 mm (front)
- Depth: 54 mm
- Rear Clearance Required: 60 mm minimum
