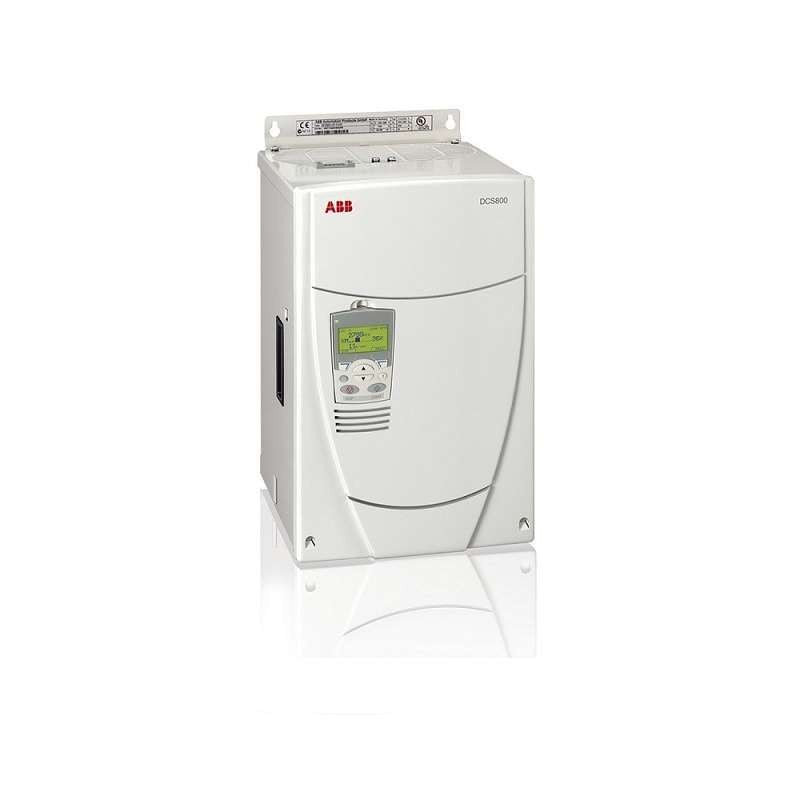

The ABB DCS800-S02-0350-05 is a fully digital DC drive converter designed for precise speed and torque control of DC motors in industrial applications. This is a 4-quadrant (4-Q) reversing drive capable of regenerative operation, enabling both forward and reverse rotation with full braking capability. The drive features a three-phase AC input design accepting 208-240 VAC or 400-480 VAC supply voltage and delivers a regulated DC output voltage up to 500 VDC. With a rated output current of 350 A, it provides power ratings of 75 HP at 230 VAC input or 200 HP at 460 VAC input. The drive incorporates ABB's advanced control algorithms, built-in start-up assistant, and comprehensive protection features. Frame size D3 construction provides IP00 (open chassis) protection suitable for panel mounting. The DCS800 series is engineered for demanding applications including paper mills, metal processing, cranes, hoists, and general industrial machinery requiring precise DC motor control.
Item Details
- Brand Name: ABB
- Manufacturer: ABB
- Item Type Name: DC Drive Converter
- Product Family / Series: DCS800
- Series: DCS800-S0
- Model Number: DCS800-S02-0350-05
- Converter Type: 4-Quadrant Reversing DC Drive
- Bridge Configuration: Double Bridge
Product Specifications
- rated_output_current: 350 A
- input_voltage_range: 208-240 VAC or 400-480 VAC
- input_phases: 3-phase
- input_frequency: 50/60 Hz
- dc_output_voltage: 240 VDC or 500 VDC
- motor_power_rating_230v: 75 HP
- motor_power_rating_460v: 200 HP
- motor_power_rating_kw: 150 kW
- field_exciter_current: 20 A
- frame_size: D3
- quadrant_operation: 4-Q (Four Quadrant)
- control_method: Fully Digital
- ambient_temperature_max: 40 °C
- elevation_max: 1000 m
- cooling_airflow: 210 m³/h
- power_losses_typical: 3105 W
Additional Details
- Lifecycle Status: Discontinued by manufacturer
- Enclosure Rating: IP00 (Open chassis)
- Mounting Type: Panel/Wall mount
- Control Panel: DCS800 Control Panel included
- Fuse Requirements: External AC line fuses required (Frame D1-D4)
- Dc Fuse Requirements: 2 DC fuses required for 4-Q converters
Measurements
- Weight: 25 kg
