| SKU: CX5020-0121

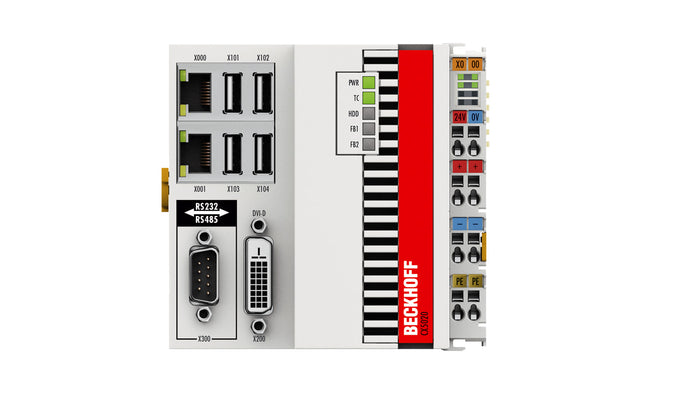

CX5020-0121 Beckhoff

CX5020-0121 | BECKHOFF | CPU module, E-bus, Windows Embedded Standard 2009, TwinCAT 2 PLC runtime
Processor: Intel Atom® Z530, 1.6 GHz clock frequency

Number of cores: 1
Flash memory: slot for Compact Flash card, 128 MB included (expandable)
Main memory: 512 MB RAM (expandable ex factory to 1 GB)
Persistent memory: integrated 1-second UPS (1 MB on Compact Flash card)
Interfaces: 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-D, 4 x USB 2.0, 1 x optional interface
Diagnostics LED: 1 x power, 1 x TC status, 1 x flash access, 2 x bus status
Clock: internal battery-backed clock for time and date (battery exchangeable)
Operating system: Windows Embedded CE 6, Windows Embedded Standard 2009
Control software: TwinCAT 2 runtime
TwinCAT 3 runtime (XAR)
I/O connection: E-bus or K-bus, automatic recognition

Power supply: 24 V DC (-15 %/+20 %)

Current supply E-bus/K-bus: 2 A

Max. power consumption: 13 W

Dimensions (W x H x D): 106 mm x 100 mm x 92 mm

Weight: approx. 575 g

Relative humidity: 95 %, no condensation

Operating/storage temperature: -25…+60 °C/-40…+85 °C

EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4

Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27

Protection rating: IP20

Approvals/markings: CE, UL, with CX1900-0105 ordering option: ATEX

Ex marking: II 3 G Ex nA IIC T4 Gc

TwinCAT 3 platform level: Performance (40); please see here for an overview of all the TwinCAT 3 platform level

Shipping Weight: 3Kg

€1.785,95
