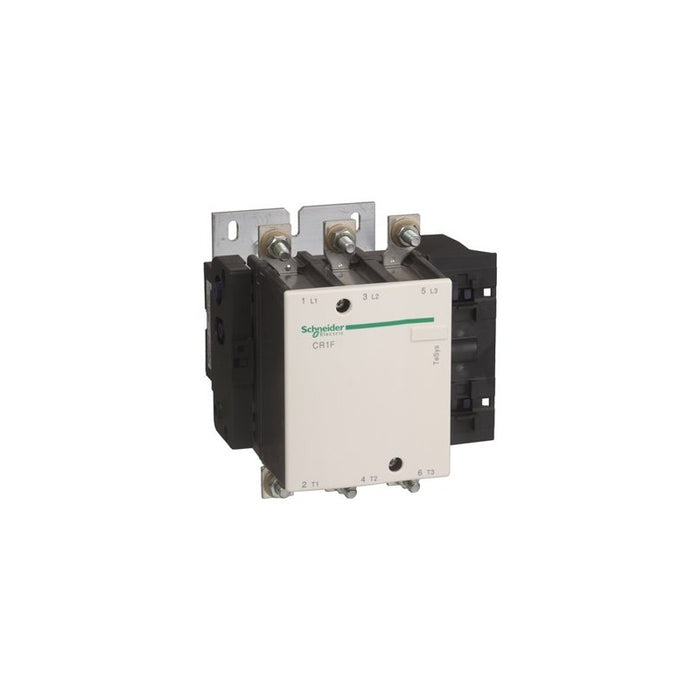

CR1F265F7 Schneider Electric

CR1F265F7 Schneider Electric

TeSys F magnetic latching contactor, 3 poles (3NO), 265A/1000V AC-3, for motor applications up to 132kW@400V. It provides a double coil 110V AC (50-400Hz) or DC for latching and unlatching, bolt terminals for bars or cables with lugs. Supply to the coils must be applied by pulsed contacts leading to energy saving and no sensibility to interferences for contactors remaining in closed state for long periods. For operating rates until 120 cycles/hour and environments until 70°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks (instantaneous and time delay auxiliary contacts, suppressor blocks) and connection accessories (to be ordered separately). It conforms to IEC 60158-1 and IEC 60947-4.

Main

Characteristic Value(s)
Range TeSys
product name TeSys F
Product or Component Type Magnetic latching contactor
Device short name CR1F
Device Application Control
Contactor application Resistive load
Motor control
Utilisation category AC-1
AC-3
AC-4
Poles description 3P
power pole contact composition 3 NO
[Ue] rated operational voltage 1000 V AC 25...200 Hz
[Ie] rated operational current 265 A (at <104 °F (40 °C)) at <= 440 V AC AC-3
350 A (at <104 °F (40 °C)) at <= 440 V AC AC-1
245 A (at <104 °F (40 °C)) at <= 440 V AC AC-4
Motor power kW 132 kW at 400 V AC 50/60 Hz (AC-4)
Control circuit type AC 50...400 Hz
DC standard
[Uc] control circuit voltage 110 V AC 50...400 Hz
110 V DC
Irms rated making capacity 2940 A
Rated breaking capacity 2450 A at 220...440 V
2200 A at 500 V
800 A at 1000 V
1700 A at 660/690 V
[Icw] rated short-time withstand current 2200 A 104 °F (40 °C) - 1 s
2200 A 104 °F (40 °C) - 5 s
2200 A 104 °F (40 °C) - 10 s
1230 A 104 °F (40 °C) - 30 s
950 A 104 °F (40 °C) - 1 min
620 A 104 °F (40 °C) - 3 min
480 A 104 °F (40 °C) - 10 min
Associated fuse rating 315 A aM at <= 440 V
400 A BS88 at <= 440 V
400 A gG at <= 440 V
Average impedance 0.32 mOhm - Ith 350 A 50 Hz
[Ui] rated insulation voltage 1000 V IEC 60158-1
1000 V IEC 60947-4
1000 V BS 775
1500 V VDE 0110 group C
Power dissipation per pole 22 W AC-3
39 W AC-1
Standards EN/IEC 60947-1
EN/IEC 60947-4-1
JIS C8201-4-1
UL 60947-4-1
CSA C22.2 No 60947-4-1
Product Certifications CB Scheme
UL
CSA
EAC
CE
UKCA
Connections - terminals lugs-ring terminals 1 0.4 in² (240 mm²)
connector 1 0.4 in² (240 mm²)
bars 2 32 x 4 mm
Power circuit bolted connection
Tightening torque 309.8 lbf.in (35 N.m)
Operating time 40...75 ms latching
50...100 ms unlatching
Mechanical durability 1 Mcycles
Maximum operating rate 120 cyc/h 104 °F (40 °C)

Complementary

Characteristic Value(s)
Control circuit voltage limits Latching: 0.85...1.1 Uc
Unlatching: 0.85...1.1 Uc
average consumption 1800 VA AC 50...400 Hz latching
12 VA AC 50...400 Hz unlatching
1800 VA DC latching
12 VA DC unlatching
Price on request
Ask for quote

Notify Me When Available

TeSys F magnetic latching contactor, 3 poles (3NO), 265A/1000V AC-3, for motor applications up to 132kW@400V. It provides a double coil 110V AC (50-400Hz) or DC for latching and unlatching, bolt terminals for bars or cables with lugs. Supply to the coils must be applied by pulsed contacts leading to energy saving and no sensibility to interferences for contactors remaining in closed state for long periods. For operating rates until 120 cycles/hour and environments until 70°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks (instantaneous and time delay auxiliary contacts, suppressor blocks) and connection accessories (to be ordered separately). It conforms to IEC 60158-1 and IEC 60947-4.

Main

Characteristic Value(s)
Range TeSys
product name TeSys F
Product or Component Type Magnetic latching contactor
Device short name CR1F
Device Application Control
Contactor application Resistive load
Motor control
Utilisation category AC-1
AC-3
AC-4
Poles description 3P
power pole contact composition 3 NO
[Ue] rated operational voltage 1000 V AC 25...200 Hz
[Ie] rated operational current 265 A (at <104 °F (40 °C)) at <= 440 V AC AC-3
350 A (at <104 °F (40 °C)) at <= 440 V AC AC-1
245 A (at <104 °F (40 °C)) at <= 440 V AC AC-4
Motor power kW 132 kW at 400 V AC 50/60 Hz (AC-4)
Control circuit type AC 50...400 Hz
DC standard
[Uc] control circuit voltage 110 V AC 50...400 Hz
110 V DC
Irms rated making capacity 2940 A
Rated breaking capacity 2450 A at 220...440 V
2200 A at 500 V
800 A at 1000 V
1700 A at 660/690 V
[Icw] rated short-time withstand current 2200 A 104 °F (40 °C) - 1 s
2200 A 104 °F (40 °C) - 5 s
2200 A 104 °F (40 °C) - 10 s
1230 A 104 °F (40 °C) - 30 s
950 A 104 °F (40 °C) - 1 min
620 A 104 °F (40 °C) - 3 min
480 A 104 °F (40 °C) - 10 min
Associated fuse rating 315 A aM at <= 440 V
400 A BS88 at <= 440 V
400 A gG at <= 440 V
Average impedance 0.32 mOhm - Ith 350 A 50 Hz
[Ui] rated insulation voltage 1000 V IEC 60158-1
1000 V IEC 60947-4
1000 V BS 775
1500 V VDE 0110 group C
Power dissipation per pole 22 W AC-3
39 W AC-1
Standards EN/IEC 60947-1
EN/IEC 60947-4-1
JIS C8201-4-1
UL 60947-4-1
CSA C22.2 No 60947-4-1
Product Certifications CB Scheme
UL
CSA
EAC
CE
UKCA
Connections - terminals lugs-ring terminals 1 0.4 in² (240 mm²)
connector 1 0.4 in² (240 mm²)
bars 2 32 x 4 mm
Power circuit bolted connection
Tightening torque 309.8 lbf.in (35 N.m)
Operating time 40...75 ms latching
50...100 ms unlatching
Mechanical durability 1 Mcycles
Maximum operating rate 120 cyc/h 104 °F (40 °C)

Complementary

Characteristic Value(s)
Control circuit voltage limits Latching: 0.85...1.1 Uc
Unlatching: 0.85...1.1 Uc
average consumption 1800 VA AC 50...400 Hz latching
12 VA AC 50...400 Hz unlatching
1800 VA DC latching
12 VA DC unlatching
Characteristic Value(s)
Control circuit voltage limits Latching: 0.85...1.1 Uc
Unlatching: 0.85...1.1 Uc
average consumption 1800 VA AC 50...400 Hz latching
12 VA AC 50...400 Hz unlatching
1800 VA DC latching
12 VA DC unlatching
