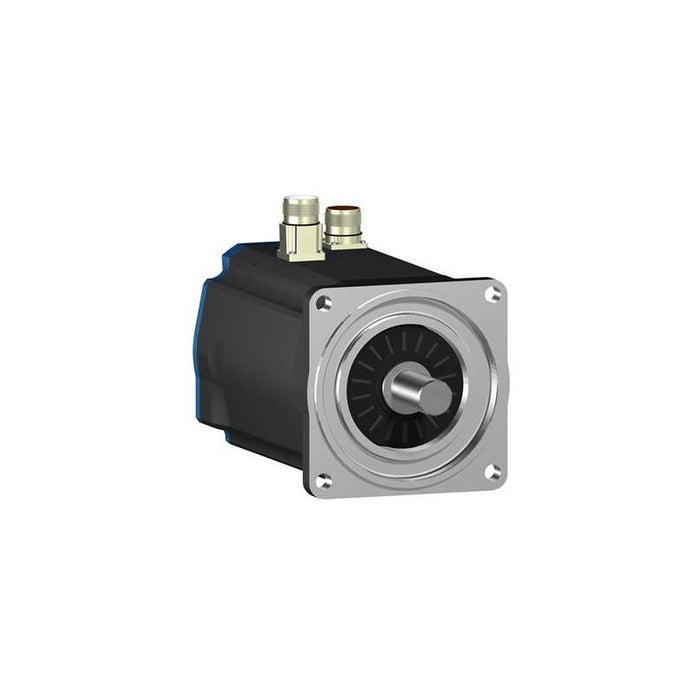

BSH1004P01A1A Schneider

BSH1004P01A1A Schneider

Main

Characteristic Value(s)
Device short name BSH
Product or Component Type Servo motor
Maximum mechanical speed 6000 rpm
Continuous stall torque 70.8 lbf.in (8 N.m) LXM32.D30N4 10 A, 400 V, three phase
70.8 lbf.in (8 N.m) LXM32.D30N4 10 A, 480 V, three phase
82.40 lbf.in (9.31 N.m) LXM15MD40N4, 400 V, three phase
82.40 lbf.in (9.31 N.m) LXM15MD40N4, 480 V, three phase
82.40 lbf.in (9.31 N.m) LXM15MD28M3, 230 V, three phase
82.40 lbf.in (9.31 N.m) LXM15MD28N4, 230 V, three phase
82.40 lbf.in (9.31 N.m) LXM15MD28N4, 400 V, three phase
82.40 lbf.in (9.31 N.m) LXM15MD28N4, 480 V, three phase
82.40 lbf.in (9.31 N.m) LXM15MD40N4, 230 V, three phase
82.40 lbf.in (9.31 N.m) LXM05AD34N4, 380...480 V, three phase
82.40 lbf.in (9.31 N.m) LXM05AD42M3X, 200...240 V, three phase
82.40 lbf.in (9.31 N.m) LXM05AD57N4, 380...480 V, three phase
82.40 lbf.in (9.31 N.m) LXM05BD34N4, 380...480 V, three phase
82.40 lbf.in (9.31 N.m) LXM05BD42M3X, 200...240 V, three phase
82.40 lbf.in (9.31 N.m) LXM05BD57N4, 380...480 V, three phase
82.40 lbf.in (9.31 N.m) LXM05CD34N4, 380...480 V, three phase
82.40 lbf.in (9.31 N.m) LXM05CD42M3X, 200...240 V, three phase
82.40 lbf.in (9.31 N.m) LXM05CD57N4, 380...480 V, three phase
Peak stall torque 335.4 lbf.in (37.9 N.m) LXM32.D30N4 10 A, 400 V, three phase
335.4 lbf.in (37.9 N.m) LXM32.D30N4 10 A, 480 V, three phase
227.5 lbf.in (25.7 N.m) LXM15MD28M3, 230 V, three phase
227.5 lbf.in (25.7 N.m) LXM15MD28N4, 230 V, three phase
227.5 lbf.in (25.7 N.m) LXM15MD28N4, 400 V, three phase
227.5 lbf.in (25.7 N.m) LXM15MD28N4, 480 V, three phase
299.42 lbf.in (33.83 N.m) LXM15MD40N4, 230 V, three phase
299.42 lbf.in (33.83 N.m) LXM15MD40N4, 400 V, three phase
299.42 lbf.in (33.83 N.m) LXM15MD40N4, 480 V, three phase
207.73 lbf.in (23.47 N.m) LXM05AD34N4, 380...480 V, three phase
316.0 lbf.in (35.7 N.m) LXM05AD42M3X, 200...240 V, three phase
316.0 lbf.in (35.7 N.m) LXM05AD57N4, 380...480 V, three phase
207.73 lbf.in (23.47 N.m) LXM05BD34N4, 380...480 V, three phase
316.0 lbf.in (35.7 N.m) LXM05BD42M3X, 200...240 V, three phase
316.0 lbf.in (35.7 N.m) LXM05BD57N4, 380...480 V, three phase
207.73 lbf.in (23.47 N.m) LXM05CD34N4, 380...480 V, three phase
316.0 lbf.in (35.7 N.m) LXM05CD42M3X, 200...240 V, three phase
316.0 lbf.in (35.7 N.m) LXM05CD57N4, 380...480 V, three phase
Nominal output power 2600 W LXM32.D30N4 10 A, 480 V, three phase
2100 W LXM32.D30N4 10 A, 400 V, three phase
1300 W LXM05AD42M3X, 200...240 V, three phase
1300 W LXM05BD42M3X, 200...240 V, three phase
1300 W LXM05CD42M3X, 200...240 V, three phase
1300 W LXM15MD28M3, 230 V, three phase
1300 W LXM15MD28N4, 230 V, three phase
1300 W LXM15MD40N4, 230 V, three phase
2200 W LXM05AD34N4, 380...480 V, three phase
2200 W LXM05AD57N4, 380...480 V, three phase
2200 W LXM05BD34N4, 380...480 V, three phase
2200 W LXM05BD57N4, 380...480 V, three phase
2200 W LXM05CD34N4, 380...480 V, three phase
2200 W LXM05CD57N4, 380...480 V, three phase
2200 W LXM15MD28N4, 400 V, three phase
2300 W LXM15MD40N4, 400 V, three phase
2400 W LXM15MD40N4, 480 V, three phase
2700 W LXM15MD28N4, 480 V, three phase
Nominal torque 73.5 lbf.in (8.3 N.m) LXM32.D30N4 10 A, 400 V, three phase
73.5 lbf.in (8.3 N.m) LXM32.D30N4 10 A, 480 V, three phase
57.5 lbf.in (6.5 N.m) LXM15MD28N4, 480 V, three phase
59.21 lbf.in (6.69 N.m) LXM15MD40N4, 480 V, three phase
62.0 lbf.in (7 N.m) LXM15MD28N4, 400 V, three phase
62.8 lbf.in (7.1 N.m) LXM05AD34N4, 380...480 V, three phase
62.8 lbf.in (7.1 N.m) LXM05AD57N4, 380...480 V, three phase
62.8 lbf.in (7.1 N.m) LXM05BD34N4, 380...480 V, three phase
62.8 lbf.in (7.1 N.m) LXM05BD57N4, 380...480 V, three phase
62.8 lbf.in (7.1 N.m) LXM05CD34N4, 380...480 V, three phase
62.8 lbf.in (7.1 N.m) LXM05CD57N4, 380...480 V, three phase
63.46 lbf.in (7.17 N.m) LXM15MD40N4, 400 V, three phase
72.40 lbf.in (8.18 N.m) LXM15MD40N4, 230 V, three phase
72.75 lbf.in (8.22 N.m) LXM05AD42M3X, 200...240 V, three phase
72.75 lbf.in (8.22 N.m) LXM05BD42M3X, 200...240 V, three phase
72.75 lbf.in (8.22 N.m) LXM05CD42M3X, 200...240 V, three phase
72.75 lbf.in (8.22 N.m) LXM15LD28M3, 230 V, three phase
72.75 lbf.in (8.22 N.m) LXM15MD28N4, 230 V, three phase
Nominal speed 2500 rpm LXM32.D30N4 10 A, 400 V, three phase
3000 rpm LXM32.D30N4 10 A, 480 V, three phase
1500 rpm LXM05AD42M3X, 200...240 V, three phase
1500 rpm LXM05BD42M3X, 200...240 V, three phase
1500 rpm LXM05CD42M3X, 200...240 V, three phase
3000 rpm LXM05AD34N4, 380...480 V, three phase
3000 rpm LXM05BD34N4, 380...480 V, three phase
3000 rpm LXM05CD34N4, 380...480 V, three phase
1500 rpm LXM15MD28M3, 230 V, three phase
1500 rpm LXM15MD28N4, 230 V, three phase
1500 rpm LXM15MD40N4, 230 V, three phase
3000 rpm LXM05AD57N4, 380...480 V, three phase
3000 rpm LXM05BD57N4, 380...480 V, three phase
3000 rpm LXM05CD57N4, 380...480 V, three phase
3000 rpm LXM15MD28N4, 400 V, three phase
3000 rpm LXM15MD40N4, 400 V, three phase
3500 rpm LXM15MD40N4, 480 V, three phase
4000 rpm LXM15MD28N4, 480 V, three phase
Product compatibility LXM05AD42M3X 200...240 V three phase
LXM05BD42M3X 200...240 V three phase
LXM05CD42M3X 200...240 V three phase
LXM05AD34N4 380...480 V three phase
LXM05BD34N4 380...480 V three phase
LXM05CD34N4 380...480 V three phase
LXM15MD28N4 400 V three phase
LXM15MD28N4 480 V three phase
LXM15MD40N4 400 V three phase
LXM15MD40N4 480 V three phase
LXM32.D30N4 400 V three phase
LXM32.D30N4 480 V three phase
LXM05AD57N4 380...480 V three phase
LXM05BD57N4 380...480 V three phase
LXM05CD57N4 380...480 V three phase
LXM15MD28M3 230 V three phase
LXM15MD28N4 230 V three phase
LXM15MD40N4 230 V three phase
Shaft end Untapped
IP Degree of Protection IP50 standard
Speed feedback resolution 131072 points/turn
Holding brake Without
Mounting Support International standard flange
Electrical Connection Straight connectors

Complementary

Characteristic Value(s)
Range Compatibility Lexium 15
Lexium 32
Lexium 05
supply voltage max 480 V
Phase Three phase
Continuous stall current 6.2 A
maximum continuous power 3.64 W
Maximum current Irms 34.8 A LXM15LD28M3
34.8 A LXM15MD28N4
34.8 A LXM15MD40N4
32.3 A LXM05AD42M3X
32.3 A LXM05AD34N4
32.3 A LXM05AD57N4
32.3 A LXM05BD42M3X
32.3 A LXM05BD34N4
32.3 A LXM05BD57N4
32.3 A LXM05CD42M3X
32.3 A LXM05CD34N4
32.3 A LXM05CD57N4
30 A LXM32.D30N4
Maximum permanent current 32.3 A
Switching frequency 8 kHz
Second shaft Without second shaft end
Shaft diameter 0.9 in (24 mm)
Shaft length 2.0 in (50 mm)
Feedback type Single turn SinCos Hiperface
Motor flange size 3.9 in (100 mm)
Number of motor stacks 4
Torque constant 1.62 N.m/A 248 °F (120 °C)
Back emf constant 103 V/krpm 248 °F (120 °C)
Number of motor poles 8
Rotor inertia 4.22 kg.cm²
Stator resistance 1.81 Ohm 68 °F (20 °C)
Stator inductance 11.8 mH 68 °F (20 °C)
Stator electrical time constant 6.52 ms 68 °F (20 °C)
Maximum radial force Fr 1070 N 1000 rpm
740 N 3000 rpm
850 N 2000 rpm
Maximum axial force Fa 0.2 x Fr
type of cooling Natural convection
Length 10.9 in (276.5 mm)
Centring collar diameter 3.7 in (95 mm)
centring collar depth 0.1 in (3.5 mm)
Number of mounting holes 4
Mounting holes diameter 0.4 in (9 mm)
Circle diameter of the mounting holes 4.5 in (115 mm)
Product Weight 20.9 lb(US) (9.5 kg)
Sizing reference BSH1004P
Network number of phases 3
Accuracy error [angular] 1.4 °
Temperature copper hot 248 °F (120 °C)
Temperature magnet hot 212 °F (100 °C)
Temperature magnet rt 68 °F (20 °C)
Price on request
Ask for quote

Notify Me When Available
