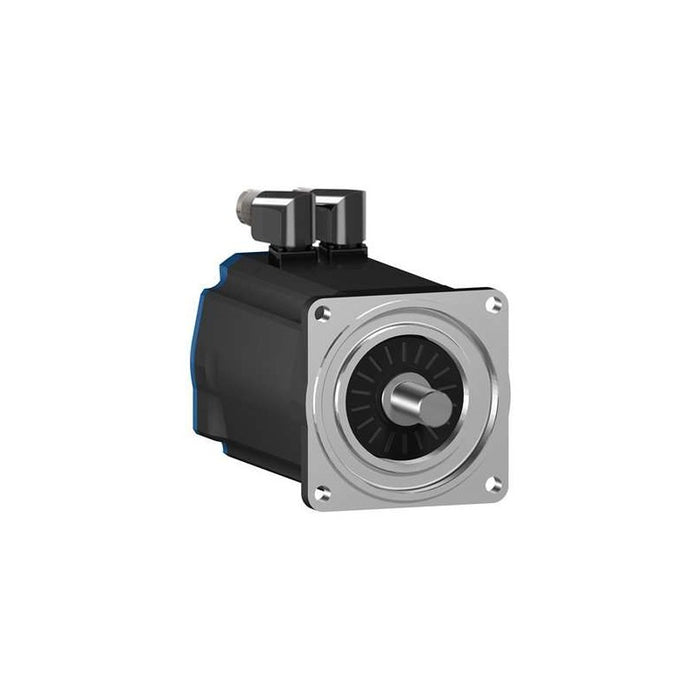

BSH1001T01F2A Schneider

BSH1001T01F2A Schneider

Main

Characteristic Value(s)
Device short name BSH
Product or Component Type Servo motor
Maximum mechanical speed 6000 rpm
Continuous stall torque 29.2 lbf.in (3.3 N.m) LXM32.D30M2 10 A, 115 V, single phase
30.004 lbf.in (3.39 N.m) LXM15LD28M3, 230 V, three phase
30.09 lbf.in (3.4 N.m) LXM05AD28F1, 110...120 V, single phase
30.09 lbf.in (3.4 N.m) LXM05AD28M2 6 A, 200...240 V, single phase
30.09 lbf.in (3.4 N.m) LXM05AD42M3X, 200...240 V, three phase
30.09 lbf.in (3.4 N.m) LXM05BD28F1, 110...120 V, single phase
30.09 lbf.in (3.4 N.m) LXM05BD28M2, 200...240 V, single phase
30.09 lbf.in (3.4 N.m) LXM05BD42M3X, 200...240 V, three phase
30.09 lbf.in (3.4 N.m) LXM05CD28F1, 110...120 V, single phase
30.09 lbf.in (3.4 N.m) LXM05CD28M2, 200...240 V, single phase
30.09 lbf.in (3.4 N.m) LXM05CD42M3X, 200...240 V, three phase
23.9 lbf.in (2.7 N.m) LXM32.D18M2 6 A, 230 V, single phase
Peak stall torque 55.8 lbf.in (6.3 N.m) LXM32.D30M2 10 A, 115 V, single phase
75.2 lbf.in (8.5 N.m) LXM05AD28F1, 110...120 V, single phase
75.2 lbf.in (8.5 N.m) LXM05AD28M2, 200...240 V, single phase
75.2 lbf.in (8.5 N.m) LXM05BD28F1, 110...120 V, single phase
75.2 lbf.in (8.5 N.m) LXM05BD28M2, 200...240 V, single phase
75.2 lbf.in (8.5 N.m) LXM05CD28F1, 110...120 V, single phase
75.2 lbf.in (8.5 N.m) LXM05CD28M2, 200...240 V, single phase
66.4 lbf.in (7.5 N.m) LXM32.D18M2 6 A, 230 V, single phase
75.2 lbf.in (8.5 N.m) LXM15LD28M3, 230 V, three phase
75.2 lbf.in (8.5 N.m) LXM05AD42M3X, 200...240 V, three phase
75.2 lbf.in (8.5 N.m) LXM05BD42M3X 6 A, 200...240 V, three phase
75.2 lbf.in (8.5 N.m) LXM05CD42M3X, 200...240 V, three phase
Nominal output power 700 W LXM32.D30M2 10 A, 115 V, single phase
900 W LXM32.D18M2 6 A, 230 V, single phase
500 W LXM05AD28F1, 110...120 V, single phase
500 W LXM05BD28F1, 110...120 V, single phase
500 W LXM05CD28F1 6 A, 110...120 V, single phase
900 W LXM05AD28M2, 200...240 V, single phase
900 W LXM05BD28M2, 200...240 V, single phase
900 W LXM05CD28M2, 200...240 V, single phase
1150 W LXM15LD28M3, 230 V, three phase
900 W LXM05AD42M3X, 200...240 V, three phase
900 W LXM05BD42M3X, 200...240 V, three phase
900 W LXM05CD42M3X, 200...240 V, three phase
Nominal torque 24.34 lbf.in (2.75 N.m) LXM32.D30M2 10 A, 115 V, single phase
25.7 lbf.in (2.9 N.m) LXM05AD28M2, 200...240 V, single phase
25.7 lbf.in (2.9 N.m) LXM05BD28M2, 200...240 V, single phase
25.7 lbf.in (2.9 N.m) LXM05CD28M2, 200...240 V, single phase
27.97 lbf.in (3.16 N.m) LXM05AD28F1, 110...120 V, single phase
27.97 lbf.in (3.16 N.m) LXM05BD28F1, 110...120 V, single phase
27.97 lbf.in (3.16 N.m) LXM05CD28F1, 110...120 V, single phase
19.5 lbf.in (2.2 N.m) LXM32.D18M2 6 A, 230 V, single phase
24.34 lbf.in (2.75 N.m) LXM15LD28M3, 230 V, three phase
25.7 lbf.in (2.9 N.m) LXM05AD42M3X, 200...240 V, three phase
25.7 lbf.in (2.9 N.m) LXM05BD42M3X 6 A, 200...240 V, three phase
25.7 lbf.in (2.9 N.m) LXM05CD42M3X, 200...240 V, three phase
Nominal speed 2500 rpm LXM32.D30M2 10 A, 115 V, single phase
3000 rpm LXM05AD28M2, 200...240 V, single phase
3000 rpm LXM05BD28M2, 200...240 V, single phase
3000 rpm LXM05CD28M2, 200...240 V, single phase
3000 rpm LXM05AD42M3X, 200...240 V, three phase
3000 rpm LXM05BD42M3X, 200...240 V, three phase
3000 rpm LXM05CD42M3X, 200...240 V, three phase
4000 rpm LXM32.D18M2 6 A, 230 V, single phase
1500 rpm LXM05AD28F1, 110...120 V, single phase
1500 rpm LXM05BD28F1, 110...120 V, single phase
1500 rpm LXM05CD28F1 6 A, 110...120 V, single phase
4000 rpm LXM15LD28M3, 230 V, three phase
Product compatibility LXM05AD28F1 110...120 V single phase
LXM05AD28M2 200...240 V single phase
LXM05BD28F1 110...120 V single phase
LXM05BD28M2 200...240 V single phase
LXM05CD28F1 110...120 V single phase
LXM05CD28M2 200...240 V single phase
LXM32.D30M2 115 V single phase
LXM32.D18M2 230 V single phase
LXM05AD42M3X 200...240 V three phase
LXM05BD42M3X 200...240 V three phase
LXM05CD42M3X 200...240 V three phase
LXM15LD28M3 230 V three phase
Shaft end Untapped
IP Degree of Protection IP50 standard
Speed feedback resolution 131072 points/turn
Holding brake With
Mounting Support International standard flange
Electrical Connection Rotatable right-angled connectors

Complementary

Characteristic Value(s)
Range Compatibility Lexium 05
Lexium 32
Lexium 15
supply voltage max 480 V
Phase Three phase
Continuous stall current 7.3 A
maximum continuous power 1.6 W
Maximum current Irms 18 A LXM32.D18M2 230 V
15 A LXM32.D30M2 115 V
23 A LXM15LD28M3
25.1 A LXM05AD28F1
25.1 A LXM05AD28M2 115 V
25.1 A LXM05AD42M3X
25.1 A LXM05BD28F1
25.1 A LXM05BD28M2
25.1 A LXM05BD42M3X
25.1 A LXM05CD28F1
25.1 A LXM05CD28M2
25.1 A LXM05CD42M3X
Maximum permanent current 25.1 A
Switching frequency 8 kHz
Second shaft Without second shaft end
Shaft diameter 0.7 in (19 mm)
Shaft length 1.6 in (40 mm)
Feedback type Single turn SinCos Hiperface
Holding torque 79.7 lbf.in (9 N.m) holding brake
Motor flange size 3.9 in (100 mm)
Number of motor stacks 1
Torque constant 0.45 N.m/A 248 °F (120 °C)
Back emf constant 29 V/krpm 248 °F (120 °C)
Number of motor poles 4.0
Rotor inertia 2.018 kg.cm²
Stator resistance 0.87 Ohm 68 °F (20 °C)
Stator inductance 2.15 mH 68 °F (20 °C)
Stator electrical time constant 4.6 ms 68 °F (20 °C)
Maximum radial force Fr 530 N 5000 rpm
570 N 4000 rpm
630 N 3000 rpm
720 N 2000 rpm
900 N 1000 rpm
Maximum axial force Fa 0.2 x Fr
Brake pull-in power 18 W
type of cooling Natural convection
Length 7.9 in (199.5 mm)
Centring collar diameter 3.7 in (95 mm)
centring collar depth 0.1 in (3.5 mm)
Number of mounting holes 4
Mounting holes diameter 0.4 in (9 mm)
Circle diameter of the mounting holes 4.5 in (115 mm)
Product Weight 10.6 lb(US) (4.8 kg)
Sizing reference BSH1001T
Network number of phases 3
Accuracy error [angular] 1.4 °
Temperature copper hot 248 °F (120 °C)
Temperature magnet hot 212 °F (100 °C)
Temperature magnet rt 68 °F (20 °C)
