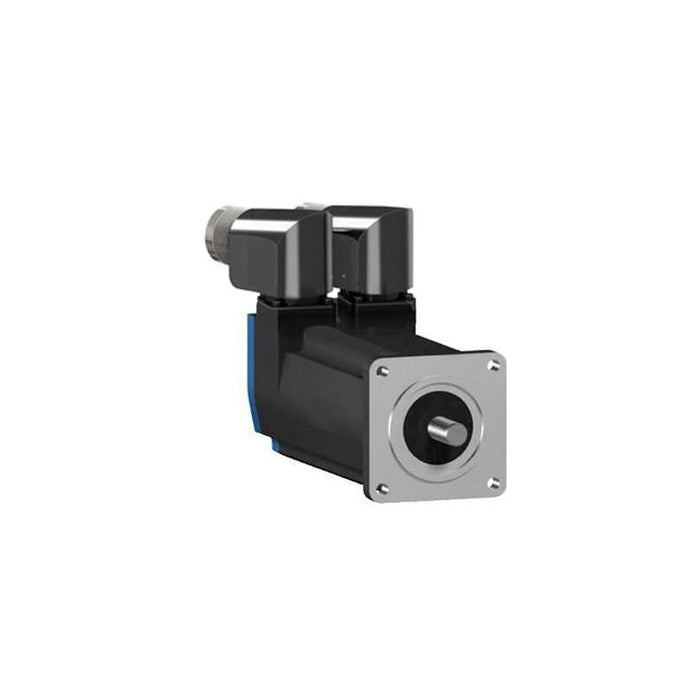

BSH0553T11F2A Schneider

BSH0553T11F2A Schneider

Main

Characteristic Value(s)
Device short name BSH
Product or Component Type Servo motor
Maximum mechanical speed 9000 rpm
Continuous stall torque 10.6 lbf.in (1.2 N.m) LXM32.U90M2 3 A, 230 V, single phase
11.5 lbf.in (1.3 N.m) LXM05AD17F1, 110...120 V, single phase
11.5 lbf.in (1.3 N.m) LXM05AD17M2, 200...240 V, single phase
11.5 lbf.in (1.3 N.m) LXM05BD17F1, 110...120 V, single phase
11.5 lbf.in (1.3 N.m) LXM05BD17M2, 200...240 V, single phase
11.5 lbf.in (1.3 N.m) LXM05CD17F1, 110...120 V, single phase
11.5 lbf.in (1.3 N.m) LXM05CD17M2, 200...240 V, single phase
10.6 lbf.in (1.2 N.m) LXM32.D18M2 6 A, 115 V, single phase
11.5 lbf.in (1.3 N.m) LXM05AD17M3X, 200...240 V, three phase
11.5 lbf.in (1.3 N.m) LXM05BD17M3X 6 A, 200...240 V, three phase
11.5 lbf.in (1.3 N.m) LXM05CD17M3X, 200...240 V, three phase
Peak stall torque 26.6 lbf.in (3 N.m) LXM32.U90M2 3 A, 230 V, single phase
29.30 lbf.in (3.31 N.m) LXM05AD17F1, 110...120 V, single phase
29.30 lbf.in (3.31 N.m) LXM05AD17M2, 200...240 V, single phase
29.30 lbf.in (3.31 N.m) LXM05BD17F1, 110...120 V, single phase
29.30 lbf.in (3.31 N.m) LXM05BD17M2, 200...240 V, single phase
29.30 lbf.in (3.31 N.m) LXM05CD17F1, 110...120 V, single phase
29.30 lbf.in (3.31 N.m) LXM05CD17M2, 200...240 V, single phase
29.2 lbf.in (3.3 N.m) LXM32.D18M2 6 A, 115 V, single phase
29.30 lbf.in (3.31 N.m) LXM05AD17M3X, 200...240 V, three phase
29.30 lbf.in (3.31 N.m) LXM05BD17M3X 6 A, 200...240 V, three phase
29.30 lbf.in (3.31 N.m) LXM05CD17M3X, 200...240 V, three phase
Nominal output power 550 W LXM32.U90M2 3 A, 230 V, single phase
350 W LXM05AD17F1, 110...120 V, single phase
350 W LXM05AD17M2, 200...240 V, single phase
350 W LXM05BD17F1, 110...120 V, single phase
350 W LXM05BD17M2, 200...240 V, single phase
350 W LXM05CD17F1, 110...120 V, single phase
350 W LXM05CD17M2, 200...240 V, single phase
350 W LXM32.D18M2 6 A, 115 V, single phase
350 W LXM05AD17M3X, 200...240 V, three phase
350 W LXM05BD17M3X 6 A, 200...240 V, three phase
350 W LXM05CD17M3X, 200...240 V, three phase
Nominal torque 7.43 lbf.in (0.84 N.m) LXM32.U90M2 3 A, 230 V, single phase
9.7 lbf.in (1.1 N.m) LXM05AD17F1, 110...120 V, single phase
9.7 lbf.in (1.1 N.m) LXM05AD17M2, 200...240 V, single phase
9.7 lbf.in (1.1 N.m) LXM05BD17F1, 110...120 V, single phase
9.7 lbf.in (1.1 N.m) LXM05BD17M2, 200...240 V, single phase
9.7 lbf.in (1.1 N.m) LXM05CD17F1, 110...120 V, single phase
9.7 lbf.in (1.1 N.m) LXM05CD17M2, 200...240 V, single phase
10.09 lbf.in (1.14 N.m) LXM32.D18M2 6 A, 115 V, single phase
9.7 lbf.in (1.1 N.m) LXM05AD17M3X, 200...240 V, three phase
9.7 lbf.in (1.1 N.m) LXM05BD17M3X 6 A, 200...240 V, three phase
9.7 lbf.in (1.1 N.m) LXM05CD17M3X, 200...240 V, three phase
Nominal speed 6000 rpm LXM32.U90M2 3 A, 230 V, single phase
3000 rpm LXM05AD17F1, 110...120 V, single phase
3000 rpm LXM05BD17F1, 110...120 V, single phase
3000 rpm LXM05CD17F1, 110...120 V, single phase
3000 rpm LXM05AD17M2, 200...240 V, single phase
3000 rpm LXM05BD17M2, 200...240 V, single phase
3000 rpm LXM05CD17M2, 200...240 V, single phase
3000 rpm LXM32.D18M2 6 A, 115 V, single phase
3000 rpm LXM05AD17M3X, 200...240 V, three phase
3000 rpm LXM05BD17M3X 6 A, 200...240 V, three phase
3000 rpm LXM05CD17M3X, 200...240 V, three phase
Product compatibility LXM05AD17F1 110...120 V single phase
LXM05AD17M2 200...240 V single phase
LXM05BD17F1 110...120 V single phase
LXM05BD17M2 200...240 V single phase
LXM05CD17F1 110...120 V single phase
LXM05CD17M2 200...240 V single phase
LXM32.U90M2 230 V single phase
LXM32.D18M2 115 V single phase
LXM05AD17M3X 200...240 V three phase
LXM05BD17M3X 200...240 V three phase
LXM05CD17M3X 200...240 V three phase
Shaft end Keyed
IP Degree of Protection IP50 standard
Speed feedback resolution 131072 points/turn
Holding brake With
Mounting Support International standard flange
Electrical Connection Rotatable right-angled connectors

Complementary

Characteristic Value(s)
Range Compatibility Lexium 05
Lexium 32
supply voltage max 480 V
Phase Three phase
Continuous stall current 3.1 A
maximum continuous power 0.97 W
Maximum current Irms 11.9 A LXM05AD17F1
11.9 A LXM05AD17M2
11.9 A LXM05AD17M3X
11.9 A LXM05BD17F1
11.9 A LXM05BD17M2
11.9 A LXM05BD17M3X
11.9 A LXM05CD17F1
11.9 A LXM05CD17M2
11.9 A LXM05CD17M3X
10 A LXM32.D18M2
9 A LXM32.U90M2
Maximum permanent current 11.9 A
Switching frequency 8 kHz
Second shaft Without second shaft end
Shaft diameter 0.4 in (9 mm)
Shaft length 0.8 in (20 mm)
key width 0.5 in (12 mm)
Feedback type Single turn SinCos Hiperface
Holding torque 7.08 lbf.in (0.8 N.m) holding brake
Motor flange size 2.2 in (55 mm)
Number of motor stacks 3
Torque constant 0.39 N.m/A 248 °F (120 °C)
Back emf constant 22 V/krpm 248 °F (120 °C)
Number of motor poles 3.0
Rotor inertia 0.1553 kg.cm²
Stator resistance 3.1 Ohm 68 °F (20 °C)
Stator inductance 3.9 mH 68 °F (20 °C)
Stator electrical time constant 2.39 ms 68 °F (20 °C)
Maximum radial force Fr 190 N 8000 rpm
200 N 7000 rpm
210 N 6000 rpm
230 N 5000 rpm
240 N 4000 rpm
270 N 3000 rpm
310 N 2000 rpm
390 N 1000 rpm
Maximum axial force Fa 0.2 x Fr
Brake pull-in power 10 W
type of cooling Natural convection
Length 8.0 in (203 mm)
Centring collar diameter 1.6 in (40 mm)
centring collar depth 0.08 in (2 mm)
Number of mounting holes 4
Mounting holes diameter 0.2 in (5.5 mm)
Circle diameter of the mounting holes 2.5 in (63 mm)
Product Weight 4.2 lb(US) (1.9 kg)
Sizing reference BSH0553T
Network number of phases 3
Accuracy error [angular] 1.4 °
Temperature copper hot 248 °F (120 °C)
Temperature magnet hot 212 °F (100 °C)
Temperature magnet rt 68 °F (20 °C)
