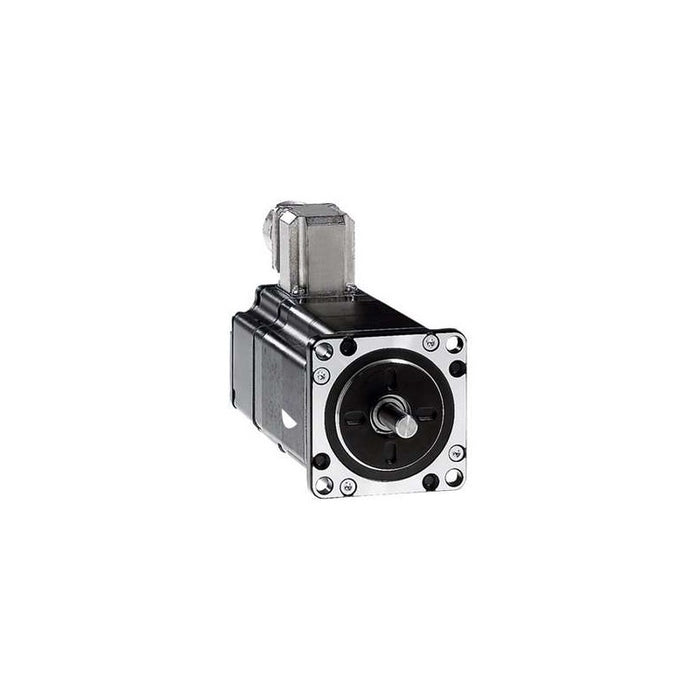

| Characteristic | Value(s) |
|---|---|
| centring collar depth | 0.06 in (1.6 mm) |
| Number of mounting holes | 4 |
| Mounting holes diameter | 0.2 in (5.2 mm) |
| Circle diameter of the mounting holes | 2.6 in (66.6 mm) |
| Electrical Connection | Connector |
| Holding brake | Without |
| Shaft end | Smooth shaft |
| Second shaft | Without second shaft end |
| Shaft diameter | 0.3 in (8 mm) |
| Shaft length | 0.8 in (21 mm) |
| nominal torque | 13.3 lbf.in (1.5 N.m) |
| Peak stall torque | 13.54 lbf.in (1.53 N.m) |
| Continuous stall torque | 13.54 lbf.in (1.53 N.m) |
| Holding torque | 15.05 lbf.in (1.7 N.m) |
| Rotor inertia | 0.38 kg.cm² |
| Resolution | 1.8 °, 0.9 °, 0.72 °, 0.36 °, 0.18 °, 0.09 °, 0.072 °, 0.036 ° step angle 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps number of full steps per revolution |
| Accuracy error | +/- 6 arc min |
| Maximum starting frequency | 8.5 kHz |
| Line Rated Current | 0.9 A |
| Resistance | 25 Ohm winding) |
| Time constant | 4.6 ms |
| Maximum radial force Fr | 25 N second shaft end) 50 N first shaft end) |
| Maximum axial force Fa | 100 N tensile force) 8.4 N force pressure) |
| Service life in hours | 20000 h bearing) |
| Angular acceleration | 200000 rad/s² |
| Product Weight | 4.4 lb(US) (2 kg) |
