1 year warranty

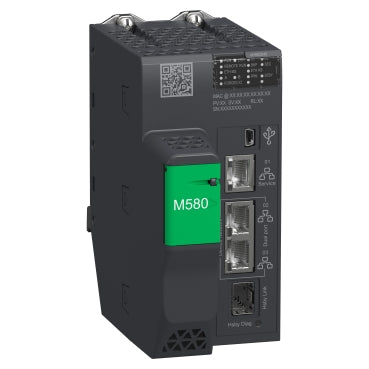

The BMEH582040 is a redundant Hot Standby (HSBY) processor module designed for the Schneider Electric Modicon M580 series of programmable automation controllers. This Level 2 remote processor module is engineered for medium to large process applications requiring high availability through redundant architecture. The module features an Ethernet backbone for optimized connectivity and communications, supporting X80 common modules for flexible system integration. It provides comprehensive control capabilities with support for 8192 discrete and 2048 analog local I/O channels, as well as 64 distributed equipment connections. The processor includes multiple integrated Ethernet TCP/IP ports for service and device networks, USB mini-B connectivity, and a dedicated HSBY port for redundancy management. The module operates with internal power supply via rack and offers 600,000 hours MTBF for reliable continuous operation.
Item Details
- Brand Name: Schneider Electric
- Manufacturer: Schneider Electric
- Item Type Name: Redundant HSBY Processor Module
- Product Family / Series: Modicon M580
- Model Number: BMEH582040
- Processor Level: Level 2 - Remote
- Configuration Type: Redundant HSBY (Hot Standby)
Product Specifications
- program_memory: 8 MB RAM
- data_memory: 768 kB RAM
- system_memory: 10 kB RAM
- expandable_flash: 4 GB
- discrete_io_channels: 8192
- analog_io_channels: 2048
- distributed_equipment_support: 64
- ethernet_devices_supported: 61
- maximum_local_racks: 8
- maximum_remote_io_racks: 8
- rack_configuration: 1 rack maximum
- current_consumption: 270 mA at 24 V DC
- mtbf: 600000 hours
- power_supply: Internal via rack
- ip_rating: IP20
Additional Details
- Lifecycle Status: Production
- Certifications / Approvals: CE, Merchant Navy, UL, RCM, CSA, EAC
- Cybersecurity Certification: Achilles Level 2
- Compliance: Green Premium, REACH Compliant
Measurements
- Weight: 0.849 kg
