1 year warranty
Ask for quote

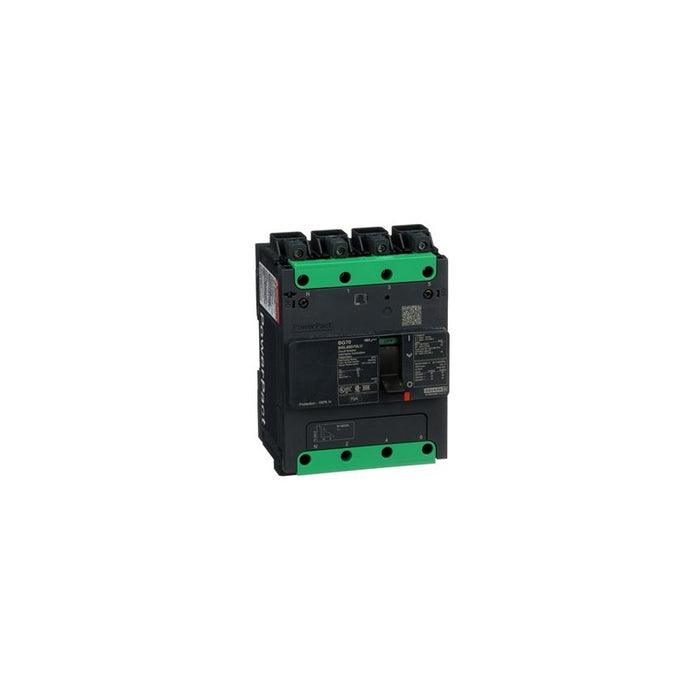

| Characteristic | Value(s) |
|---|---|
| Line Rated Current | 70 A |
| Number of Poles | 4P |
| Protected poles description | 4t |
| Control Type | Toggle |
| Breaking capacity code | G |
| Breaking capacity | 65 kA 208Y/120 V AC 50/60 Hz UL 489 65 kA 240 V AC 50/60 Hz UL 489 35 kA 480/277 V AC 50/60 Hz UL 489 35 kA 480 V AC 50/60 Hz UL 489 20 kA 250 V DC UL 489 18 kA 600Y/347 V AC 50/60 Hz UL 489 |
| [Ue] rated operational voltage | 525 V AC 50/60 Hz UL 489 |
| Network Frequency | 50/60 Hz |
| [Ics] rated service breaking capacity | 65 kA 220...240 V AC 50/60 Hz IEC 60947-2 18 kA 500...525 V AC 50/60 Hz IEC 60947-2 35 kA 380...415 V AC 50/60 Hz IEC 60947-2 35 kA 440 V AC 50/60 Hz IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 8 kV IEC 60947-2 |
| Trip unit technology | Thermal-magneticTM-D, |
| Continuous current rating | 80 % |
| [Ui] rated insulation voltage | 800 V IEC 60947-2 |
| Trip unit name | TM-D |
| Suitability for isolation | Yes IEC 60947-2 |
| Utilisation category | Category A |
| Mechanical durability | 15000 cycles IEC 947-1 Annex K ed 5.2 |
| Electrical durability | 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In |
| Connection pitch | 1.06 in (27 mm) |
| AWG gauge | AWG 6...AWG 2/0 fine stranded aluminium/copper AWG 14...AWG 3/0 rigid or stranded aluminium/copper |
| Local signalling | Presence of auxiliary contacts flag green) |
| Mounting mode | Clip-on 35 mm symmetrical DIN rail) By screws plate) |
| Electrical connection | Everlink lug, line Everlink lug, load |
| Tightening torque | 44.3 lbf.in (5 N.m) 0.004â¦0.02 in² (2.5â¦16 mm²) (AWG 14...AWG 4) 79.7 lbf.in (9 N.m) 0.04â¦0.1 in² (25â¦95 mm²) (AWG 3...AWG 3/0) |
| Number of slots | 1 auxiliary switch OF plug-in) 1 voltage release MN or MX plug-in) 1 alarm switch SD plug-in) |
| Power wire stripping length | 0.8 in (20 mm) |
| Color | Gray RAL 7016) |
| 9 mm pitches | 12 |
| Height | 5.4 in (137 mm) |
| Width | 4.3 in (108 mm) |
| Depth | 3.1 in (80 mm) |
| Product Weight | 3.177 lb(US) (1.441 kg) |
| Quantity per Set | Set of 1 |
| Circuit breaker application | HACR rated |
