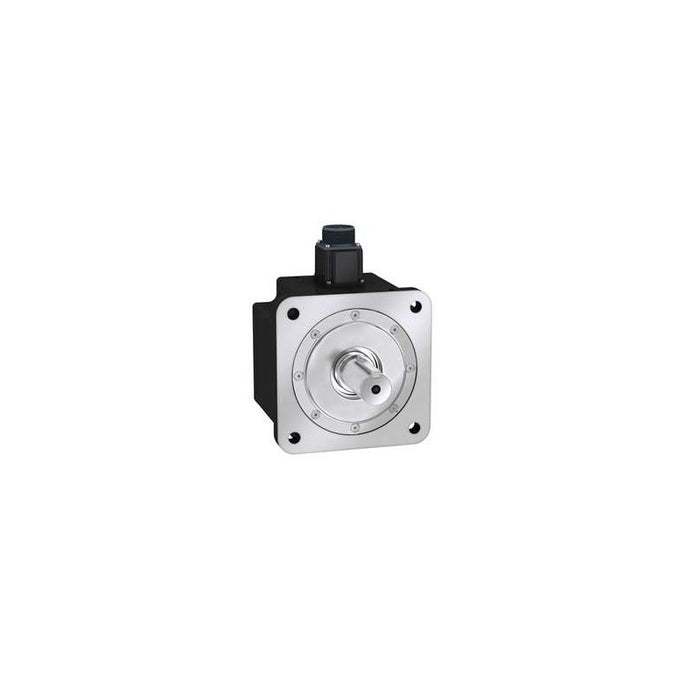

| Characteristic | Value(s) |
|---|---|
| Maximum mechanical speed | 3000 rpm |
| [Us] rated supply voltage | 220 V |
| Phase | Three phase |
| Continuous stall current | 16.49 A |
| Continuous stall torque | 169.05 lbf.in (19.1 N.m) LXM26D 19.8 A, 220 V, three phase 169.05 lbf.in (19.1 N.m) LXM28 19.8 A, 220 V, three phase |
| Continuous power | 3000 W |
| Peak stall torque | 507.06 lbf.in (57.29 N.m) LXM26D 19.8 A, 220 V, three phase 507.06 lbf.in (57.29 N.m) LXM28... 19.8 A, 220 V, three phase |
| Nominal output power | 3000 W LXM26D 19.8 A, 220 V, three phase 3000 W LXM28... 19.8 A, 220 V, three phase |
| Nominal torque | 169.05 lbf.in (19.1 N.m) LXM26D 19.8 A, 220 V, three phase 169.05 lbf.in (19.1 N.m) LXM28... 19.8 A, 220 V, three phase |
| Nominal speed | 1500 rpm LXM26D 19.8 A, 220 V, three phase 1500 rpm LXM28... 19.8 A, 220 V, three phase |
| Maximum current Irms | 58.4 A LXM26D 3 kW, 220 V 58.4 A LXM28... 3 kW, 220 V |
| Maximum permanent current | 18.8 A |
| Product compatibility | LXM26D servo drive 3 kW, 220 V, three phase LXM28... servo drive 3 kW, 220 V, three phase |
| Shaft end | Keyed |
| Shaft diameter | 1.4 in (35 mm) |
| Shaft length | 3.1 in (79 mm) |
| key width | 0.4 in (10 mm) |
| Feedback type | 20 bits single turn absolute encoder |
| Holding brake | Without |
| Mounting Support | Asian standard flange |
| Motor flange size | 7.09 in (180 mm) |
| Electrical connection | Connector MIL |
| Torque constant | 1.16 N.m/A 68 °F (20 °C) |
| Back emf constant | 70 V/krpm 68 °F (20 °C) |
| Number of motor poles | 5.0 |
| Rotor inertia | 53.56 kg.cm² |
| Stator resistance | 0.234 Ohm 68 °F (20 °C) |
| Stator inductance | 3.45 mH 68 °F (20 °C) |
| Stator electrical time constant | 20.94 ms 68 °F (20 °C) |
| Maximum radial force Fr | 1200 N 1500 rpm |
| Maximum axial force Fa | 497 N |
| Brake pull-in power | 49.6 W |
| type of cooling | Natural convection |
| Length | 8.0 in (202 mm) |
| Number of motor stacks | 2 |
| Centring collar diameter | 4.5 in (114.3 mm) |
| centring collar depth | 0.2 in (4 mm) |
| Number of mounting holes | 4 |
| Mounting holes diameter | 0.5 in (13.5 mm) |
| Circle diameter of the mounting holes | 7.9 in (200 mm) |
| Distance shaft shoulder-flange | 0.2 in (4 mm) |
| Product Weight | 40.8 lb(US) (18.5 kg) |
| Sizing reference | BCH2 |
| Network number of phases | 3 |
| Accuracy error [angular] | 0.044 ° |
| Coefficient 1_1 | -0.0000187500000003 N.m/rpm |
| Coefficient 1_2 | 0.000000000000000000562440546 N.m/rpm² |
| Coefficient 1_3 | -0.0000000000000000000002965143 N.m/rpm3 |
| Coefficient 1_4 | 0.0000000000000000000000000711 N.m/rpm4 |
| Coefficient 1_5 | -0.0000000000000000000000000000078919 N.m/rpm5 |
| Coefficient 1_6 | 0.00000000000000000000000000000000032 N.m/rpm6 |
| Saturation coefficient 1 | -0.0000000000000000038243890773 |
| Saturation coefficient 2 | -0.0078140960163432 |
| Saturation coefficient 3 | 0.000000000000000000158151428 |
| Coefficient 2_0 | 0.0000000000 lbf.in (0 N.m) |
| Coefficient 2_1 | 0.00000875000000000026 N.m/rpm |
| Temperature copper hot | 275 °F (135 °C) |
| Temperature magnet hot | 212 °F (100 °C) |
| Temperature magnet rt | 68 °F (20 °C) |
| Motor voltage drop coefficient | 1 |
