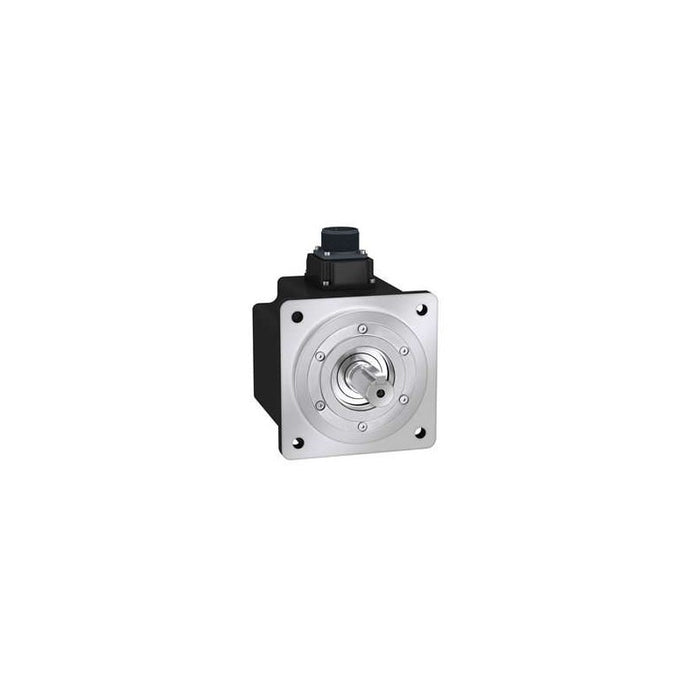

| Characteristic | Value(s) |
|---|---|
| Maximum mechanical speed | 3000 rpm |
| [Us] rated supply voltage | 220 V |
| Phase | Single phase Three phase |
| Continuous stall current | 5.62 A |
| Continuous stall torque | 47.71 lbf.in (5.39 N.m) LXM26D 7 A, 220 V, single phase 47.71 lbf.in (5.39 N.m) LXM26D 7 A, 220 V, three phase 47.71 lbf.in (5.39 N.m) LXM28 7 A, 220 V, single phase 47.71 lbf.in (5.39 N.m) LXM28 7 A, 220 V, three phase |
| Continuous power | 850 W |
| Peak stall torque | 122.1 lbf.in (13.8 N.m) LXM26D 7 A, 220 V, single phase 122.1 lbf.in (13.8 N.m) LXM26D 7 A, 220 V, three phase 122.1 lbf.in (13.8 N.m) LXM28... 7 A, 220 V, single phase 122.1 lbf.in (13.8 N.m) LXM28... 7 A, 220 V, three phase |
| Nominal output power | 850 W LXM26D 7 A, 220 V, single phase 850 W LXM26D 7 A, 220 V, three phase 850 W LXM28... 7 A, 220 V, single phase 850 W LXM28... 7 A, 220 V, three phase |
| Nominal torque | 47.71 lbf.in (5.39 N.m) LXM26D 7 A, 220 V, single phase 47.71 lbf.in (5.39 N.m) LXM26D 7 A, 220 V, three phase 47.71 lbf.in (5.39 N.m) LXM28... 7 A, 220 V, single phase 47.71 lbf.in (5.39 N.m) LXM28... 7 A, 220 V, three phase |
| Nominal speed | 1500 rpm LXM26D 7 A, 220 V, single phase 1500 rpm LXM26D 7 A, 220 V, three phase 1500 rpm LXM28... 7 A, 220 V, single phase 1500 rpm LXM28... 7 A, 220 V, three phase |
| Maximum current Irms | 14.96 A LXM28... 0.85 kW, 220 V |
| Maximum permanent current | 6.29 A |
| Product compatibility | LXM26D servo drive 0.85 kW, 220 V, single phase LXM26D servo drive 0.85 kW, 220 V, three phase LXM28... servo drive 0.85 kW, 220 V, single phase LXM28... servo drive 0.85 kW, 220 V, three phase |
| Shaft end | Keyed |
| Shaft diameter | 0.7 in (19 mm) |
| Shaft length | 1.9 in (48 mm) |
| key width | 0.2 in (6 mm) |
| Feedback type | 20 bits single turn absolute encoder |
| Holding brake | Without |
| Mounting Support | Asian standard flange |
| Motor flange size | 5.1 in (130 mm) |
| Electrical connection | Connector MIL |
| Torque constant | 0.96 N.m/A 68 °F (20 °C) |
| Back emf constant | 58 V/krpm 68 °F (20 °C) |
| Number of motor poles | 5.0 |
| Rotor inertia | 13.5 kg.cm² |
| Stator resistance | 0.34 Ohm 68 °F (20 °C) |
| Stator inductance | 4.3 mH 68 °F (20 °C) |
| Stator electrical time constant | 13.24 ms 68 °F (20 °C) |
| Maximum radial force Fr | 670 N 1500 rpm |
| Maximum axial force Fa | 200 N |
| Brake pull-in power | 19.7 W |
| type of cooling | Natural convection |
| Length | 7.4 in (187 mm) |
| Number of motor stacks | 4 |
| Centring collar diameter | 4.3 in (110 mm) |
| centring collar depth | 0.3 in (8 mm) |
| Number of mounting holes | 4 |
| Mounting holes diameter | 0.4 in (9.2 mm) |
| Circle diameter of the mounting holes | 5.7 in (145 mm) |
| Distance shaft shoulder-flange | 0.3 in (8 mm) |
| Product Weight | 21.2 lb(US) (9.6 kg) |
| Sizing reference | BCH2 |
| Network number of phases | 1 |
| Accuracy error [angular] | 0.044 ° |
| Temperature copper hot | 275 °F (135 °C) |
| Temperature magnet hot | 212 °F (100 °C) |
| Temperature magnet rt | 68 °F (20 °C) |
