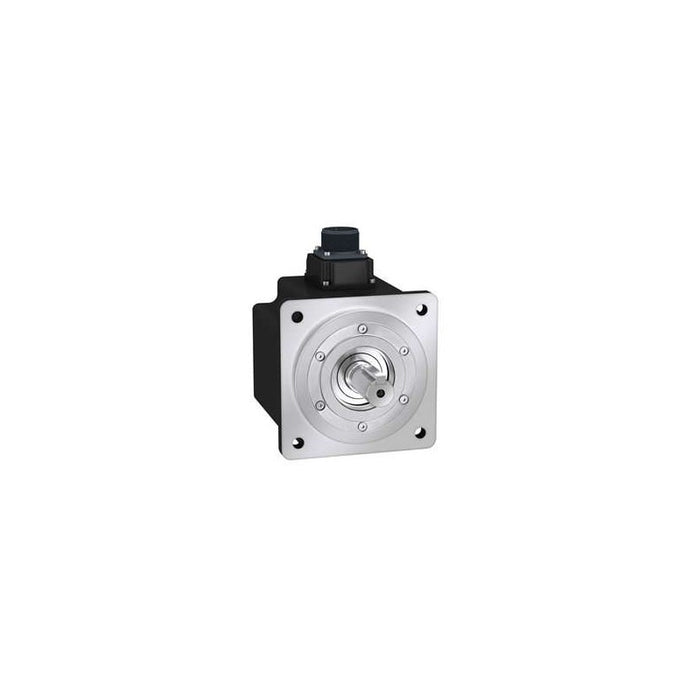

| Characteristic | Value(s) |
|---|---|
| Maximum mechanical speed | 3000 rpm |
| [Us] rated supply voltage | 220 V 110 V |
| Phase | Single phase Three phase |
| Continuous stall current | 1.88 A |
| Continuous stall torque | 25.31 lbf.in (2.86 N.m) LXM26D 2.6 A, 220 V, single phase 25.31 lbf.in (2.86 N.m) LXM26D 2.6 A, 220 V, three phase 25.31 lbf.in (2.86 N.m) LXM28 2.6 A, 220 V, single phase 25.31 lbf.in (2.86 N.m) LXM28 2.6 A, 220 V, three phase 25.31 lbf.in (2.86 N.m) LXM28 5.7 A, 110 V, single phase |
| Continuous power | 300 W |
| Peak stall torque | 76.03 lbf.in (8.59 N.m) LXM26D 2.6 A, 220 V, single phase 76.03 lbf.in (8.59 N.m) LXM26D 2.6 A, 220 V, three phase 76.03 lbf.in (8.59 N.m) LXM28... 2.6 A, 220 V, single phase 76.03 lbf.in (8.59 N.m) LXM28... 2.6 A, 220 V, three phase 76.03 lbf.in (8.59 N.m) LXM28... 5.7 A, 110 V, single phase |
| Nominal output power | 300 W LXM26D 2.6 A, 220 V, single phase 300 W LXM26D 2.6 A, 220 V, three phase 300 W LXM28... 2.6 A, 220 V, single phase 300 W LXM28... 2.6 A, 220 V, three phase 300 W LXM28... 5.7 A, 110 V, single phase |
| Nominal torque | 25.31 lbf.in (2.86 N.m) LXM26D 2.6 A, 220 V, single phase 25.31 lbf.in (2.86 N.m) LXM26D 2.6 A, 220 V, three phase 25.31 lbf.in (2.86 N.m) LXM28... 2.6 A, 220 V, single phase 25.31 lbf.in (2.86 N.m) LXM28... 2.6 A, 220 V, three phase 25.31 lbf.in (2.86 N.m) LXM28... 5.7 A, 110 V, single phase |
| Nominal speed | 1000 rpm LXM26D 2.6 A, 220 V, single phase 1000 rpm LXM26D 2.6 A, 220 V, three phase 1000 rpm LXM28... 2.6 A, 220 V, single phase 1000 rpm LXM28... 2.6 A, 220 V, three phase 1000 rpm LXM28... 5.7 A, 110 V, single phase |
| Maximum current Irms | 5.98 A LXM28... 0.3 kW, 220 V 5.98 A LXM28... 0.3 kW, 110 V |
| Maximum permanent current | 2.09 A |
| Product compatibility | LXM26D servo drive 0.3 kW, 220 V, single phase LXM26D servo drive 0.3 kW, 220 V, three phase LXM28... servo drive 0.3 kW, 220 V, single phase LXM28... servo drive 0.3 kW, 220 V, three phase LXM28... servo drive 0.3 kW, 110 V, single phase |
| Shaft end | Keyed |
| Shaft diameter | 0.9 in (22 mm) |
| Shaft length | 1.8 in (45 mm) |
| key width | 0.3 in (8 mm) |
| Feedback type | 20 bits single turn absolute encoder |
| Holding brake | Without |
| Mounting Support | Asian standard flange |
| Motor flange size | 5.1 in (130 mm) |
| Electrical connection | Connector MIL |
| Torque constant | 1.52 N.m/A 68 °F (20 °C) |
| Back emf constant | 92 V/krpm 68 °F (20 °C) |
| Number of motor poles | 5.0 |
| Rotor inertia | 6.63 kg.cm² |
| Stator resistance | 1.93 Ohm 68 °F (20 °C) |
| Stator inductance | 23.91 mH 68 °F (20 °C) |
| Stator electrical time constant | 12.9 ms 68 °F (20 °C) |
| Maximum radial force Fr | 670 N 1000 rpm |
| Maximum axial force Fa | 200 N |
| Brake pull-in power | 19.7 W |
| type of cooling | Natural convection |
| Length | 5.8 in (147 mm) |
| Number of motor stacks | 1 |
| Centring collar diameter | 4.3 in (110 mm) |
| centring collar depth | 0.3 in (8 mm) |
| Number of mounting holes | 4 |
| Mounting holes diameter | 0.4 in (9.2 mm) |
| Circle diameter of the mounting holes | 5.7 in (145 mm) |
| Distance shaft shoulder-flange | 0.3 in (8 mm) |
| Product Weight | 15.4 lb(US) (7 kg) |
| Sizing reference | BCH2 |
| Network number of phases | 1 |
| Accuracy error [angular] | 0.044 ° |
| Temperature copper hot | 275 °F (135 °C) |
| Temperature magnet hot | 212 °F (100 °C) |
| Temperature magnet rt | 68 °F (20 °C) |
