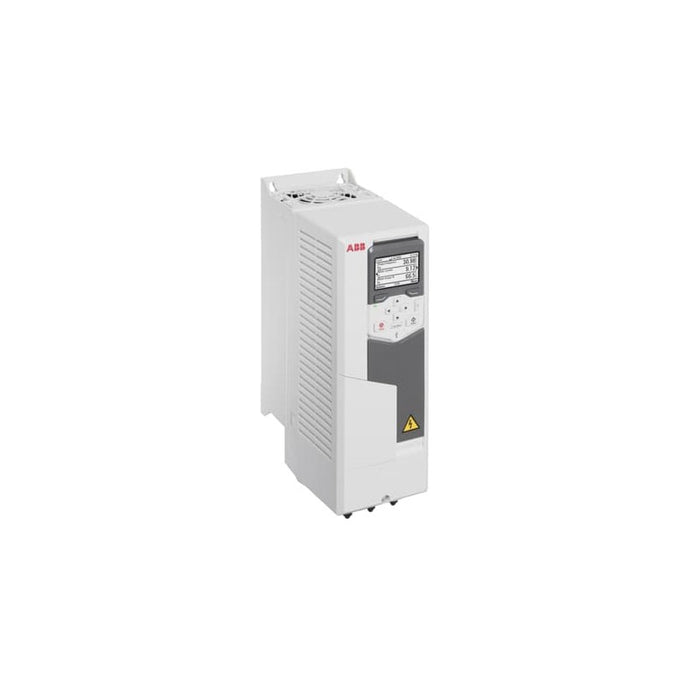

The ABB ACS580-01-09A4-4 is a general-purpose AC variable frequency drive designed for controlling three-phase motors in a wide range of industrial applications including pumps, fans, conveyors, compressors, extruders, centrifuges, and mixers. This wall-mounted drive operates on 380-415V three-phase supply and delivers a nominal output current of 9.4 A with a typical motor power rating of 4 kW in heavy-duty applications. It features Frame size R1 construction with built-in EMC filtering, multiple overload capabilities, and an intuitive assistant-based setup. The drive supports light-overload operation at 12 A (5.5 kW) with 110% overload capability for one minute every ten minutes, and offers a maximum output current of 14.1 A. Suitable for food and beverage, plastics, and other light industrial sectors, it provides precise speed and torque control with energy optimization functions.
Item Details
- Brand Name: ABB
- Manufacturer: ABB
- Item Type Name: AC Variable Frequency Drive
- Product Family / Series: ACS580
- Model Suffix: -01
- Frame Size: R1
Product Specifications
- nominal_voltage: 380-415 V, 3-phase
- nominal_output_current: 9.4 A
- maximum_output_current: 14.1 A
- light_overload_current: 12 A
- heavy_duty_current: 9.4 A
- nominal_power_output: 4 kW
- light_overload_power: 5.5 kW
- heavy_duty_power: 4 kW
- overload_capability_light: 110% for 1 min per 10 min
- overload_capability_heavy: 150% for 1 min per 10 min
- operating_temperature: -15 to +50 °C
- power_loss: 133 W
- heat_dissipation: 454 BTU/h
- cooling_airflow: 50 m³/h (29 ft³/min)
- fuse_rating_IEC: 16 A gG
- fuse_rating_UL: 15 A Class T
- braking_resistor_min: 54 Ω
- braking_resistor_max: 112 Ω
- max_braking_power: 3.5 kW
- ambient_temperature_range: -15 to +50 °C
- vibration_resistance: 1 mm (5-13.2 Hz), 7 m/s² (13.2-100 Hz)
- altitude_rating: Sea level to 1000 m (derate 1% per 100 m up to 4000 m)
- control_panel_languages: 16
- safety_rating: SIL 3, PL e
Additional Details
- Enclosure Type: Wall-mounted IP21
- Emc Compliance: Built-in EMC filter
- Safety Features: Safe torque off
- Motor Compatibility: AC motors, SynRM motors
- Fieldbus Support: All major protocols
- Setup Method: Built-in assistant functionality
Measurements
- Cooling Airflow: 50 m³/h
