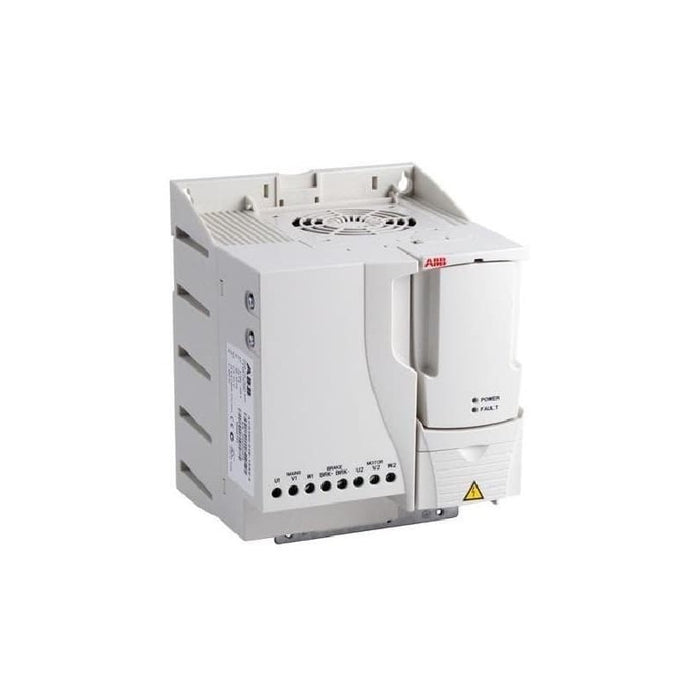

The ABB ACS355-03U-23A1-4 is a three-phase low voltage machinery AC drive designed for precise motor control in industrial applications. This micro drive is optimized for machine builders, system integrators, original equipment manufacturers, and panel builders. It features a compact R3 frame design with IP20 protection rating suitable for cabinet mounting. The drive is equipped with sensorless vector control for both induction and permanent magnet motors, built-in braking chopper, and Safe Torque Off (STO) function certified to SIL3 safety standards. It supports quick commissioning through application macros and panel assistants, making it ideal for material handling, food and beverage processing, rubber, plastics, woodworking, textile, printing, and lifting applications. The drive offers exceptional connectivity and uniform dimensions that facilitate flexible installation in restricted spaces.
Item Details
- Brand Name: ABB
- Manufacturer: ABB
- Item Type Name: Variable Frequency Drive (VFD)
- Product Family / Series: ACS355
- Model Number: ACS355-03U-23A1-4
- Abb Type Code: 3AUA0000058222
- Frame Size: R3
Product Specifications
- input_voltage: 380-480 V AC
- output_voltage: 480 V AC
- phases: 3-phase
- rated_output_current: 23.1 A
- motor_power_rating_kw: 11 kW
- motor_power_rating_hp: 15 hp
- frequency_range: 48-63 Hz
- overload_capacity: 110% for 1 minute per 10 minutes
- control_method: Sensorless vector control
- motor_compatibility: Induction motors and permanent magnet motors
- protection_class: IP20
- operating_temperature: -10 to 40 °C
- operating_temperature_extended: 50 °C with 10% derating
- relative_humidity: Lower than 95% without condensation
- altitude_rating: 0 to 1000 m (full rating), derate 1% per 100 m from 1000 to 2000 m
- enclosure_type: Open (IP20)
- display_type: Advanced Control Panel (Blank Panel standard)
- mounting_type: Cabinet mounting
- safety_function: Safe Torque Off (SIL3)
- braking_chopper: Built-in
Additional Details
- Enclosure Color: Gray/White
- Enclosure Material: Extruded Aluminum/Sheet Steel
- Contamination Class Operation: Class 3C2 (chemical gases), Class 3S2 (solid particles)
- Contamination Class Storage: Class 2C2 (chemical gases), Class 2S2 (solid particles)
- Contamination Class Transport: Class 1C2 (chemical gases), Class 1S2 (solid particles)
- Iec Contamination Standard: IEC721-3-3 no conductive dust allowed
- Gtin: 06438177223979
- Upc: 6438177223979
Measurements
- Weight: 2.5 kg
- Height: 236 mm
- Width: 169 mm
- Depth: 169 mm
